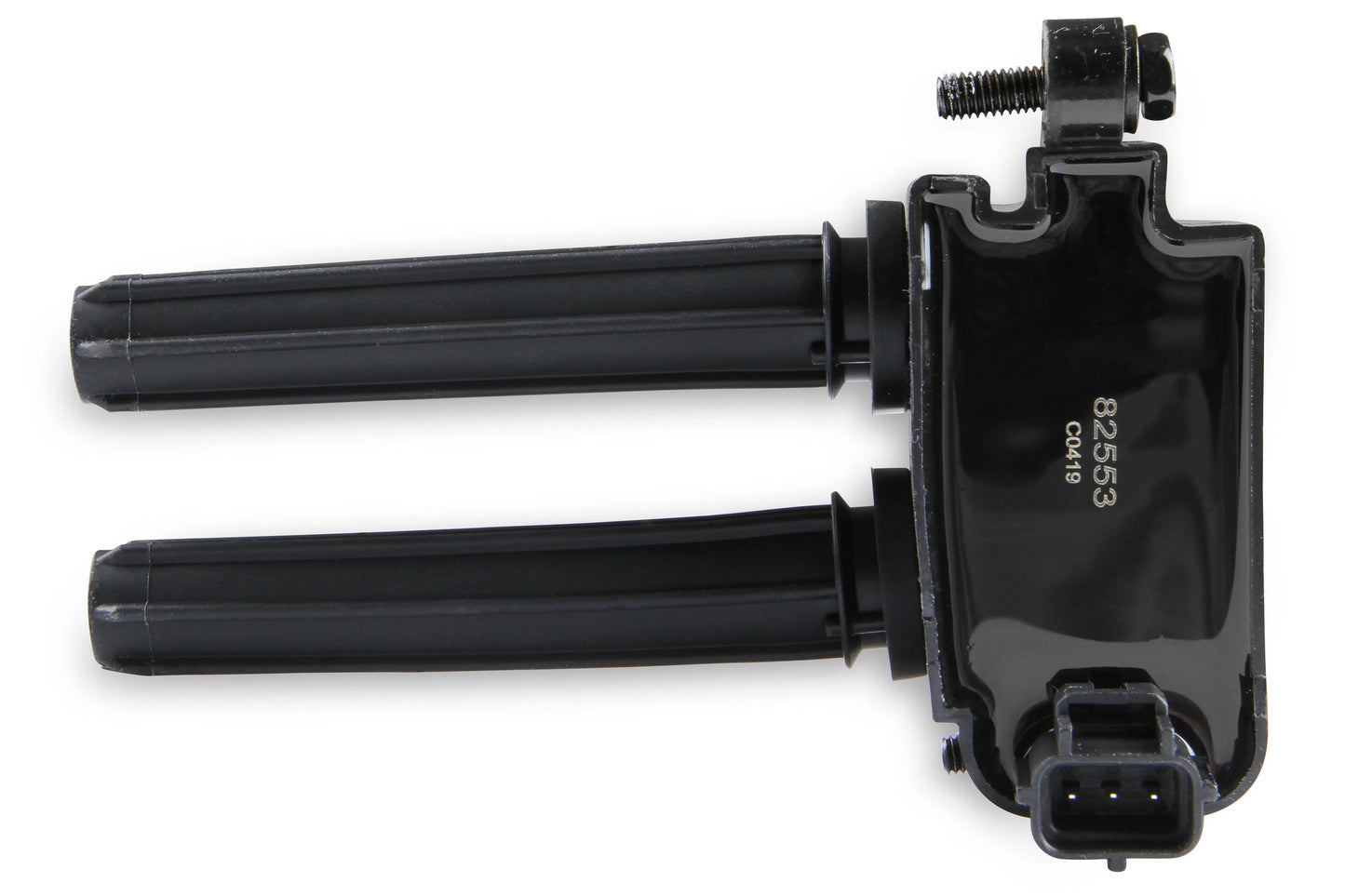

IGNITION COILS,05-20 MOPAR HEMI,5.7L,6.1L,BLACK,8PK

Brand New MSD Ignition Coil Blaster HEMI, Black, 8-Pack (Part #825583).

Look no further when it's time to tune up your HEMI.  Bolt on legendary ignition performance with MSD's direct replacement coils that are spec'd with superior materials and winding ratios to improve output while retaining the factory fit.

NOTE: 2005 Application may require visual Inspection to determine coil part number. The logo will be upside down on the 6.2L Hellcat engine (this doesn't matter from a performance standpoint).

Fits:

• 2005-2020 Chrysler, Dodge, & Jeep HEMI - 5.7L/6.1L/6.2L/6.4L

Features:

• Improved high rpm operation

• Patented winding design and materials

• Direct bolt-in to factory location

• Easy Plug-in to factory connectors

Specs:

• Engine: Chrysler Gen III Hemi

• Inductance: 2.15 mH

• Maximum Voltage: 36000

• Primary Resistance: .403 ohms

• Product Type: Ignition Coil

• Quantity: Set of 8

• Secondary Resistance: 14.5K ohms

• Spark duration: 1320 mS

• Spark Energy: 96 mJ

• Turns Ratio: 3.334027


You can view and download the assembly/instruction booklet here.
