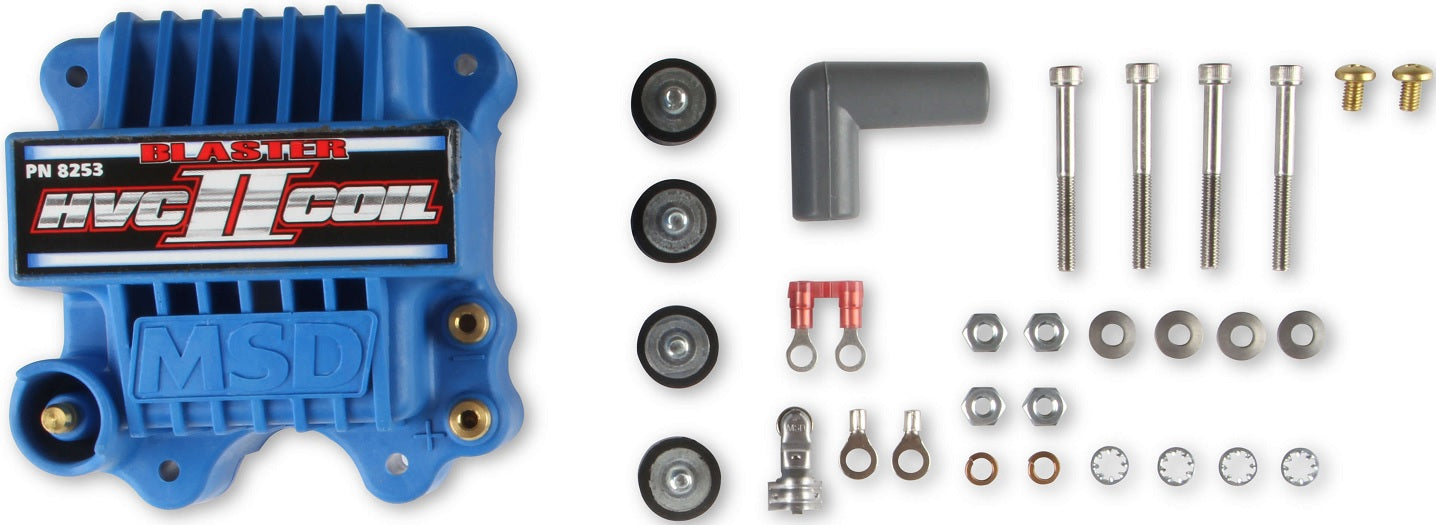

COIL,BLASTER HVC II,6 SERIES IGNITIONS

NEW MSD HVC-2 SERIES IGNITION COIL, 6 SERIES IGNITION CONTROL, BLUE, 3.5 MH INDUCTANCE, 44,000 VOLTS, 100:1 TURNS RATIO

THE BLASTER HVC COIL UTILIZES AN IRON U-CORE DESIGN WITH A SEGMENTED BOBBIN FOR IMPROVED VOLTAGE DISTRIBUTION. THE BOBBIN IS MOLDED FROM A SPECIAL DUPONT RYNITE MATERIAL & WOUND SPECIFICALLY TO PRODUCE THE MOST CURRENT POSSIBLE WITH INCREDIBLE VOLTAGE & LIGHTNING QUICK RISE TIME.

FEATURES:

• DESIGNED FOR HIGH RPM, LONG DURATION APPLICATIONS USING MSD 6 SERIES IGNITIONS
• NEW U-CORE WINDING DESIGN PRODUCES MORE VOLTAGE & CURRENT
• 100:1 TURNS RATIO & LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• WINDINGS ARE ENCASED IN FRACTURE RESISTANT COMPOUND FOR VIBRATION RESISTANCE
• DUPONT RYNITE HOUSING WITH ISOLATED TOWER & BRASS PRIMARY TERMINALS
• SUPPLIED WITH RUBBER SHOCK MOUNTS
• NO CARB EXEMPTION ORDER NUMBER

SPECS:

• EMISSION CODE: 4
• INDUCTANCE: 3.5 MH
• MAXIMUM VOLTAGE: 44,000 VOLTS
• PEAK CURRENT: 450 MA
• PRIMARY RESISTANCE: .16 OHMS
• PRODUCT TYPE: COIL
• SECONDARY RESISTANCE: 630 OHMS
• SPARK DURATION: 450 US
• TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION BOX HERE.
