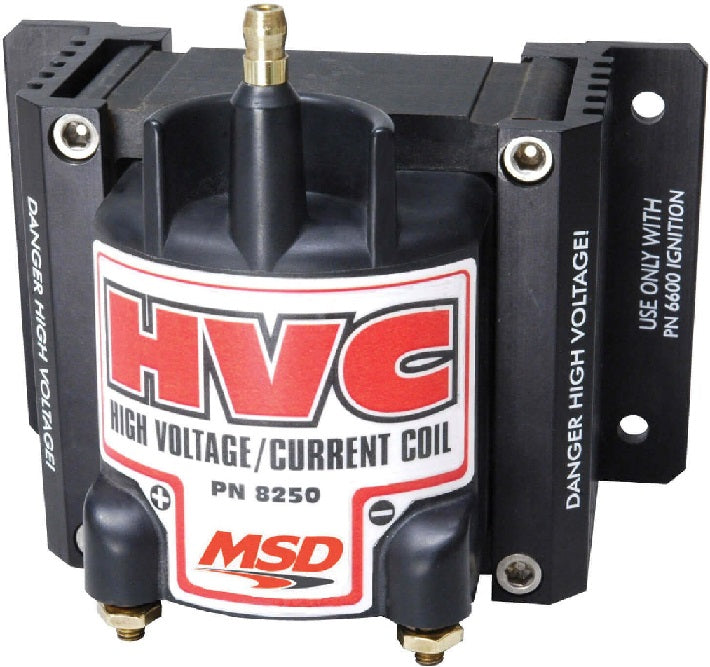

COIL,MSD 6 HVC,MSD 6 SERIES PROFESSIONAL

BRAND NEW MSD IGNITION COIL, BLACK FINISH, 6 HVC, COMPATIBLE WITH HVC PROFESSIONAL RACING IGNITION CONTROL

THE E-CORE DESIGN OF THE HVC COIL IS MORE EFFICIENT IN PRODUCING MORE OUTPUT WITH LESS LOSS. DESIGNED TO BE USED EXCLUSIVELY COMPATIBLE WITH MSD 6 HVC SERIES IGNITION CONTROLS (#6631, #6632). THIS COIL IS NOT COMPATIBLE WITH ANY OTHER MSD IGNITION CONTROL OR SIMILAR AFTERMARKET IGNITION.

FEATURES:

• E-CORE DESIGN PRODUCES MORE VOLTAGE AND CURRENT WHILE RUNNING 50% COOLER THAN CANISTER COILS
• MASSIVE LAMINATIONS & WINDINGS ARE ENGINEERED FOR LESS ENERGY LOSS
• DELIVERS HIGH VOLTAGE TO IONIZE THE PLUG GAP WHILE THE SPARK GLOWS WITH HIGH CURRENT

SPECS:

• BRAND: MSD
• COLOR: BLACK
• INDUCTANCE: 3MH
• MAXIMUM VOLTAGE: 34,000 VOLTS
• PEAK CURRENT: 600 MA
• PRIMARY RESISTANCE: .07 OHMS
• PRODUCT TYPE: IGNITION COILS
• SECONDARY RESISTANCE: 360 OHMS
• SPARK DURATION: 200 US
• TURNS RATIO: 100:1
• TYPE: CIRCLE TRACK

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
