IGNITION COIL,CPC,SINGLE

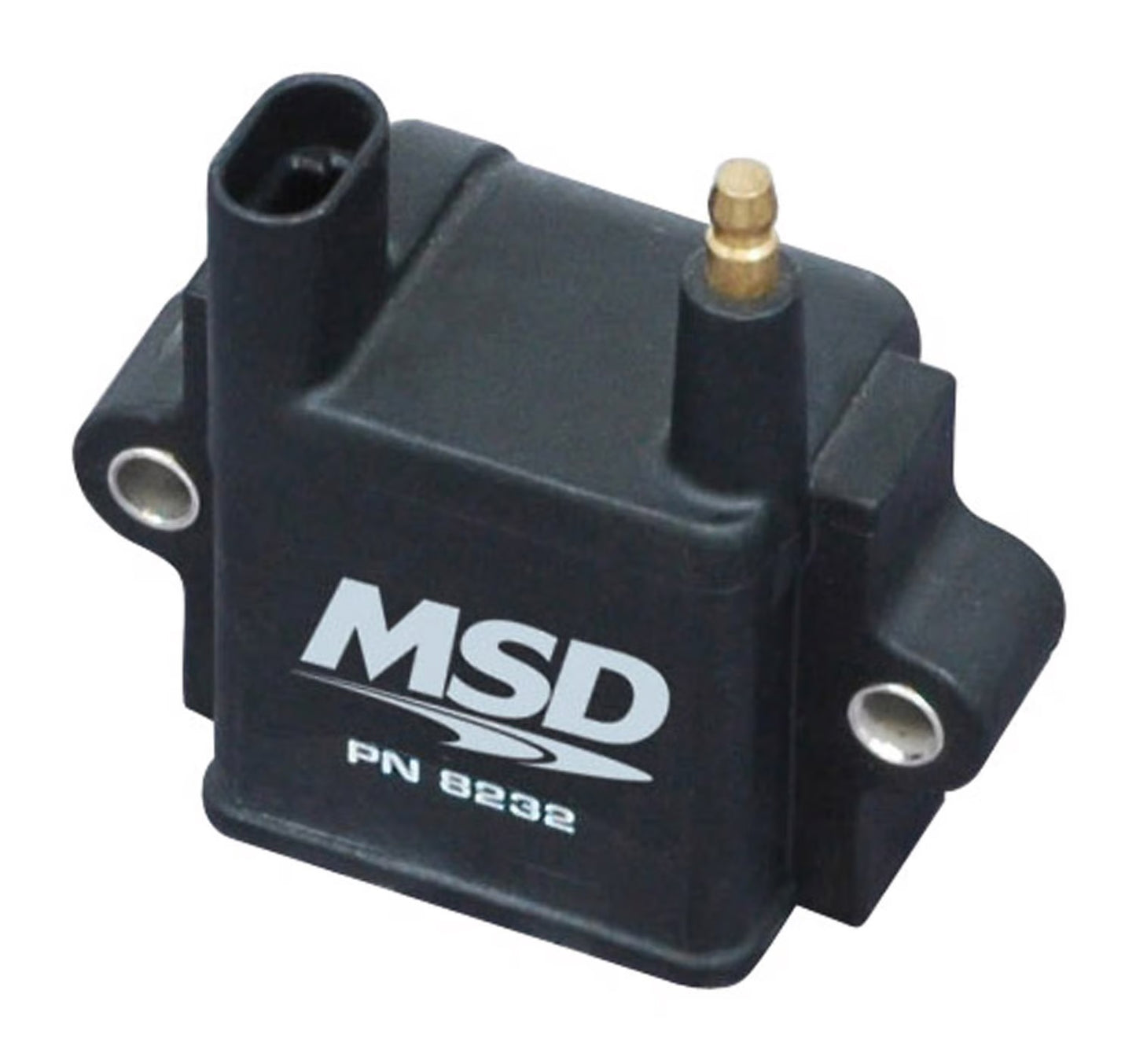

Brand New MSD Ignition Coil (Single Tower), CPC Ignition Control, Black, Individual (Part #8232).

For performance applications with multi-channel coil drivers, this Single Tower Blaster Coil is a great choice. The Coil will also top off your MSD DIS-HO Ignition system when it is set up for a coil-per-cylinder ignition system. The coils low resistance and quick rise time make it ideal for high revving, multi-coil performance systems.

Features:

• Designed exclusively for the MSD CPC Ignition Control

• 85:1 turns ratio and lower primary resistance produce high voltage output

• Dupont Rynite housing with a tall tower and isolated primary terminals

• No CARB Exemption Order Number

Specs:

Bolt Spacing: 2.90 in.
Inductance: 3.7 mH
Maximum Voltage: 43,000 Volts
Peak Current: 800 mA
Primary Resistance: .09 OHMs
Secondary Resistance: 988 OHMs
Spark duration: 380 uS
Spark Energy: 195 mJ
Turns Ratio: 3.542361
Type: Drag Race / Short Duration Use

You can view and download the assembly/instruction booklet here.
