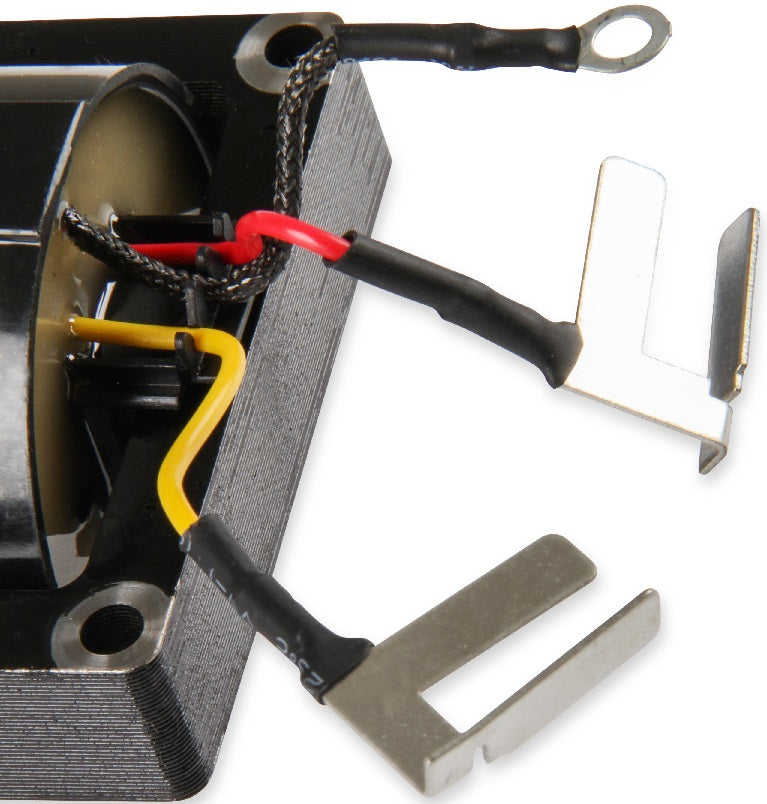

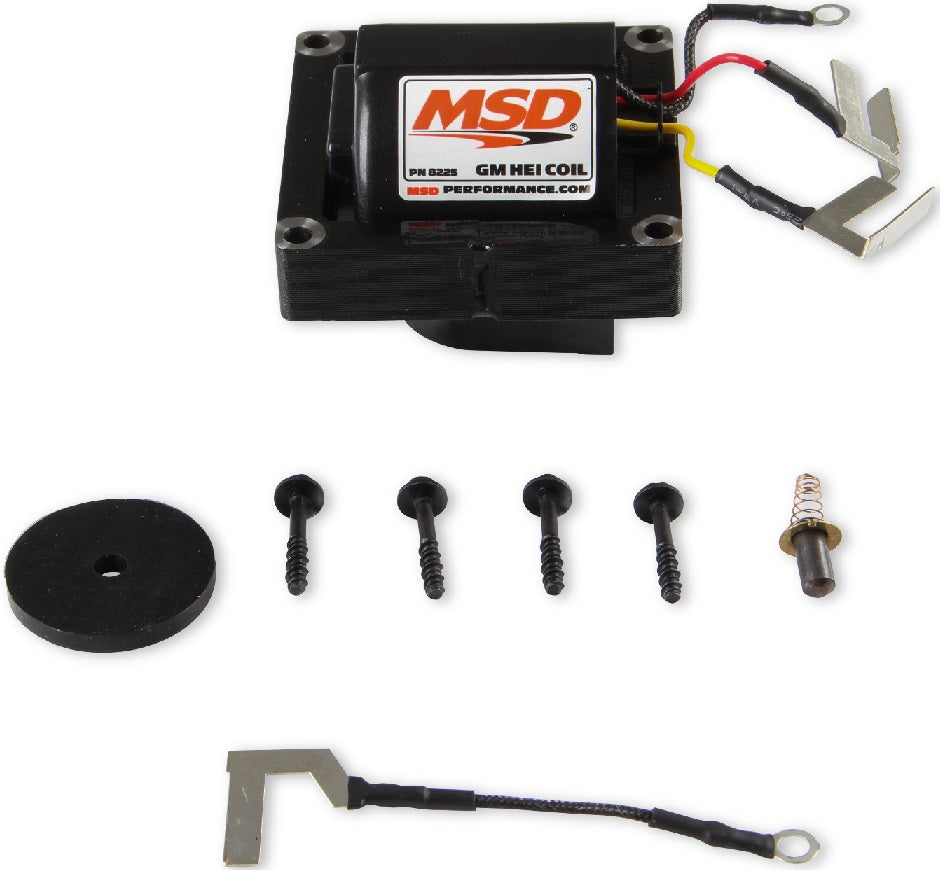

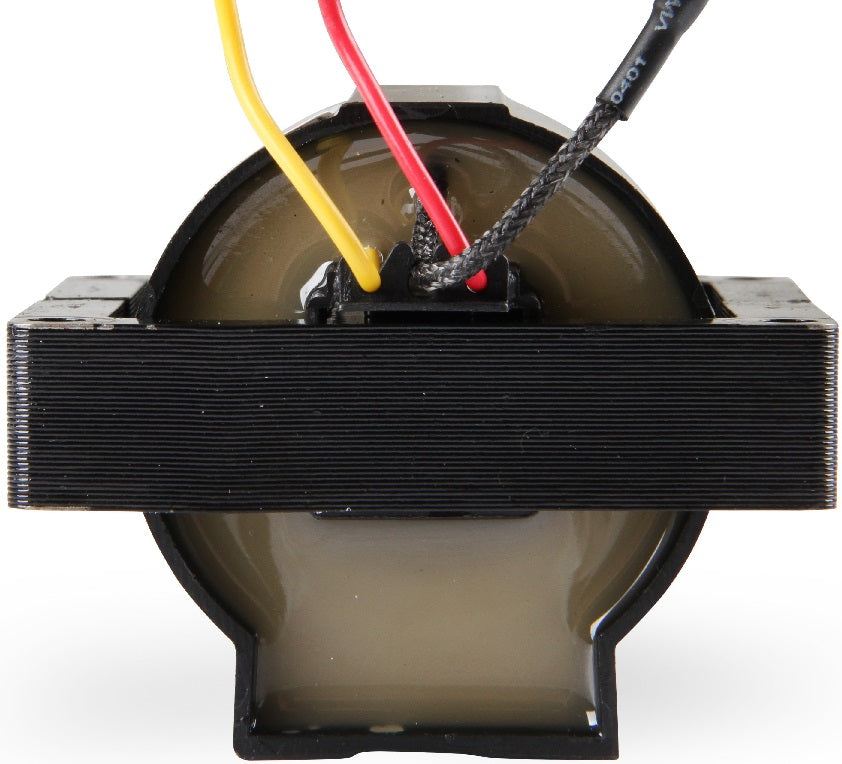

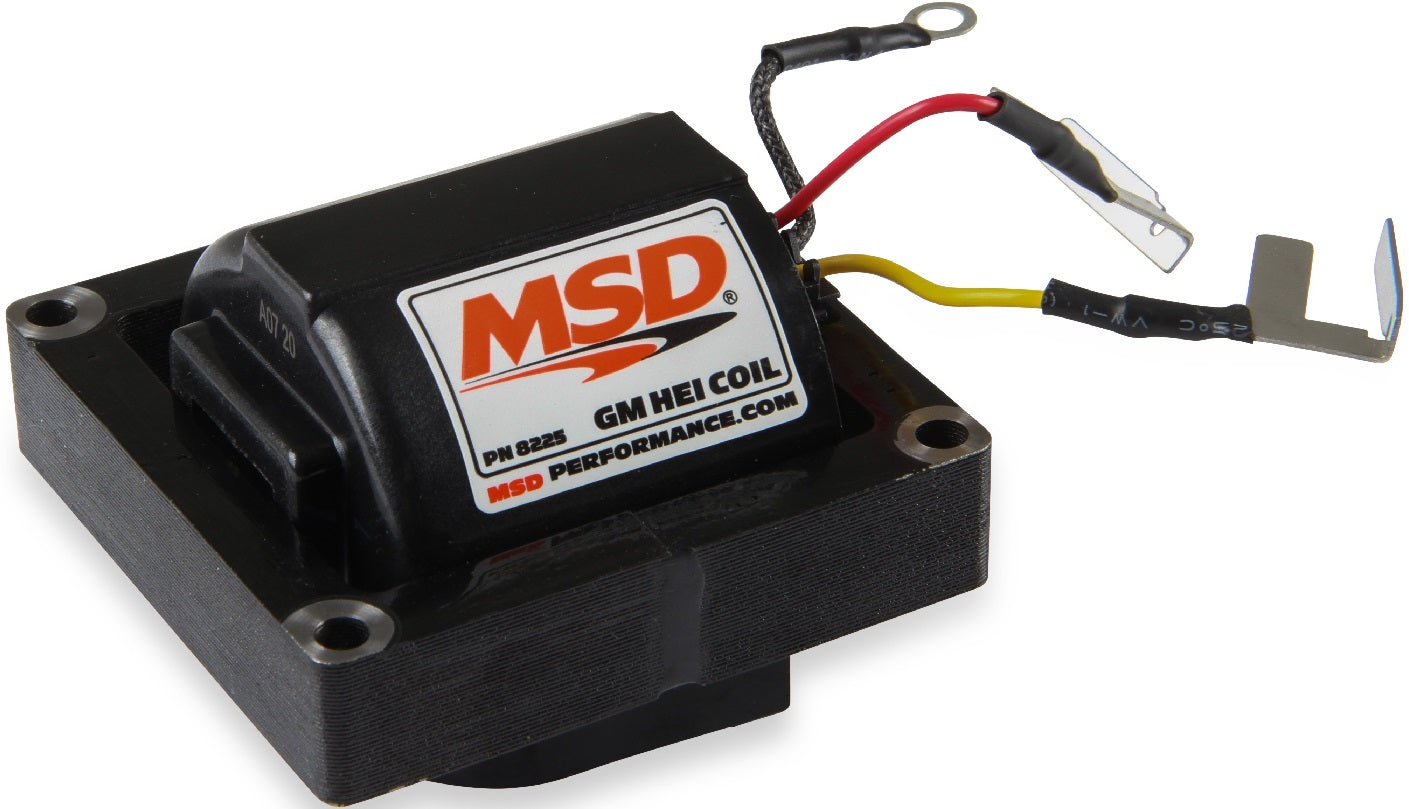

COIL,DISTRIBUTOR,GM HEI,42,000V

BRAND NEW MSD IGNITION COIL, BLACK FINISH, 42,000 MAX VOLTAGE, COMPATIBLE WITH GM HEI DISTRIBUTORS

HEI OWNERS NOW HAVE A CHOICE TO REPLACE THEIR STOCK COIL WITH THE MSD HIGH ENERGY UNITIZED COIL FOR GM HEI DISTRIBUTORS. THIS COIL IS A DIRECT REPLACEMENT OF THE STOCK COIL AND OFFERS INCREASED SPARK ENERGY WHEN USED WITH THE MSD HEI MODULE, PART #83647. THE MSD HEI COIL IS DESIGNED TO BE COMPATIBLE WITH THE MSD HIGH OUTPUT HEI MODULE, PART #8364. IT IS COMPATIBLE WITH STOCK IGNITION MODULES, BUT FOR MAX OUTPUT USE THE MSD HEI MODULE.

FEATURES:

• DIRECT PERFORMANCE REPLACEMENT FOR GM HEI COIL-IN-CAP DISTRIBUTORS
• 70:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• FULL POWER SPARKS TO 9,000 RPM WHEN USED WITH 83647 MSD HEI MODULE
• COMPATIBLE WITH MSD HEI MODULE PART #83647

SPECS:

• BRAND: MSD
• INDUCTANCE: 3.5 MH
• MAXIMUM VOLTAGE: 42,000 VOLTS
• PEAK CURRENT: 200 MA
• PRIMARY RESISTANCE: .31 OHMS
• PRODUCT TYPE: IGNITION COILS
• SECONDARY RESISTANCE: 9.2K OHMS
• SPARK DURATION: 200 US
• TURNS RATIO: 70:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
