BLASTER COIL,HIGH VIBRATION

BLASTER COIL,HIGH VIBRATION

SKU:MSD 8222

Regular price $81.95
Regular price Sale price $81.95
View full details

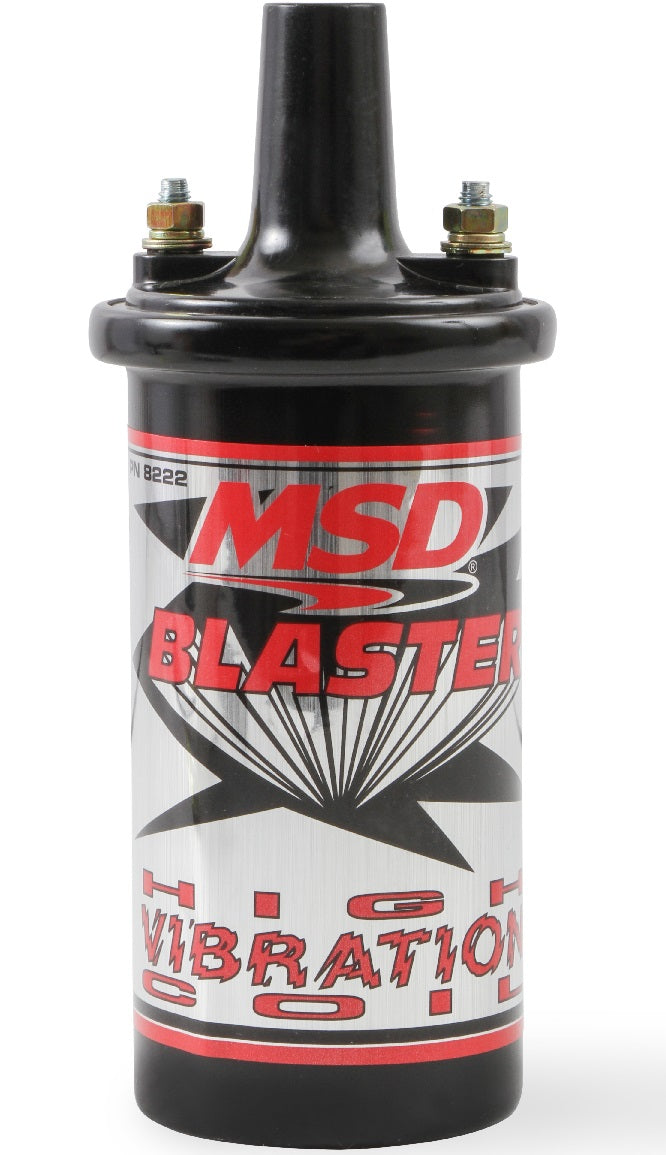

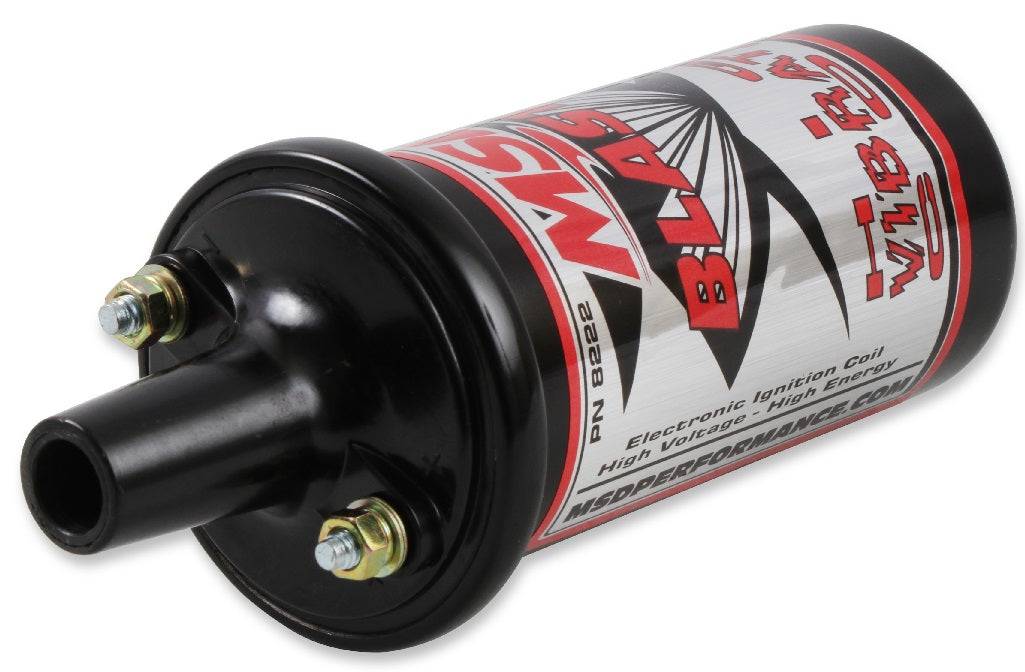

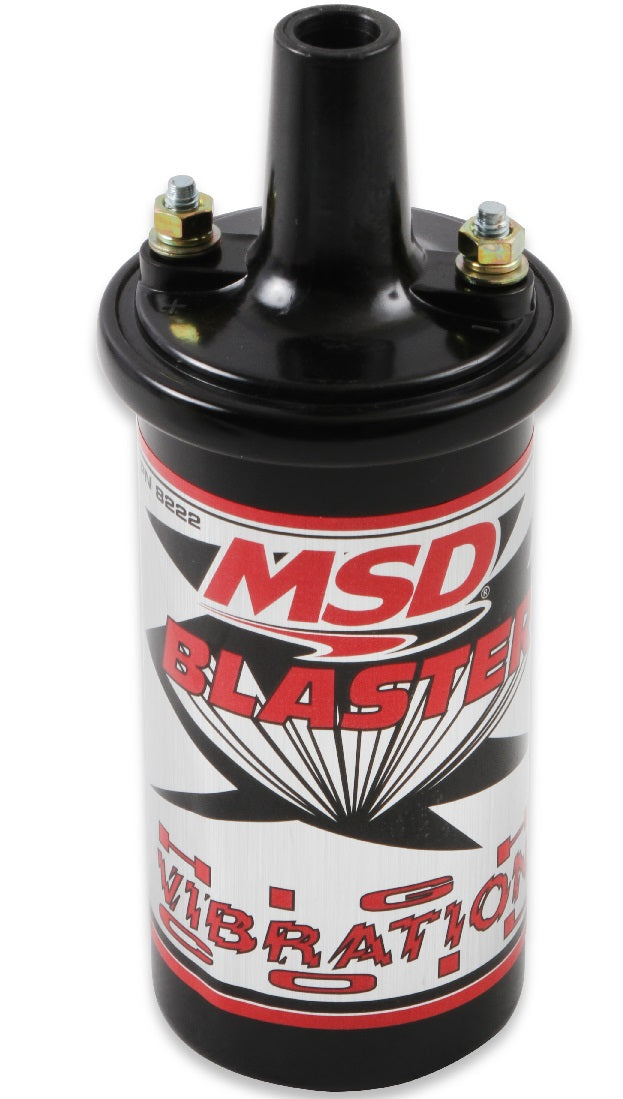

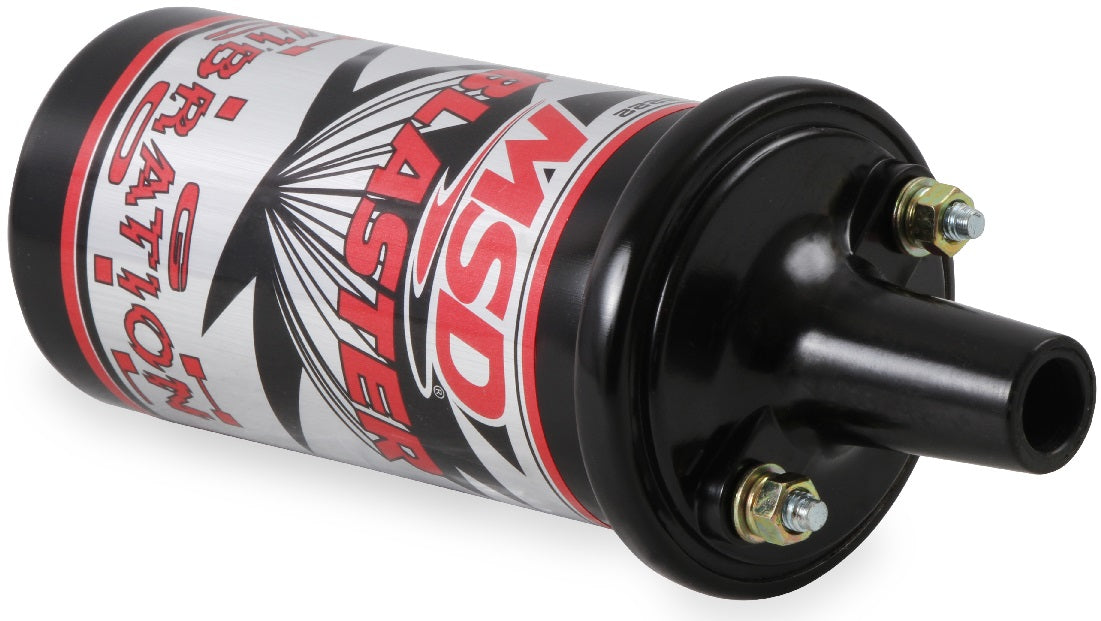

BRAND NEW MSD BLASTER SERIES IGNITION COIL, BLACK FINISH, HIGH VIBRATION, COMPATIBLE WITH MSD 6-SERIES IGNITION

THE STURDY METAL HOUSING OF THE HIGH VIBRATION COIL IS COMPLETELY POTTED WITH A PREMIUM GRADE EPOXY TO COMPLETELY ENCASE THE PRIMARY & SECONDARY WINDINGS IN THE COIL. IN APPLICATIONS SUCH AS OFF-ROAD, MARINE, OR OTHER HARSH CONDITIONS, THE MSD BLASTER HIGH VIBRATION COIL IS THE BEST CHOICE. THIS PROTECTS THE INTERNAL COIL COMPONENTS FROM HIGH AND LOW-FREQUENCY VIBRATIONS THAT ARE COMMONLY EXPERIENCED IN RACING.

THE BLASTER COIL IS DESIGNED TO MOUNT IN MOST FACTORY CANISTER COIL MOUNTS. MSD ALSO OFFERS A CHROME COIL BRACKET, PART #8213. IT IS RECOMMENDED TO MOUNT THE PART #8202, #82023 & #8223 COILS IN AN UPRIGHT POSITION. THE HIGH VIBRATION COIL CAN BE MOUNTED IN ANY POSITION DUE TO ITS EPOXY POTTING COMPOUND.

FEATURES:

  • METAL CANISTER ENCASED WITH EPOXY TO PROTECT WINDINGS FROM HIGH VIBRATION APPLICATIONS
  • IMPROVED OUTPUT COIL FOR ELECTRONIC IGNITIONS & MSD IGNITIONS (BALLAST RESISTOR REQUIRED FOR POINTS)
  • 100:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT

SPECS:

  • BRAND: MSD
  • COLOR: BLACK
  • INDUCTANCE: 8 MH
  • MAXIMUM VOLTAGE: 45,000 VOLTS
  • PEAK CURRENT: 140 MA
  • PRIMARY RESISTANCE: .7 OHMS
  • PRODUCT TYPE: IGNITION COIL
  • SECONDARY RESISTANCE: 4.5K OHMS
  • SPARK DURATION: 350 US
  • TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
