COIL,STREET BLASTER,E-CORE

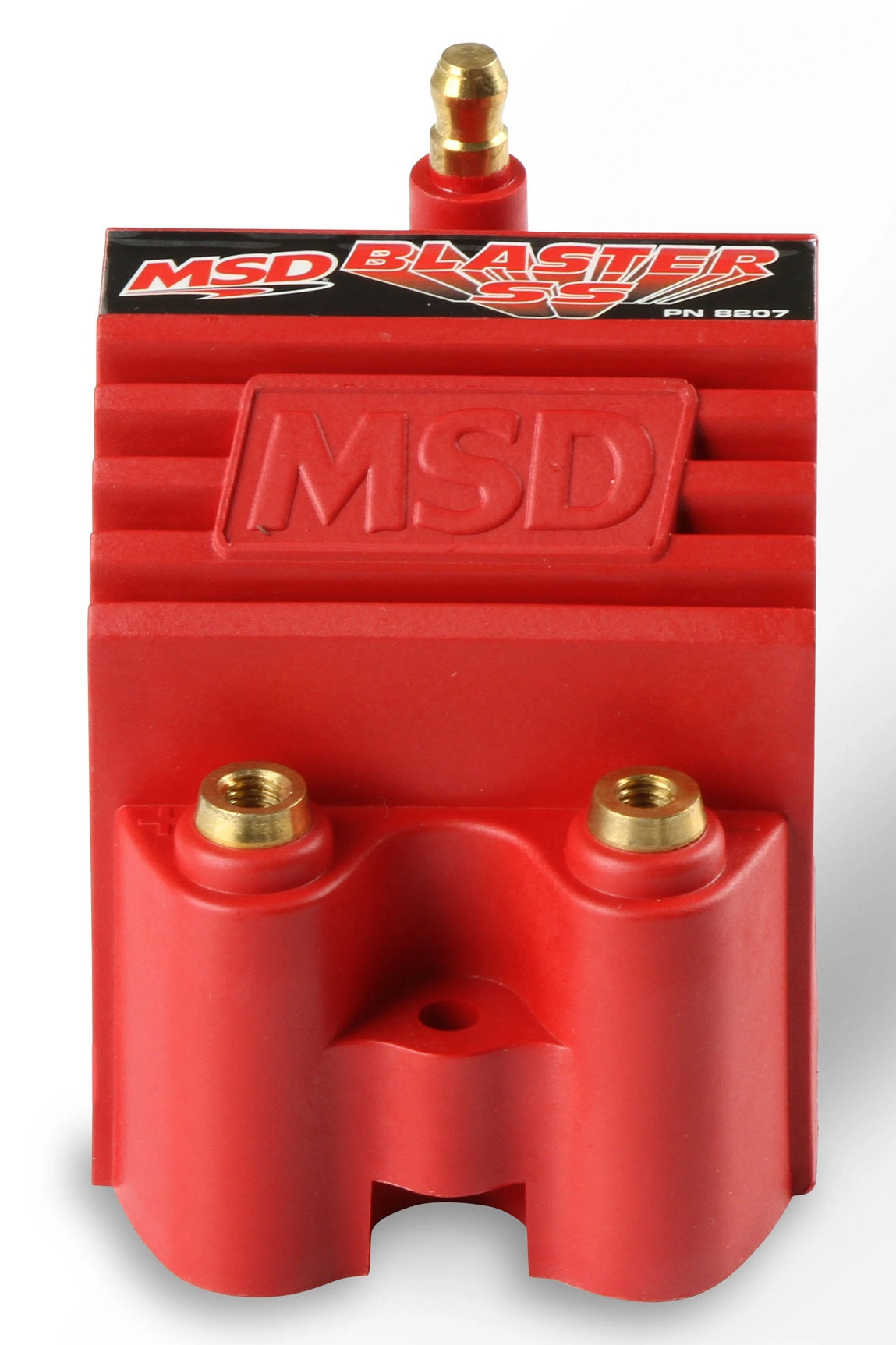

Brand New MSD Ignition Coil - Blaster SS - Red (Part #8207).

Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!

NOTE: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.

Features:

• Improved output coil for electronic ignitions, and MSD Ignitions

• Efficient winding design and assembly creates a compact housing

• Primary and secondary windings are encased in Ciba polyurethane

• 70:1 turns ratio and lower primary resistance produce high voltage output

• Tough, rigid housing with a tall tower and brass primary terminals

Specs:

• Inductance: 6.9 mH

• Maximum Voltage: 40,000 Volts

• Peak Current: 300 mA

• Primary Resistance: .355 Ohms

• Secondary Resistance: 4.4K Ohms

• Spark duration: 220 uS

• Turns Ratio: 2.917361


You can view and download the assembly/instruction booklet here.
