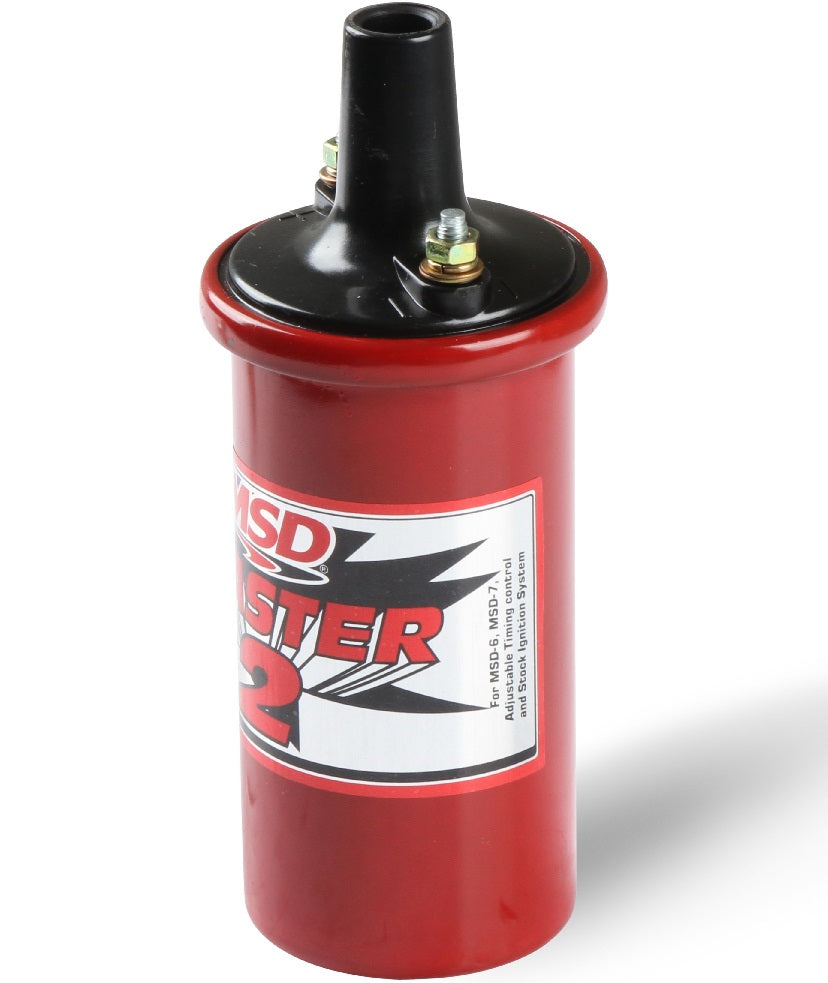

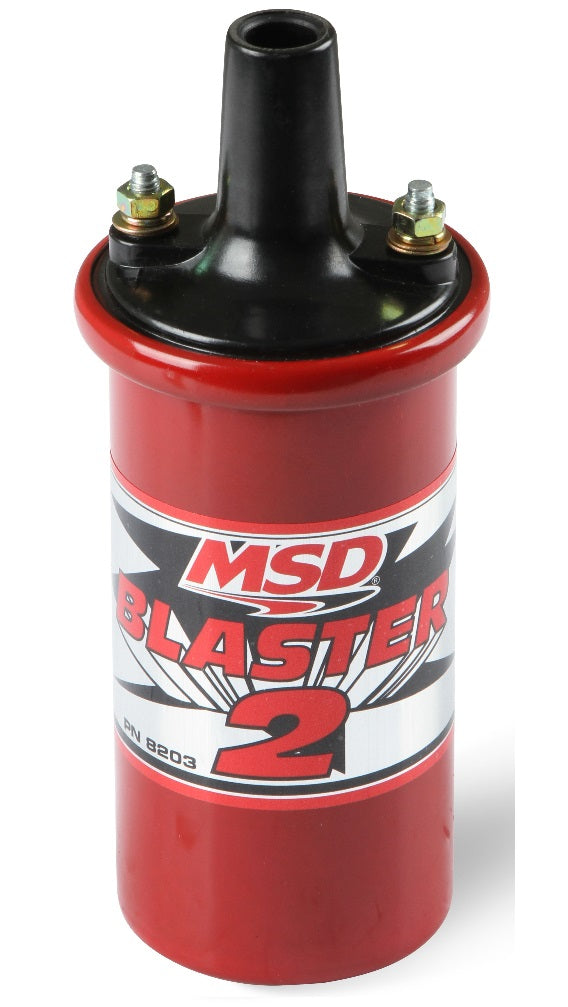

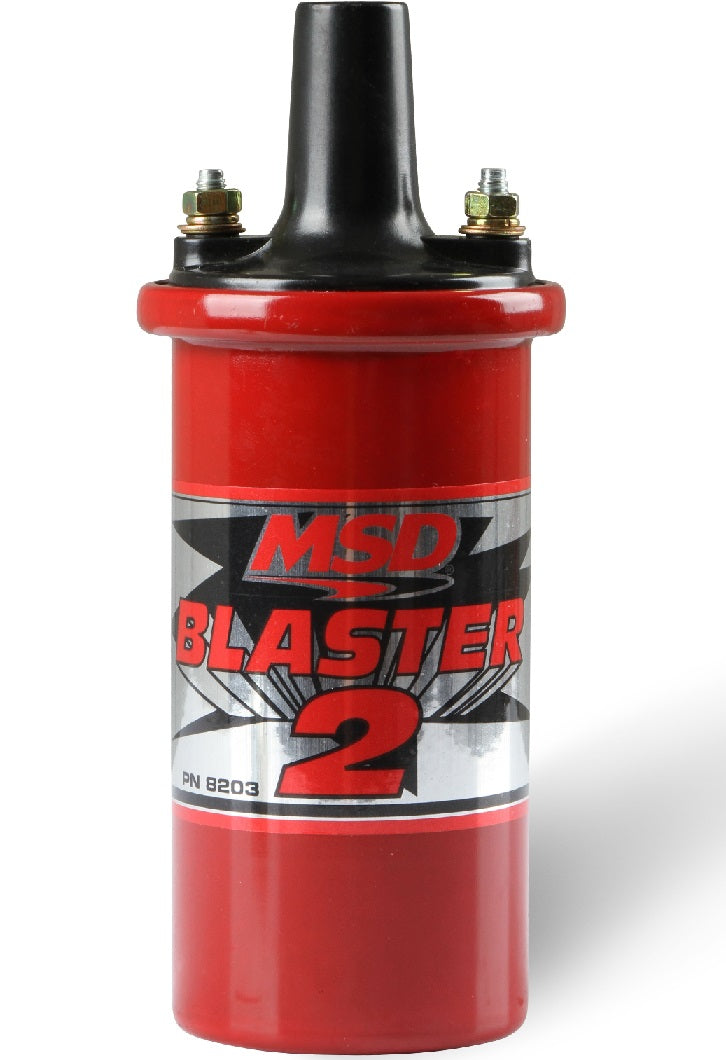

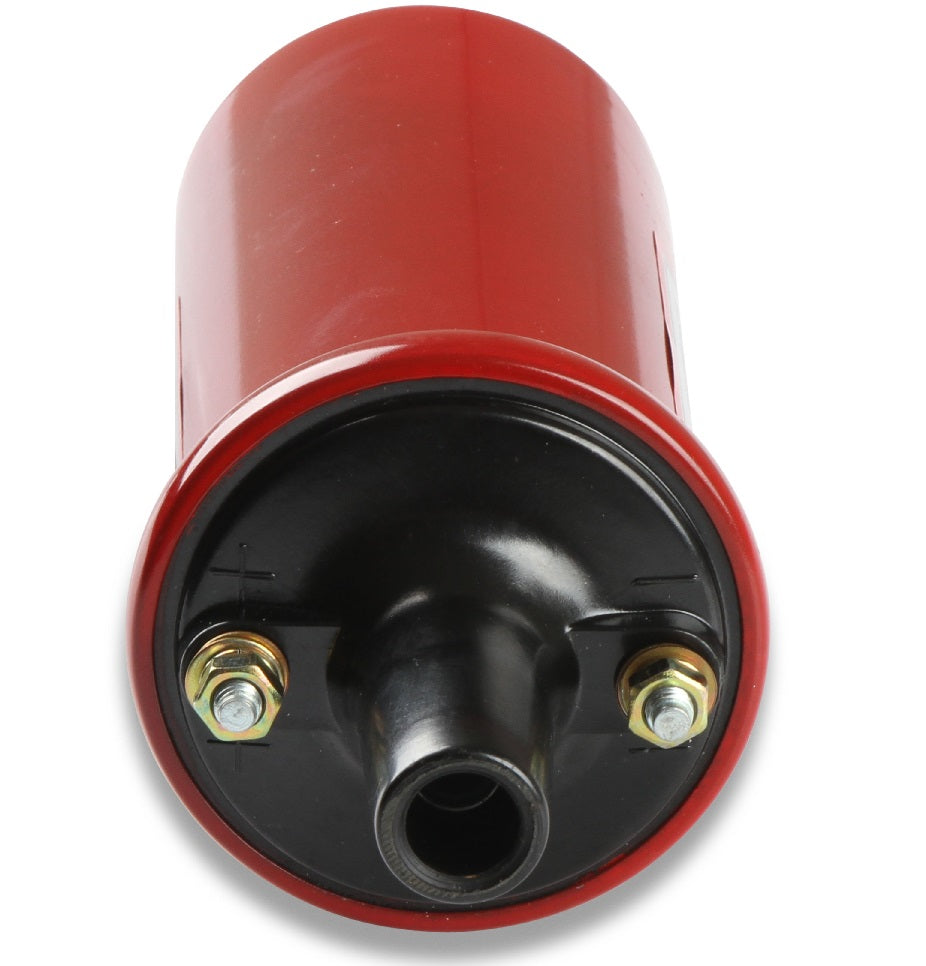

BLASTER 2 COIL,W/BALLAST,HIGH PERFORMANC

BLASTER 2 COIL,W/BALLAST,HIGH PERFORMANC

SKU:MSD 8203

Regular price $81.95
Regular price Sale price $81.95
View full details

BRAND NEW MSD IGNITION COIL, BLASTER 2 SERIES, BALLAST RESISTOR, RED FINISH, UNIVERSAL, STOCK-STYLE IGNITION, 45,000 MAX VOLTAGE, COMPATIBLE WITH 5, 6 &7 SERIES

THIS BLASTER COIL IS SUPPLIED WITH A BALLAST RESISTOR. IF YOUR APPLICATION USES A POINTS DISTRIBUTOR, THE BALLAST MUST BE USED. LATE-MODEL ELECTRONIC IGNITIONS OR AN MSD IGNITION DO NOT REQUIRE THE BALLAST.

IF YOU ARE LOOKING TO UPGRADE YOUR STOCK COIL, OR WANT TO COMPLIMENT THE PERFORMANCE OF YOUR MSD BLASTER IGNITION, MSD 5, 6, OR 7, THE BLASTER COIL LINE IS THE RIGHT CHOICE. OUR BLASTER COILS ARE DESIGNED FOR IMPROVED SPARK OUTPUT! SPECIAL 100:1 WINDINGS ARE USED TO PROVIDE MAXIMUM BUILD-UP OF VOLTAGE! THESE WINDINGS ARE HELD SECURE AND KEPT COOL IN AN OIL-FILLED METAL CANISTER.

FEATURES:

  • IMPROVED OUTPUT COIL FOR STOCK POINTS OR ELECTRONIC IGNITIONS, BLASTER IGNITION OR MSD 5, 6 &7 SERIES
  • SUPPLIED WITH 2 SPARK PLUG WIRE BOOTS, TERMINALS & BALLAST RESISTOR (REQUIRED IF USED WITH STOCK POINTS IGNITION)
  • 100:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
  • MSD RED METAL CANISTER IS FILLED WITH A PREMIUM GRADE OIL FOR COOLING

SPECS:

  • BRAND: MSD
  • INDUCTANCE: 8 MH
  • MAXIMUM VOLTAGE: 45,000 VOLTS
  • PEAK CURRENT: 140 MA
  • PRIMARY RESISTANCE: .7 OHMS
  • PRODUCT TYPE: COIL
  • SECONDARY RESISTANCE: 4.5K OHMS
  • SPARK DURATION: 350 US
  • TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS KILLSWITCH HERE.
