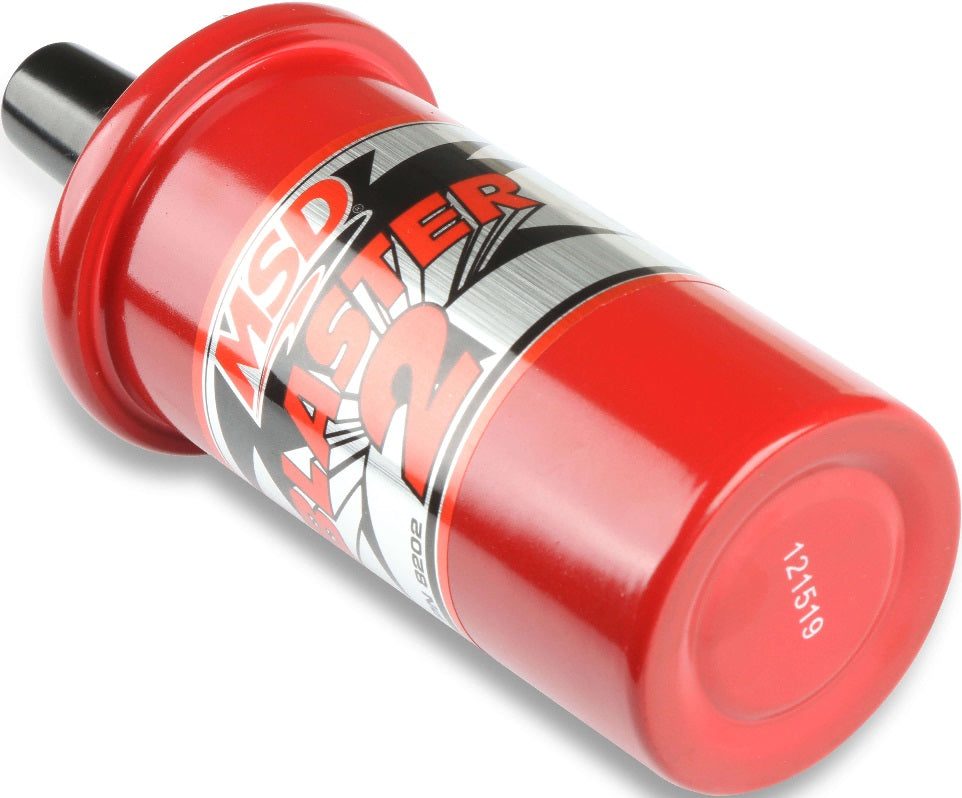

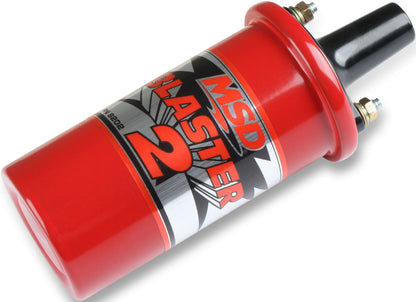

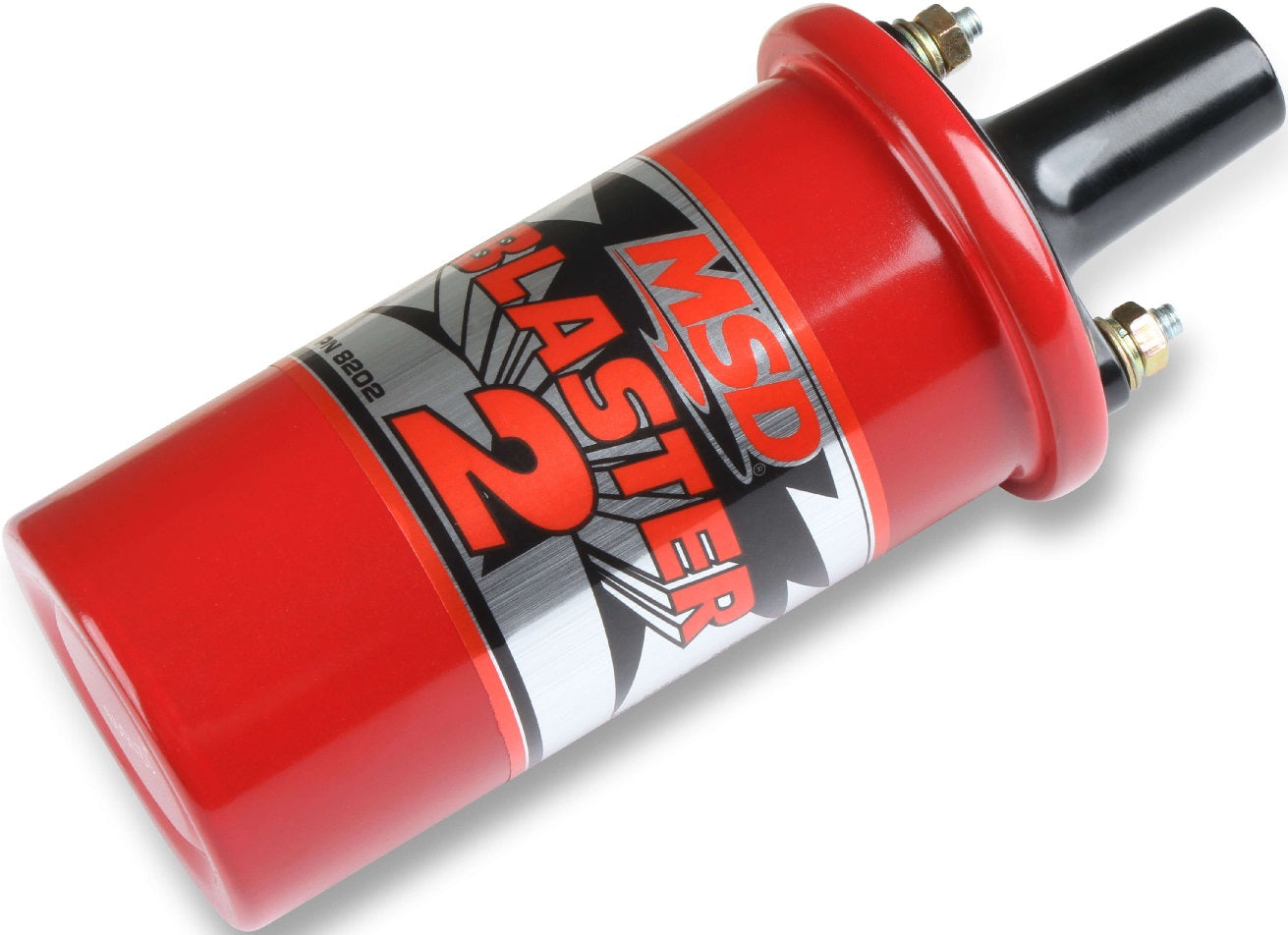

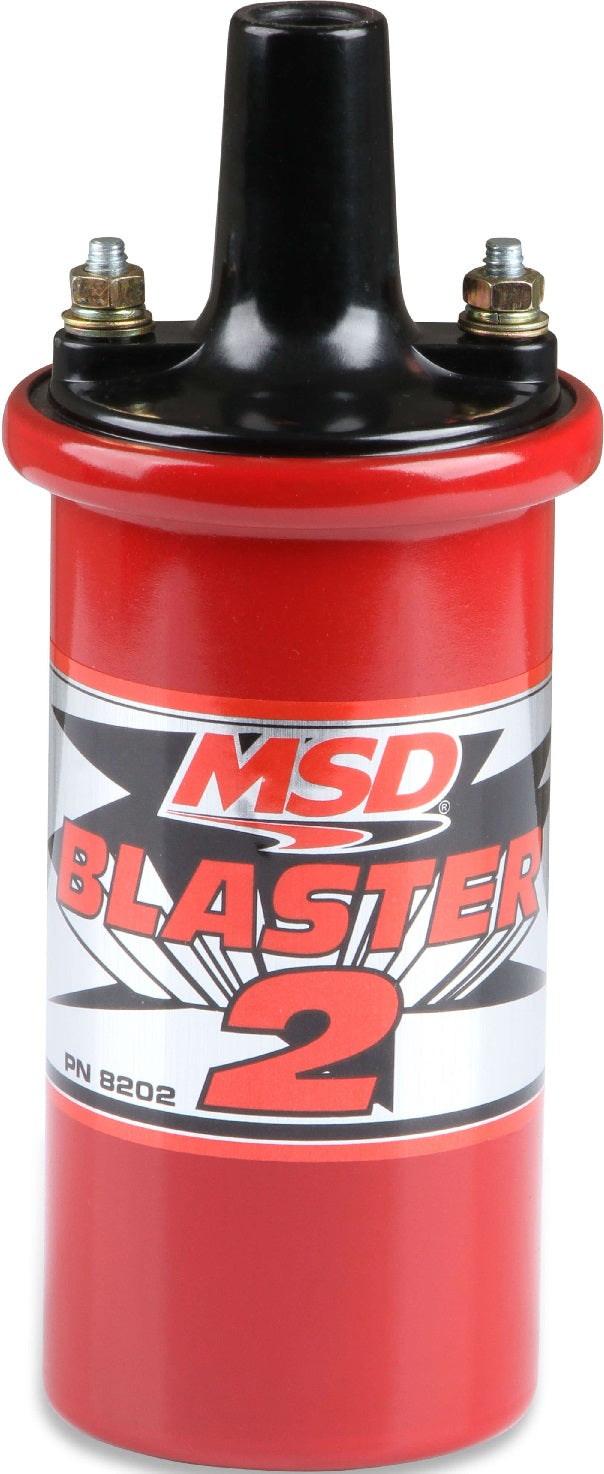

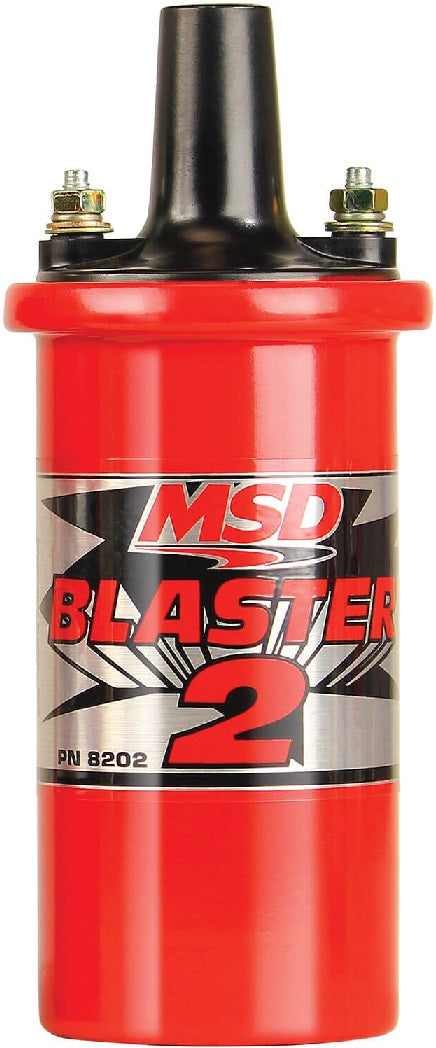

BLASTER 2 COIL,HIGH PERFORMANCE

BRAND NEW MSD IGNITION CANISTER COIL BLASTER 2 SERIES HIGH PERFORMANCE, RED, 6-SERIES IGNITION, 45,000 VOLTS, PRODUCED BY HOLLEY PERFORMANCE PRODUCTS

IF YOU ARE LOOKING TO UPGRADE YOUR STOCK COIL, OR WANT TO COMPLIMENT THE PERFORMANCE OF YOUR MSD BLASTER IGNITION, MSD 5, 6 OR 7, THE BLASTER COIL LINE IS THE RIGHT CHOICE. OUR BLASTER COILS ARE DESIGNED FOR IMPROVED SPARK OUTPUT! SPECIAL 100:1 WINDINGS ARE USED TO PROVIDE MAXIMUM BUILD-UP OF VOLTAGE! THESE WINDINGS ARE HELD SECURE AND KEPT COOL IN AN OIL FILLED METAL CANISTER.

NOTE: CARB EO: D-40-37

FEATURES:

• IMPROVED OUTPUT COIL FOR ELECTRONIC IGNITIONS, BLASTER IGNITION OR MSD 5, 6 & 7 SERIES (BALLAST RESISTOR REQUIRED FOR POINTS)
• ALKYD TOWER WITH HIGH DIELECTRIC PROPERTIES IS LESS PRONE TO CARBON TRACKING
• 100:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• METAL CANISTER IS FILLED WITH A PREMIUM GRADE OIL FOR COOLING
• CARB E.O. APPROVED

SPECS:

• BRAND: MSD
• EMISSION CODE: 1
• INDUCTANCE: 8 MH
• MAXIMUM VOLTAGE: 45,000 VOLTS
• PEAK CURRENT: 140 MA
• PRIMARY RESISTANCE: .7 OHMS
• PRODUCT TYPE: COIL
• SECONDARY RESISTANCE: 4.5K OHMS
• SPARK DURATION: 350 US
• TURNS RATIO: 100:1
• WEIGHT: N/A

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS BLASTER IGNITION COIL HERE.
