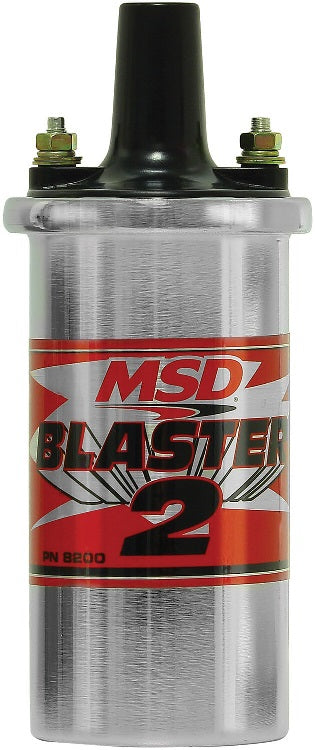

BLASTER 2 COIL,CHROME,W/BALLAST,HIGH PERFORMANCE

BRAND NEW MSD BLASTER 2 SERIES IGNITION COIL WITH BALLAST RESISTOR, CHROME FINISH, 45,000 VOLTS MAX, COMPATIBLE WITH 1965-1967 BUICK ELECTRA

THIS BLASTER COIL IS SUPPLIED WITH A BALLAST RESISTOR. IF YOUR APPLICATION USES A POINTS DISTRIBUTOR, THE BALLAST MUST BE USED. LATE-MODEL ELECTRONIC IGNITIONS OR AN MSD IGNITION DO NOT REQUIRE THE BALLAST.

IF YOU ARE LOOKING TO UPGRADE YOUR STOCK COIL, OR WANT TO COMPLIMENT THE PERFORMANCE OF YOUR MSD BLASTER IGNITION, MSD 5, 6, OR 7, THE BLASTER COIL LINE IS THE RIGHT CHOICE. DESIGNED FOR IMPROVED SPARK OUTPUT! SPECIAL 100:1 WINDINGS ARE USED TO PROVIDE MAX BUILD-UP OF VOLTAGE! THESE WINDINGS ARE HELD SECURE AND KEPT COOL IN AN OIL-FILLED METAL CANISTER.

COMPATIBLE WITH:

• BUICK:
• 1965-1967 ELECTRA
• 1970 SPORTWAGON

FEATURES:

• IMPROVED OUTPUT COIL FOR STOCK POINTS OR ELECTRONIC IGNITIONS, BLASTER IGNITION OR MSD 5, 6 & 7 SERIES
• SUPPLIED WITH 2 SPARK PLUG WIRE BOOTS, TERMINALS AND A BALLAST RESISTOR (REQUIRED IF USED WITH STOCK POINTS IGNITION)
• 100:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• CHROME METAL CANISTER IS FILLED WITH A PREMIUM GRADE OIL FOR COOLING

SPECS:

• BRAND: MSD
• INDUCTANCE: 8 MH
• MAXIMUM VOLTAGE: 45,000 VOLTS
• PEAK CURRENT: 140 MA
• PRIMARY RESISTANCE: .7 OHMS
• PRODUCT TYPE: IGNITION COIL
• SECONDARY RESISTANCE: 4.5K OHMS
• SPARK DURATION: 350 US
• TURNS RATIO: 100:1

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION COIL HERE.
