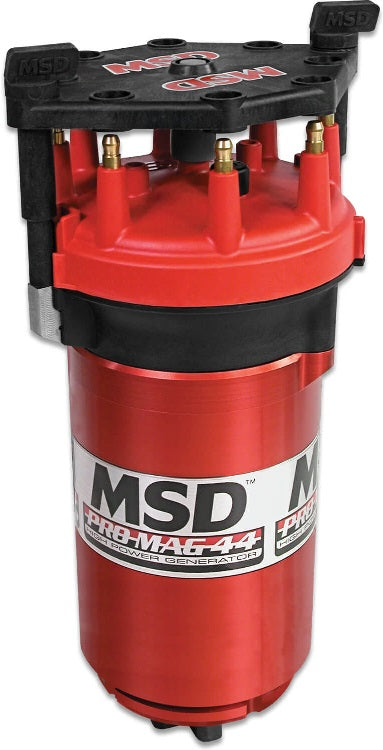

PRO-MAG GENERATOR,44 AMP,CCW,STD CAP,RED

BRAND NEW MSD PRO MAG 44 AMP GENERATOR, RED, CCW ROTATION, INCLUDES CROSS DRIVE, STANDARD DIAMETER CAP, ROTOR, WIRE RETAINER, BAND CLAMP

THE 44 UTILIZES A PROPRIETARY COMBINATION OF RARE EARTH MAGNETS AND WINDINGS TO PRODUCE ITS INCREDIBLE ENERGY. A MAGNETIC PICKUP IS MOUNTED IN THE LOWER BASE OF THE GENERATOR TO ACCURATELY TRIGGER THE EIGHT PRECISION PADDLES ON THE RELUCTOR. THE PICKUP IS FAR SUPERIOR TO WEAK AND INACCURATE POINTS AND NEVER REQUIRES ADJUSTMENT OR REPLACEMENT. THE ASSEMBLY SPINS ON A 0.500-INCH SHAFT WITH SEALED BALL BEARINGS FOR LONG LIFE.

WHEN THE PICKUP IS TRIGGERED, THE SIGNAL IS SENT TO THE ELECTRONIC POINTS BOX WHERE THE SPARK DURATION IS CONTROLLED AND DIRECTED TO THE 44 COIL. EACH COIL WINDING CONTAINS OVER A POUND OF COPPER WIRE THAT IS HAND-WOUND FOR ACCURACY. THE VOLTAGE IS IMMEDIATELY STEPPED UP AND SENT TO THE MAG CAP WHERE IT GETS ACCURATELY DISTRIBUTED TO THE CORRECT SPARK PLUGS, MAXIMIZING THE EXPLOSION OF HEAT AND ENERGY IN THE CYLINDER.

SPECS:

• BRAND: PRO MAG
• COLOR: RED
• PRIMARY CURRENT: 44 AMPS
• PRODUCT TYPE: MAGNETO
• RPM RATING: THROUGH 12,000 RPM
• SECONDARY CURRENT: 1.2 MILLIAMPS
• SECONDARY VOLTAGE: 50,000 VOLTS
• SPARK ENERGY: 800 MILLIJOULES (AT THE GAP)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PRO MAG HERE.
