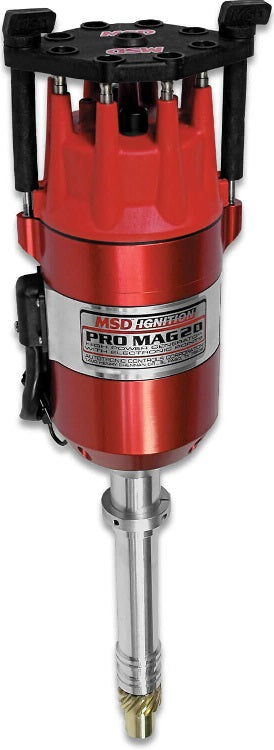

PRO-MAG GENERATOR,20 AMP,CHEVY V8,TALL,RED

BRAND NEW MSD PRO MAG 20 AMP GENERATOR WITH CAP, ROTOR, RED, COMPATIBLE WITH CHEVY V8 TALL

THE INCREASED OUTPUT OF THE 20 AMP PRO-MAG WAS BORN OF RACERS BEING RACERS, ALWAYS ASKING FOR MORE POWER. THIS STEMMED FROM DRAG RACERS THAT WERE USING A 12 AMP SYSTEM, BUT JUST DID NOT REQUIRE A 44 AMP SYSTEM. THE ENGINEERS AT MSD FOUND THAT WITH A FEW CHANGES TO THE INTERNALS OF THE GENERATOR IT WOULD DELIVER THE INCREASED CURRENT THROUGH THE SAME ELECTRONIC POINTS BOX, PART #8106.

THERE ARE THREE DIFFERENT GENERATORS AVAILABLE; A BAND CLAMP DESIGN IN BOTH CW AND CCW ROTATION, PLUS A MODEL BUILT ON A CHEVY DISTRIBUTOR BASE. ALL THREE REQUIRE THE PART #8106 ELECTRONIC POINTS BOX. THE BAND CLAMP VERSIONS ARE EQUIPPED WITH A LARGE FORD STYLE CAP WHILE THE CHEVY VERSION USES A 4-INCH CAP AND BOTH ARE TOPPED WITH HEAVY DUTY RETAINERS.

SPECS:

• BRAND: PRO MAG
• COLOR: RED
• PRIMARY CURRENT: 20 AMPS
• PRODUCT TYPE: MAGNETO
• RPM RATING: THROUGH 14,000 RPM
• SECONDARY CURRENT: 300 MILLIAMPS
• SPARK DURATION: 26 DEGREE CRANKSHAFT ROTATION
• SPARK ENERGY: 240 MILLIJOULES (AT THE GAP)

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS PRO MAG HERE.
