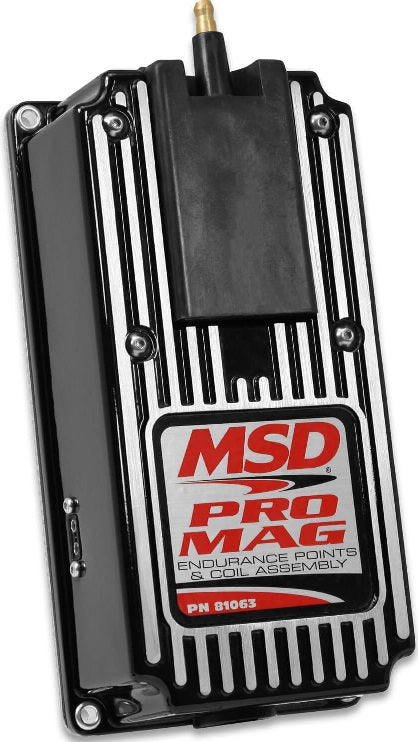

PRO-MAG ELECTRONIC POINTS BOX,12/20 AMP,BLACK

BRAND NEW MSD PRO MAG 12/20 AMP ELECTRONIC POINTS BOX, BLACK FINISH, 7000, 8000, 9000 RPM CHIPS

THE ENERGY FROM THE GENERATOR IS CONTROLLED WITH FIELD EFFECT TRANSISTOR (FET) TECHNOLOGY, FAR SUPERIOR TO MAGS STILL USING POINTS AS TRIGGER SOURCE. FETS ARE MUCH MORE ACCURATE, DURABLE & CAPABLE OF HANDLING MORE CURRENT. THIS IS WHY PRO-MAG IS CAPABLE OF DELIVERING FULL ENERGY SPARKS THROUGHOUT ENTIRE RPM RANGE, WHILE CONVENTIONAL MAGNETOS FALL SHORT. THE ELECTRONIC POINTS BOX KEEPS EACH SPARK GLOWING FOR UP TO 26 DEGREES OF CRANKSHAFT ROTATION.

ANOTHER FEATURE OF THE PRO-MAG 12 IS A BUILT-IN SOFT TOUCH REV CONTROL. THE RPM LIMIT IS ADJUSTED WITH PLUG-IN MODULES AND WILL SAVE YOUR EXPENSIVE ENGINE IN THE EVENT OF DRIVELINE FAILURE OR MISSED SHIFT. PROVIDES A SMOOTH, BACKFIRE-FREE LIMIT.

THE CAST ALUMINUM HOUSING OF THE POINTS BOX PROVIDES A STRONG MOUNTING FOUNDATION FOR THE ELECTRONICS & COIL. ALL OF THE CIRCUITS RECEIVE A HEAVY-DUTY COATING OF HUMI-SEAL FOR PROTECTION AGAINST VIBRATION & MOISTURE.

FEATURES:

• POINTS BOX HAS A BUILT-IN SOFT TOUCH REV CONTROL THAT IS ADJUSTED WITH PLUG-IN RPM
• SUPPLIED WITH 7000, 8000, 9000 RPM CHIPS

SPECS:

• BRAND: PRO MAG
• IGNITION TYPE: MAGNETO IGNITION
• PRODUCT TYPE: IGNITION BOXES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION BOX HERE.
