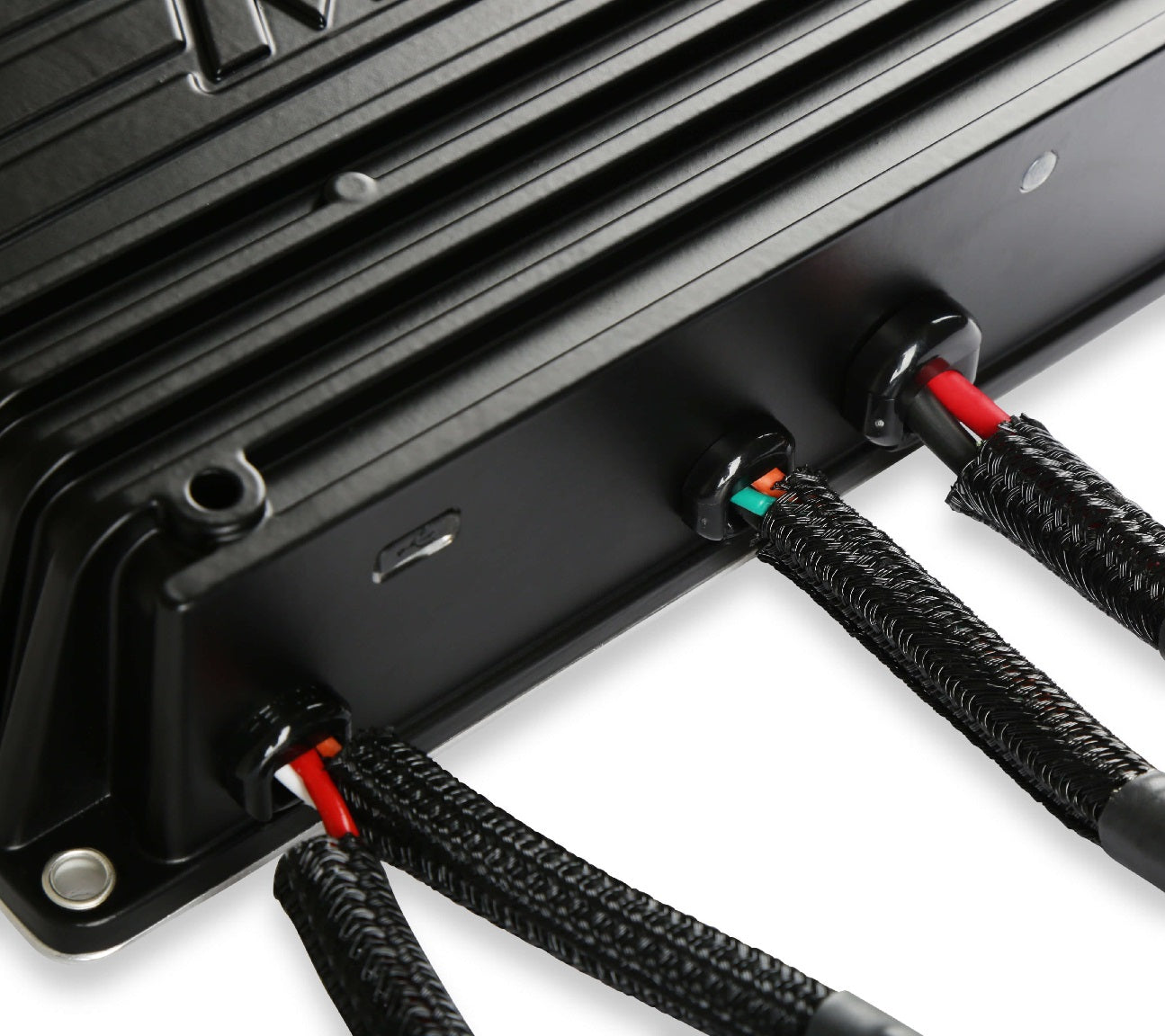

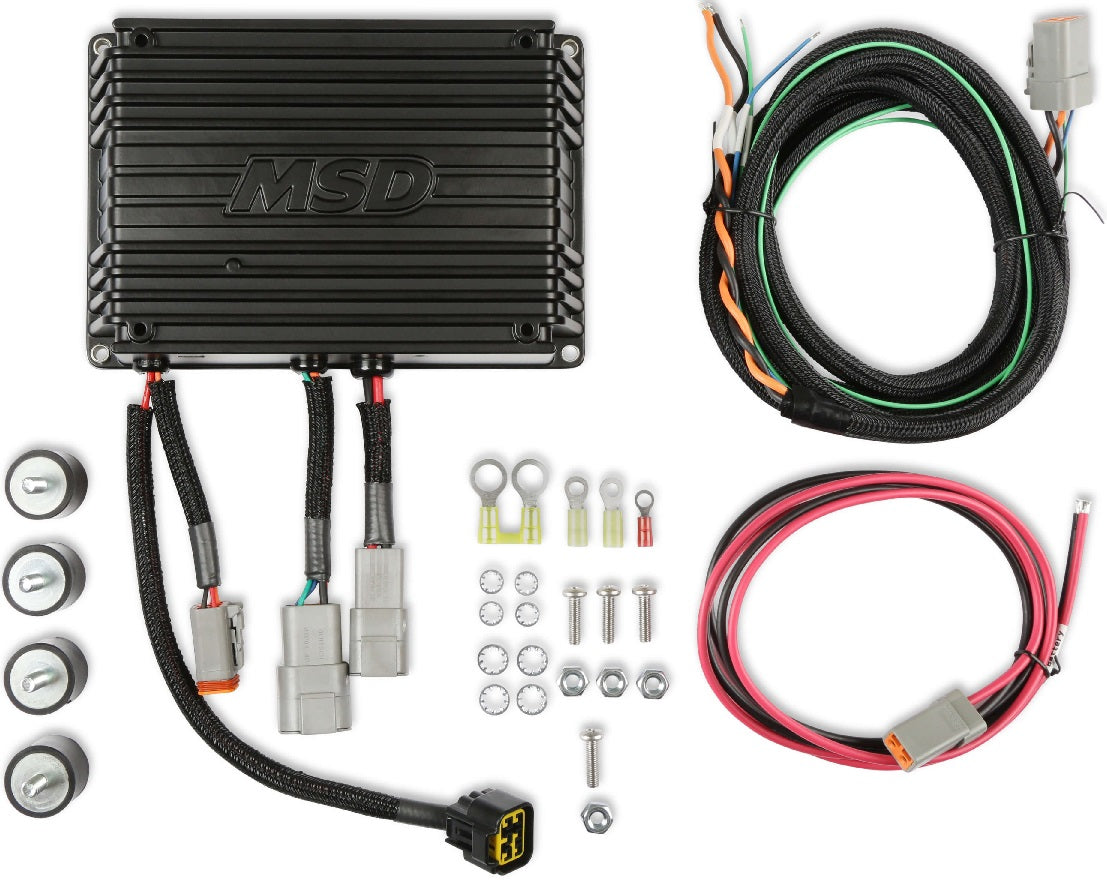

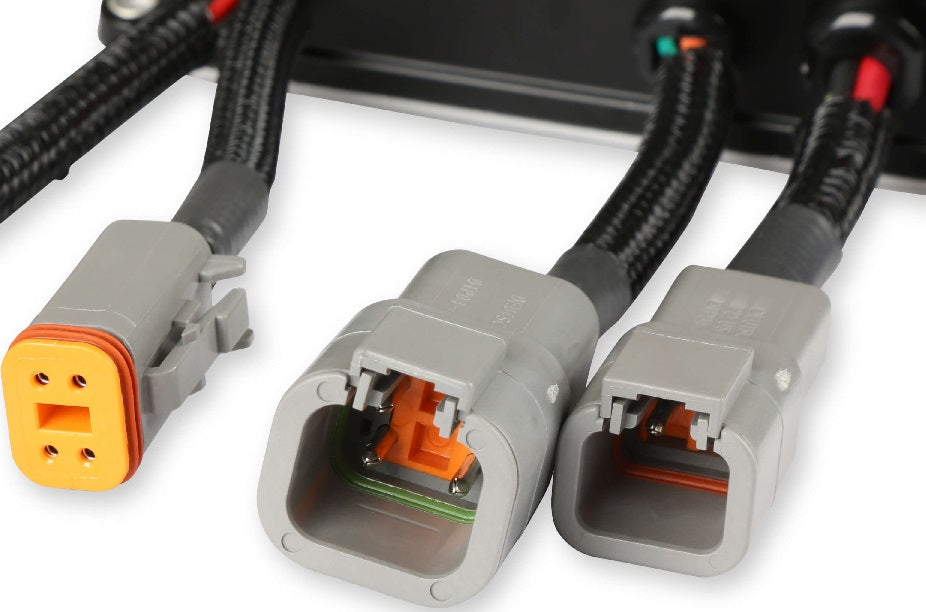

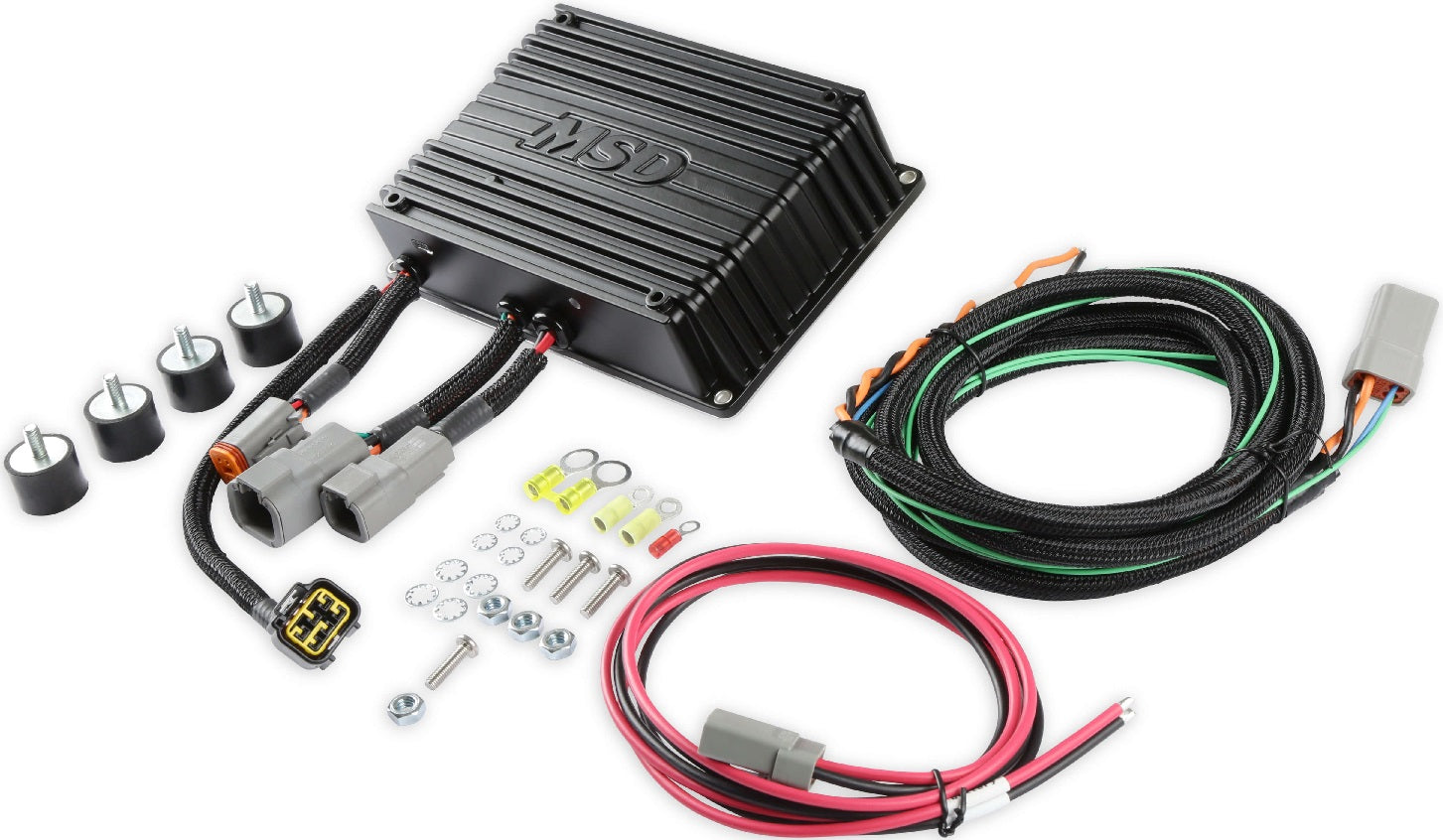

IGNITION BOX,PRO 600,CDI,1 CHANNEL

BRAND NEW MSD IGNITION BOX, BLACK, RACE PRO 600 SINGLE CHANNEL, 330-550 VOLTAGE, 50,000 VOLTAGE, COMPATIBLE WITH 4-6-8 CYL ENGINES

CAPABLE OF RUNNING CONTINUOUSLY AT AN ENERGY LEVEL OF UP TO 600 MJ INDUCING MORE THAN 250 MICROSECONDS OF SPARK DURATION. WITH A POWER BOOST WIRE, THE IGNITION OUTPUT CAN BE CHANGED ON THE FLY BETWEEN PROGRAMMABLE LOWER ENERGY (325 MJ BY DEFAULT) TO ITS MAXIMUM ENERGY OUTPUT OF 600 MJ.

LOWER ENERGY SETTING REDUCES THE BATTERY POWER REQUIREMENTS & LESSENS STRESS ON SECONDARY IGNITION COMPONENTS (DISTRIBUTOR CAP, ROTOR, SPARK PLUG WIRES & SPARK PLUGS). IGNITION ALTERNATING-CURRENT (AC) OPERATION WITH INTERNAL COIL-COUPLER INCREASES SPARK-GAP ENERGY & DURATION OVER DIRECT-CURRENT (DC) IGNITIONS. THIS TRANSLATES TO MORE ENERGY AT SPARK GAP COMBINED WITH LONGER SPARK DURATION & COOLER OPERATING TEMP OF IGNITION COIL.

TO FURTHER IMPROVE EFFICIENCY, UNUSED SPARK ENERGY IS RECYCLED BACK TO THE IGNITION CAPACITOR REDUCING THE POWER DRAWN FROM THE BATTERY. THE SINGLE CHANNEL PRO 600 IGNITION PROVIDES UP TO 20% ADDITIONAL SPARK GAP ENERGY AND A 40% INCREASE IN SPARK DURATION OVER OTHER 600 MJ IGNITIONS AVAILABLE IN THE MARKET.

REDUCES POWER DEMAND FROM BATTERY WHICH REDUCES LOADS ON WIRES & CONNECTORS. SINGLE CHANNEL PRO 600 IGNITION IS CAPABLE OF CONTINUOUS FULL-POWER OPERATION. DESIGNED TO WORK WITH THE MSD POWER-GRID & CAN PROVIDE FIRING BY FIRING SPARK CURRENT DATA ACQUISITION. A DIAGNOSTIC LED DETECTS THE PRESENCE OF FAULTS, SUCH AS AN OPEN COIL PRIMARY, SHORTED COIL PRIMARY, REVERSED PRIMARY CONNECTIONS, OR OPEN COIL SECONDARY.

NOTE: REQUIRES HVC-III COILS WITH THIS IGNITION, PART #82612 OR #826123 FOR CURRENT SENSING DATA.

FEATURES:

• ADJUSTABLE OUTPUT ENERGY UP TO 680 MILLIJOULES (MJ)
• COMPATIBLE WITH 8/6/4 CYLINDER ENGINES
• SPARK CURRENT SENSE & RECORDING FOR EACH FIRING
• SPARK DURATION OF GREATER THAN 250 MICROSECONDS
• RATED FOR CONTINUOUS OPERATION AT OUTPUT OF 600 MJ
• OPERATES BETWEEN 12-28V
• MINIMUM STARTING VOLTAGE 6V
• DIRECT PLUG-IN TO MSD POWER GRID CONTROLLER PART #7730
• REVERSE BATTERY PROTECTION
• INTERNALLY PROTECTED FROM DAMAGE CAUSED BY INTERNAL OVER-TEMP OR OPEN/SHORTED COIL
• DIAGNOSTIC LED DETECTS PRESENCE OF FAULTS
• ON THE FLY POWER OUTPUT SELECTION WIRE

SPECS:

• BRAND: MSD
• COLOR: BLACK
• CURRENT DRAW: 3 AMPS PER 1,000 RPM @ 16 VOLTS & 600 MJ
• OPERATING VOLTAGE: 12-28 VOLTS
• PRIMARY VOLTAGE: 330-550 VOLTS
• PRODUCT TYPE: IGNITION BOX
• RPM RANGE: 15,000 RPM / 10,000 RPM AT FULL POWER
• SECONDARY VOLTAGE: 50,000 VOLTS
• SPARK ENERGY: 250-680 MJ

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION HERE.
