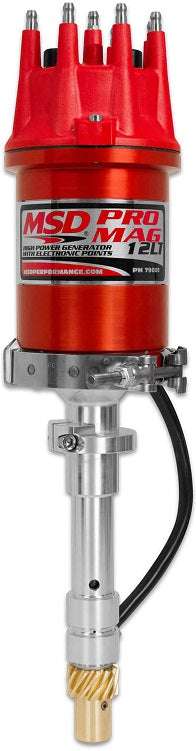

PRO MAG,12 AMP,CHEVY V-8,SHORT

BRAND NEW MSD PRO-MAG 12LT GENERATOR, RED, SHORT, 12 AMPS, COMPATIBLE WITH RAISED CAM ENGINE BLOCKS WITH DRY SUMP SYSTEM

DESIGNED WITH SPRINT CARS IN MIND, THE PRO-MAG 12LT IS ALMOST 30% LIGHTER THAN THE ORIGINAL PRO-MAG, BUT STILL PRODUCES THE SAME INCREDIBLE POWER. THE COMPACT HOUSING SITS AN INCH LOWER FOR IMPROVED CLEARANCE OF THE FUEL INJECTION, AND IT FEATURES A BAND CLAMP MOUNT FOR EASIER TIMING ADJUSTMENTS.

MSD HAS ALSO DESIGNED A CAP AND ROTOR SPECIFICALLY FOR THE 12LT SERIES. THE CAP POSSESSES HIGH DIELECTRIC PROPERTIES AND INCREDIBLE STRENGTH. THE INNOVATIVE ROTOR DESIGN CLAMPS TO THE SHAFT WITH A RETAINING BOLT ASSEMBLY.

NOTE: A 12LT GENERATOR CANNOT BE UPGRADED TO A 20 AMP PRO-MAG.

NOTE: MSD PRO MAG 12 LT PART #79081 AND #79082 ARE DESIGNED TO WORK IN RAISED CAM ENGINE BLOCKS USING A DRY SUMP OILING SYSTEM ONLY. THEY WILL WORK IN ENGINE BLOCKS WITH 50MM, 55MM AND 60MM CAM TUNNELS. INSTALLATION OF PART #79081 OR #79082 IN ANY OTHER APPLICATION IS NOT RECOMMENDED AND CAN RESULT IN ENGINE DAMAGE.

INCLUDES:

• BRONZE GEAR
• BAND CLAMP
• CAP & ROTOR

SPECS:

• BRAND: PRO MAG
• COLOR: RED
• PRIMARY CURRENT: 12 AMPS
• PRODUCT TYPE: MAGNETO

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS MAGNETO HERE.
