POWER MODULE,POWER GRID
POWER MODULE,POWER GRID
SKU:MSD 7764

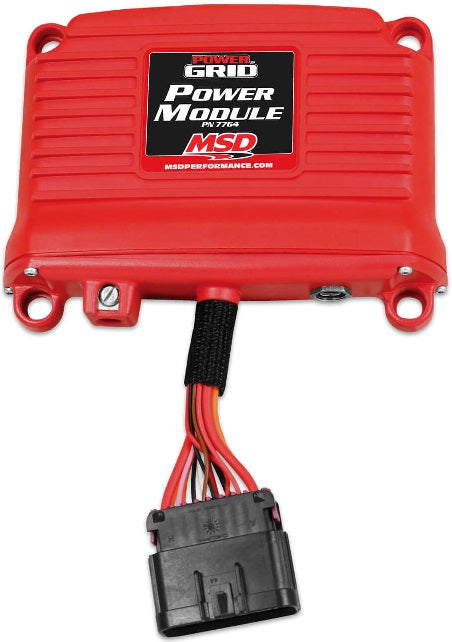

BRAND NEW MSD POWER GRID POWER MODULE, RED FINISH, 80 AMP CAPACITY, 4 CHANNELS, COMPATIBLE WITH POWER GRID SYSTEM
THE MSD POWER MODULE IS A FULLY PROGRAMMABLE, 4 STAGE SOLID STATE RELAY THAT CAN HANDLE UP TO 20 AMPS OF CURRENT PER CHANNEL. THE POWER MODULE ELIMINATES THE NEED FOR ELECTROMECHANICAL RELAYS, FUSES AND TIMERS.
OUTPUTS CAN BE CONTROLLED INDEPENDENTLY OR SIMULTANEOUSLY, GIVING GREAT FLEXIBILITY. IT CAN BE CONFIGURED AS A DIGITAL OUTPUT (I.E. ON/OFF) OR AS A PULSE WIDTH MODULATED OUTPUT (I.E. PWM) WITH USER-PROGRAMMABLE FREQUENCIES UP TO 10 KILOHERTZ. WHEN CONNECTED TO THE POWER GRID IT WILL DATA LOG ALL THE FUNCTIONS INCLUDING TIME FROM LAUNCH, TIME OR RPM OF ACTIVATION AND DEACTIVATION.
OUTPUTS CAN USE TIME, RPM OR TEMPERATURE TO CONTROL FANS, PUMPS, NITROUS SYSTEMS AND MUCH MORE. A HIGH SPEED DATA LOGGER CAN BE USED TO RECORD ALL FUNCTIONS WHEN PAIRED WITH THE MSD PART #7730 POWER GRID.
FEATURES:
- TAKES THE PLACE OF 4 ELECTROMECHANICAL RELAYS
- BUILT-IN OVERCURRENT PROTECTION, NO FUSES NEEDED
- 80 AMP CAPACITY, 4 CHANNELS RATED UP TO 20 AMPS EACH
- EACH CHANNEL IS CONTROLLED VIA INPUT WIRES OR AS PROGRAMMED IN MSD VIEW SOFTWARE
- CAN BE USED STAND ALONE OR WITH MSD POWER GRID PART #7730
- TRIGGER SIGNALS CAN INCLUDE POWER, GROUND, TEMPERATURE, OR TIME
- DATA ACQUISITION AVAILABLE WHEN USED WITH MSD POWER GRID
SPECS:
- BRAND: MSD
- COLOR: RED
- PRODUCT TYPE: POWER GRID
YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS POWER GRID MODULE HERE.
