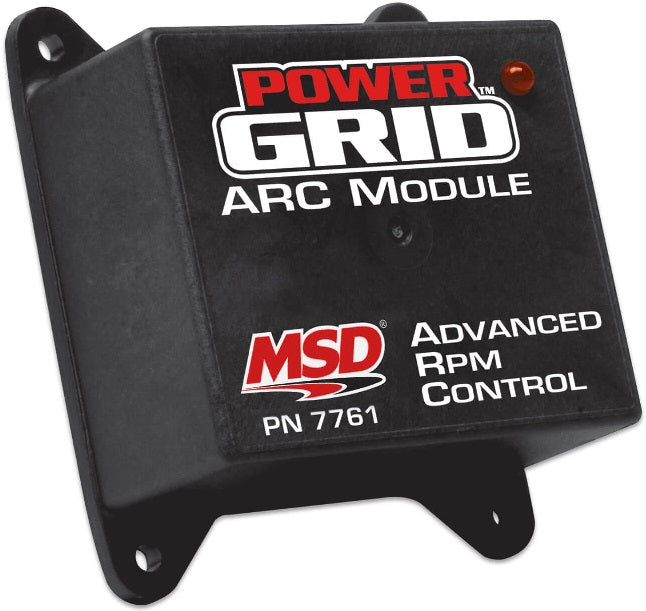

CONTROL MODULE,POWER GRID,ADVANDED RPM,(ARC)

BRAND NEW MSD ADVANCED RPM CONTROL MODULE, UNIVERSAL, COMPATIBLE WITH MSD POWER GRID CONTROLLER

NOW THERE IS EVEN MORE CONTROL WITH THE PART #7761 MODULE FOR THE POWER GRID SYSTEM CONTROLLER. THIS MODULE SETS RPM LIMITS BASED ON SLEW RATE (RPM ACCELERATION) OR BASED ON TIME SINCE LAUNCH. ALL OF THIS IS PROGRAMMED SEAMLESSLY IN MSD VIEW.

THE ARC MODULE (ADVANCED RPM CONTROL) ALLOWS YOUR RACE CAR TO REMAIN CONSISTENT, PASS AFTER PASS, CONTROLLING YOUR ENGINES RPM CURVE DURING A PASS. THIS HELPS YOU GET DOWN THE TRACK QUICKER & FAR MORE CONSISTENT. MSD VIEW SOFTWARE CAN CONTROL RPM DOWN TO A HUNDREDTH OF A SECOND & CONTROL THE DRIVESHAFT SPEED FOR MAX TRACTION. WE CAN ALSO PULL OUT TIMING FOR A SPLIT SECOND SHOULD WE ENCOUNTER TIRE SLIP. SET 3 DIFFERENT TIMING RETARD CURVES & REV LIMIT CURVE TO CONTROL WHEELSPIN.

NOTE: MUST USE A DRIVESHAFT SENSOR WITH THE ARC MODULE

NOTE: RACEPAK HALL EFFECT SENSOR PART #800-SS-MSC-5

NOTE: RACEPAK 8 MAGNET SPLIT COLLAR

FEATURES:

• PLUGS INTO CAN-BUS BRIDGE
• COMPATIBLE WITH POWER GRID CONTROLLER
• 4-CONNECTOR CAN-BUS HUB REQUIRED

SPECS:

• BRAND: MSD
• PRODUCT TYPE: MODULES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS CONTROL MODULE HERE.
