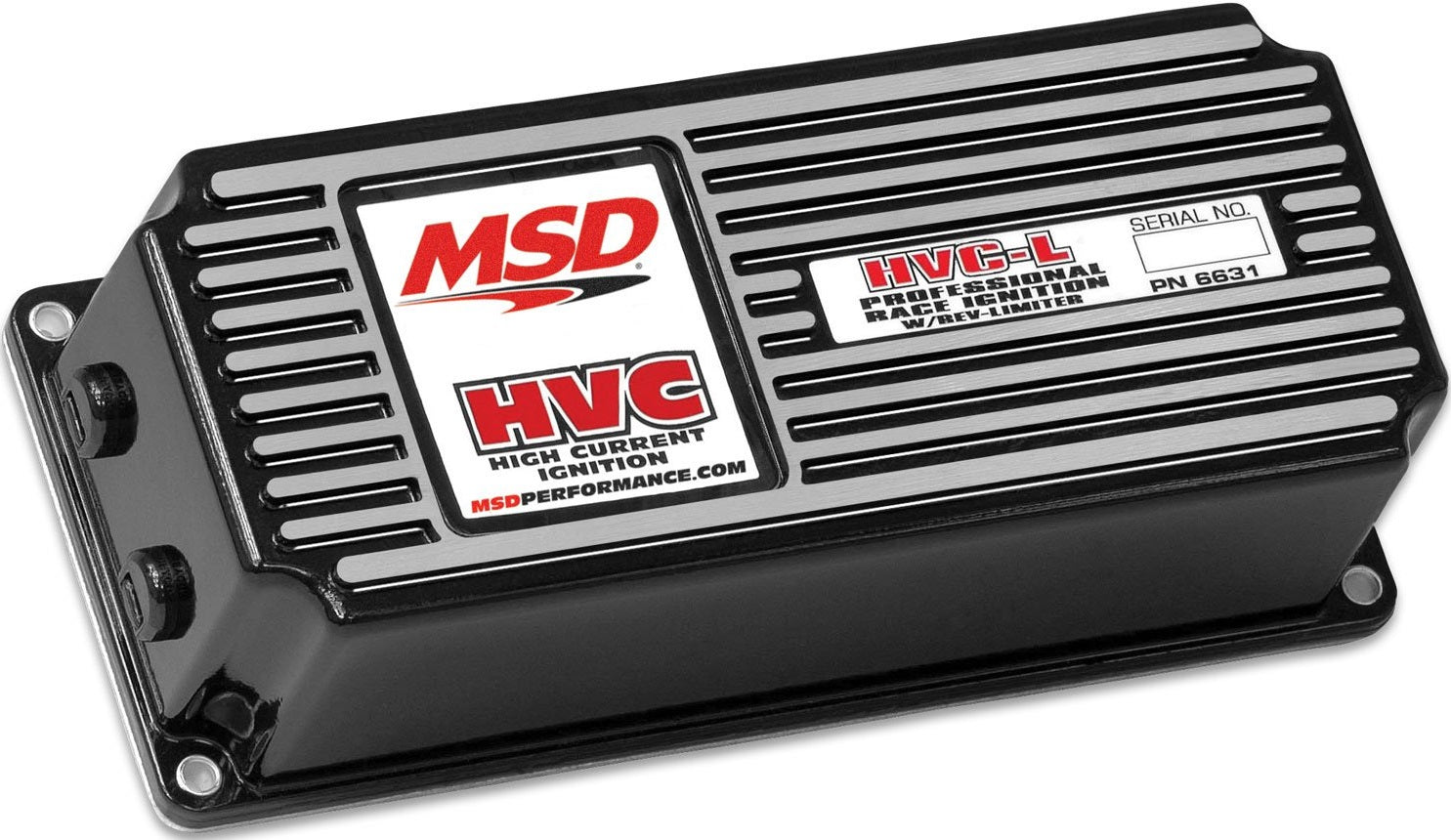

IGNITION BOX,6 HVC,W/REV CONTROL,BLACK

BRAND NEW MSD 6 HVC PROFESSIONAL RACE WITH FAST REV LIMITER, 550 PRIMARY VOLTAGE, 6 PIN CONNECTOR, CIRCLE TRACK

PROFESSIONAL RACE TEAMS HAVE BEEN RELYING ON THE POWER AND ENDURANCE OF OUR 6 HVC IGNITION CONTROL. THE ADVANCED COMPONENT DESIGN AND CIRCUITRY PRODUCE INCREDIBLE VOLTAGE WITH HIGH CURRENT OUTPUT. INTERNALLY THERE IS AN EFFICIENT HEAT SYNC, SOLID COMPONENT MOUNTING AND ITS ALL ENCASED IN A CLEAR EPOXY. THE RPM LIMIT IS ADJUSTABLE WITH PLUG-IN MODULES AND THE WIRING IS ROUTED INTO MSD CONNECTORS.

THE FAST REV LIMITER IS VERY QUICK AND ACCURATE COMPARED TO MSD SOFT TOUCH REV LIMITER. DESIGNED TO BE COMPATIBLE WITH PROFESSIONAL RACING APPLICATIONS THAT DEMAND HIGH RPM FOR LONG PERIODS OF TIME.

FEATURES:

• INCLUDES BUILT-IN FAST REV LIMITER
• ONLY COMPATIBLE WITH HVC COIL PART #8250
• BUILT-IN REVERSE POLARITY PROTECTION CIRCUIT
• 150 MILLIJOULES PER SPARK UP TO 15,000 RPM
• 550 PRIMARY VOLTAGE OUTPUT TO COIL
• ACCEPTS BREAKER POINTS, AMPLIFIER & MAGNETIC PICKUP TRIGGER INPUTS
• MULTIPLE SPARKS FOR 20 DEGREES OF CRANKSHAFT ROTATION
• 6-PIN WEATHERTIGHT CONNECTOR

SPECS:

• BRAND: MSD
• PRIMARY VOLTAGE: 550 VOLTS
• PRODUCT TYPE: IGNITION BOX
• RPM RANGE: 15,000 RPM WITH 14.4 VOLTS
• SECONDARY VOLTAGE: 40,000 VOLTS
• SPARK ENERGY: 150 MJ/SPARK
• SPARK SERIES DURATION: 20 DEGREE CRANKSHAFT ROTATION
• VOLTAGE REQUIRED: 12-18 VOLTS, NEGATIVE GROUND
• SIZE: 8"L X 4"W X 2.25"H

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION CONTROL BOX HERE.
