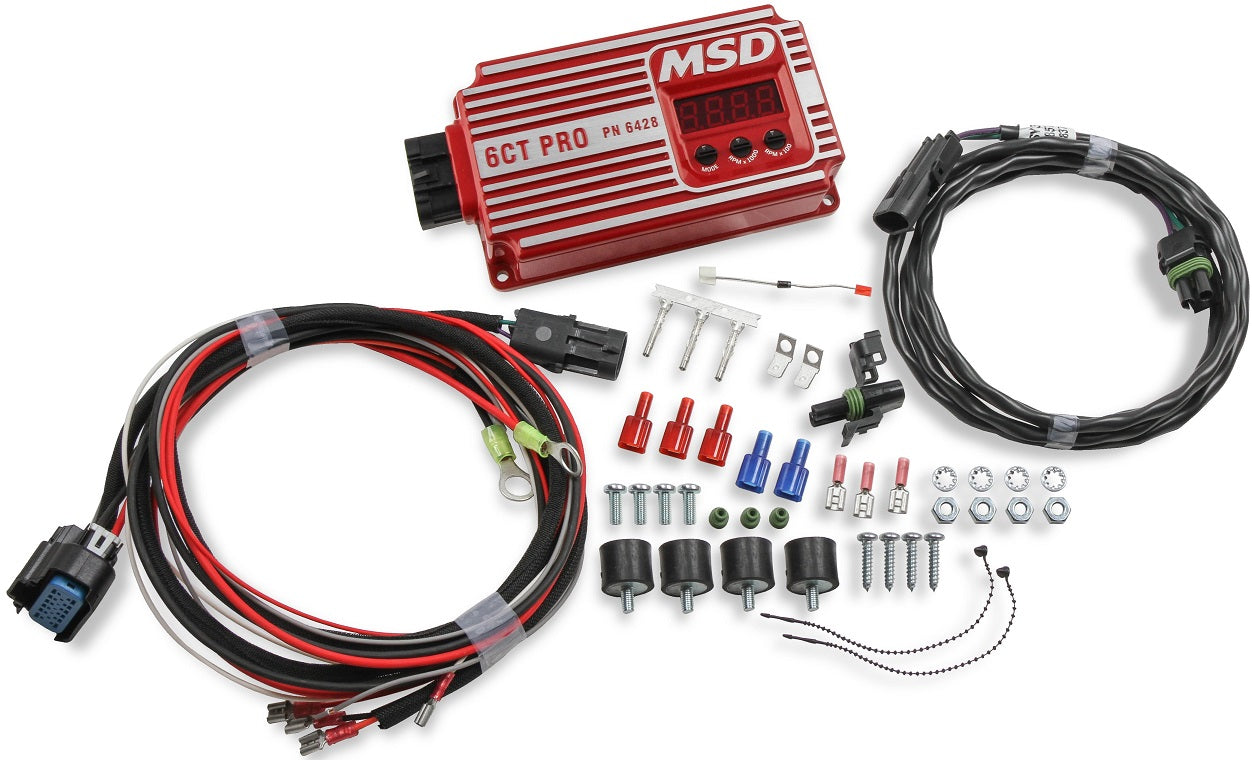

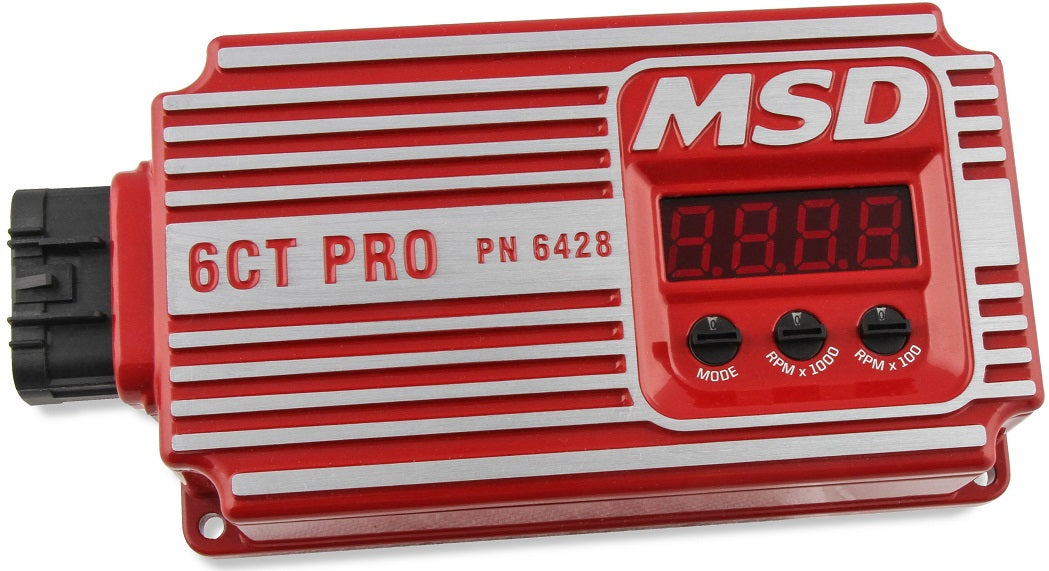

IGNITION BOX,6CT PRO,CIRCLE TRACK,RED

BRAND NEW MSD 6CT PRO CIRCLE TRACK IGNITION CONTROL BOX, RED, UNIVERSAL, 12,000 RPM RANGE, COMPATIBLE WITH 4,6 & 8 CYLINDER ENGINES

NOTE: HIGH RPM RECORDING CAN BE QUICKLY RESET WITH A CUSTOMER SUPPLIED MOMENTARY SWITCH.

NOTE: NOT FOR USE IN SERIES WHERE TECH OFFICIALS REQUIRE A HIGH RPM RECALL READING.

FEATURES:

• WILL NOT UPSET THE CHASSIS AND EASY ON PARTS
• LARGE, EASY TO READ LED DISPLAY
• RECORDS HIGHEST RPM THE ENGINE TURNED FOR LAST 20 MINUTES OF RUN TIME
• HIGHEST RPM RECORDING CAN QUICKLY BE RESET WITH AN EXTERNAL MOMENTARY SWITCH

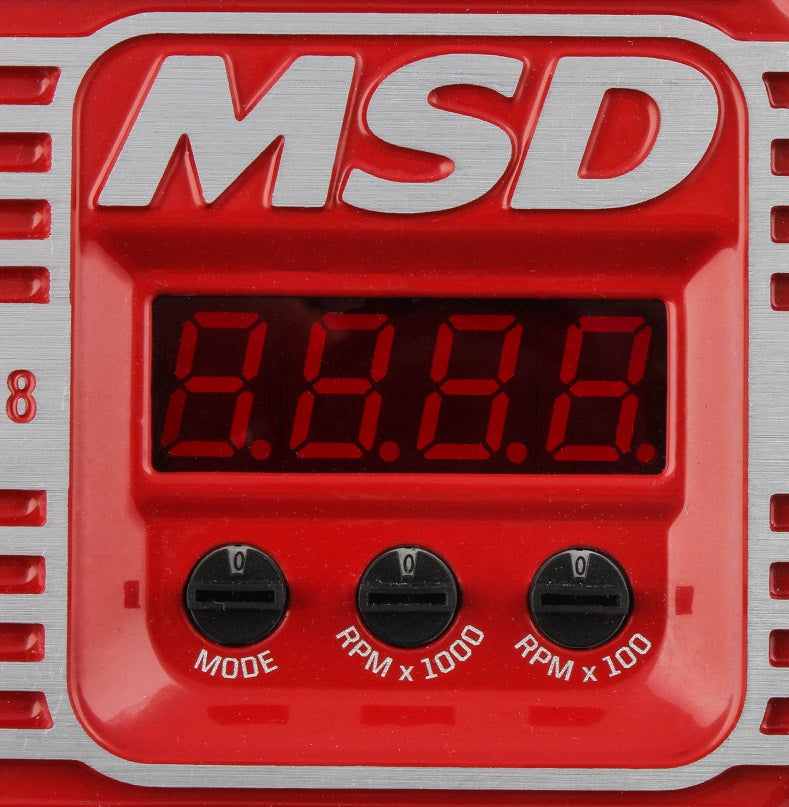

• EASY SETUP OF FEATURES WITH THREE ROTARY DIALS ON THE FACE OF THE UNIT
• BUILT-IN START RETARD ADJUSTABLE IN 0, 10 OR 20 DEGREE INCREMENTS FOR QUICK, EASY STARTS & EXTEND STARTER LIFE
• LED DISPLAY SHOWS REV LIMIT, HIGHEST RMP TURNED, CYLINDER SELECT, START RETARD, BATTERY VOLTAGE AND CAN BE SET TO TACH MODE
• FULL DELIVERY OF SPARK ENERGY DOWN TO 6 VOLTS BATTERY SUPPLY
• HIGHLY EFFICIENT, LOW CURRENT DRAW FOR EXTENDED BATTERY LIFE
• FULLY POTTED HOUSING TO STAND UP TO DEMANDING RACE CONDITIONS

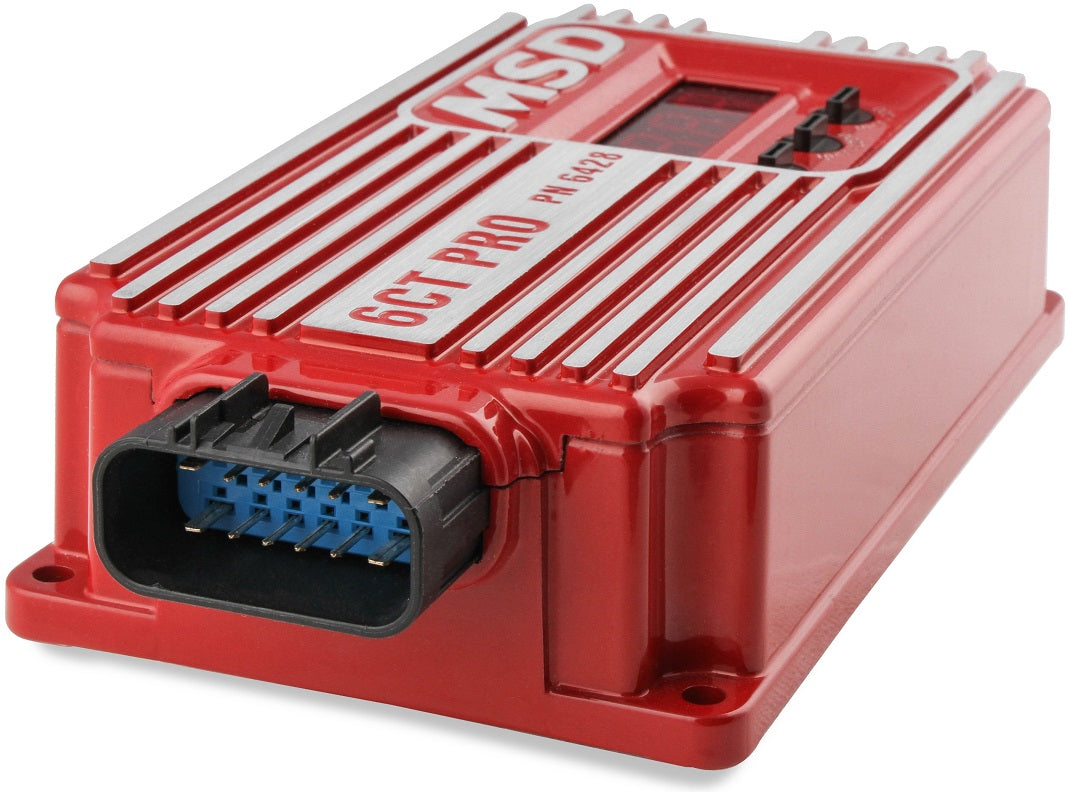

• SINGLE PLUG-IN CONNECTOR FOR CLEAN WIRING
• COMPATIBLE WITH 4, 6 AND 8 CYLINDER ENGINES
• REVERSE POLARITY AND OVERHEAT PROTECTION PROVIDE ULTIMATE RELIABILITY

SPECS:

• BRAND: MSD
• CURRENT DRAW: 0.8 AMPS PER 1,000 RPM
• DIMENSIONS: 7.89"L X 4.00"W X 1.87"H
• FEATURES: START RETARD
• PRIMARY VOLTAGE: 535V W/ BLASTER COIL / 550V W/ HVC COIL PART #8250
• PRODUCT TYPE: IGNITION
• RPM RANGE: 12,000 RPM
• SECONDARY VOLTAGE: 45,000 VOLTS
• SPARK ENERGY: 135MJ W/ BLASTER COIL / 150MJ W/ HVC COIL PART #8250
• SPARK SERIES DURATION: 20 DEGREE CRANKSHAFT ROTATION
• VOLTAGE REQUIRED: 6 TO 18 VOLTS

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION CONTROL BOX HERE.
