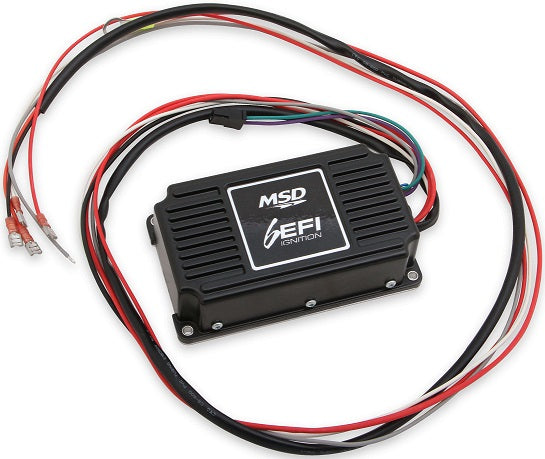

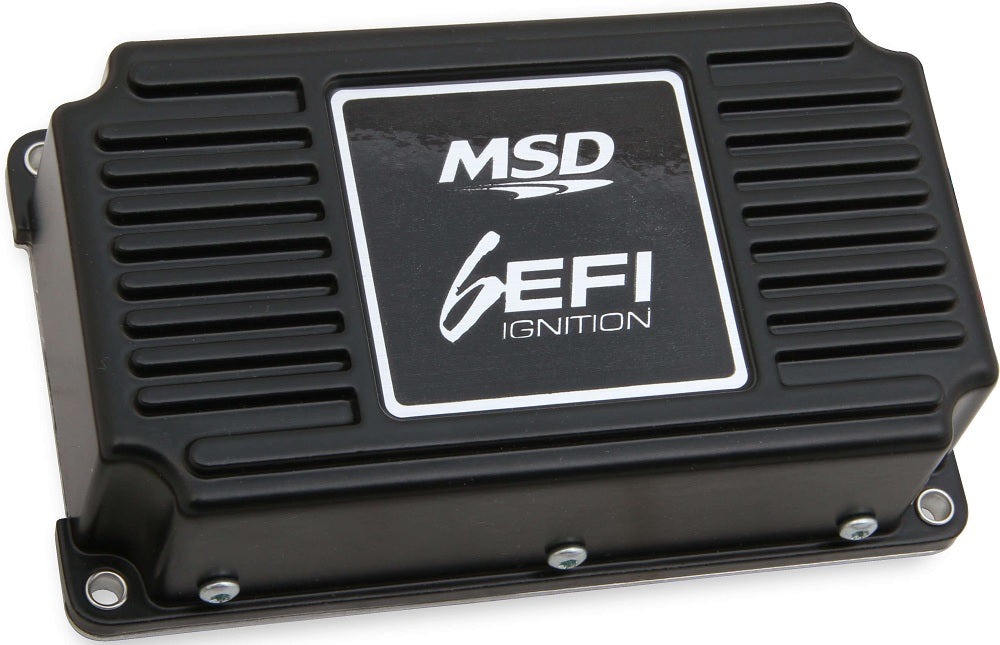

IGNITION BOX,6EFI,W/REV CONTROL

IGNITION BOX,6EFI,W/REV CONTROL

SKU:MSD 6415

Regular price $267.95
Regular price Sale price $267.95
View full details

BRAND NEW MSD 6 EFI IGNITION CONTROL BOX WITH BUILT IN REV LIMITER, BLACK, .7 AMP PER 1,000 RPM, 435 PRIMARY VOLTAGE, 43,000 SECONDARY VOLTAGE

COMPATIBLE WITH ELECTRONIC FUEL INJECTION SYSTEMS AND COMES WITH WIRING INSTALL INSTRUCTIONS. A CAPACITIVE DISCHARGE IGNITION DESIGNED TO COMPLEMENT ELECTRONIC FUEL INJECTION SYSTEMS.

INCREASED THROTTLE RESPONSE, SMOOTHER IDLE, QUICKER STARTS, AND FULL IGNITION POWER THROUGHOUT THE ENTIRE RPM RANGE ARE ALL BENEFITS OF ADDING A 6EFI IGNITION TO YOUR FUEL-INJECTED ENGINE. THE IGNITION OFFERS CAPACITIVE DISCHARGE TECHNOLOGY AND WILL FIRE A SERIES OF MULTIPLE SPARKS THAT LAST FOR 20 DEGREES OF CRANKSHAFT ROTATION WHEN THE ENGINE IS RUNNING AT LOWER RPM.

AN ADJUSTABLE REV LIMITER WILL PROTECT THE ENGINE IN THE EVENT OF A MISSED SHIFT OR DRIVELINE FAILURE. THIS RPM IS ADJUSTABLE WITH ROTARY DIALS IN 100 RPM INCREMENTS. IF YOU HAVE A 4, 6, OR 8-CYLINDER ENGINE WITH EFI, THE 6EFI WILL CONNECT AND FIRE IT UP!

FEATURES:

  • SPECIFICALLY DESIGNED FOR USE WITH EFI SYSTEMS
  • DETAILED INSTRUCTIONS FOR INSTALLATION WITH VARIOUS EFI SYSTEMS
  • CAPACITIVE DISCHARGE TECHNOLOGY PROVIDES QUICK STARTS, SMOOTH IDLE AND FULL IGNITION POWER THROUGHOUT THE RPM RANGE
  • COMPACT DESIGN
  • BUILT-IN REV LIMITER FOR OVER-REV PROTECTION
  • COMPATIBLE WITH 12 VOLT ELECTRICAL SYSTEMS USING A DISTRIBUTOR
  • EASILY CONNECTS TO MAGNETIC PICKUP, ELECTRONIC, AND EVEN POINTS DISTRIBUTORS

SPECS:

  • BRAND: MSD
  • COLOR: BLACK
  • CURRENT DRAW: .7 AMP PER 1,000 RPM
  • PRIMARY VOLTAGE: 435 VOLTS
  • PRODUCT TYPE: 6EFI IGNITION
  • RPM RANGE: 15,000 RPM WITH 14.4 VOLTS
  • SECONDARY VOLTAGE: 43,000 VOLTS
  • SPARK ENERGY: 95 MJ PER SPARK
  • SPARK SERIES DURATION: 20 DEGREE CRANKSHAFT ROTATION
  • VOLTAGE REQUIRED: 10-18 VOLTS, NEGATIVE GROUND
  • WEIGHT & SIZE: 1.5 LBS. | 6"L X 3.5"W X 1.75"H

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS IGNITION BOX HERE.
