MIDGET IGNITION KIT,WIRES,COIL,BOX

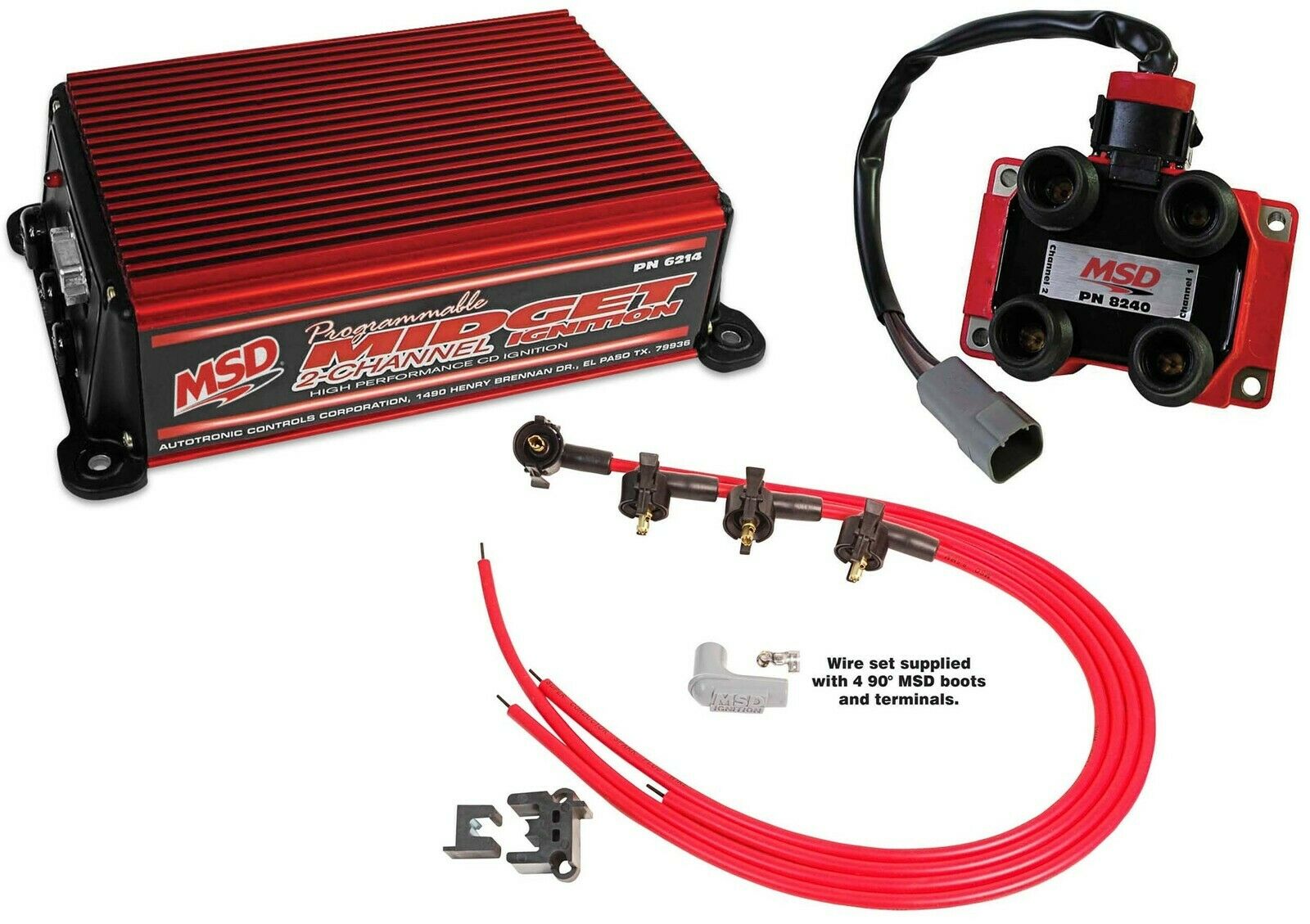

BRAND NEW MSD MIDGET PROGRAMABLE DISTRIBUTORLESS RACING IGNITION KIT, COMPATIBLE WITH FORD ENGINES

INCLUDES:

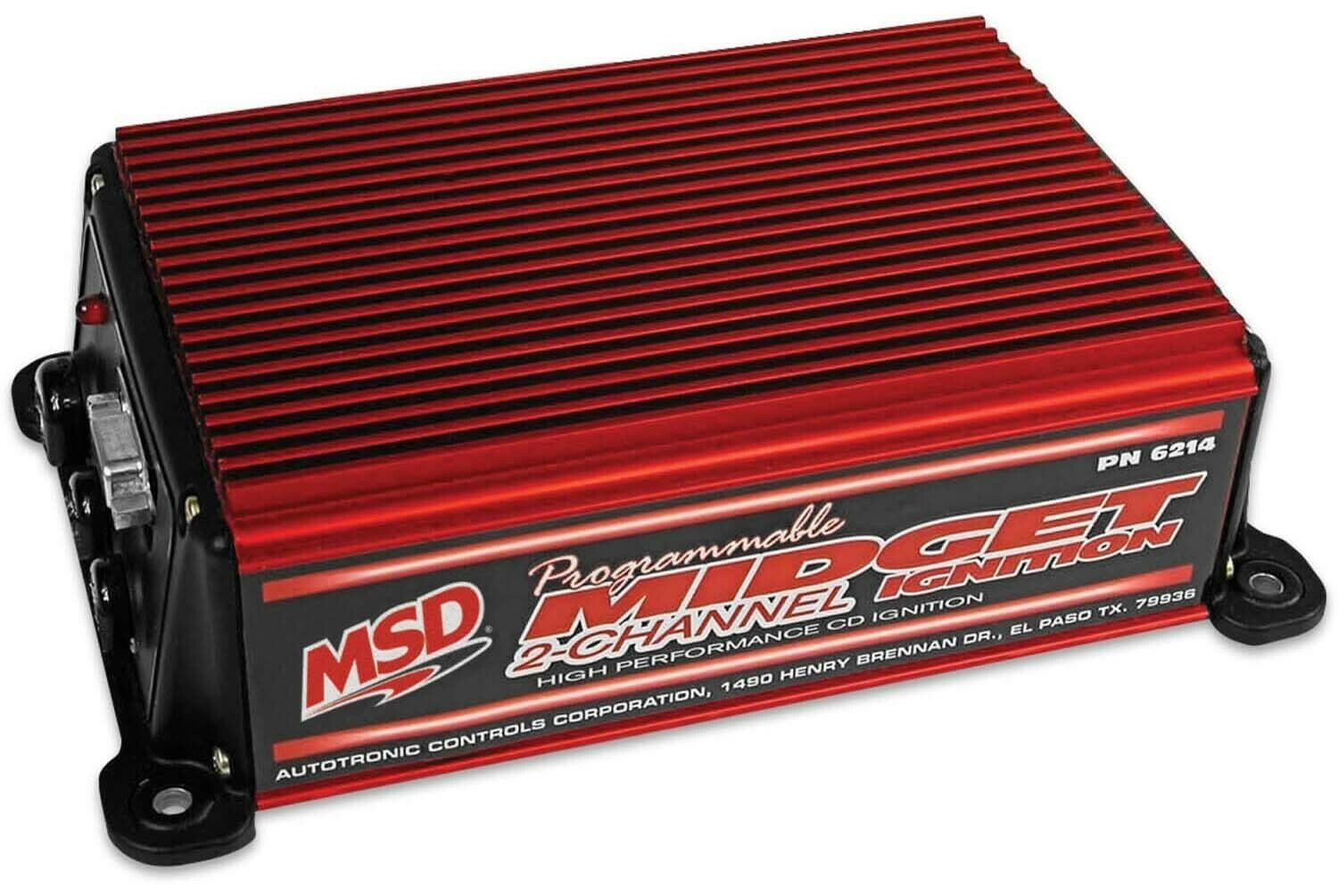

• MSD MIDGET DIS-2 PROGRAMMABLE RACE IGNITION (#6214):
• A PROGRAMMABLE IGNITION SPECIFICALLY FOR USE IN MIDGET RACING.
• THE PROGRAMMABLE MIDGET IGNITION IS A COMPLETE ELECTRONIC DISTRIBUTORLESS SYSTEM CONSISTING OF A POWERFUL CAPACITIVE DISCHARGE IGNITION CONTROL, A FOUR TOWER HIGH OUTPUT COIL PACK AND USES TWO NON-MAGNETIC PICK-UPS WITH A TRIGGER WHEEL AS A CRANK TRIGGER SOURCE. THIS TAKES ALL OF THE MECHANICAL VARIABLES OUT OF THE PICTURE TO PRODUCE EXACT IGNITION TIMING! ADDING TO THE ACCURACY AND HIGH OUTPUT OF THIS IGNITION SYSTEM, IS THE ADVANTAGE OF BEING ABLE TO PRECISELY PROGRAM THE TIMING THROUGHOUT THE ENTIRE RPM RANGE OF THE ENGINE.
• BY USING MSD PRO-DATA+ SOFTWARE PACKAGE ON A WINDOWS BASED PC, RACERS CAN PROGRAM TWO DIFFERENT TIMING CURVES DOWN TO .1 DEGREE PER 100 RPM INCREMENTS! OTHER FEATURES OF THE PROGRAMMABLE MIDGET IGNITION INCLUDE A REV LIMITER TO PROTECT THE ENGINE FROM OVERREV DAMAGE, A START RETARD AND A CIRCUIT THAT MONITORS THE BATTERY SUPPLY VOLTAGE.
• THE MIDGET IGNITION PRODUCES FULL POWER CAPACITIVE DISCHARGE SPARKS AT ANY RPM SO YOU CAN BE ASSURED OF COMPLETE COMBUSTION. TO CONTROL THIS POWER AND THE PROGRAMS, A 15 MHZ MICROCONTROLLER ANALYZES THE VARIOUS INPUTS AND IS CAPABLE OF EXTREMELY QUICK COMPENSATIONS TO MAINTAIN EXACT TIMING AND RPM. THE MIDGET IGNITION IS SUPPLIED WITH THE IGNITION CONTROL, TWO NON-MAGNETIC PICK-UPS, TRIGGER MAGNET, ON/OFF SWITCH AND SOFTWARE.
• PLOT TWO TIMING CURVES RANGING FROM 800-15,000 RPM IN 0.1 DEGREES INCREMENTS
• PROGRAM A START RETARD TO EASE CRANKING
• SELECT A REV LIMIT FROM 2,000 - 15,000 RPM IN 100 RPM INCREMENTS
• A BATTERY MONITOR CIRCUIT SHOWS REAL TIME BATTERY VOLTAGE AND A LOW VOLTAGE TIME PERCENTAGE
• SWITCH BETWEEN TWO TIMING CURVES AS TRACK CONDITIONS CHANGE DURING A RACE

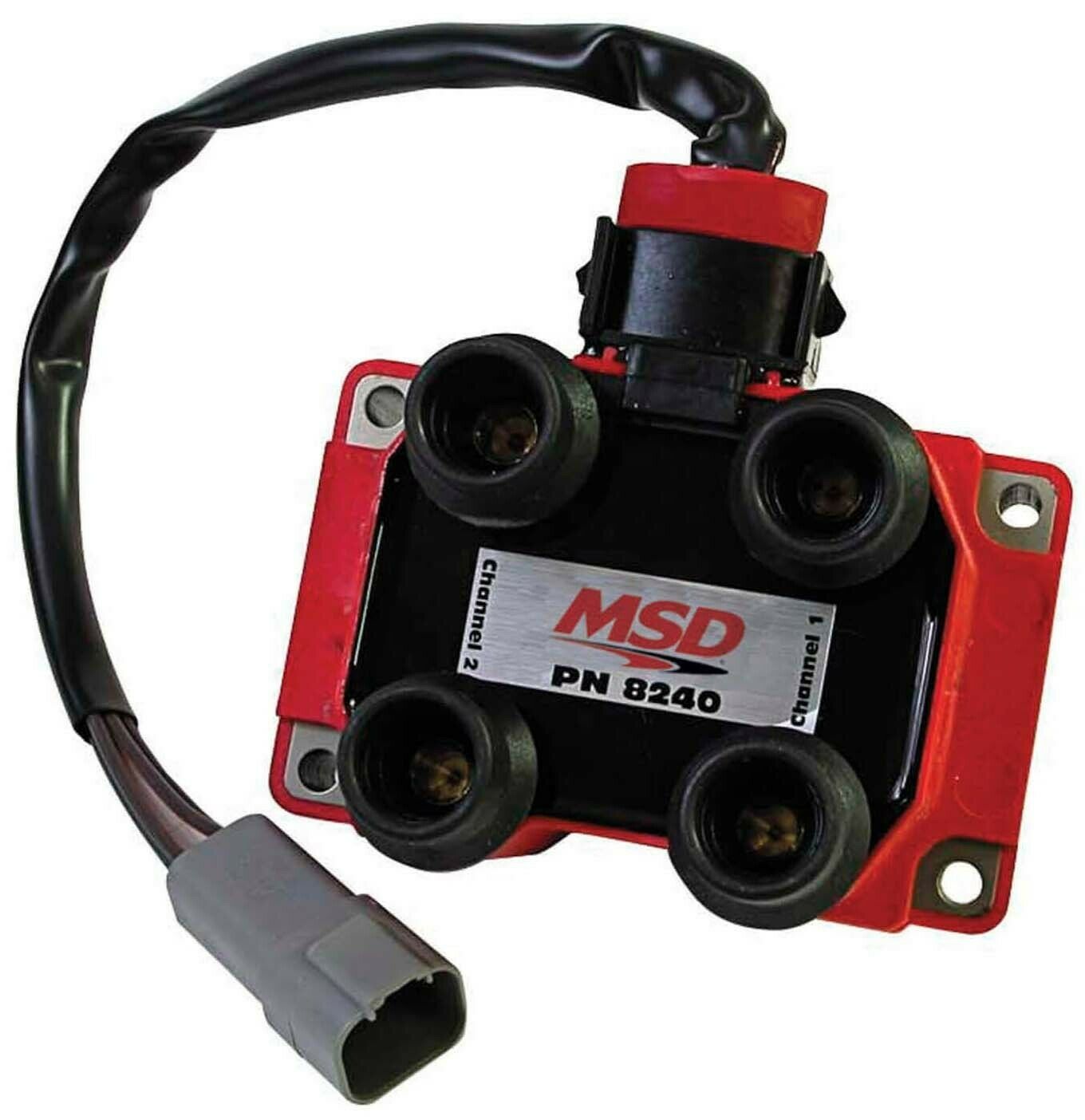

• MSD FORD DIS COIL PACK (#8240):
• FOUR TOWER HIGH OUTPUT COIL DESIGNED EXCLUSIVELY FOR THE MSD PROGRAMMABLE MIDGET IGNITION
• DESIGNED TO BE USED WITH THE MSD MIDGET IGNITION
• 83:1 TURNS RATIO AND LOWER PRIMARY RESISTANCE PRODUCE HIGH VOLTAGE OUTPUT
• SECONDARY TOWERS DESIGNED FOR SNAP ON SPARK PLUG TERMINALS
• PRIMARY TERMINALS REQUIRE FORD STYLE CONNECTOR PROVIDED WITH MIDGET IGNITION

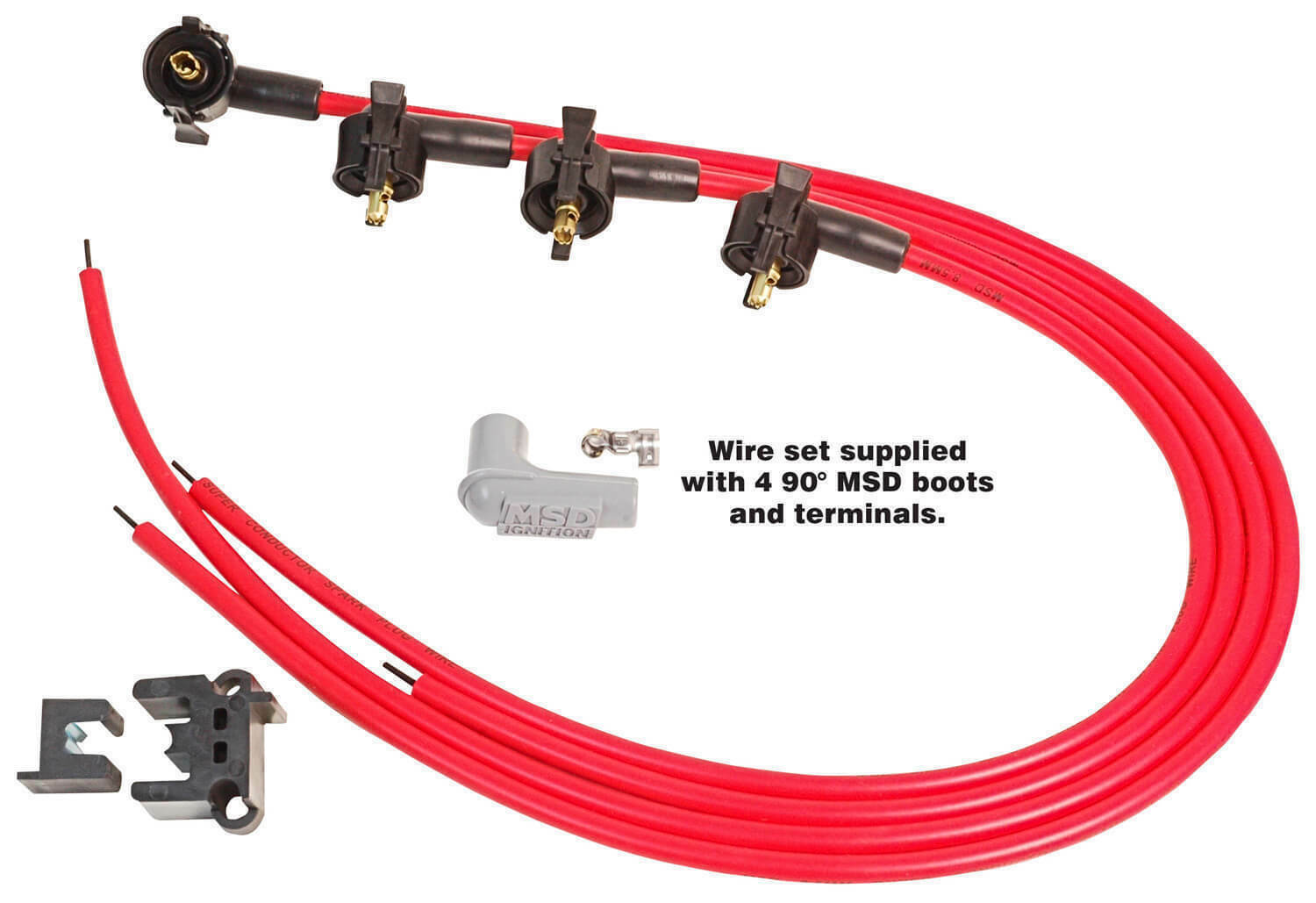

• MSD SUPER CONDUCTOR SPARK PLUG WIRE SET, 4 CYLINDER (#31689):
• UNIVERSAL SET OF 8.5MM SUPER CONDUCTOR PLUG WIRES FOR THE MIDGET RACERS
• THESE 50 OHMS PER FOOT RESISTANCE WIRES ARE SUPPLIED WITH THE COIL SIDE SPECIAL LOCKING TERMINAL AND BOOT CRIMPED TO THE WIRES. THE SPARK PLUG SIDE BOOTS AND TERMINALS ARE SUPPLIED LOOSE SO THE WIRES CAN BE ROUTED AND CRIMPED FOR EACH APPLICATION. A SPECIAL MINI-STRIPPER-CRIMPER TOOL IS ALSO SUPPLIED.
• EXTRA LONG 8.5MM WIRE SO YOU CAN CUT TO YOUR DESIRED LENGTH
• DISTRIBUTOR CAP BOOTS AND TERMINALS INCLUDED
• INCLUDES MINI-STRIPPER-CRIMPER

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THE IGNITION HERE AND THE SPARK PLUG WIRE SET HERE.
