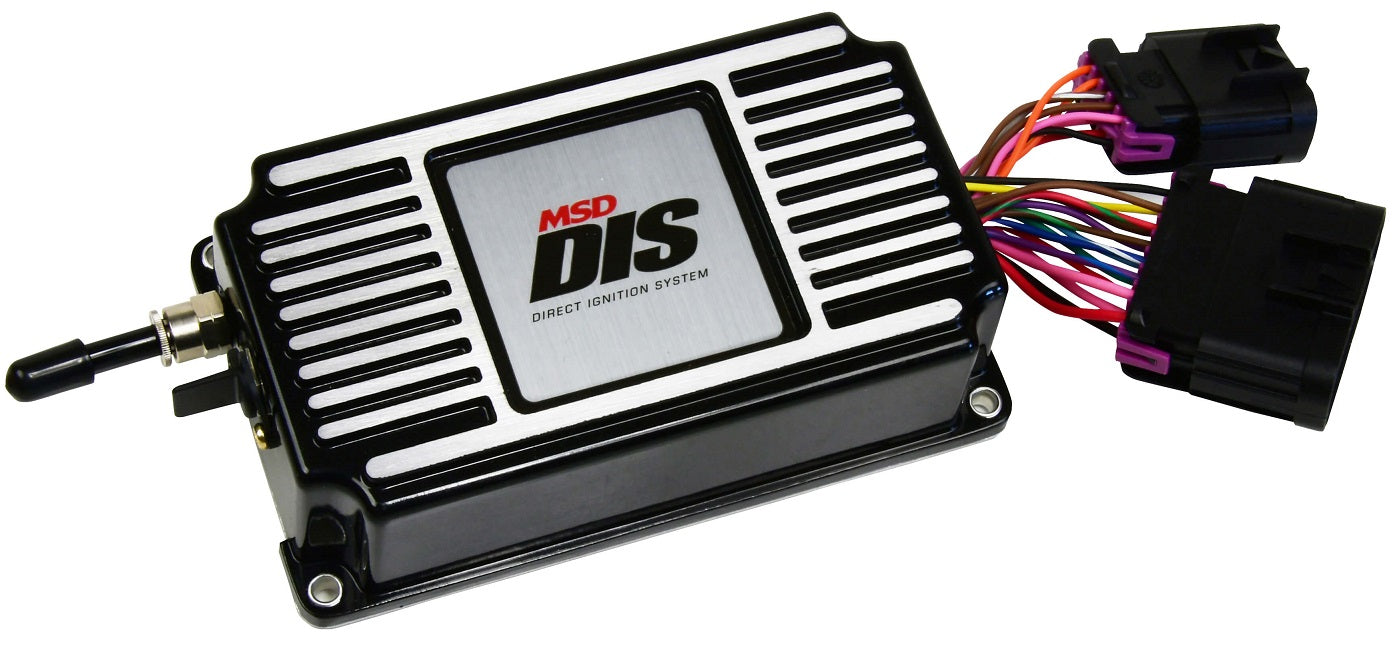

DIS IGNITION KIT,ECU,WIRES,FORD 351W,BLACK

BRAND NEW MSD DIRECT IGNITION SYSTEM, BLACK, COMPATIBLE WITH SMALL BLOCK FORD 351W ENGINES, PRODUCED BY HOLLEY PERFORMANCE PRODUCTS

THE MSD DIRECT IGNITION SYSTEM (DIS) CONTROLLER GREATLY SIMPLIFIES THE CONVERSION OF CONVENTIONAL DISTRIBUTOR-TYPE ENGINES TO A COIL-PER-PLUG CONFIGURATION. BENEFITS INCLUDE THE ELIMINATION OF DISTRIBUTOR CAP AND ROTOR WEAR, REDUCED SPARK ENERGY LOSSES CAUSED BY LONG SPARK PLUG WIRES, AND THE ABILITY TO OPTIMIZE YOUR IGNITION TUNING PARAMETERS.

THE INTEGRAL 2.5 BAR MAP SENSOR, AND OPTIONAL TEMPERATURE SENSOR INPUT, MEAN YOU GET THE MOST POWER AND RELIABILITY OUT OF YOUR NATURALLY ASPIRATED OR FORCED INDUCTION ENGINE COMBINATION. NITROUS-FED ENGINES BENEFIT FROM THE INCLUDED STEP RETARD FEATURE. DRAG RACERS WILL APPRECIATE THE 2-STEP REV LIMITER AND LAUNCH RETARD FEATURES. REAL-TIME DIS CONFIGURATION AND TUNE-UP CHANGES ARE A SNAP WITH EASY-TO-USE MSDVIEW SOFTWARE.

THANKS TO THE REAL-TIME MONITOR FEATURE OF MSDVIEW, AND 8 MB OF INTERNAL DATA STORAGE IN THE DIS CONTROLLER, DATA MONITORING AND LOGGING HAVE NEVER BEEN EASIER. THE CLEARLY LABELED WIRING HARNESS, ALONG WITH A FULL LINE OF SUPPORTING COMPONENTS AND ACCESSORIES, TAKE THE DIFFICULTY AND GUESSWORK OUT OF CONVERTING TRADITIONAL DISTRIBUTOR-TYPE ENGINES TO A MODERN AND EFFICIENT COIL-PER-PLUG IGNITION SYSTEM.

FEATURES:

• EASILY CONVERT TO COIL-PER-PLUG IGNITION SYSTEM
• PRE-PROGRAMMED TIMING MAPS
• FULLY PROGRAMMABLE 2D & 3D TIMING MAPS PROVIDE COMPLETE TIMING CONTROL
• INDIVIDUAL CYLINDER TIMING (ICT) ALLOWS PRECISE TUNING
• BUILT-IN 2.5 BAR MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR FOR BOOSTED APPLICATIONS
• OPTIONAL TEMPERATURE SENSOR INPUT TO CONTROL TIMING BASED ON TEMPERATURE
• FULLY POTTED ELECTRONICS & SEALED CONNECTORS FOR MAX DURABILITY
• EASILY PROGRAMMABLE THROUGH A MINI-USB COMMUNICATION PORT
• PROGRAMMABLE MAX REV & LAUNCH RPM LIMITERS FOR ENGINE PROTECTION
• CONSISTENT HOLESHOTS THANKS TO A PROGRAMMABLE LAUNCH TIMING RETARD
• SINGLE TIMING STEP RETARD IDEAL FOR PULLING TIMING FOR NITROUS APPLICATIONS
• ON-BOARD DATA ACQUISITION

INCLUDES:

• DIS IGNITION CONTROL BOX
• PRO-BILLET EFI DUAL SYNC DISTRIBUTOR
• COIL KIT
• COIL SUB-HARNESSES
• BLANK DISTRIBUTOR CAP
• UNIVERSAL SUPER CONDUCTOR WIRE SET

SPECS:

• BRAND: MSD
• COLOR: BLACK
• EMISSION CODE: 3
• ENGINE: FORD 351W
• PRODUCT TYPE: DIS IGNITION KIT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THE DIS HERE, AND THE DUAL SYNC DISTRIBUTOR HERE.
