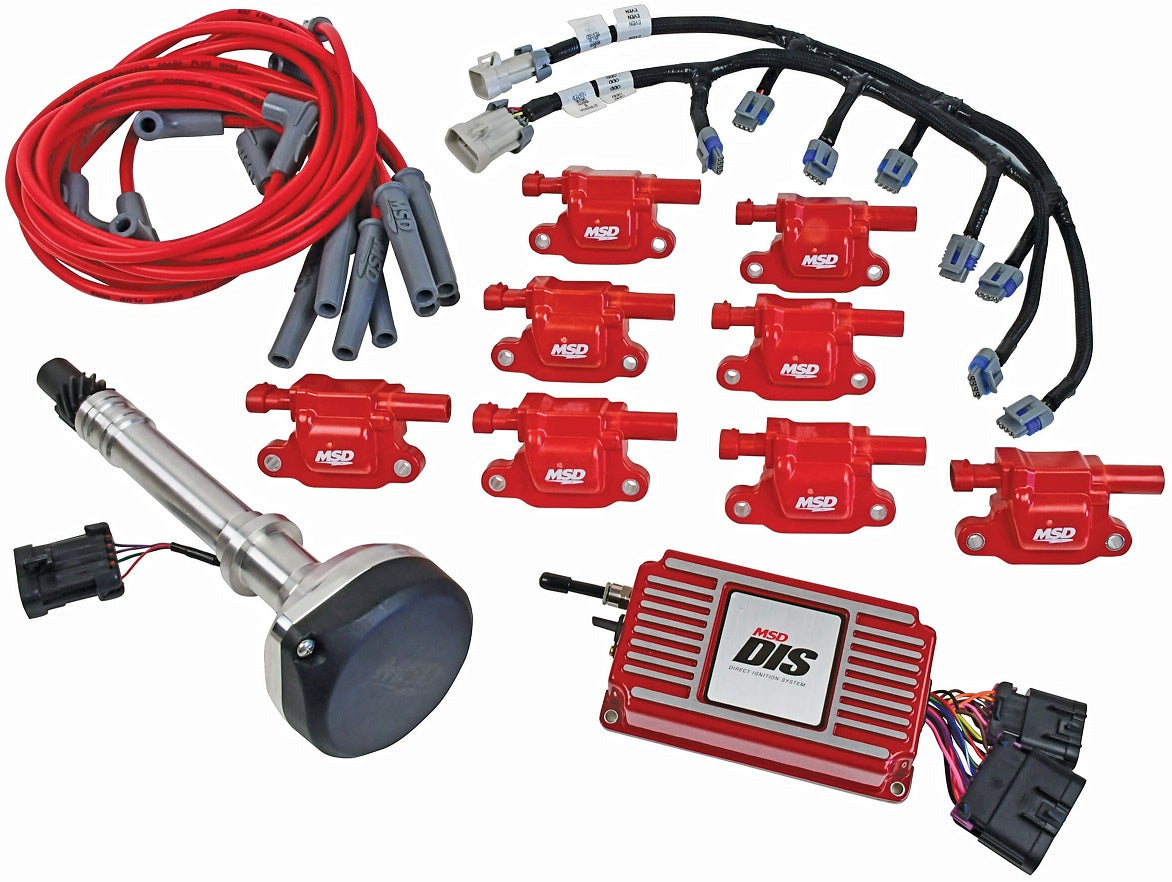

DIS IGNITION KIT,ECU,WIRES,SBC,BBC,RED

BRAND NEW MSD DIRECT IGNITION SYSTEM, RED, COMPATIBLE WITH BIG BLOCK CHEVY & SMALL BLOCK CHEVY, PRODUCED BY HOLLEY PERFORMANCE PRODUCTS

THANKS TO THE REAL-TIME MONITOR FEATURE OF MSDVIEW & 8 MB OF INTERNAL DATA STORAGE IN THE DIS CONTROLLER, DATA MONITORING & LOGGING HAVE NEVER BEEN EASIER. THE CLEARLY LABELED WIRING HARNESS, ALONG WITH A FULL LINE OF SUPPORTING COMPONENTS & ACCESSORIES, TAKE THE DIFFICULTY & GUESSWORK OUT OF CONVERTING TRADITIONAL DISTRIBUTOR-TYPE ENGINES TO A MODERN & EFFICIENT COIL-PER-PLUG IGNITION SYSTEM.

FEATURES:

• EASILY CONVERT TO A COIL-PER-PLUG IGNITION SYSTEM
• PRE-PROGRAMMED TIMING MAPS
• FULLY PROGRAMMABLE 2D & 3D TIMING MAPS PROVIDE COMPLETE TIMING CONTROL
• INDIVIDUAL CYLINDER TIMING (ICT) ALLOWS PRECISE TUNING
• BUILT-IN 2.5 BAR MANIFOLD ABSOLUTE PRESSURE (MAP) SENSOR FOR BOOSTED APPLICATIONS
• OPTIONAL TEMPERATURE SENSOR INPUT TO CONTROL TIMING BASED ON TEMPERATURE
• FULLY POTTED ELECTRONICS & SEALED CONNECTORS FOR MAXIMUM DURABILITY
• EASILY PROGRAMMABLE THROUGH A MINI-USB COMMUNICATION PORT
• PROGRAMMABLE MAX REV & LAUNCH RPM LIMITERS FOR ENGINE PROTECTION
• CONSISTENT HOLESHOTS THANKS TO A PROGRAMMABLE LAUNCH TIMING RETARD
• SINGLE TIMING STEP RETARD IDEAL FOR PULLING TIMING FOR NITROUS APPLICATIONS
• ON-BOARD DATA ACQUISITION

INCLUDES:

• DIS IGNITION CONTROL BOX

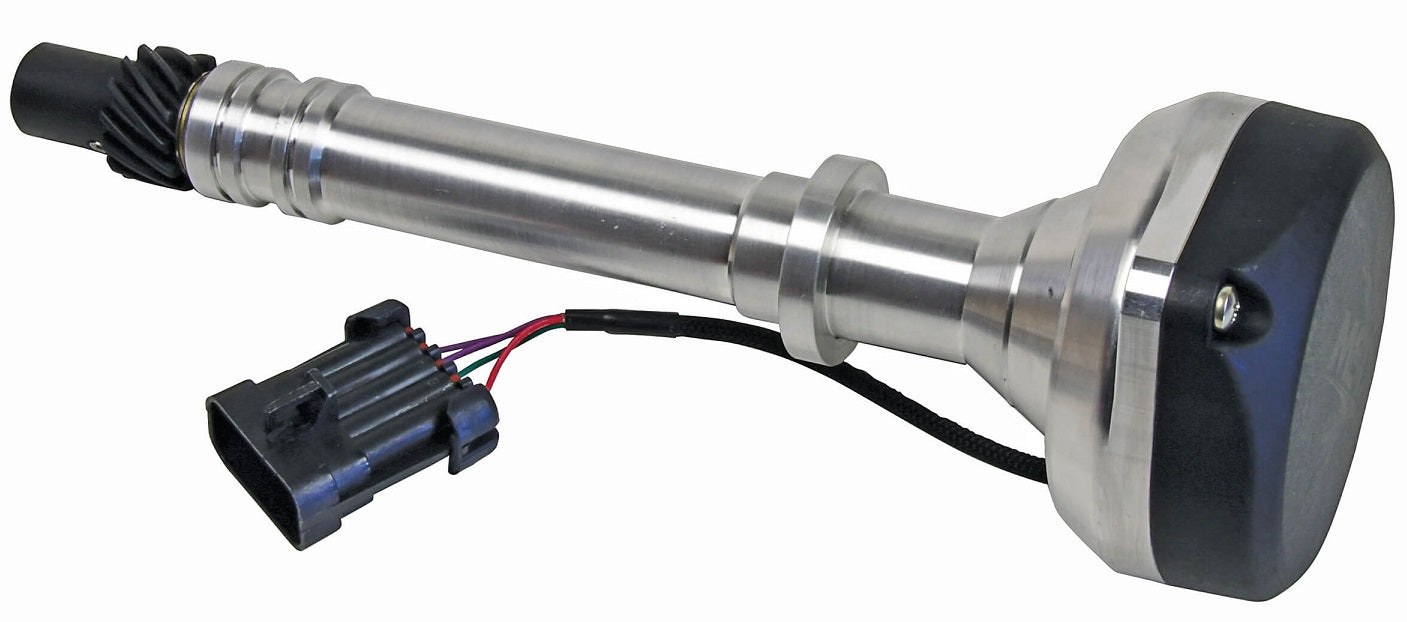

• PRO-BILLET EFI DUAL SYNC DISTRIBUTOR

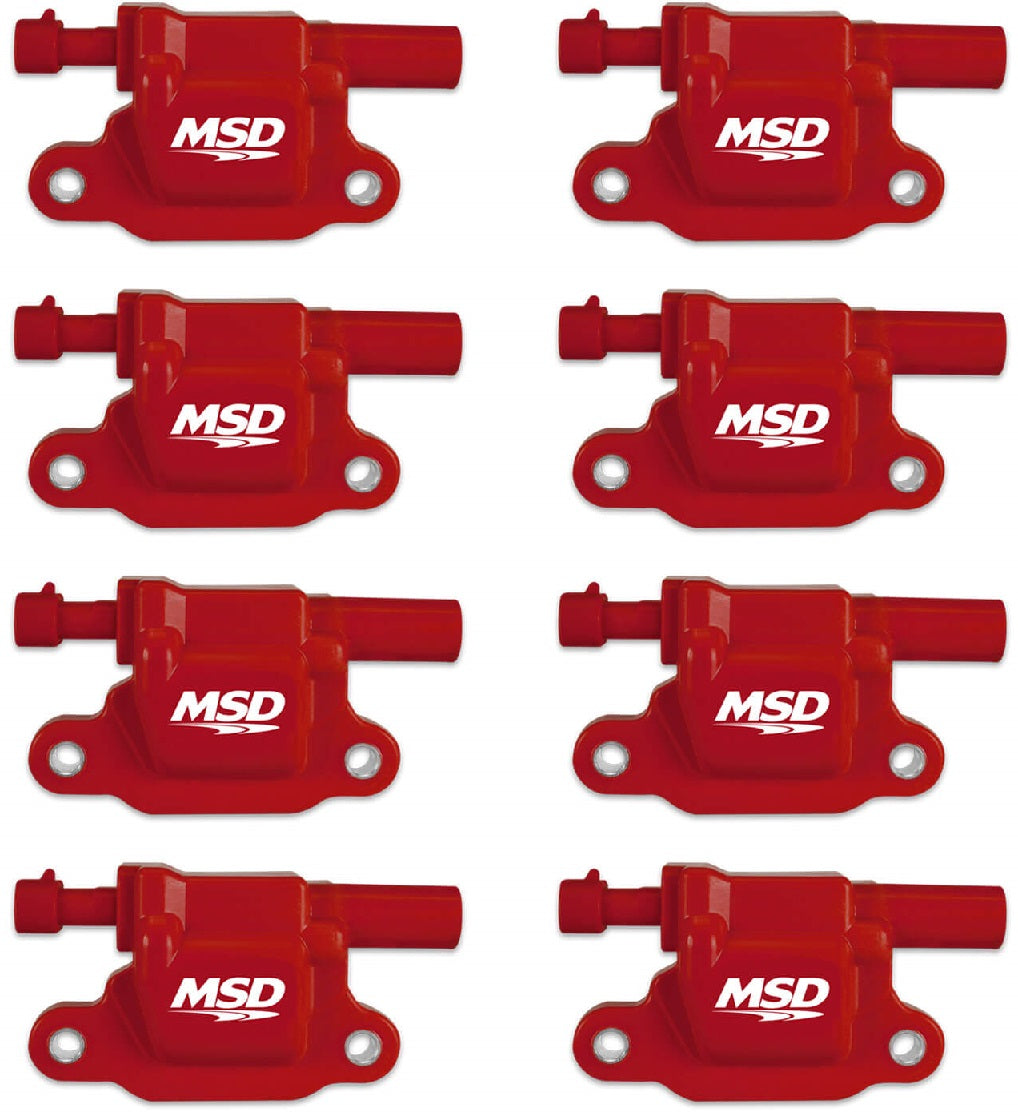

• COIL KIT
• COIL SUB-HARNESSES
• BLANK DISTRIBUTOR CAP

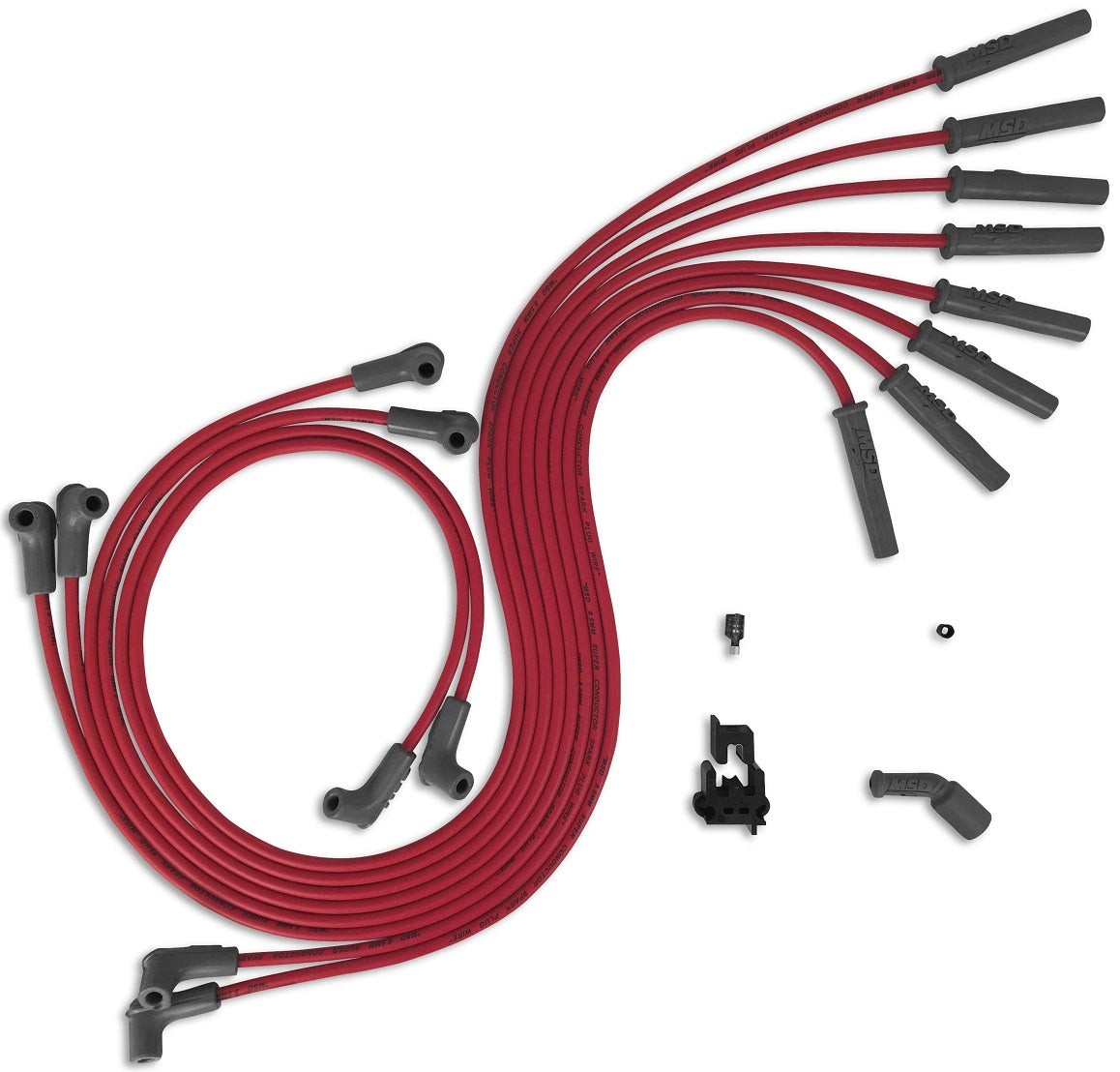

• UNIVERSAL SUPER CONDUCTOR WIRE SET

SPECS:

• BRAND: MSD
• COLOR: RED
• EMISSION CODE: 3
• ENGINE: BIG & SMALL BLOCK CHEVY
• PRODUCT TYPE: DIS IGNITION KIT

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THE DIS HERE, AND THE DUAL SYNC DISTRIBUTOR HERE.
