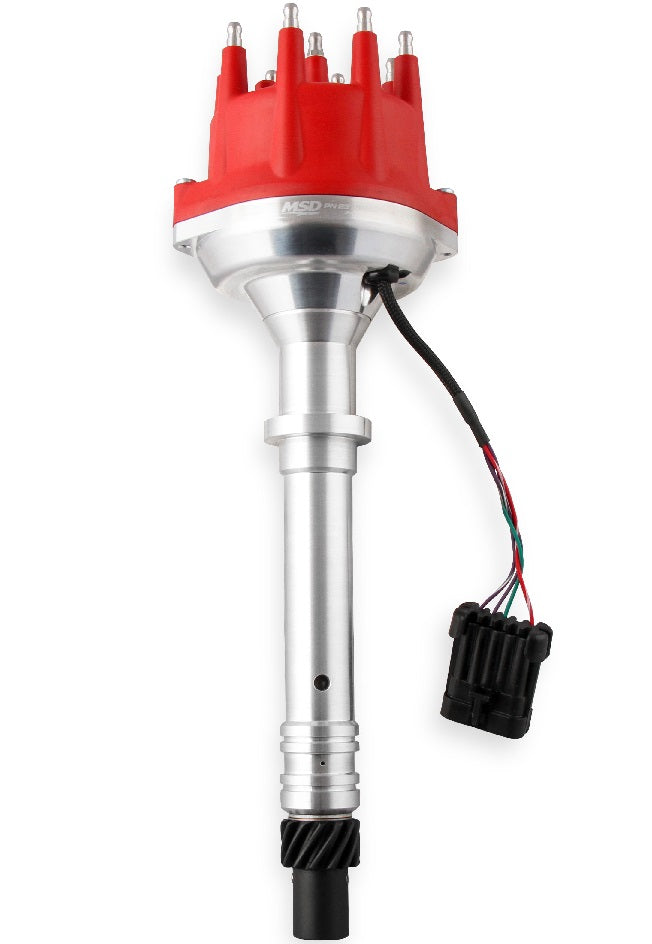

DISTRIBUTOR,PRO BILLET,EFI,DUAL SYNC,CHEVY

BRAND NEW MSD EFI PRO-BILLET DUAL SYNC DISTRIBUTOR, RED & SILVER, COMPATIBLE WITH CHEVY SMALL AND BIG BLOCK ENGINES

INTRODUCING THE ALL-NEW MSD PRO-BILLET EFI DUAL SYNC DISTRIBUTORS! THE NEW DESIGN FEATURES HIGH-QUALITY DUAL HALL EFFECT SЕNSORS, A QРQ COATED PRECISION BILLET SHUTTER WHEEL AND DISTRIBUTOR SHAFT GUIDED BY A SEALED BALL BEARING, A RACE PROVEN DISTRIBUTOR GEAR, PERFORMANCE CAP AND ROTOR, AND ALL THE QUALITY OUR PRO-BILLET DISTRIBUTOR LINE IS KNOWN FOR.

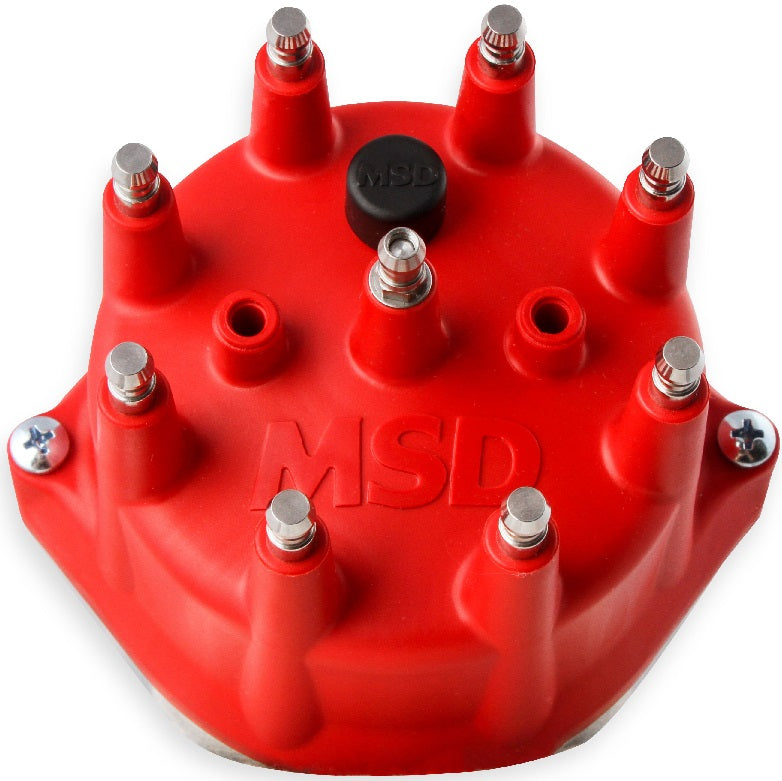

WHILE THESE DISTRIBUTORS ARE DESIGNED PRIMARILY FOR USE WITH SEQUENTIAL FUEL INJЕCTION SYSTEMS THAT SUPPORT HALL EFFECT CRANK AND CАM SЕNSOR INPUTS, THEY CAN ALSO TRIGGER ТBI FUEL INJЕCTION SYSTEMS. THE PRECISION-MACHINED SHUTTER WHEEL DESIGN ENSURES ACCURATE TIMING, EVEN AT HIGH ENGINE SPEEDS. IF YOU HAVE CONVERTED TO A COIL PER CYLINDER IGNITION SYSTEM, WE OFFER A GREAT LOOKING BLANK DISTRIBUTOR CAP TO SAVE SPACE AND ЕLIMINATE THE UNUSED CAP AND ROTOR.

NOTE: WHEN USED WITH HOLLEY SNIPER EFI, IGNITION ADAPTER PART #558-493 IS REQUIRED.

FEATURES:

• PLUG AND PLAY WITH HOLLEY EFI
• INCLUDES BOTH CRANK & CАM SЕNSORS TO SUPPORT SEQUENTIAL EFI OPERATION
• CAN BE USED TO TRIGGER POPULAR ТBI FUEL INJЕCTION SYSTEMS
• HALL EFFECT SЕNSOR DESIGN PROVIDES PRECISE TIMING CONTROL AND NOISE IMMUNITY
• CNC MACHINED BILLET ALUMINUM HOUSING
• INTEGRATED LEDS ALLOW FOR EASY SETUP
• AVAILABLE FOR POPULAR APPLICATIONS
• COMES WITH QUALITY, RACE PROVEN DISTRIBUTOR GEAR
• PRECISION MACHINED SHUTTER WHEEL DESIGNED FOR IMPROVED ACCURACY AT EXTREME ENGINE RPM
• SHUTTER WHEEL IS PINNED AND WELDED TO DISTRIBUTOR SHAFT FOR SUPERIOR RELIABILITY

SPECS:

• BRAND: MSD
• COLOR: RED
• DISTRIBUTOR TYPE: EFI DUAL SYNC
• ENGINE: CHEVY SMALL & BIG BLOCK
• GEAR: CAST, MELONIZED
• PRODUCT TYPE: DISTRIBUTOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS DISTRIBUTOR HERE.
