RELAY KIT,ELECTRIC FAN,30 AMP,185 DEGREE

BRAND NEW MR. GASKET ELECTRIC FAN HARNESS & RELAY KIT WITH 185 DEGREE TEMPERATURE SWITCH, 100 INCH LENGTH, 30 AMPS, 12V

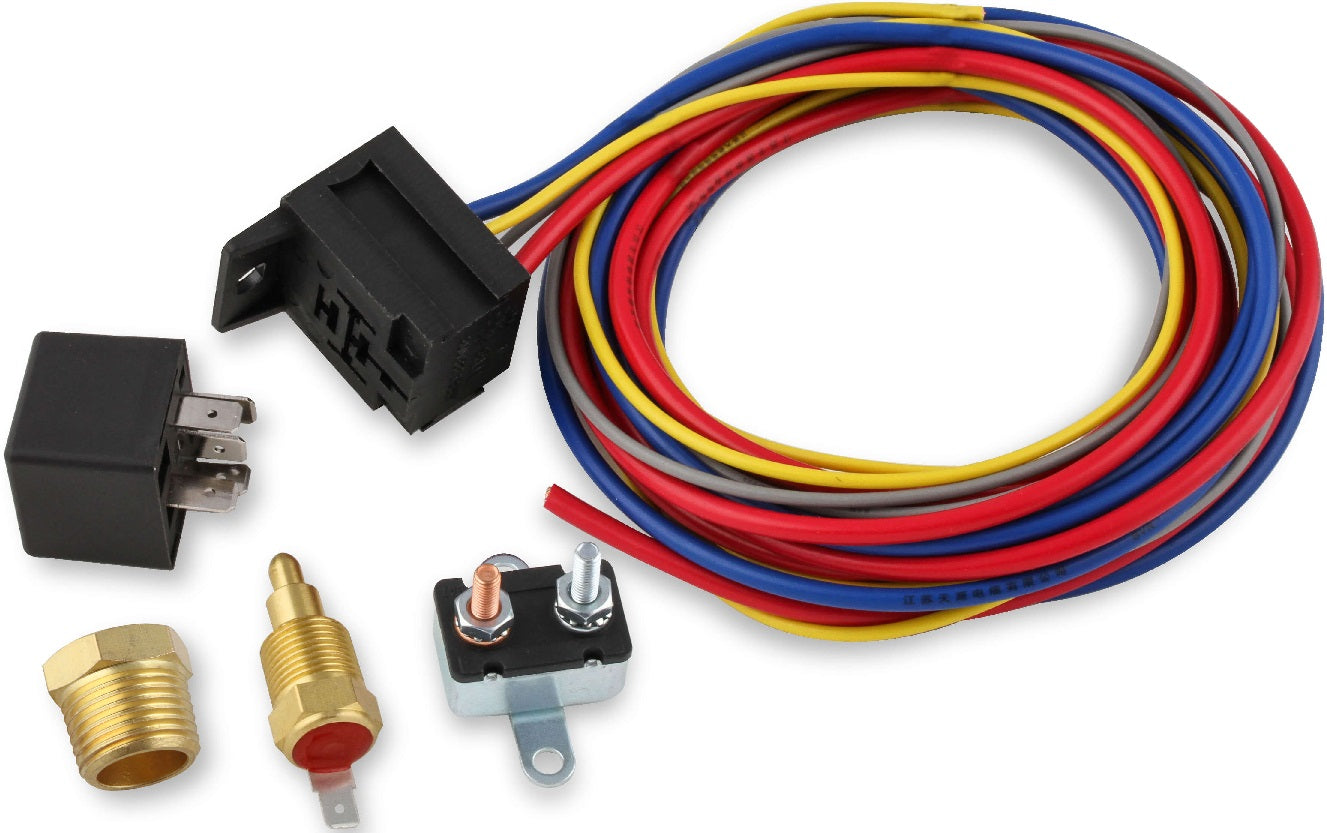

MR. GASKET WIRING HARNESS & RELAY KITS PROTECT YOUR ELECTRICAL SYSTEM AND PROVIDE RELIABLE AND CONSISTENT POWER FOR YOUR HIGH PERFORMANCE ELECTRIC FAN. THESE KITS INCLUDE HIGH QUALITY HEAVY GAUGE WIRING, 30 AMP RELAY, 30 AMP CIRCUIT BREAKER, PRE-WIRED RELAY CONNECTOR, CRIMP TERMINALS & HARDWARE. EACH KIT COMES WITH EASY TO FOLLOW INSTRUCTIONS THAT ARE WRITTEN SPECIFICALLY FOR THAT APPLICATION.

NOTE: USE LIQUID SEALANT ONLY ON THE THREADS OF THE TEMPERATURE SENSOR. THE USE OF PLUMBERS TAPE WILL INSULATE THIS SENSOR FROM GROUND AND IT WILL NOT WORK CORRECTLY.

FEATURES:

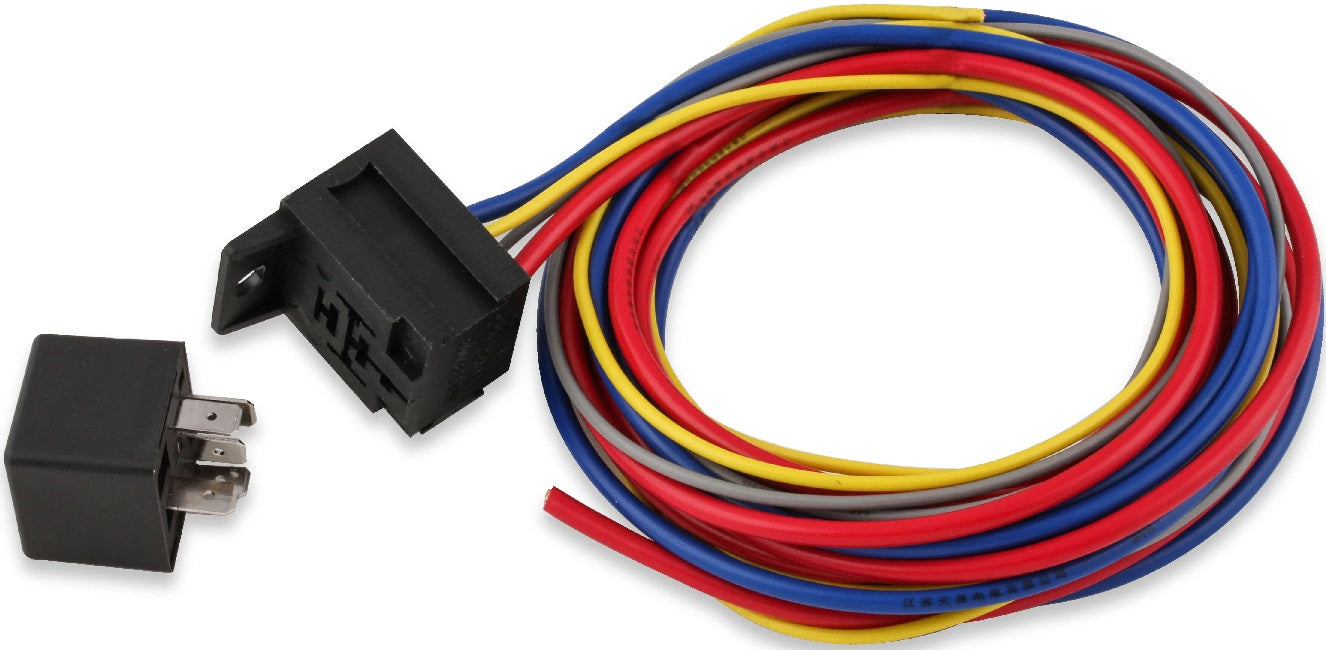

• 30 AMP RELAY
• WIRING HARNESS IS 100" LONG - 10-18 GA. WIRE

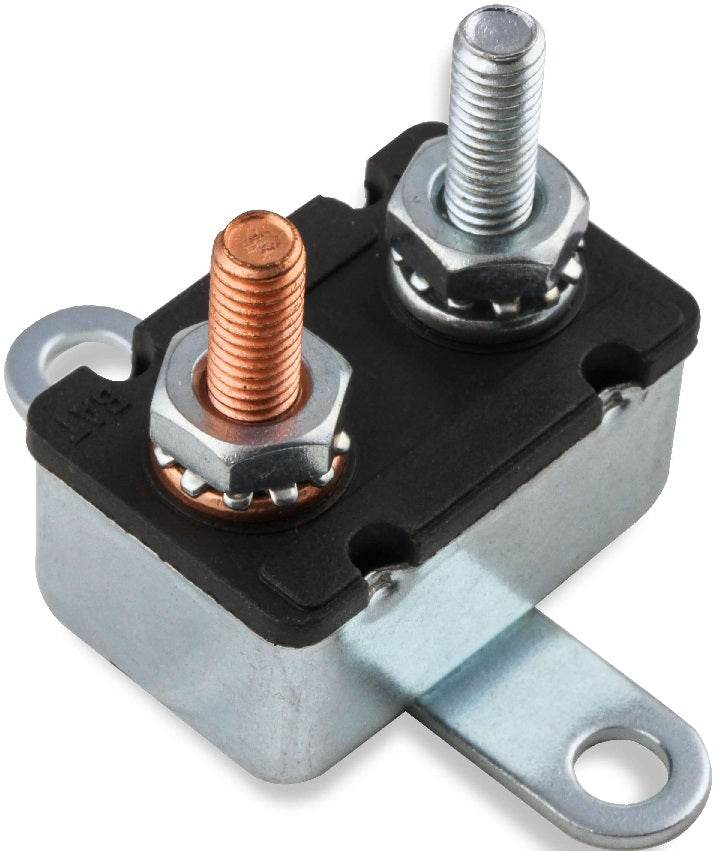

• 30 AMP CIRCUIT BREAKER

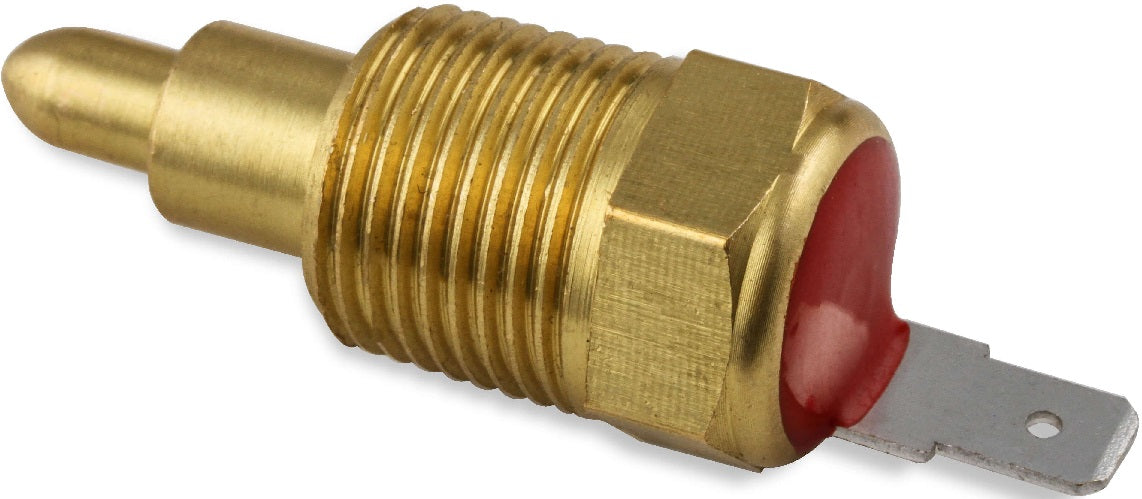

• 3/8" NPT TEMPERATURE SENSOR WITH 1/2" NPT REDUCER BUSHING
• CRIMP TERMINALS & HARDWARE
• SPECIAL CONNECTOR ALLOWS ADDITIONAL RELAYS TO BE NESTED TOGETHER FOR CLEAN INSTALLATION
• EASY TO FOLLOW INSTRUCTIONS SIMPLIFY WIRING YOUR ELECTRIC FAN
• TEMPERATURE SWITCH TURNS ON FAN AT 185 DEGREES AND OFF AT 170 DEGREES

SPECS:

• BRAND: MR. GASKET
• CIRCUIT BREAKER AMPERAGE: 30 AMPS
• LENGTH: 100"
• PRODUCT TYPE: FAN WIRING KIT
• RELAY AMPERAGE: 30 AMPS
• SENDING UNIT THREAD SIZE: 3/8-18 NPT
• VOLTAGE: 12V
• WIRING HARNESS INCLUDED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FAN HARNESS & RELAY KIT HERE.
