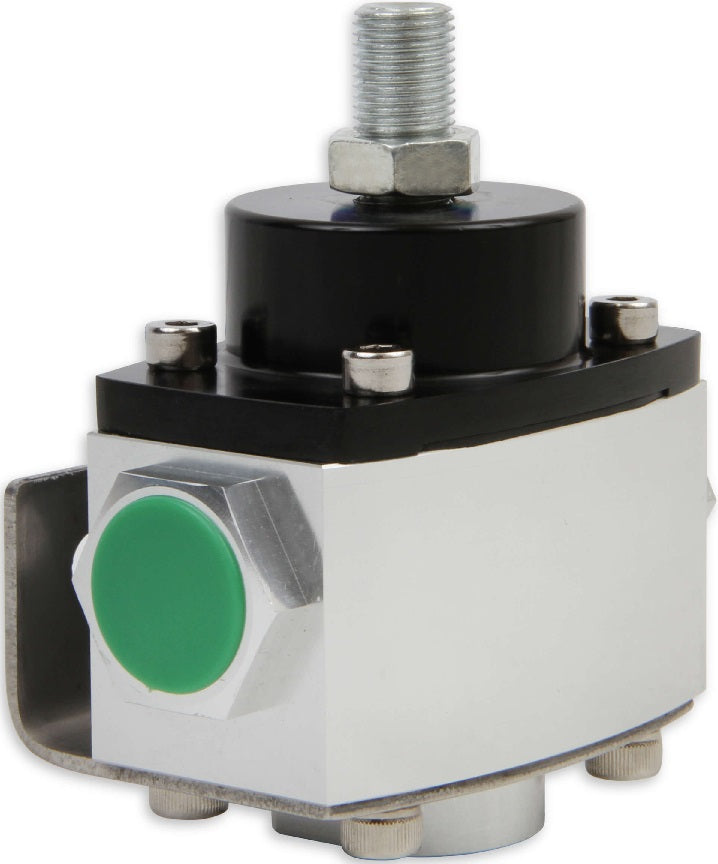

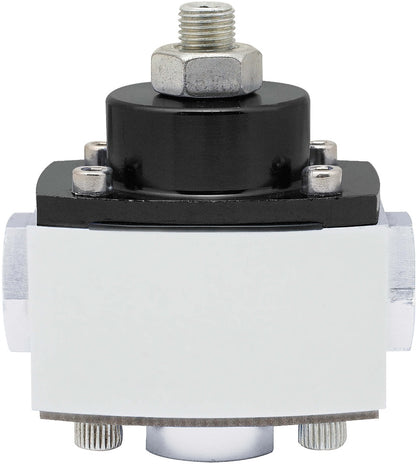

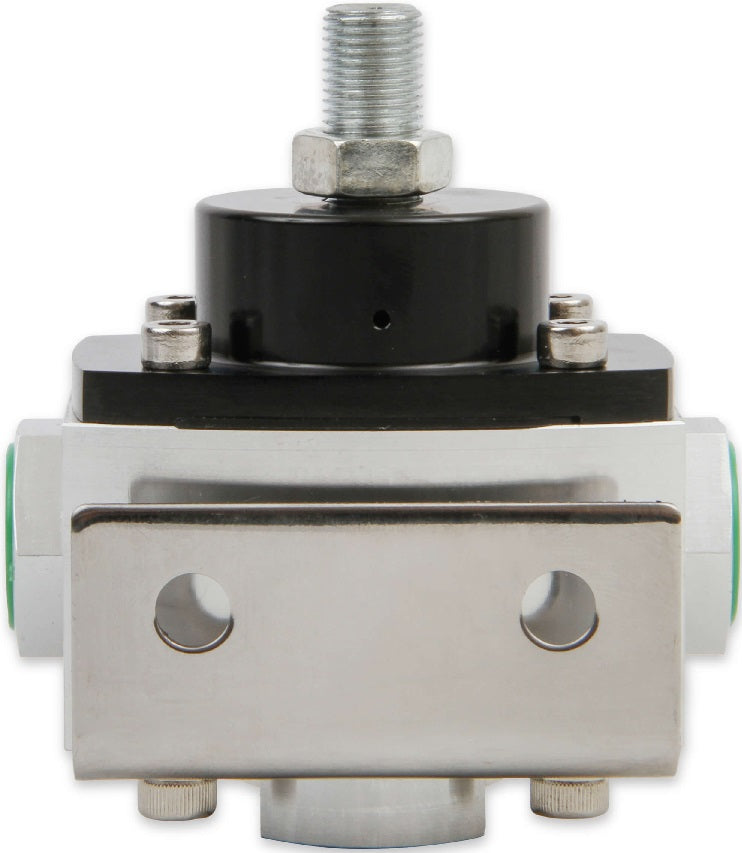

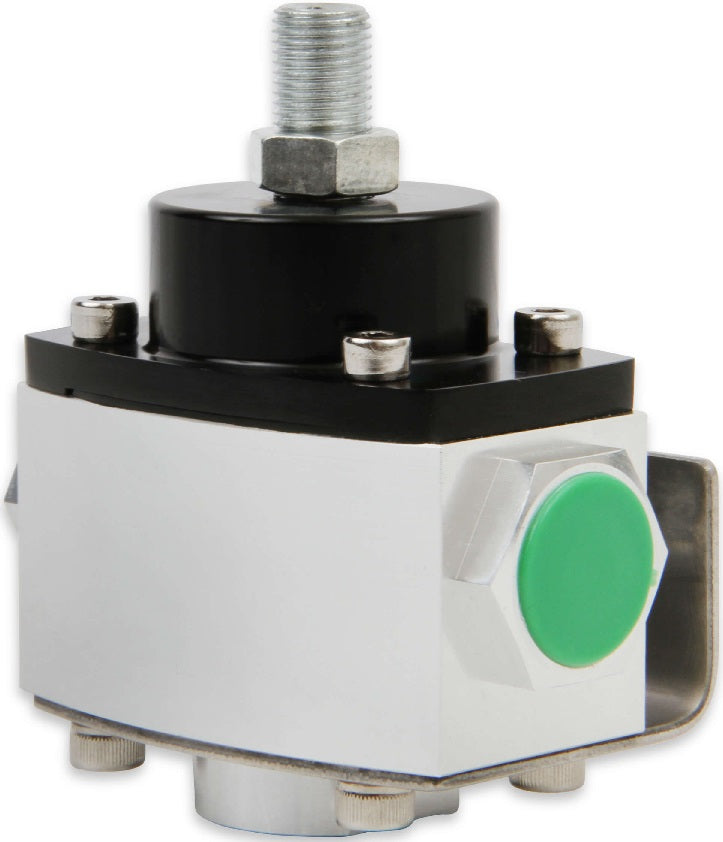

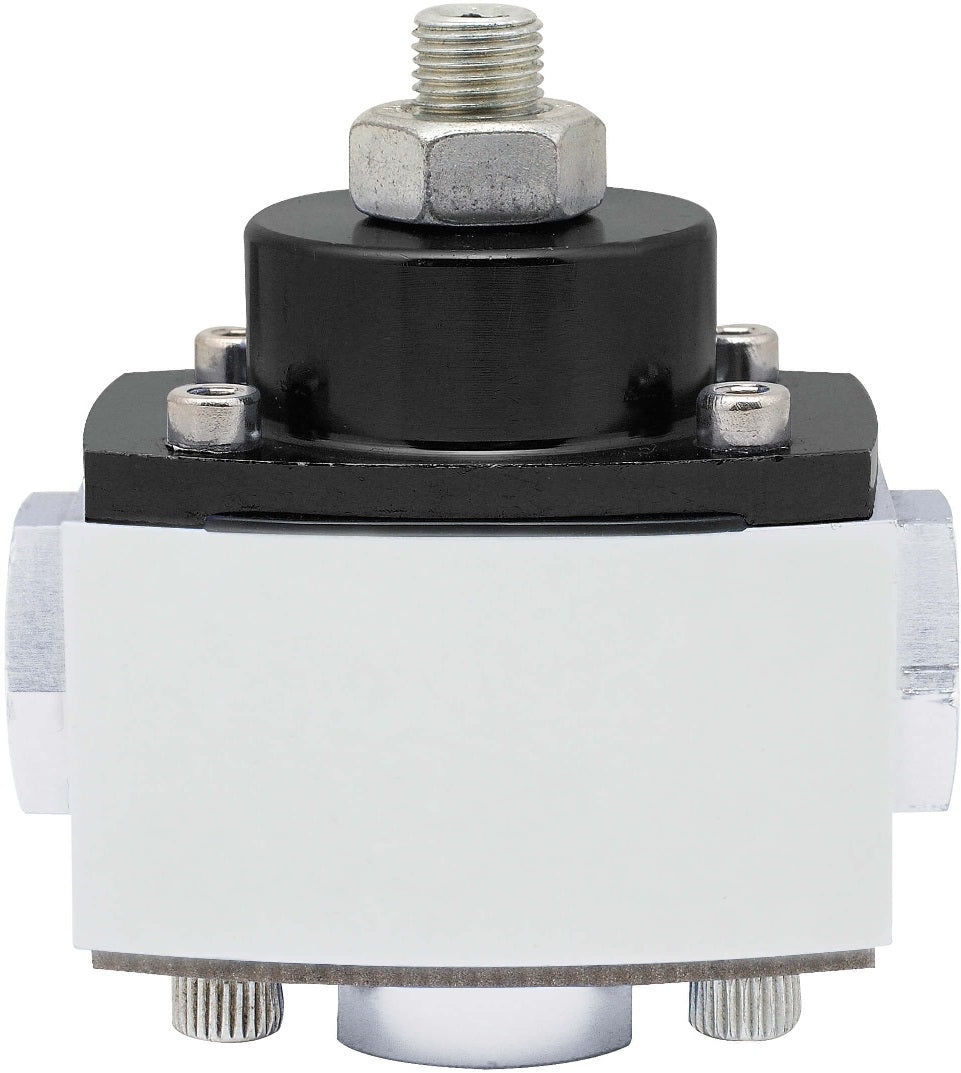

REGULATOR,BYPASS,4.5-9 PSI,BILLET

BRAND NEW MR. GASKET ADJUSTABLE FUEL PRESSURE REGULATOR, SILVER FINISH, 4.5-9 PSI, 3/8"-18 NPT INLET & OUTLET, COMPATIBLE WITH GASOLINE

THE MR. GASKET FUEL PRESSURE REGULATOR #2015 IS A RETURN-STYLE FUEL PRESSURE REGULATOR. OPERATING FUEL PRESSURE RANGE IS 4.5 - 9 PSI (POUNDS PER SQUARE INCH). COMPATIBLE WITH HIGH PERFORMANCE RETURN-STYLE CARBURETED APPLICATIONS.

NOTE: NOT COMPATIBLE WITH ALCOHOL, METHANOL OR E-85 FUELS. FOR USE WITH CARBURETED FUEL PUMPS ONLY. THE FUEL RETURN LINE SIZE SHOULD BE 3/8 INCH I.D. OR LARGER OR THE REGULATOR WILL NOT REGULATE PROPERLY.

FEATURES:

• PRECISION CNC MACHINED
• HIGH FLOW DESIGN SUPPORTING 400 - 700 HORSE POWER
• ADJUSTABLE BETWEEN 4.5 - 9 PSI TO FINE TUNE FOR YOUR APPLICATION
• RETURN TYPE REGULATOR FOR QUIET PUMP OPERATION
• EASY INSTALLATION

SPECS:

• BRAND: MR. GASKET
• COLOR/FINISH: SILVER ANODIZED
• FUEL PRESSURE: 4.5 - 9 PSI
• FUEL TYPE: GASOLINE
• INLET/OUTLET SIZE: 3/8" - 18 NPT
• MATERIAL: ALUMINUM
• PRODUCT TYPE: FUEL PRESSURE REGULATOR

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS FUEL PRESSURE REGULATOR HERE.
