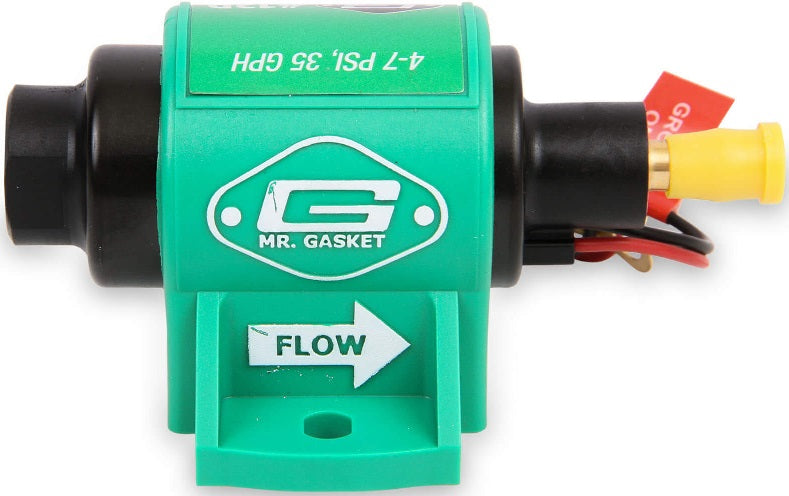

FUEL PUMP,ELECTRIC,35GPH,4-7PSI,DIESEL,5 1/6" PO

BRAND NEW MR. GASKET MICRO ELECTRIC FUEL PUMP, 4-7 PSI, 35 GPH, COMPATIBLE WITH DIESEL FUEL

SIMPLE TWO WIRE DESIGN, GRAVITY FED TYPE PUMP, INCLUDES 100 MICRON IN-LINE FILTER. SMALL UNIVERSAL DESIGN ALLOWS EASY SET-UP AND INSTALLATION ANYWHERE. GRAVITY FED TYPE PUMP WITH SIMPLE TWO-WIRE SELF PRIMING DESIGN. WORKS ON 12 VOLT NEGATIVE GROUND SYSTEMS ONLY. INCLUDES 100 MICRON IN-LINE FILTER.

NOTE: MUST BE MOUNTED WITHIN 12 INCHES OF FUEL TANK.

FEATURES:

• SOLID-STATE WORRY FREE ELECTRONICS
• INTERNAL PRESSURE REGULATING
• UNIVERSAL DESIGN ALLOWS FOR EASY INSTALLATION
• NO DIAPHRAGMS OR MECHANICAL PARTS TO WEAR OUT
• THEY MAKE AN EXCELLENT FUEL TRANSFER OR BOOSTER PUMP
• HOSE BARBS FIT 5/16" FUEL HOSE
• SELF-PRIMING, 2 WIRE DESIGN

SPECS:

• APPLICATION: UNIVERSAL
• COLOR: GREEN
• FREE FLOW GPH: 35
• FUEL TYPE: DIESEL
• HOSE SIZE: 5/16
• INLET SIZE: 1/8 INCH NPT
• MATERIAL: POLYMER
• MAX PRESSURE: 7 PSI
• PRODUCT TYPE: FUEL PUMP

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS ELECTRIC FUEL PUMP HERE.
