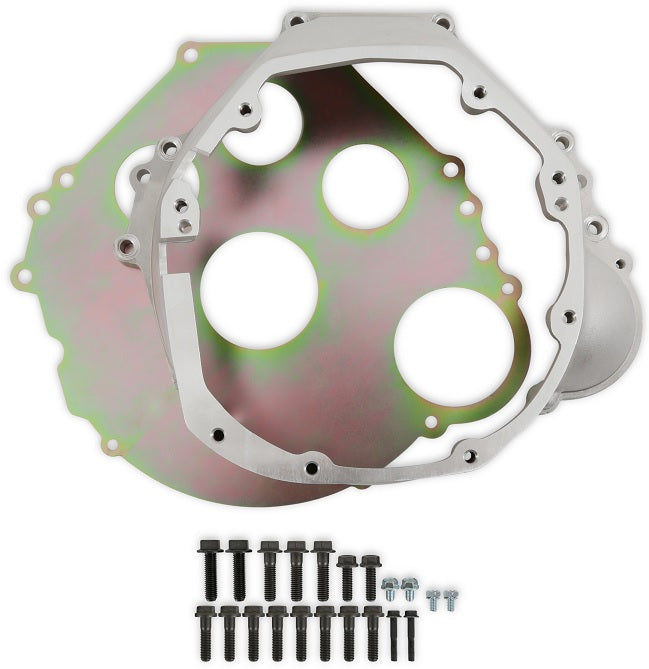

BELLHOUSING KIT,CAST,ALUM,SBF 260>351W,GM T-56 & T-56 MAGNUM

BRAND NEW LAKEWOOD BELLHOUSING KIT, CAST ALUMINUM FINISH, 157 TOOTH FLYWHEEL, CONNECTS SMALL BLOCK FORD 289, 302, 351C & 351W ENGINES TO GM PATTERN T-56 & T-56 MAGNUM TRANSMISSIONS

THIS LAKEWOOD CAST ALUMINUM BELLHOUSING CONNECTS MOST SMALL BLOCK FORD ENGINES TO GM PATTERN T-56 AND T-56 MAGNUM TRANSMISSIONS. DESIGNED AS A COMPACT, LIGHTWEIGHT, AND INEXPENSIVE OPTION FOR TRANSMISSION SWAPS NOT NEEDING SFI CERTIFICATION, THE LK9100K ATTACHES IN A FACTORY-LIKE MANNER TO STOCK OR HOLLEY OIL PANS AND INCLUDES A BLOCK PLATE FOR STARTER ALIGNMENT AND A DUST SHIELD.

THE STARTER REGISTER SIZE IS 4.084" & HOLLEY RECOMMENDS MSD DYNAFORCE STARTERS 5090 OR 50903 (BLACK). ROUNDING OUT THE KIT IS A GRADE 8/10.9 HARDWARE KIT (LAKEWOOD #50395) FOR BOTH ENGINE & TRANSMISSION SO ALL YOU NEED TO DO IS PICK OUT YOUR CLUTCH, FLYWHEEL & RELEASE BEARING.

NOTE: COMPATIBLE WITH 6-BOLT BLOCKS & PANTHER CHASSIS MOD MOTORS FROM 1991/1992 - THE FIRST 2 CASTING RUNS (F1AE & F2VE) THAT UTILIZE THE SBF PATTERN.

NOTE: COMPATIBLE WITH 157 TOOTH FLYWHEELS & 10.5 INCH MAX DIAMETER CLUTCH. INCLUDED BLOCK PLATE MUST BE USED.

NOTE: REQUIRES A STARTER FOR 157 TOOTH FLYWHEEL WITH A 4.084 INCH STARTER REGISTER. RECOMMENDED LAKEWOOD ROLLER PILOT BEARING 50376 (FOR SBF USING GM TRANSMISSIONS - .594 ID).

FEATURES:

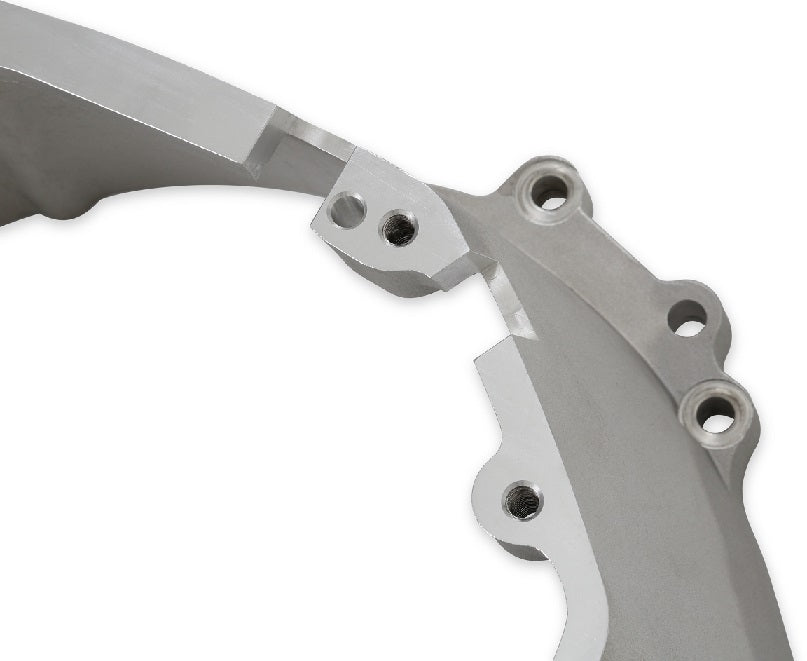

• LIGHTWEIGHT CAST ALUMINUM DESIGN SIMILAR TO ORIGINAL EQUIPMENT BELLHOUSINGS
• LOWER COST OPTION FOR PROJECTS THAT DO NOT REQUIRE A STEEL SFI RATED UNIT
• COMPATIBLE WITH SBF 289, 302, 351W OR 351C TO STANDARD GM PATTERN T-56 & T-56 MAGNUM TRANSMISSIONS
• COMPATIBLE WITH HYDRAULIC RELEASE BEARINGS ONLY
• COMPATIBLE WITH 57 TOOTH FLYWHEEL & 10.5-INCH CLUTCH TO MAINTAIN SWAP-FRIENDLY DIMENSIONS

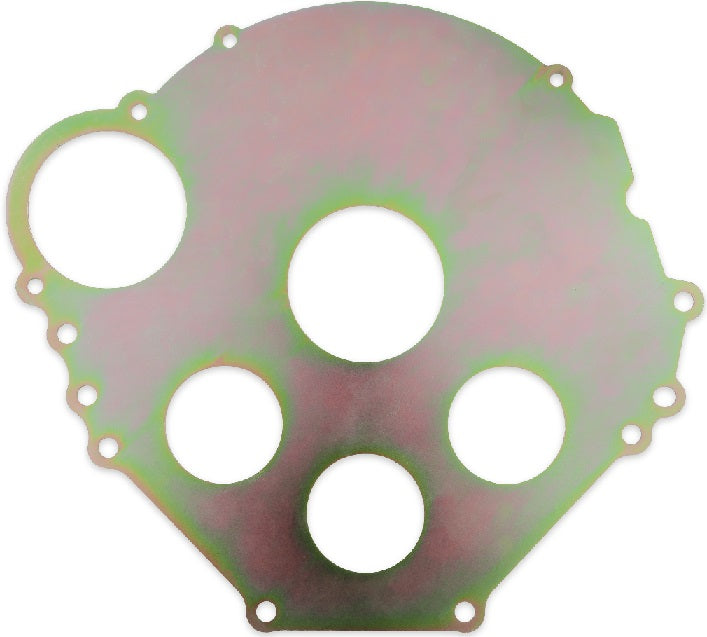

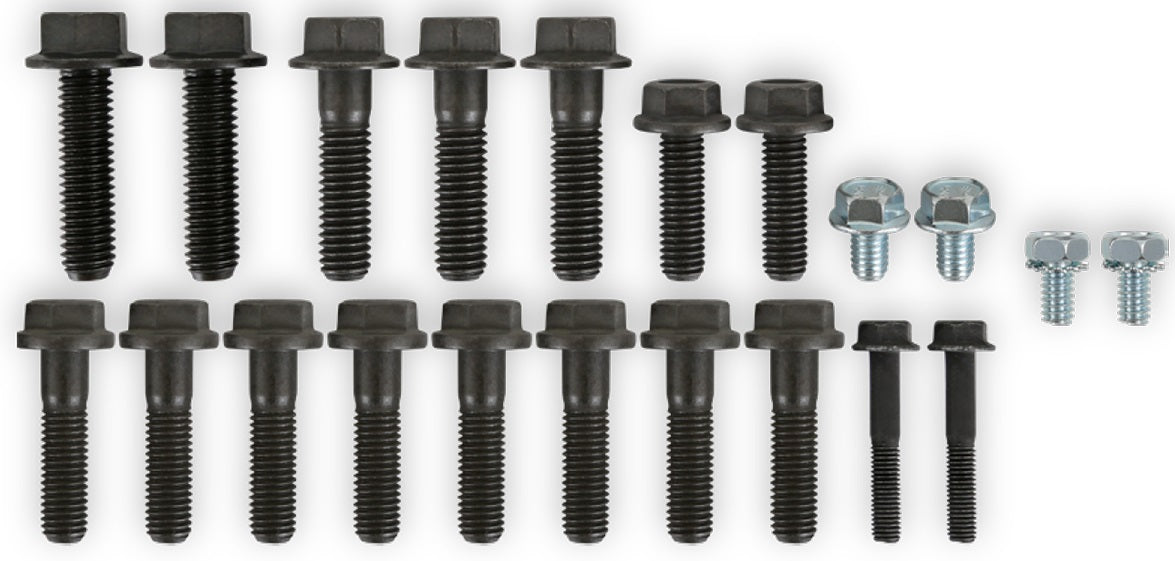

• INCLUDES BELLHOUSING BOLT KIT (LAKEWOOD #50395), BLOCK PLATE (FOR STARTER ALIGNMENT) & DUST SHIELD
• STARTER REGISTER HOLE - 4.084" - HOLLEY RECOMMENDS MSD DYNAFORCE STARTERS #5090 OR #50903

SPECS:

• BRAND: LAKEWOOD
• CLUTCH: 10.5 INCH
• ENGINE: FORD 289, 302, 351C, 351W & SMALL BLOCK V8
• FLYWHEEL: 157 TOOTH
• MATERIAL: CAST ALUMINUM
• PRODUCT TYPE: BELLHOUSING KIT
• TRANSMISSION: T56 GM / T56 MAGNUM GM
• TRANSMISSION TYPE: MANUAL

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS BELLHOUSING KIT HERE.
