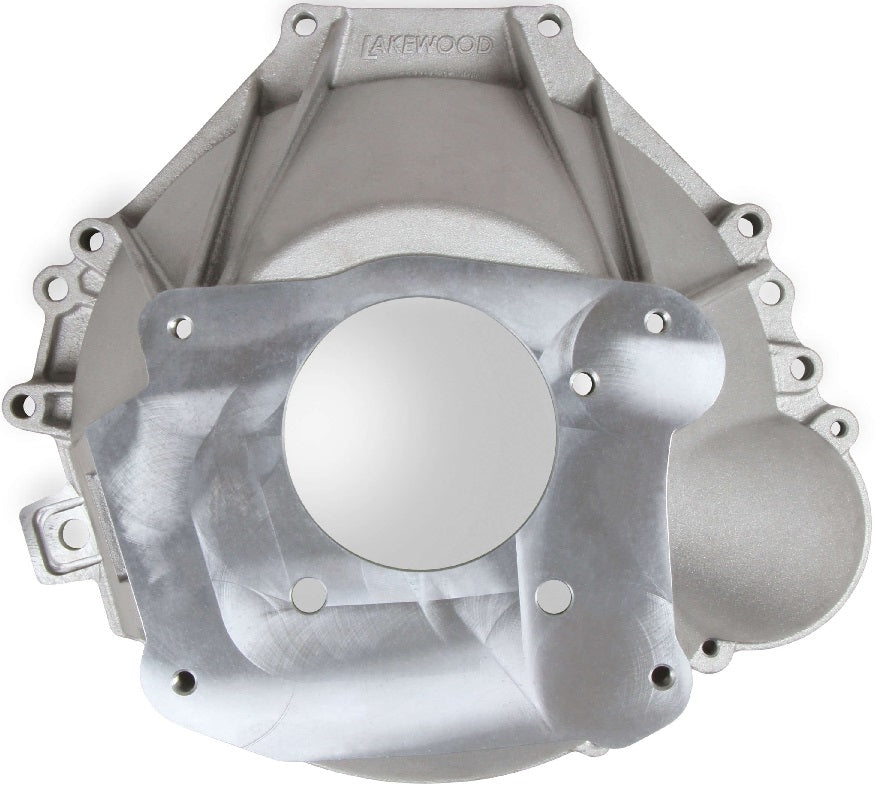

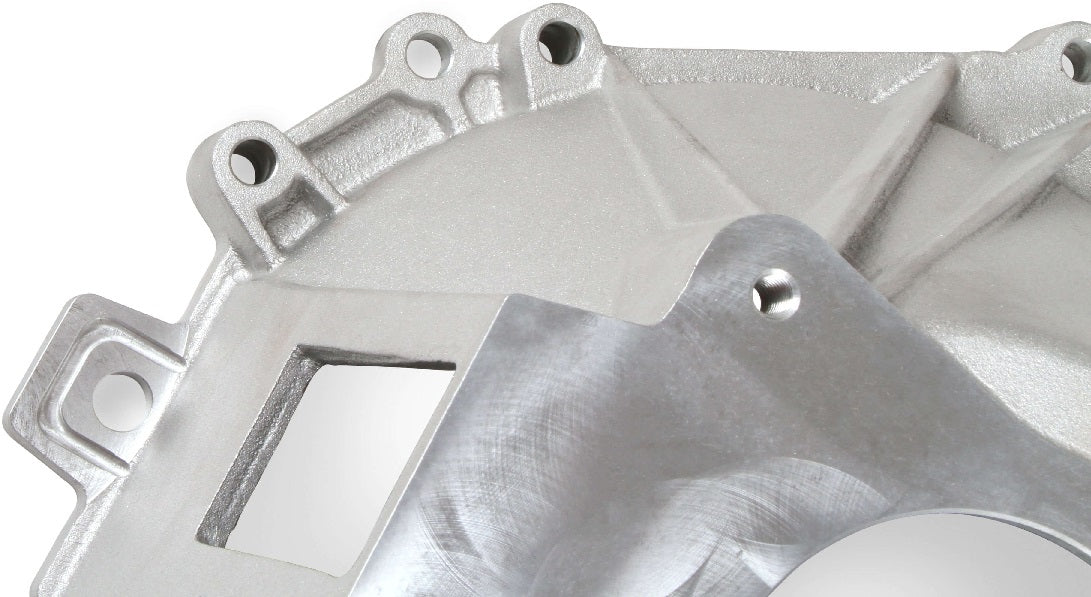

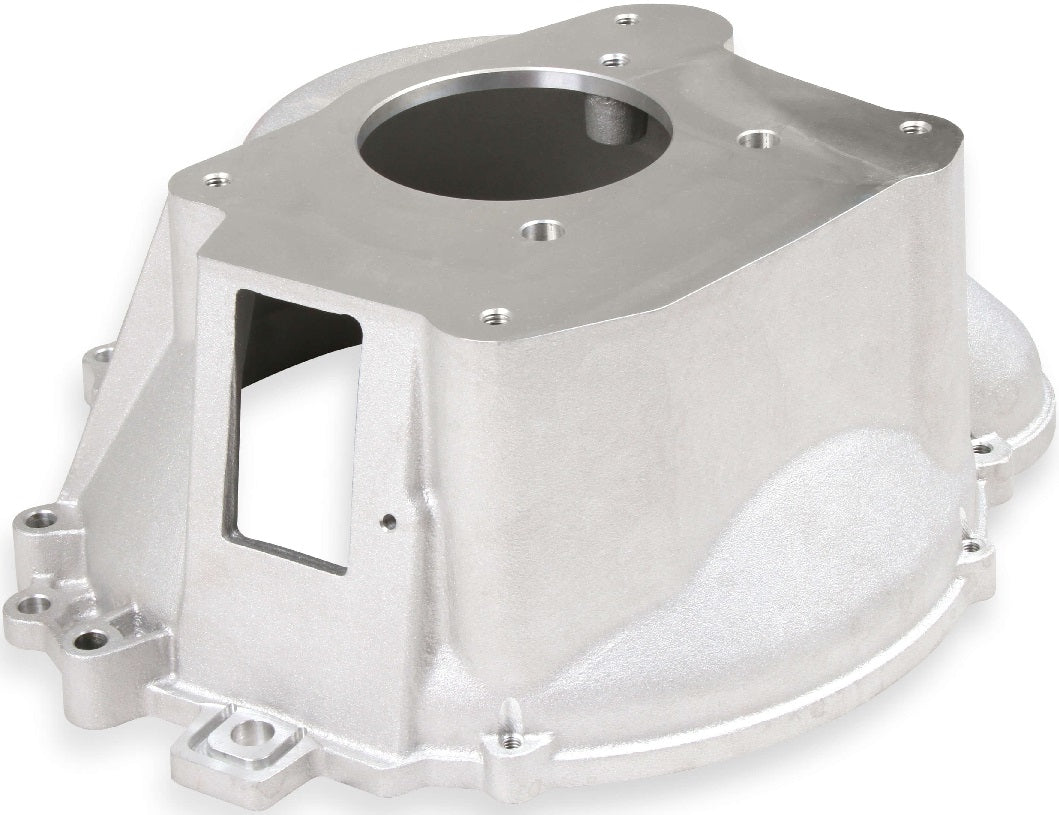

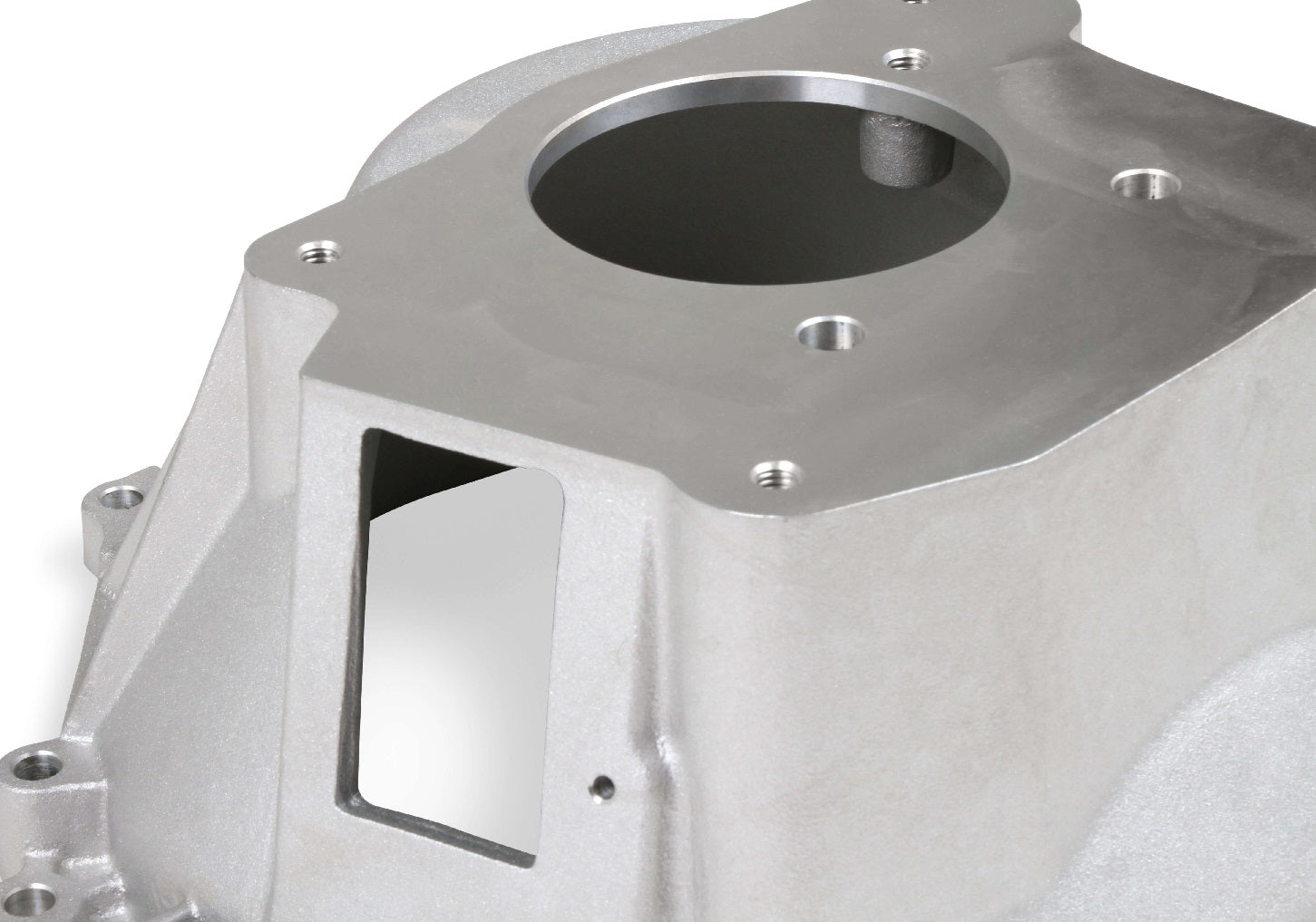

BELLHOUSING KIT,CAST,ALUM,SBF & 351C,FORD TKX,TKO,500/600 & TR3550 TRANSMISSION

BRAND NEW LAKEWOOD CAST ALUMINUM BELLHOUSING KIT, 157 TOOTH, 10.5" CLUTCH, COMPATIBLE WITH TKO 500/600 FORD, TKX & TR3550 TRANSMISSIONS

THIS LAKEWOOD CAST ALUMINUM BELLHOUSING CONNECTS SMALL BLOCK FORD ENGINES TO FORD STYLE TKX, TKO 500/600 OR TR3550 TRANSMISSION. DESIGNED AS A COMPACT, LIGHTWEIGHT OPTION FOR TRANSMISSION SWAPS, IT USES A 157 TOOTH FLYWHEEL, 10.5" CLUTCH AND CAN USE HYDRAULIC OR CABLE ACTUATION. INCLUDES BLOCK PLATE, BOLT KIT, PIVOT BALL AND CLUTCH FORK COVER.

NOTE: WORKS WITH 6-BOLT BLOCKS

NOTE: DESIGNED FOR USE WITH 157 TOOTH FLYWHEELS & 10.5" MAX DIAMETER CLUTCH

NOTE: INCLUDED BLOCK PLATE MUST BE USED

NOTE: REQUIRES A STARTER FOR 157 TOOTH FLYWHEEL WITH A 4.084" STARTER REGISTER

FEATURES:

• LIGHTWEIGHT CAST AIUMINUM DESIGN SIMILAR TO ORIGINAL EQUIPMENT BELLHOUSINGS
• LOWER COST OPTION FOR PROJECTS THAT DO NOT REQUIRE A STEEL SFI RATED UNIT
• DIRECT FIT FOR 6-BOLT BLOCK 289, 302, 351W OR 351C ENGINE USING A FORD STYLE TKX, TKO 500/600 OR TR3550 TRANSMISSION
• DESIGNED FOR HYDRAULIC OR CABLE CLUTCH ACTUATION
• DESIGNED FOR 157 TOOTH FLYWHEEL & 10.5" CLUTCH TO MAINTAIN THE MOST SWAP-FRIENDLY DIMENSIONS
• INCLUDES BLOCK PLATE FOR A COMPLETE FITMENT SOLUTION
• KIT INCLUDES BELLHOUSING BOLT KIT, PIVOT BALL & CLUTCH FORK COVER

SPECS:

• BRAND: LAKEWOOD
• CLUTCH: 10.5"
• ENGINE: 289 | 302 | 351C | 351W
• ENGINE MAKE: FORD
• FLYWHEEL: 157 TOOTH
• MATERIAL: CAST AIUMINUM
• PRODUCT TYPE: BELLHOUSING
• TRANSMISSION: TKO 500/600 FORD | TKX | TR3550
• TRANSMISSION TYPE: MANUAL
