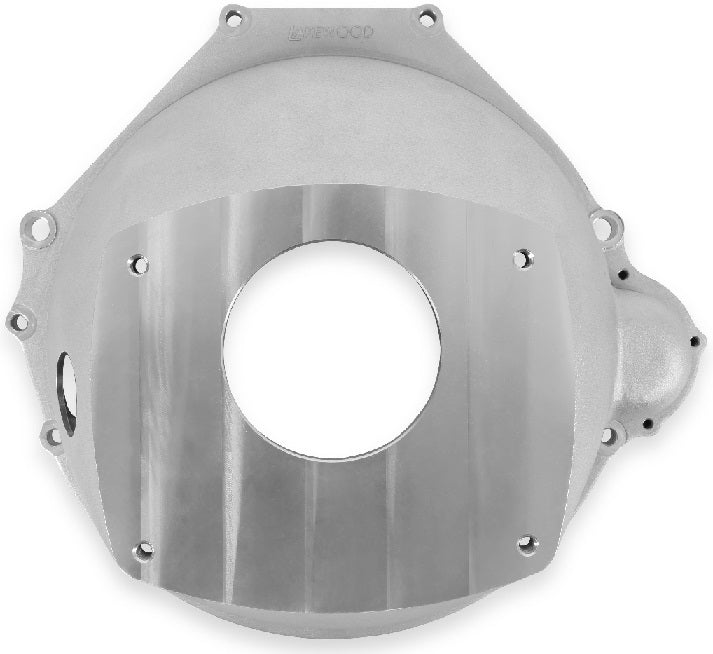

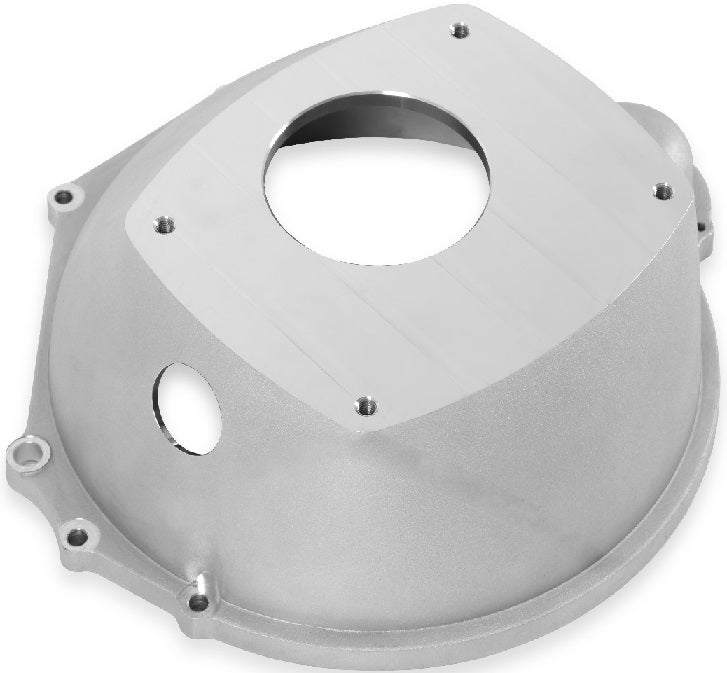

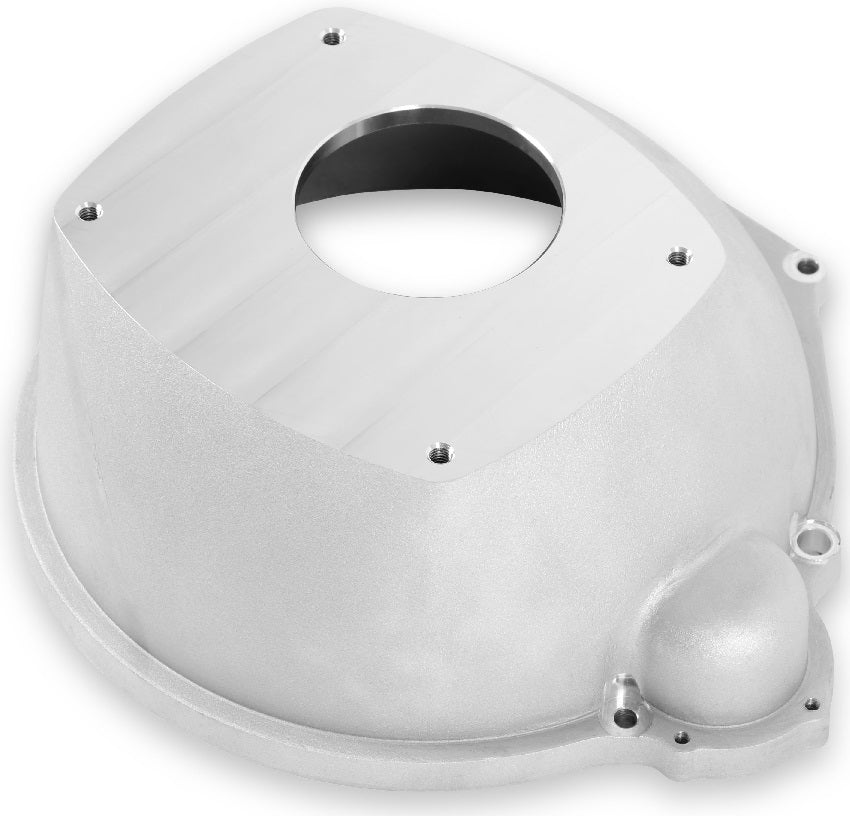

BELLHOUSING KIT,CAST,ALUM,FORD COYOTE,FORD TKX TRANSMISSION

BRAND NEW LAKEWOOD BELLHOUSING KIT, MANUAL, COMPATIBLE WITH FORD COYOTE AND MODULAR ENGINES TO TREMEC TKX, TKO & TR-3550 TRANSMISSIONS

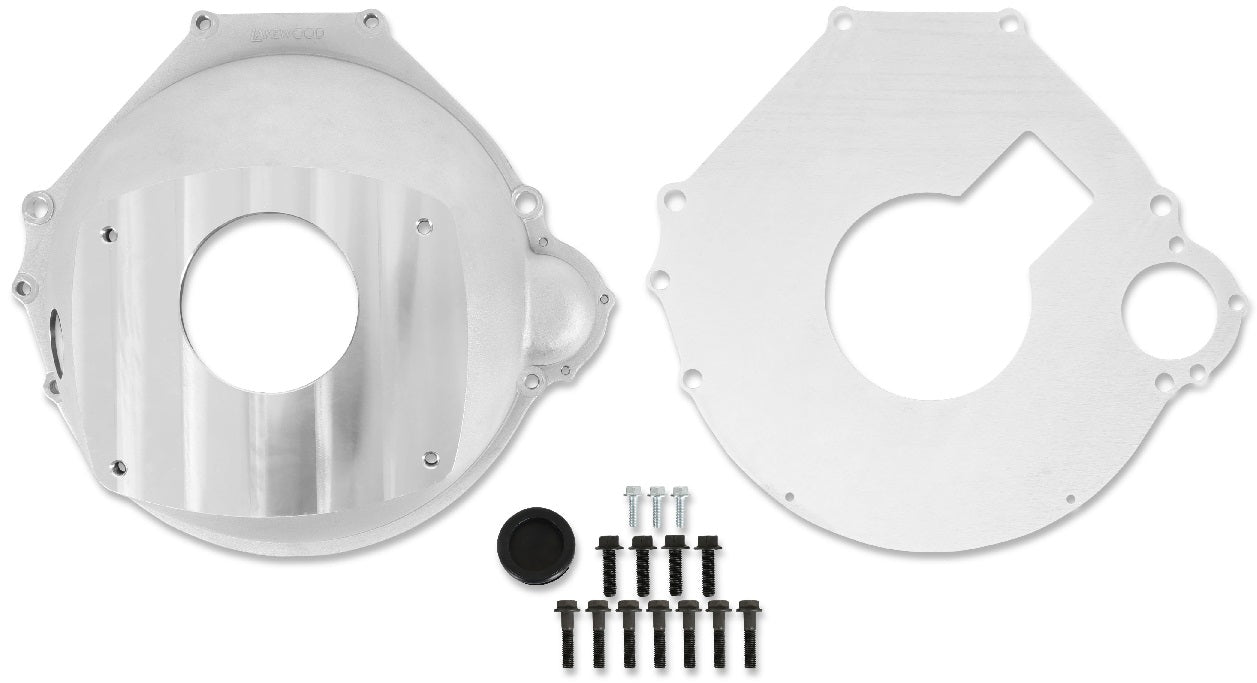

THESE LAKEWOOD CAST ALUMINUM BELLHOUSINGS CONNECT FORD COYOTE AND MODULAR ENGINES TO FORD-STYLE TREMEC TKX, TKO, AND TR-3550 TRANSMISSIONS. THE BELLHOUSINGS CAN BE USED ON BOTH FORD CARS AND TRUCKS AND OTHER MANUFACTURERS WHERE SWAP APPLICATIONS ARE BEING INSTALLED. THESE KITS COME COMPLETE WITH A BLOCK PLATE, HYDRAULIC HOSE GROMMET, AND GRADE 8/10.9 MOUNTING HARDWARE THAT CONNECTS THE BELLHOUSING TO BOTH THE ENGINE AND TRANSMISSION.

FEATURES:

• LIGHTWEIGHT CAST ALUMINUM DESIGN SIMILAR TO THE ORIGINAL EQUIPMENT BELLHOUSINGS
• CONNECTS FORD MODULAR OR COYOTE ENGINES TO FORD-STYLE TREMEC TKX, TKO, AND TR-3550 TRANSMISSIONS
• LOWER COST NON-SFI RATED OPTION FOR PROJECTS THAT DO NOT REQUIRE A STEEL SFI RATED UNIT
• DESIGNED FOR HYDRAULIC THROWOUT/RELEASE BEARING (RECOMMEND HAYS #82-103)
• BELLHOUSING DEPTH: 7.27 IN
• TRANSMISSION BORE DIAMETER: 4.685 IN
• INCLUDES GRADE 8/10.9 HARDWARE FOR BOTH ENGINE AND TRANSMISSION
• INCLUDES BLOCK PLATE AND GROMMET FOR SEALING OFF HYDRAULIC HOSE OPENING

SPECS:

• BRAND: LAKEWOOD
• CLUTCH: 10.5 INCH
• ENGINE: FORD COYOTE
• FORD MODULAR: V8
• ENGINE MAKE: FORD
• FLYWHEEL: 164 TOOTH
• HEIGHT (IN): 7.27
• MAKE: FORD
• MATERIAL: CAST ALUMINUM
• PRODUCT TYPE: BELLHOUSING KIT
• RELEASE BEARING: HYDRAULIC
• SFI APPROVED: NO
• TRANS. BORE DIAMETER: 4.685
• TRANSMISSION: TKO 500/600 FORD / TKX FORD / TR3550
• TRANSMISSION TYPE: MANUAL
