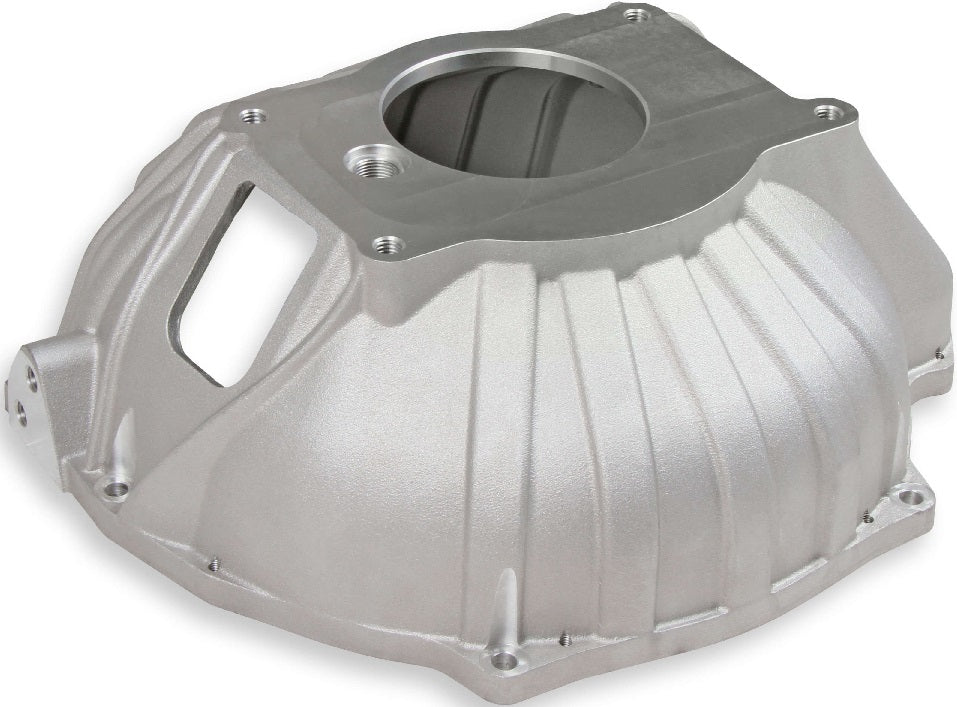

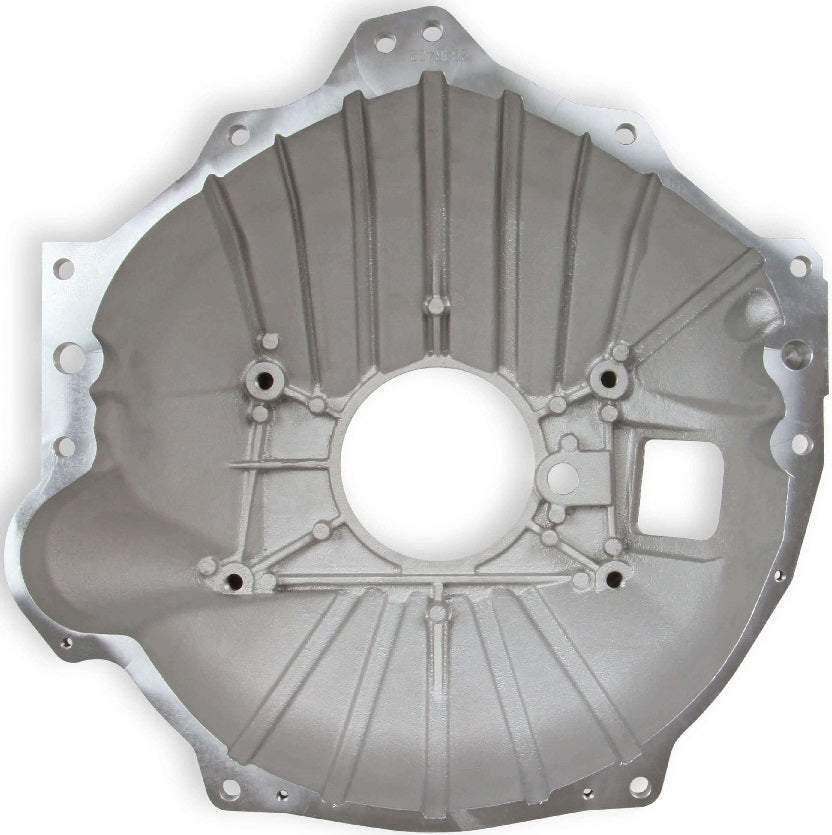

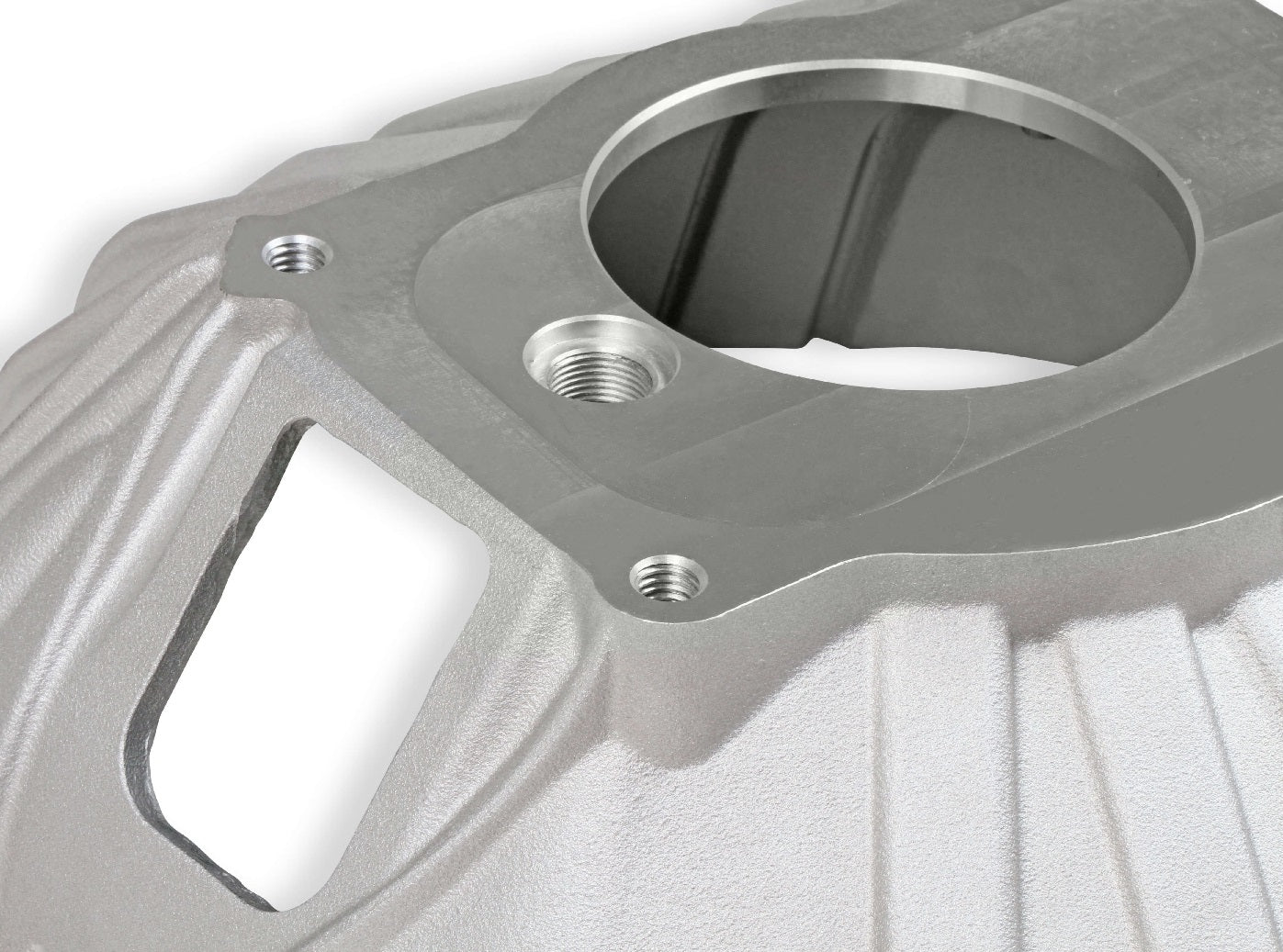

BELLHOUSING KIT,CAST ALUM,CHEVY LS

BRAND NEW LAKEWOOD CAST ALUMINUM BELLHOUSINGS KIT, COMPATIBLE WITH GM SMALL BLOCK GEN III/IV ENGINES

THE LAKEWOOD CAST ALUMINUM BELLHOUSINGS CONNECT GM LS ENGINES TO TRANSMISSIONS UTILIZING THE STANDARD GM PATTERN SUCH AS THE MUNCIE, SAGINAW, BORG WARNER T10 AND TREMEC TKO TRANSMISSIONS.

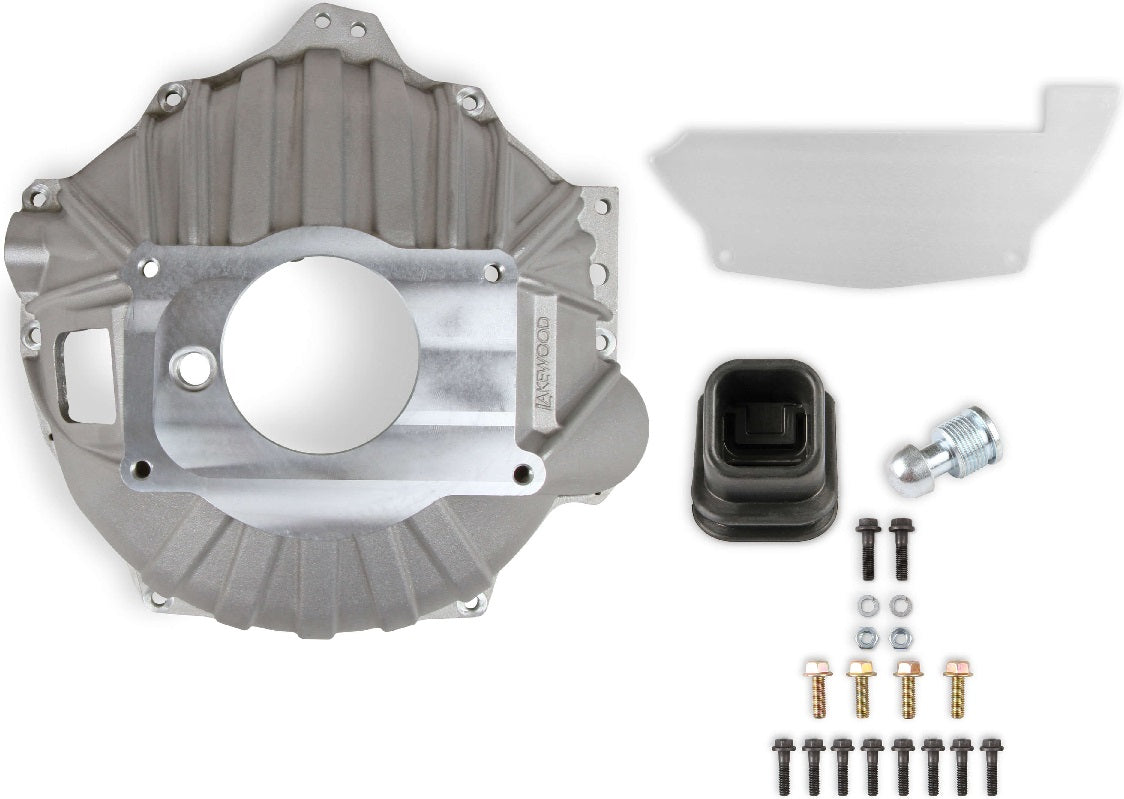

THE BELLHOUSINGS ARE DESIGNED FOR BOTH GM CARS AND TRUCKS AND OTHER MANUFACTURERS WHERE SWAP APPLICATIONS ARE BEING INSTALLED. THESE BELLHOUSING KITS COME COMPLETE WITH CLUTCH FORK BOOT, INSPECTION COVER AND GRADE 8 MOUNTING HARDWARE. THE BELLHOUSING, CLUTCH FORK BOOT, INSPECTION COVERS AND MOUNTING HARDWARE KITS ARE ALSO AVAILABLE INDIVIDUALLY.

FEATURES:

• LIGHTWEIGHT CAST ALUMINUM DESIGN SIMILAR TO THE ORIGINAL EQUIPMENT BELLHOUSINGS
• LOWER COST NON-SFI RATED OPTION IF YOUR PROJECT DOES NOT REQUIRE THE STEEL SFI RATED UNIT
• DESIGNED FOR HYDRAULIC AND MECHANICAL FORK THROW-OUT BEARING LINKAGE
• BELLHOUSING DEPTH: 6.45"
• CLUTCH FORK OPENING: 2.125" X 3.3"
• TRANSMISSION BORE DIAMETER: 4.684"
• INCLUDES GRADE 8 HARDWARE
• LK4000 BELLHOUSING ALSO AVAILABLE SEPARATELY

SPECS:

• BRAND: LAKEWOOD
• CLUTCH: 11"
• COLOR: CAST
• EMISSION CODE: 5
• ENGINE: GM SMALL BLOCK GEN III/IV (LS BASED)
• ENGINE MAKE: CHEVROLET
• FLYWHEEL: 153 OR 168 TOOTH
• HEIGHT: 6.45"
• MAKE: CHEVROLET
• MATERIAL: ALUMINUM
• PRODUCT TYPE: BELLHOUSING
• TRANS. BORE DIAMETER: 4.685
• TRANSMISSION: BERT RACING | BORGWARNER | BRINN RACING | FALCON | JERICO | MUNCIE | RICHMOND | SAGINAW | T10 | T5 | TKO 500/600 | TREMEC
