ALUM BELLHOUSING SBC/BBC TKX/TKO

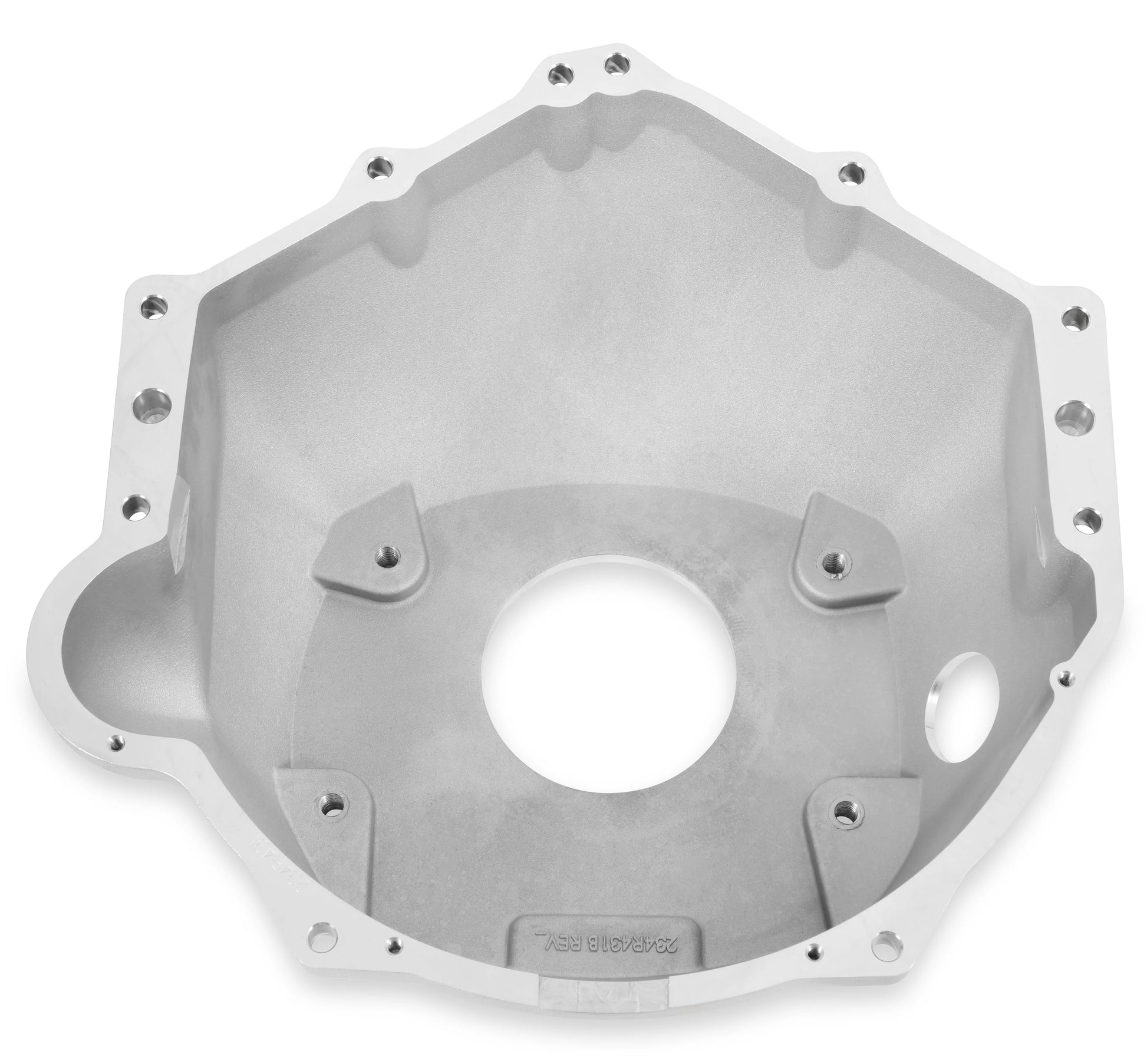

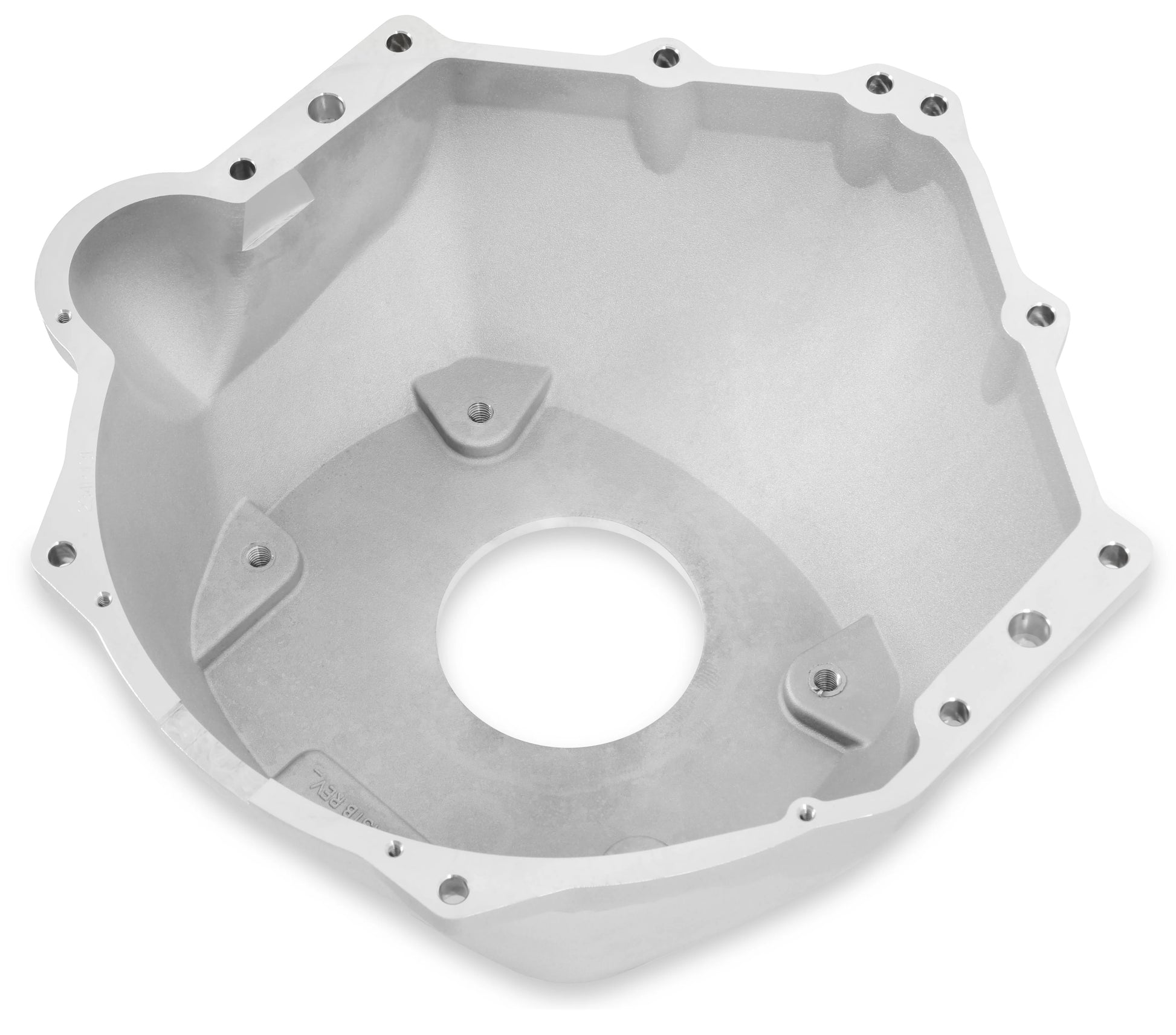

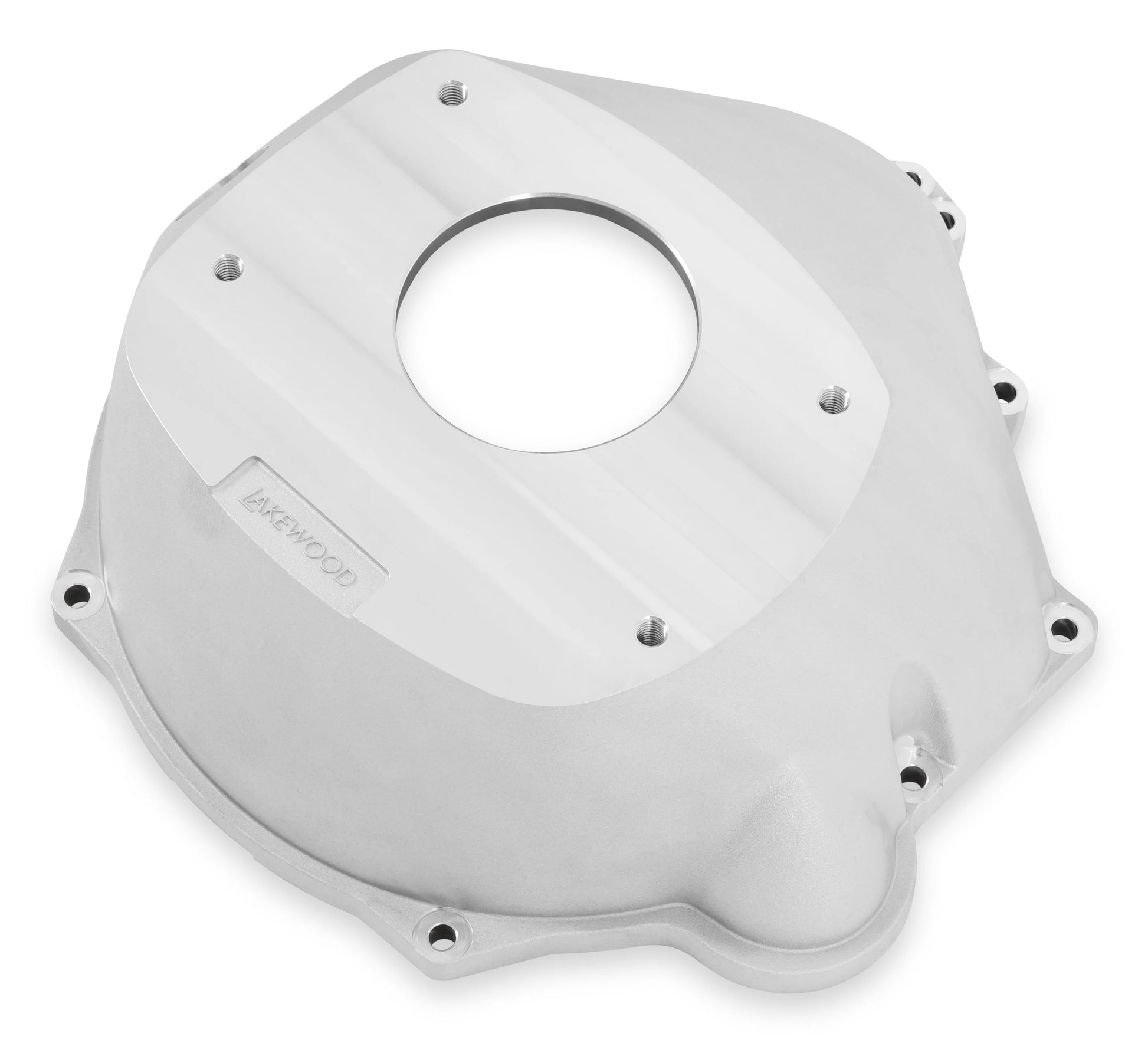

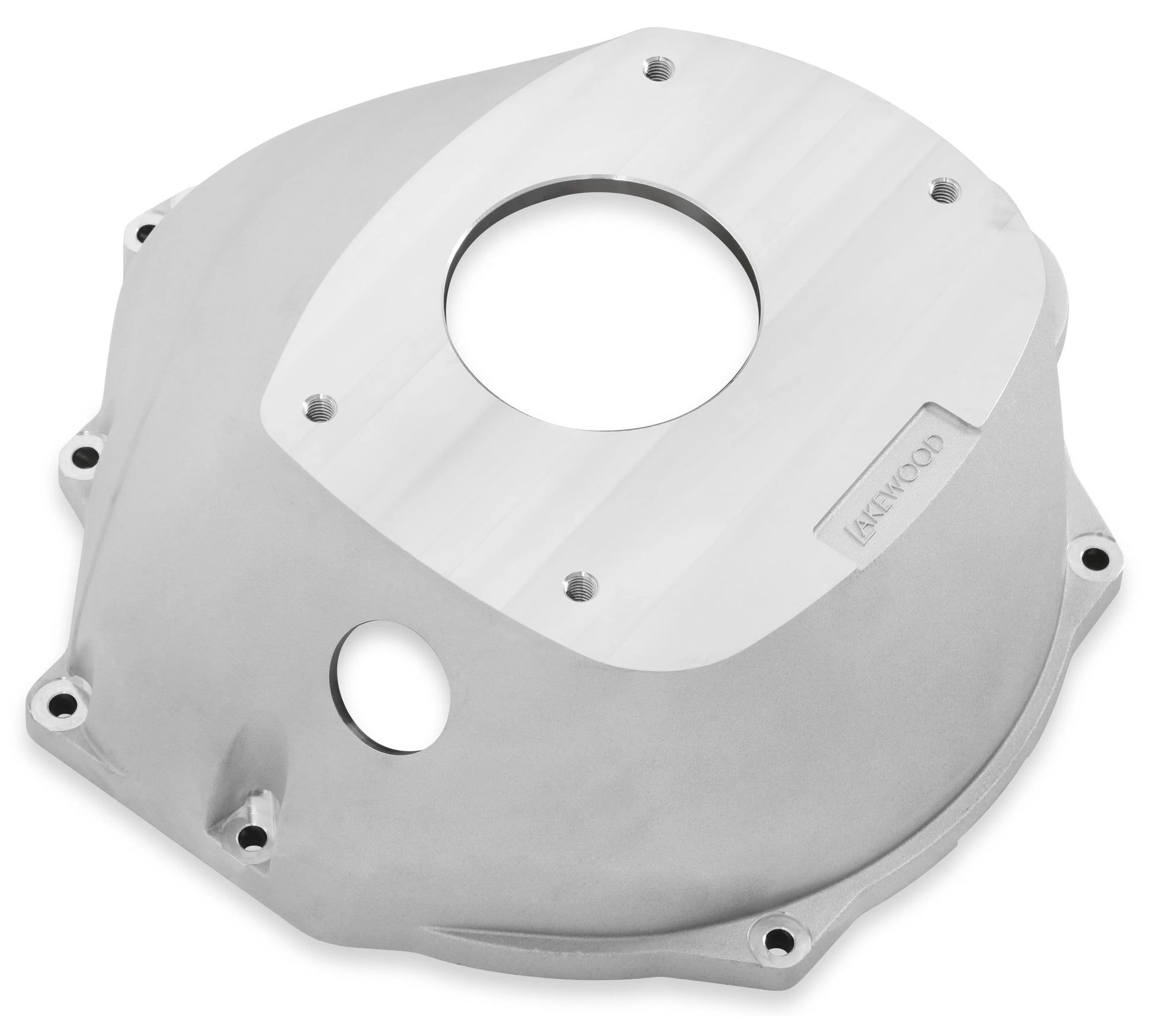

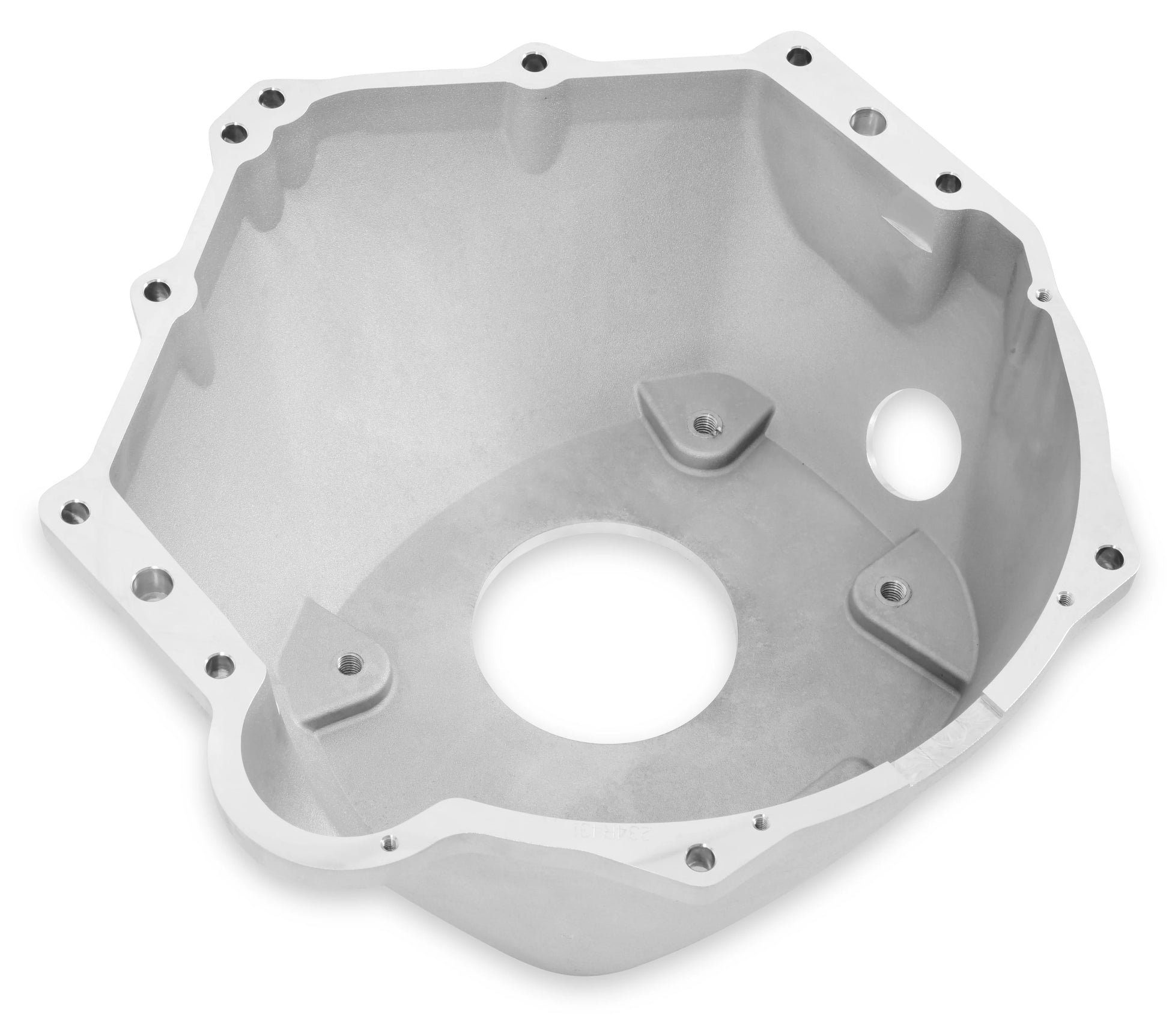

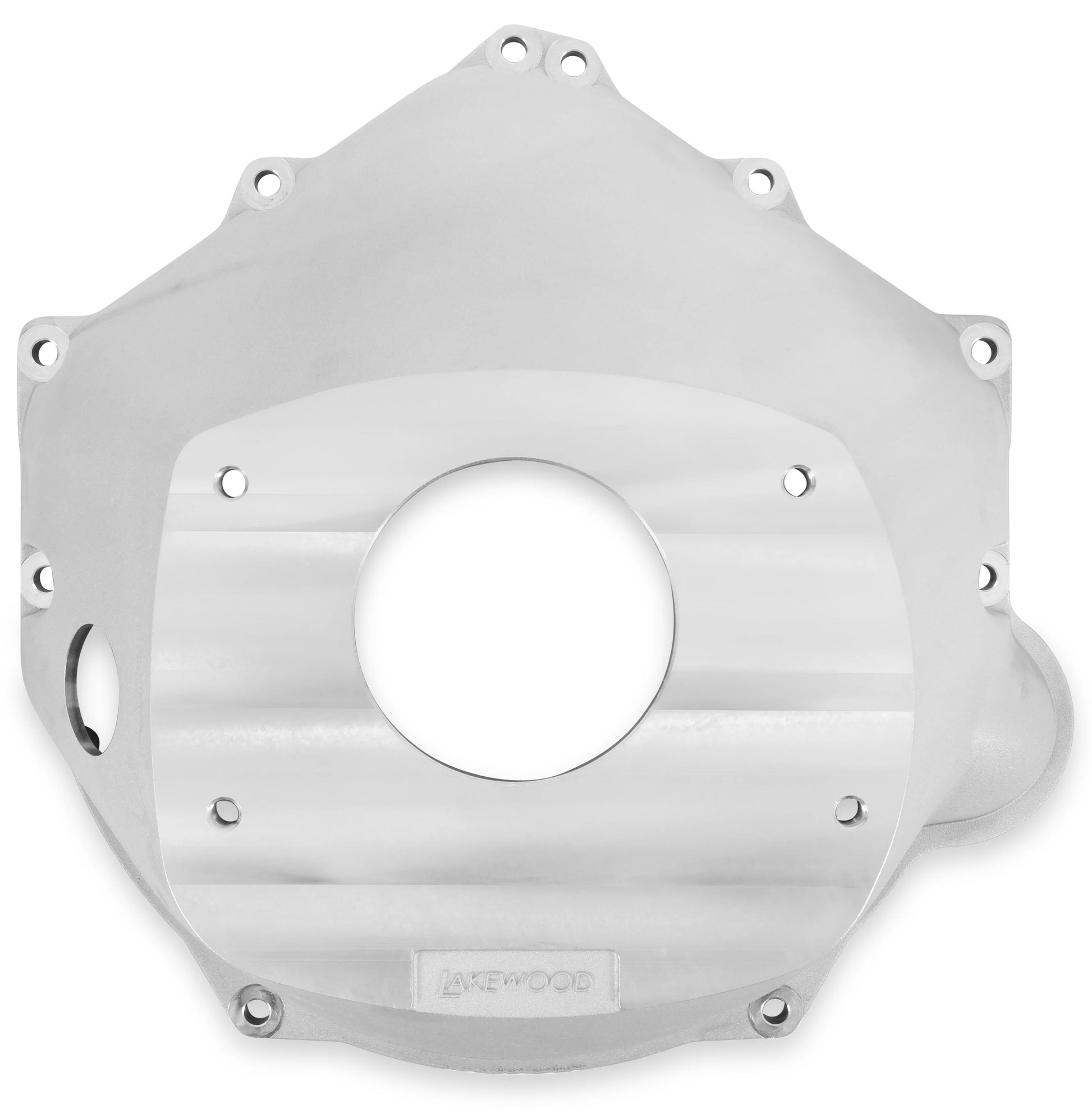

Brand New Lakewood Cast Aluminum Bellhousing Kit for Chevrolet Small Block Gen I Engines, Chevrolet Big Block Engines, & GM Gen III/IV LS Engines (Part #LK4200K).

If you're looking to add a modern transmission to your project, you need a modern bellhousing. Enter one of Lakewood's new Bellhousing Kits, the LK4200K.  Designed with Tremec's TKX and TKO 5-speeds in mind, the LK4200K allows you to connect them and most 4-speeds to a Chevrolet LS, Small-Block, or Big-Block engine with ease.

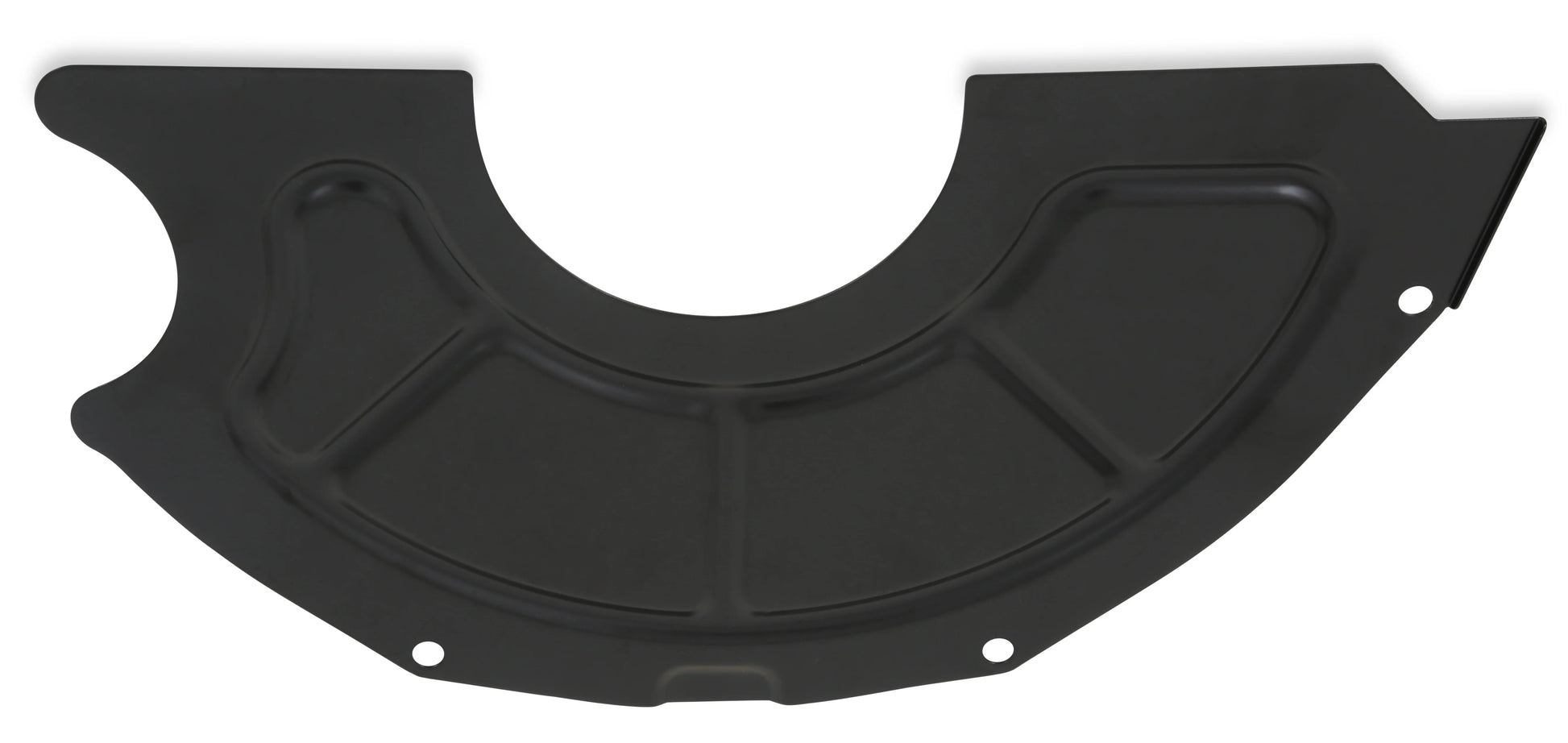

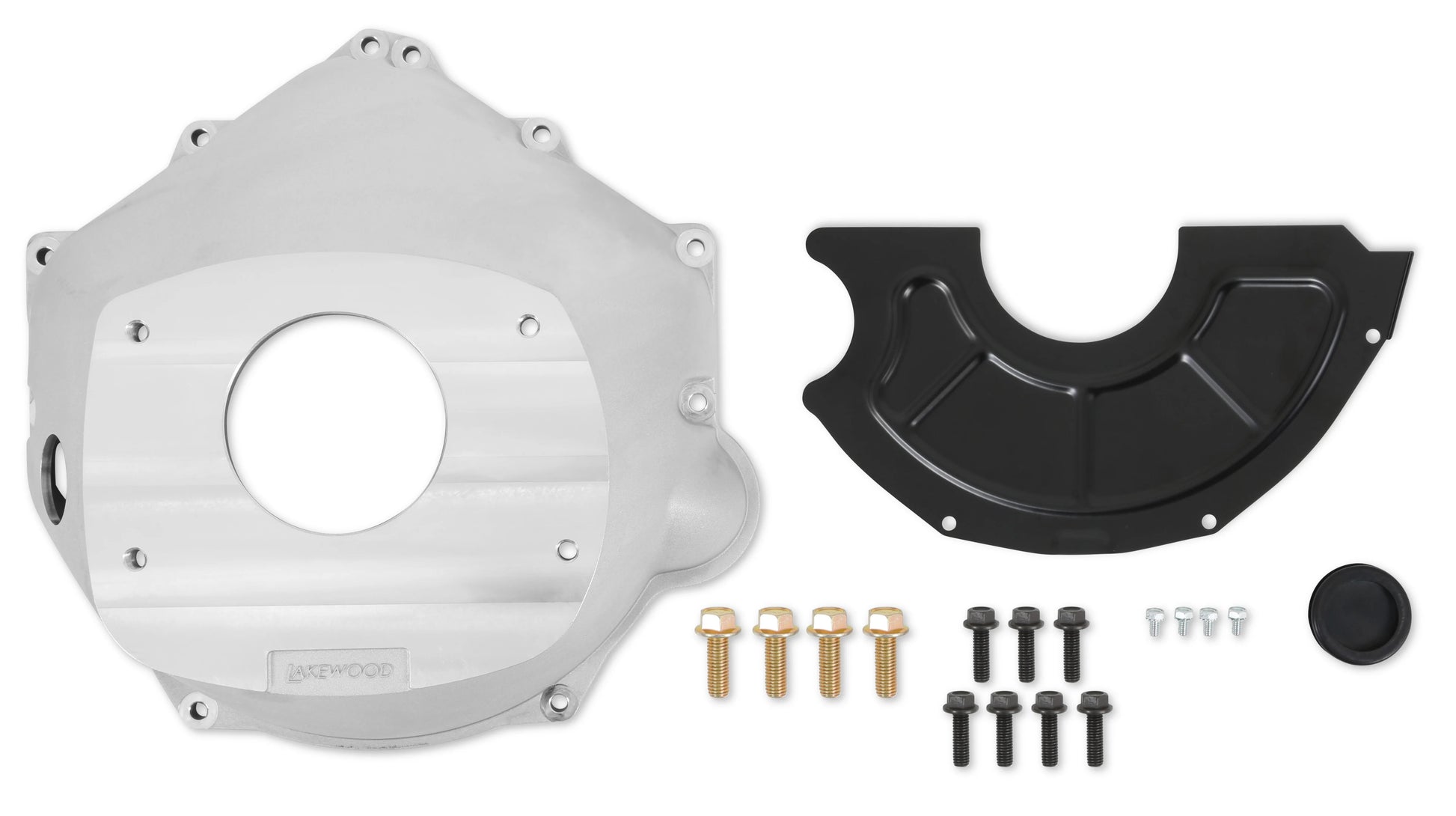

Perfect for a new build, swap, or as an affordable replacement, this kit comes with a lightweight aluminum bellhousing, dust cover, and all hardware necessary to attach to both the engine and transmission. This Lakewood cast aluminum bellhousing connects a Chevrolet LS, Small Block, or Big Block engines to a Tremec TKX or TKO transmissions (GM pattern).  They are a lightweight cast aluminum design and are meant to be used with hydraulic release (throw-out) bearings only (we suggest Hays #82-102).  Also included are a stamped dust cover, the necessary hardware kit in Grade 8 or 10.9 (Lakewood #50368), and a grommet for sealing off the hydraulic hose opening.

Fits:

• Chevrolet LS, LT, SBC, and BBC Engines to T10, Tremec TKX, TKO, Muncie, & Saginaw Transmissions

Notes:

• Designed for Hydraulic release (throw-out) bearing only (we suggest Hays #82-10 or Holley #82-102).
• Max recommended clutch diameter is 12 inches.
• Since some pressure plates are larger than others, fitment issues could occur unless it utilizes a near-stock style pressure plate.
• See LK4000K for the SBC/BBC > TKX/TKO/Muncie/Saginaw mechanical kit.
• See LK4100K for the SBC/BBC > T-56/Magnum kit.
• See LK5100K for the Gen III/IV/V LS/LT > GM T-56/Magnum kit.

Features:

• Connect Chevy LS, SBC, and BBC engines to transmissions utilizing GM TKX or TKO Transmissions

• Lightweight cast aluminum design similar to the original equipment bellhousings

• Lower cost non-SFI rated option if your project does not require the steel SFI rated unit

• Designed for Hydraulic Release Bearings Only (we suggest Hays #82-102)

• Includes Grade 8/10.9 Hardware for both engine and transmission – Lakewood #50368

• Includes dust cover and grommet for sealing off hydraulic hose opening

Specs:

• Brand: Lakewood

• Clutch: 12 inch

• Color: Cast

• Engine: Chevrolet Small Block Gen I, GM Big Block, GM Gen III/IV (LS)
• Engine Make: Chevrolet

• Flywheel: 153 or 168 Tooth

• Make: Chevrolet

• Material: Cast Aluminum

• Product Type: Bellhousing Kit

• Transmission: Muncie, Saginaw, T10, TKO GM, & TKX GM

• Transmission Type: Manual


You can view and download the instruction booklet here.
