ALUM BELLHOUSING SBC/BBC T56

Brand New Lakewood Cast Aluminum Bellhousing Kit for Chevrolet Small Block Gen I Engines & Chevrolet Big Block Engines (Part #LK4100K).

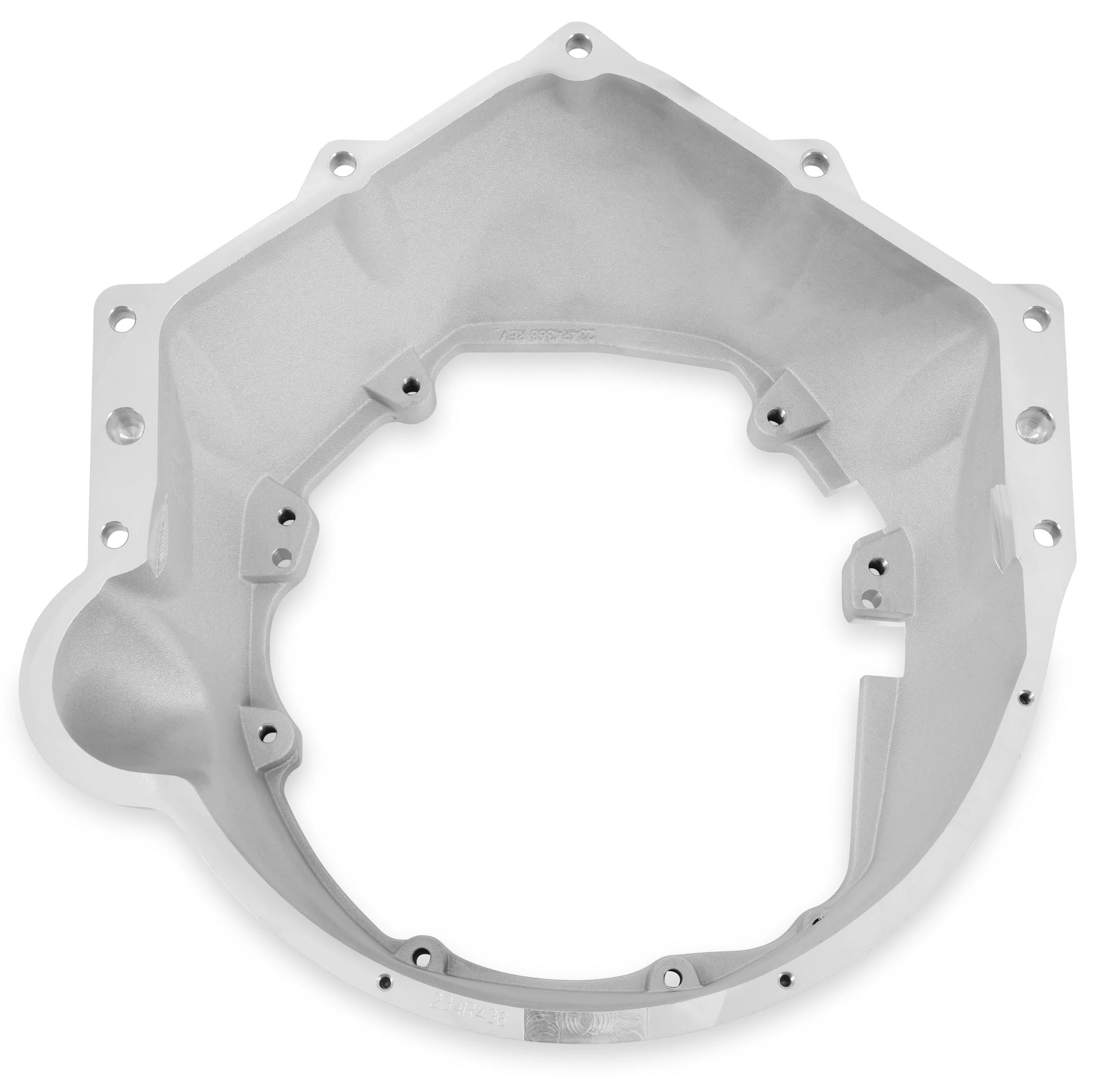

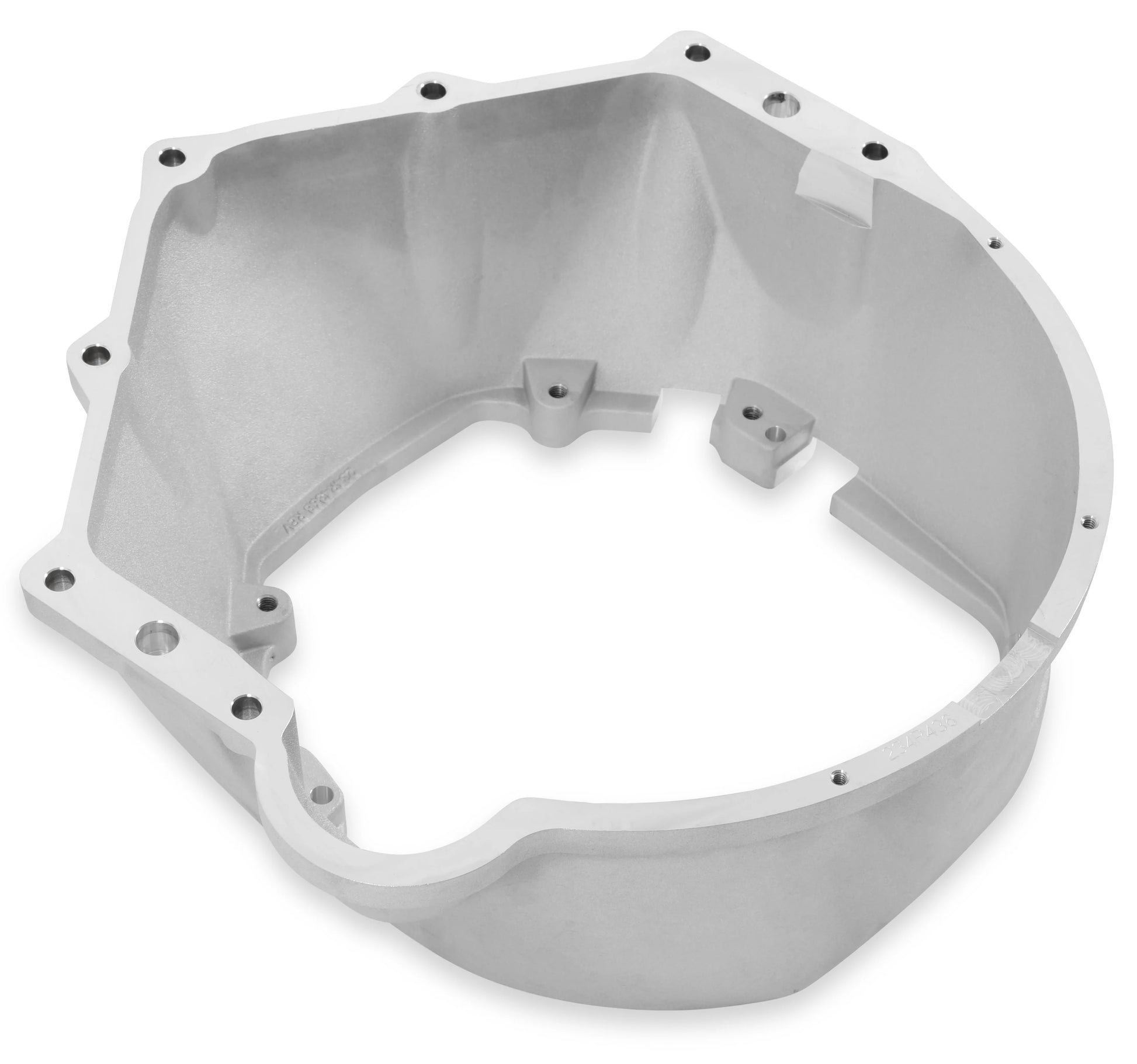

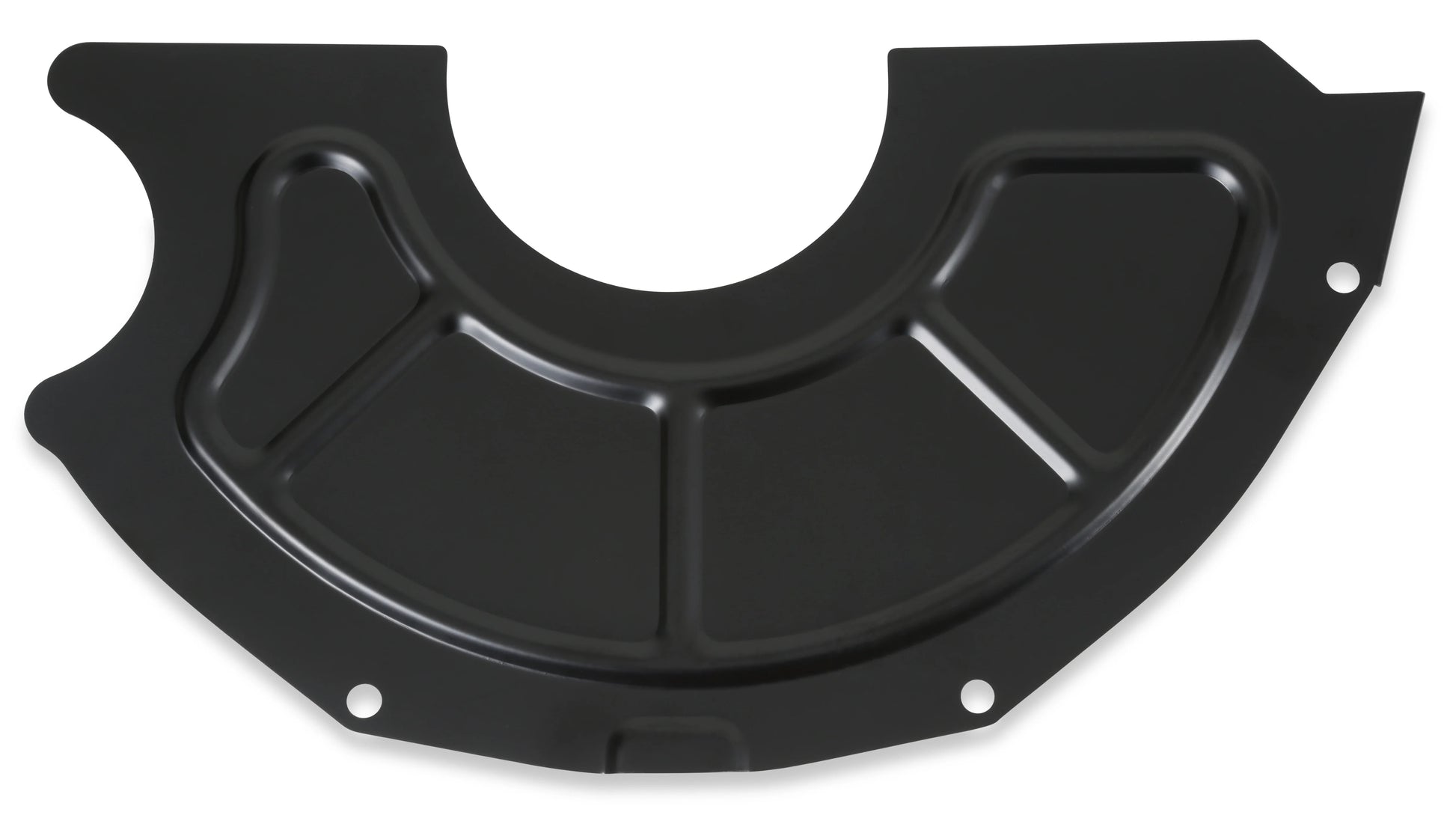

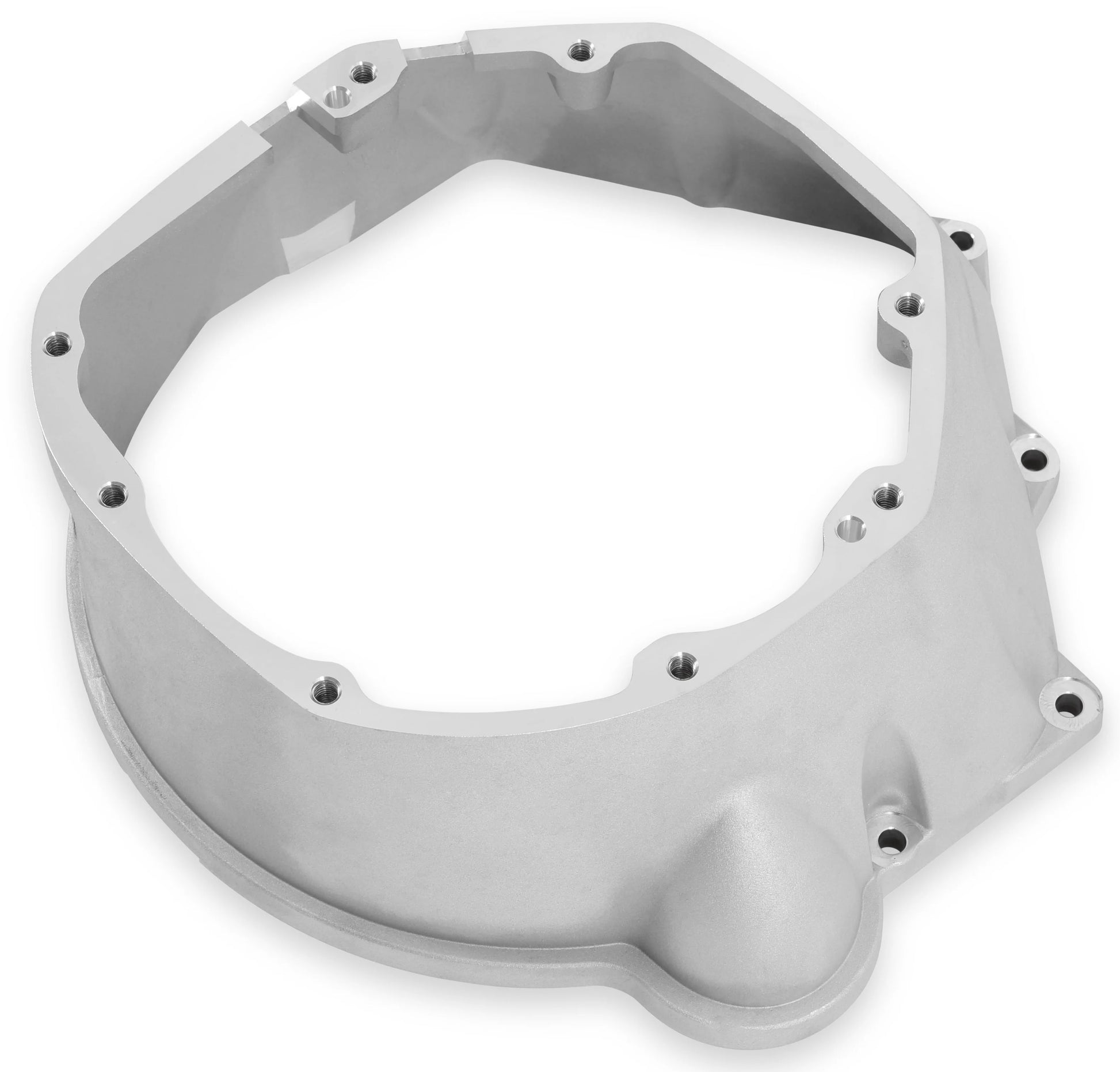

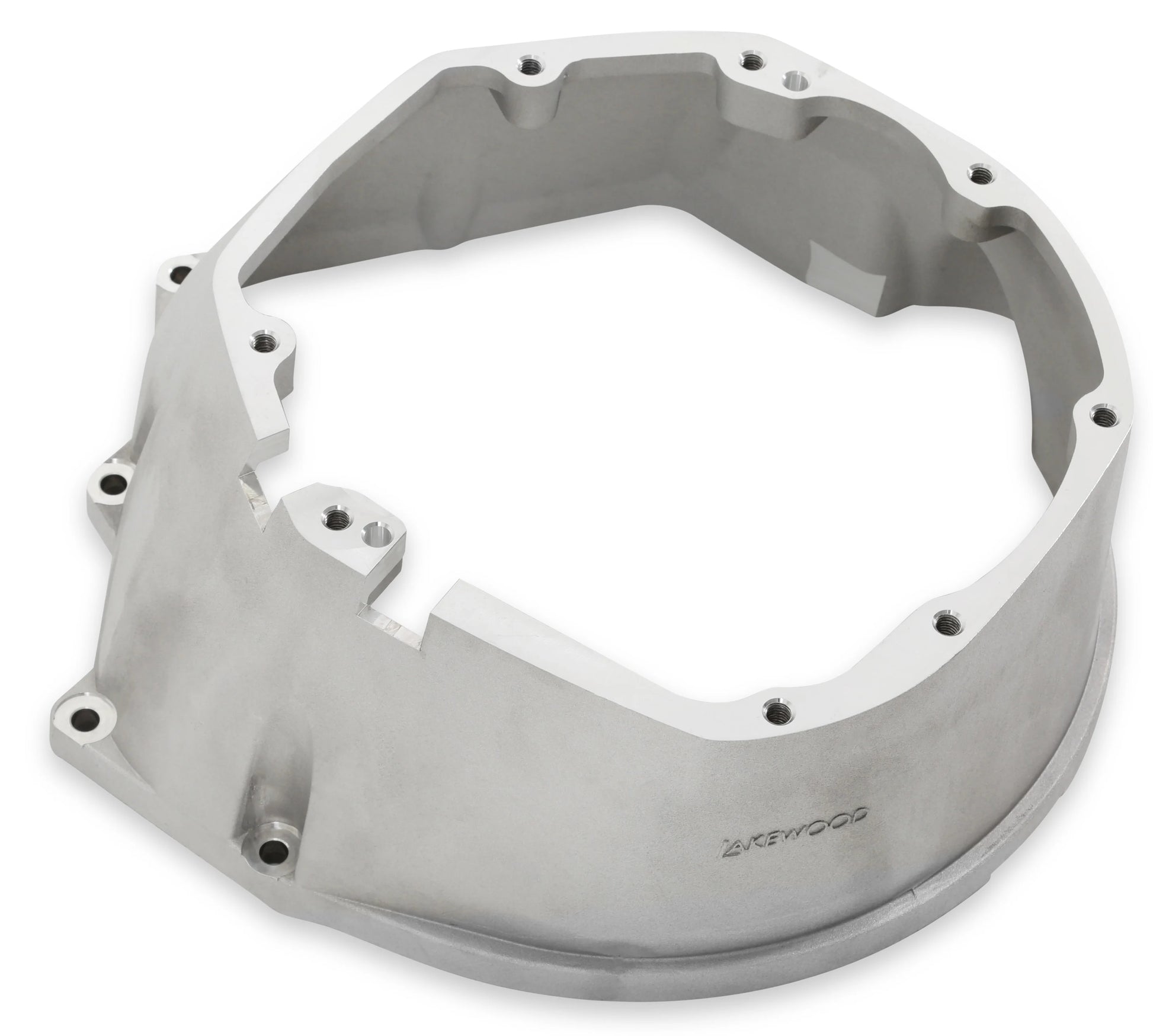

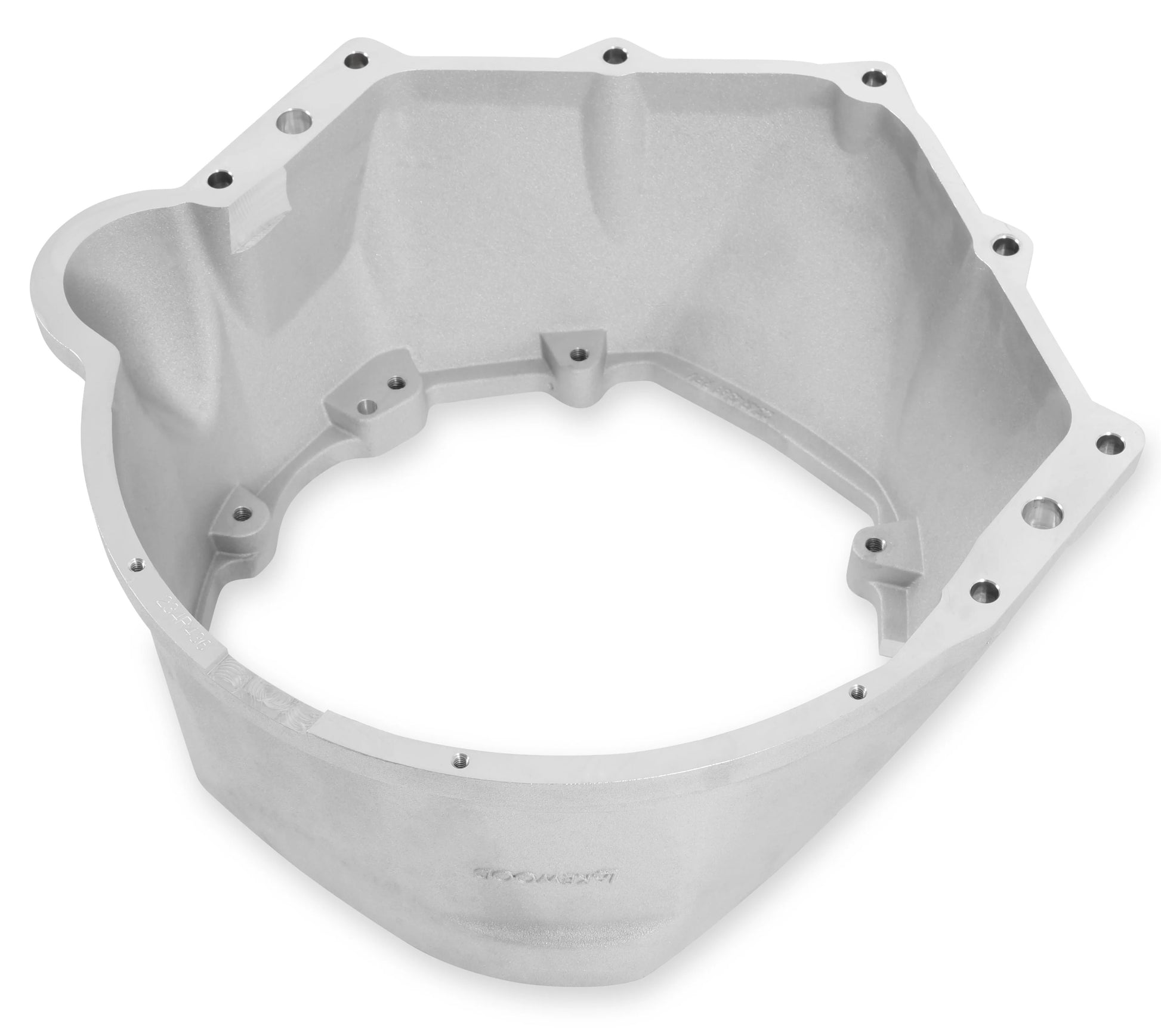

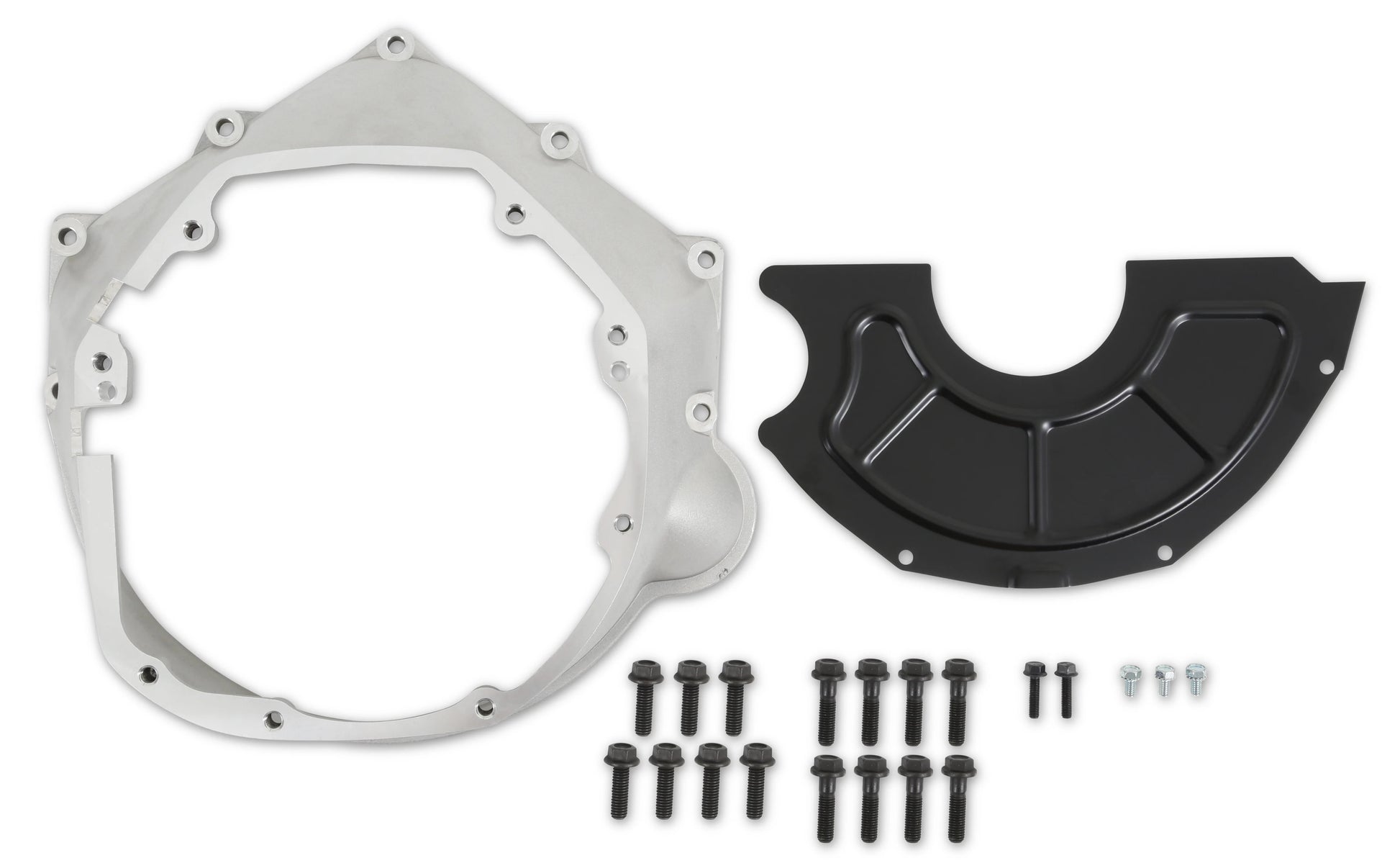

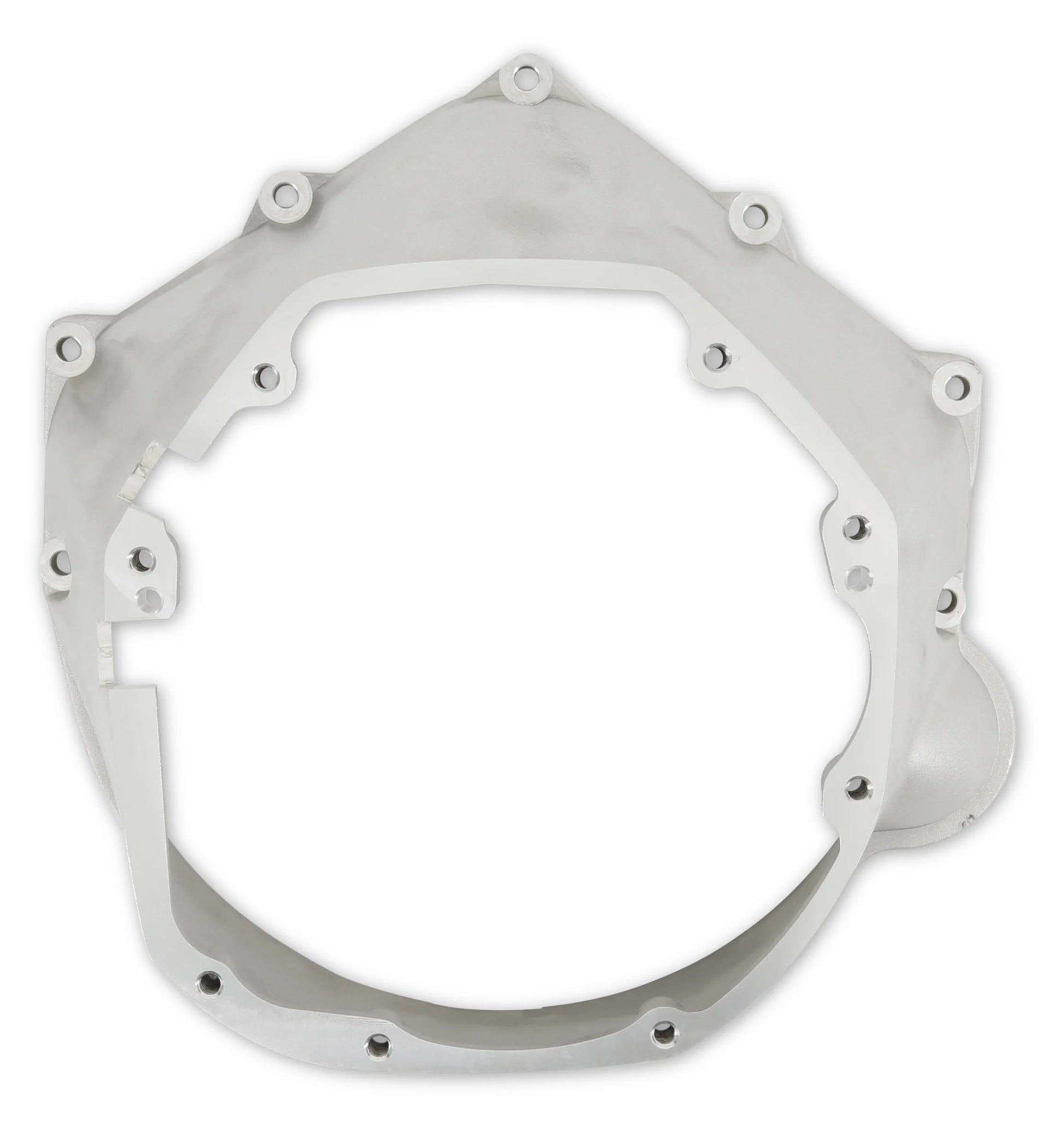

This Lakewood cast aluminum bellhousing connects Chevrolet Small-Block and Big-Block engines to Tremec T-56 and Magnum transmissions utilizing the standard GM pattern. The bellhousing is intended for both GM cars and trucks and other various swap applications.  They are a lightweight cast aluminum design and are meant to be used with hydraulic release bearings only (we suggest Hays #82-120 or Holley #319-100).  Also included are a stamped dust cover and Lakewood bellhousing bolt kit #50396 which contains all necessary Grade 8/10.9 Hardware to connect the engine and transmission securely.

Fits:

• Small Block Chevrolet (256-400 V8) and Big Block Chevrolet Engines (366-454 V8) to Tremec GM T-56 and Magnum Transmissions

Notes:

• Designed for Hydraulic release (throw-out) bearing only (we suggest Hays #82-120 or Holley #319-100).
• Max recommended clutch diameter is 11 inches.
• Since some pressure plates are larger than others, fitment issues could occur unless it utilizes a near-stock style pressure plate.
• See LK4000K for the SBC/BBC > TKX/TKO/Muncie/Saginaw mechanical kit.
• See LK4200K for the SBC/BBC/LS/LT  > TKX/TKO/Muncie/Saginaw hydraulic kit.
• See LK5100K for the Gen III/IV/V LS/LT > GM T-56/Magnum kit.

Features:

• Lightweight cast aluminum design similar to the original equipment bellhousings

• Lower cost non-SFI rated option if your project does not require the steel SFI rated unit

• Designed for Hydraulic Release Bearings Only (we suggest Hays #82-120 or Holley #319-100)

• Includes Grade 8/10.9 Hardware

• Works with small-block or big-block applications where use of a GM T-56 or Magnum transmission is desired

Specs:

• Brand: Lakewood

• Clutch: 11 inch

• Color: Cast

• Engine: Chevrolet Small Block Gen I & GM Big
• Block

• Engine Make: Chevrolet

• Flywheel: 153 or 168 Tooth

• Make: Chevrolet

• Material: Cast Aluminum

• Product Type: Bellhousing Kit

• Transmission: T56 GM & T56 Magnum

• Transmission Type: Manual


You can view and download the instruction booklet here.
