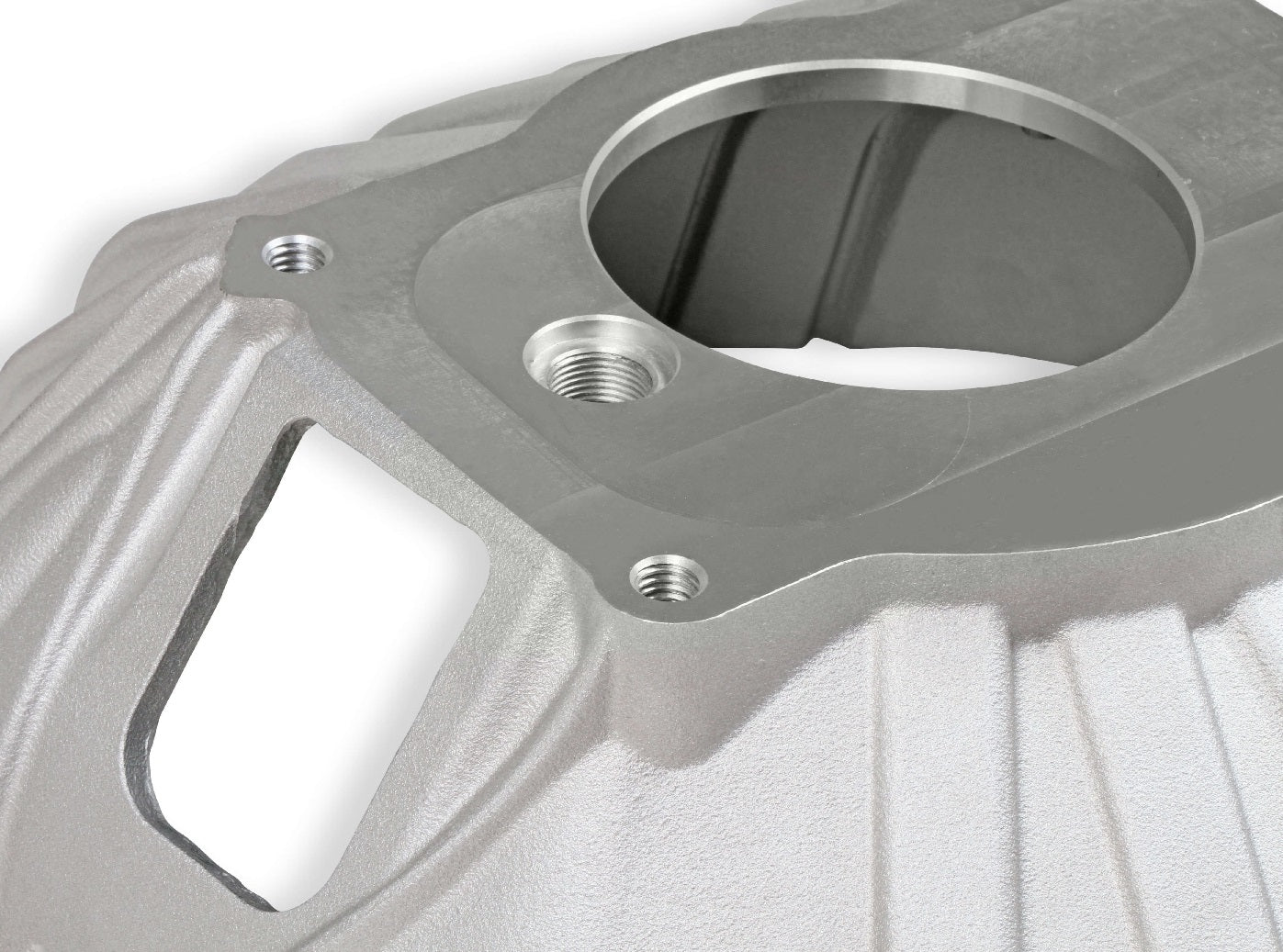

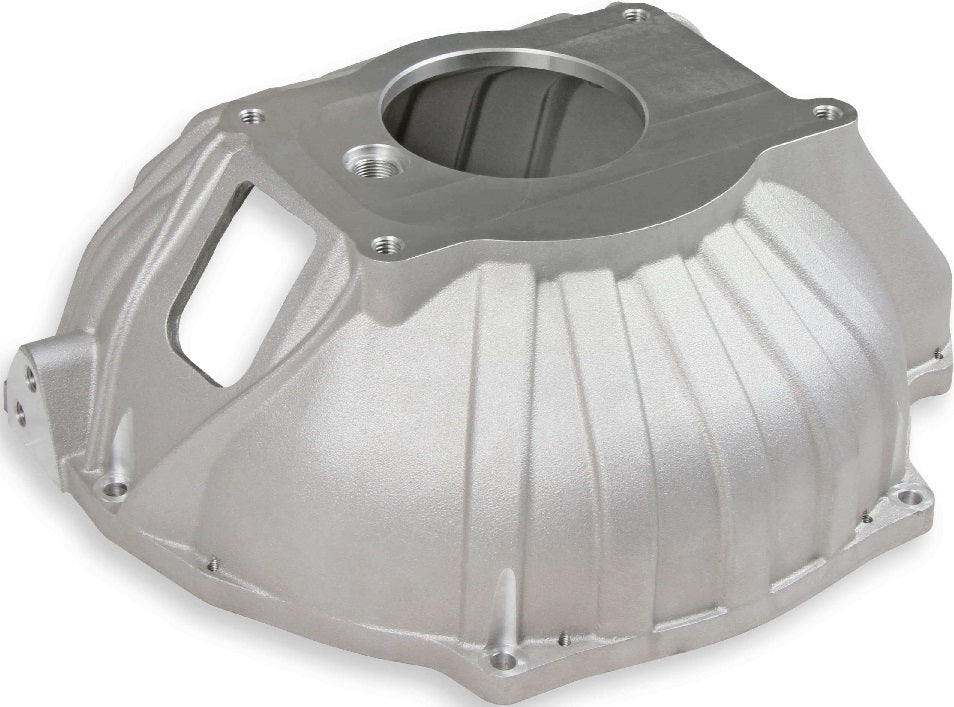

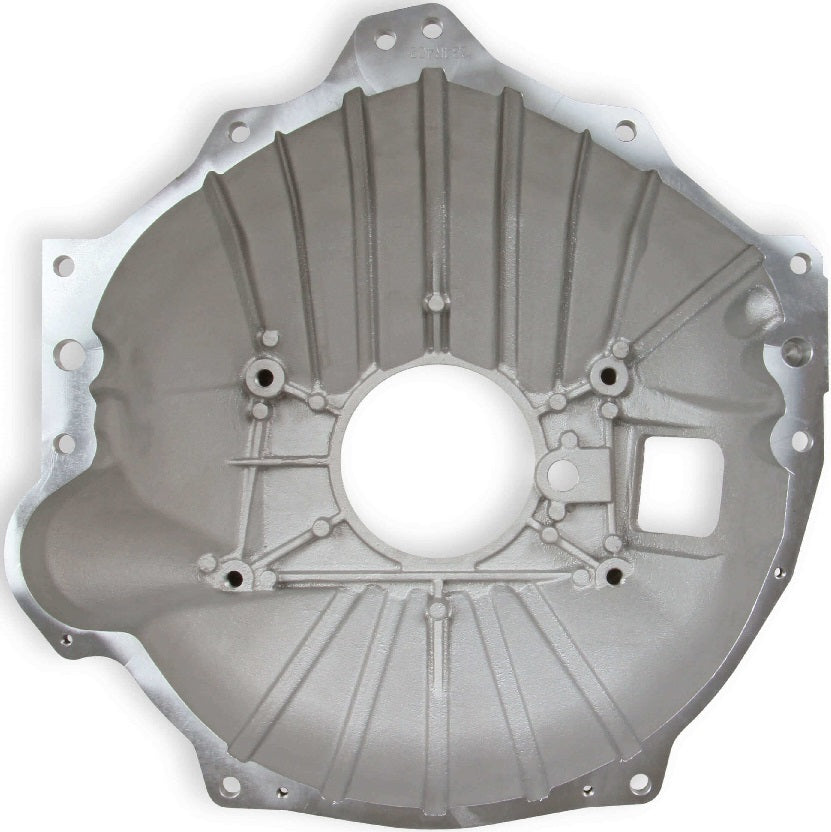

BELLHOUSING KIT,CAST ALUM,CHEVY V-8

Brand New Lakewood Cast Aluminum Bellhousing Kit, 11" Clutch, Compatible with Chevу Small Block & Big Block V8 Engines (Part #LK4000K).

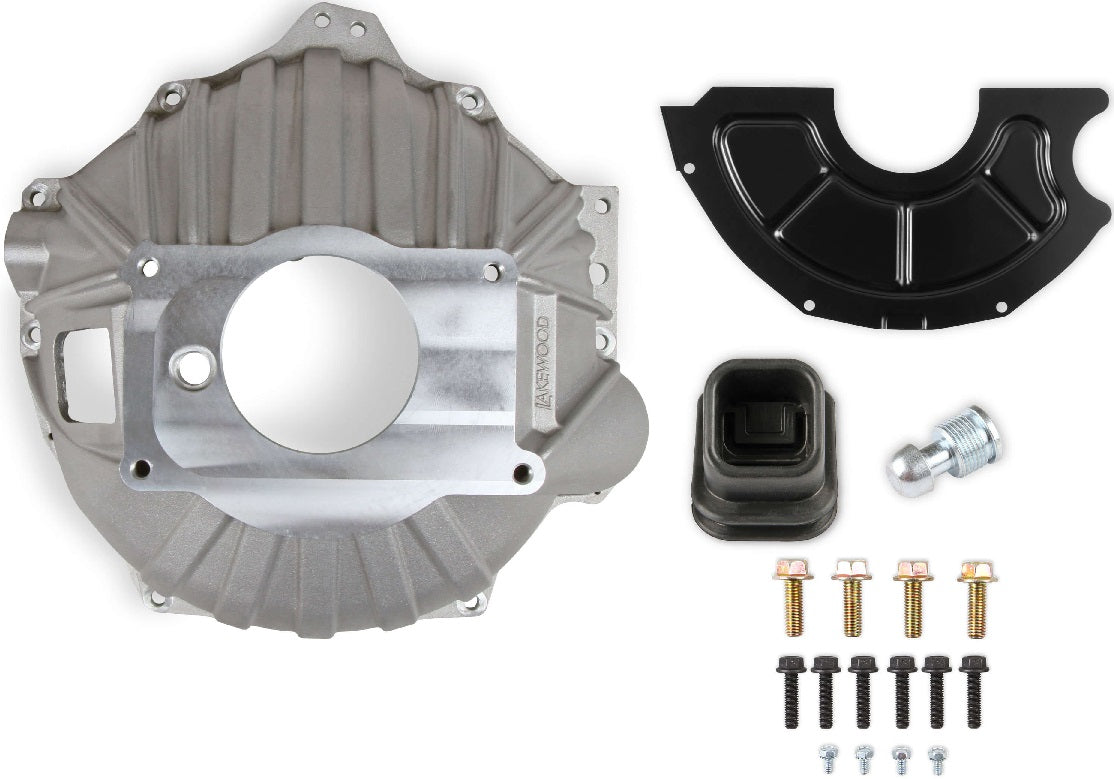

The Lakewood cast aluminum bellhousings connect Chevу Small & Big Block engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10 & Tremec TKO transmissions. Designed for both GM cars & trucks & other manufacturers where swap applications are being installed. These bellhousing kits come complete with clutch fork boot, inspection cover & Grade 8 mounting hardware.

Features:

• Lightweight cast aluminum design similar to the original equipment bellhousings
• Lower cost non-SFI rated option if your project does not require the steel SFI rated unit
• Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
• Bellhousing Depth: 6.45"
• Clutch Fork Opening: 2.125" X 3.3"
• Transmission Bore Diameter: 4.684"
• Includes Grade 8 Hardware

Specs:

• Brand: Lakewood
• Clutch: 11"
• Color: Cast
• Engine: Chevу Big & Small Block V8
• Flywheel: 153 or 168 Tooth
• Height: 6.45"
• Material: Aluminum
• Product Type: Bellhousing
• Transmission Bore Diameter: 4.685"
• Transmission: Bert Racing, BorgWarner, Brinn Racing, Falcon, Jerico, Muncie, Richmond, Saginaw, T10, T5, TKO 500/600, & Tremec

You can view and download the instruction booklet here.
