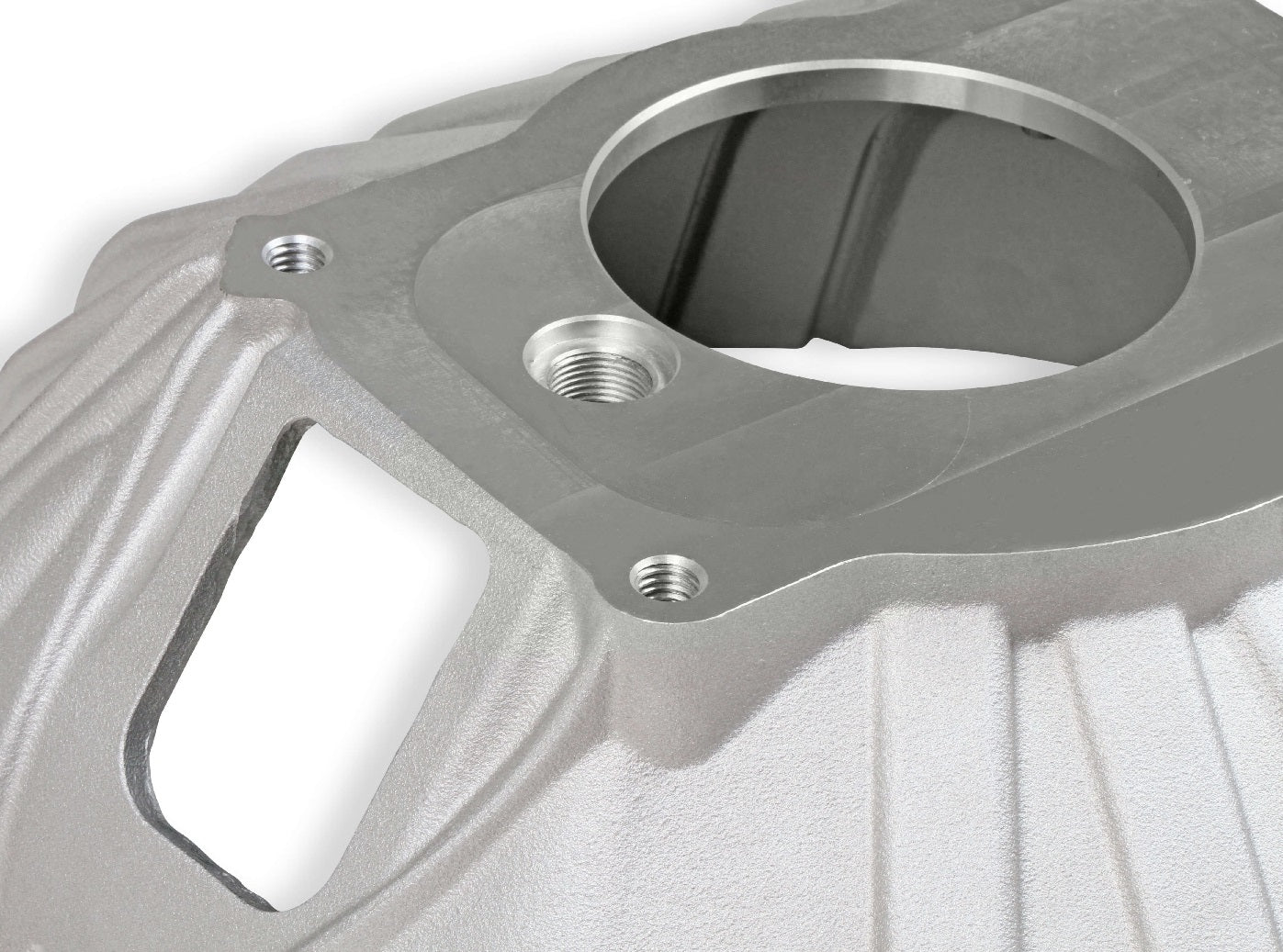

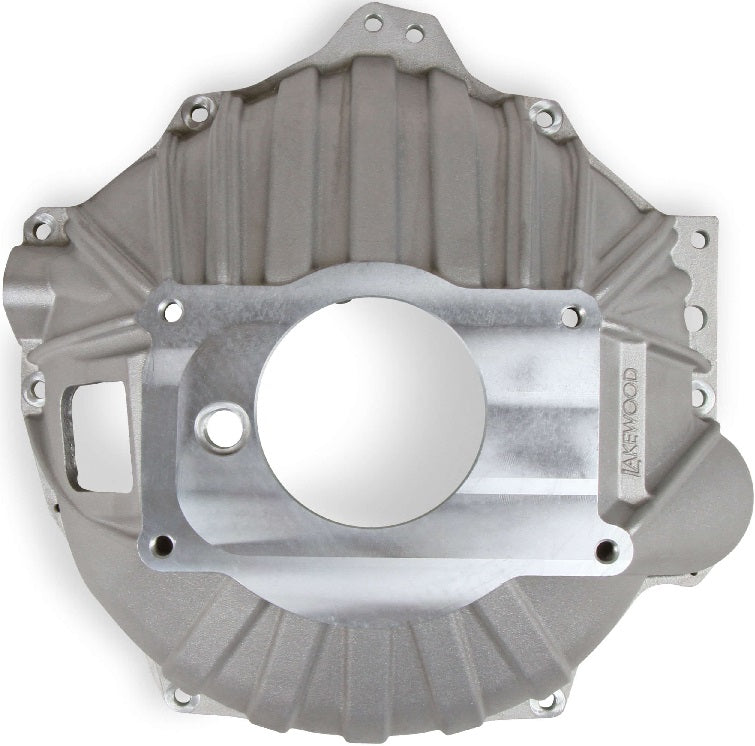

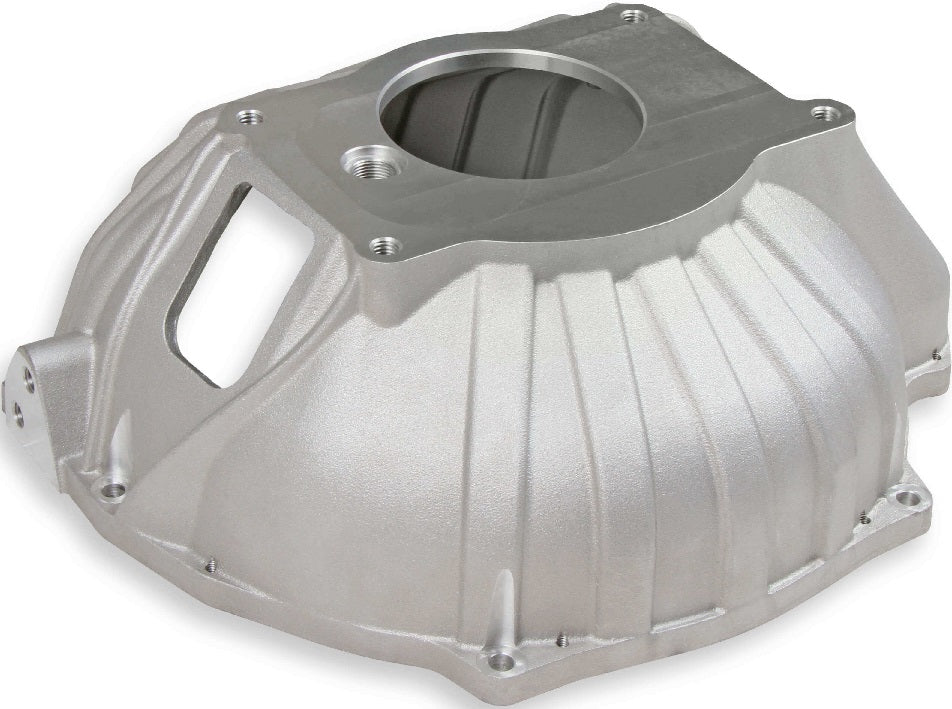

BELLHOUSING ONLY,CAST ALUM,CHEVY V-8

BRAND NEW LAKEWOOD CAST ALUMINUM BELLHOUSING KIT ONLY FOR LS, 11" CLUTCH, COMPATIBLE WITH CHEVY SMALL BLOCK & BIG BLOCK V8 ENGINES

THE LAKEWOOD CAST ALUMINUM BELLHOUSINGS CONNECT CHEVROLET SMALL, BIG BLOCK, AND LS ENGINES TO TRANSMISSIONS UTILIZING THE STANDARD GM PATTERN SUCH AS THE MUNCIE, SAGINAW, BORG WARNER T10 AND TREMEC TKO TRANSMISSIONS. THE BELLHOUSINGS ARE DESIGNED FOR BOTH GM CARS AND TRUCKS AND OTHER MANUFACTURERS WHERE SWAP APPLICATIONS ARE BEING INSTALLED.

THE BELLHOUSINGS ARE DESIGNED FOR BOTH GM CARS AND TRUCKS AND OTHER MANUFACTURERS WHERE SWAP APPLICATIONS ARE BEING INSTALLED.

FEATURES:

• FACTORY-LIKE ATTACHMENT FOR LS ENGINES USING A STOCK OR HOLLEY OIL PAN
• LIGHTWEIGHT CAST ALUMINUM DESIGN SIMILAR TO THE ORIGINAL EQUIPMENT BELLHOUSINGS
• LOWER COST NON-SFI RATED OPTION FOR PROJECTS THAT DO NOT REQUIRE A STEEL SFI RATED UNIT
• DESIGNED FOR HYDRAULIC AND MECHANICAL FORK THROWOUT BEARING LINKAGE
• BELLHOUSING DEPTH: 6.45"
• CLUTCH FORK OPENING: 2.125" X 3.3"
• TRANSMISSION BORE DIAMETER: 4.684"
• NO HARDWARE INCLUDED

SPECS:

• BRAND: LAKEWOOD
• CLUTCH: 11"
• COLOR: CAST
• ENGINE: CHEVROLET BIG & SMALL BLOCK V8 | GM SMALL BLOCK GEN III/IV (LS BASED)
• ENGINE MAKE: CHEVROLET
• FLYWHEEL: 153 OR 168 TOOTH
• HEIGHT: 6.45
• MAKE: CHEVROLET
• MATERIAL: ALUMINUM
• PRODUCT TYPE: BELLHOUSING
• TRANS. BORE DIAMETER: 4.685"
• TRANSMISSION: BERT RACING | BORGWARNER | BRINN RACING | FALCON | JERICO | MUNCIE | RICHMOND | SAGINAW | T10 | T5 | TKO 500/600 | TREMEC
