BELLHOUSING,MUSTANG 79-93

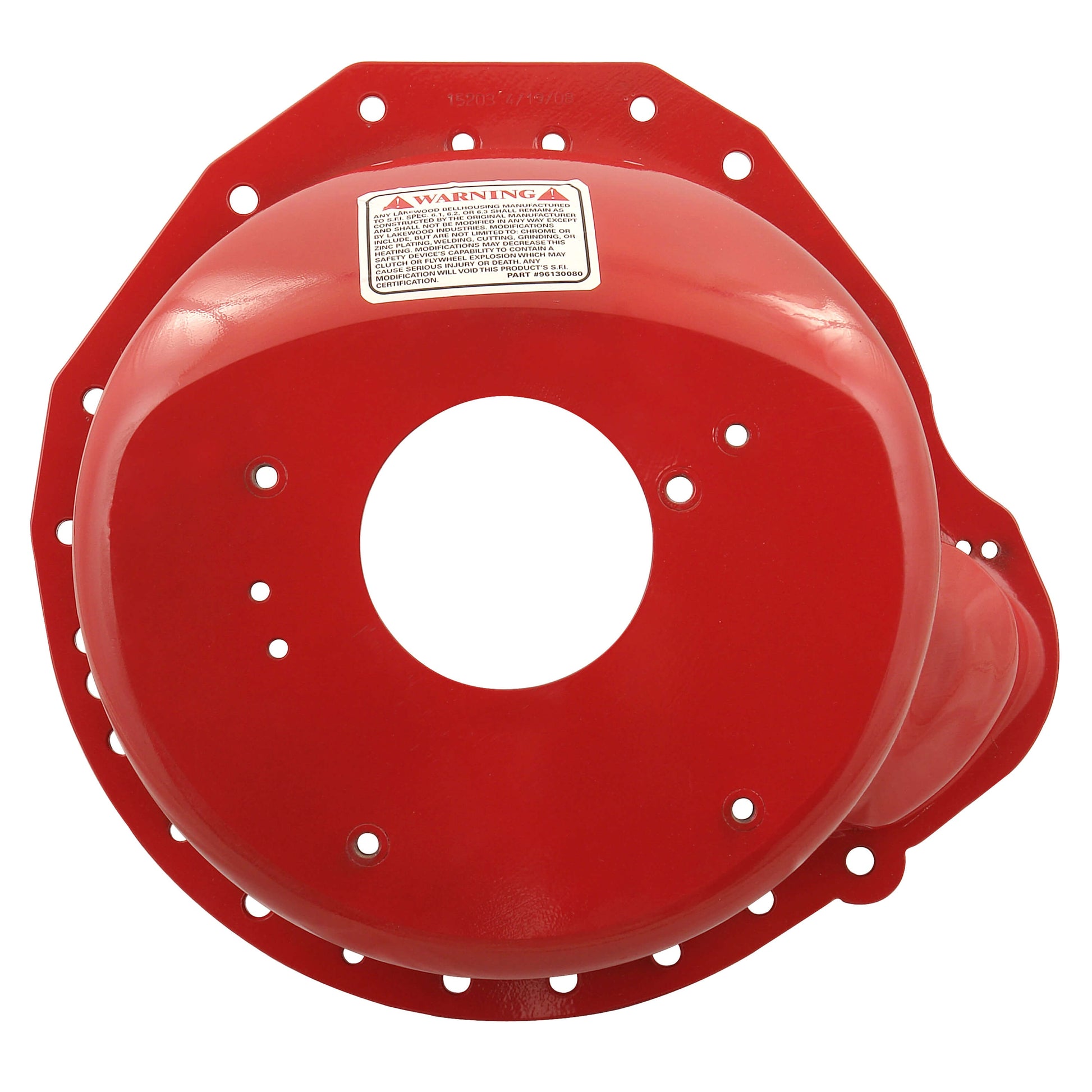

BRAND NEW LAKEWOOD BELLHOUSING FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #15203).

THE LAKEWOOD 15203 BELLHOUSING CONNECTS FORD SMALL BLOCK ENGINES TO T5, TKO, TR3550, AND TREMEC TRANSMISSIONS. THIS BELLHOUSING IS S.F.I. 6.1 CERTIFIED WHICH IS REQUIRED BY MANY SANCTIONING BODIES FOR CARS RUNNING 11.49 OR FASTER IN THE QUARTER MILE. THE LAKEWOOD 15203 COMES COMPLETE WITH SAFETY BLOCK PLATE AND GRADE 8 MOUNTING HARDWARE.

APPLICATIONS:

FORD:

• 1979-1993 MUSTANG

MERCURY:

• 1979-1986 CAPRI

*WITH 6-BOLT MANUAL TRANSMISSION & SMALL BLOCK FORD (289, 302, 351C, 351W)

COMPATIBLE TRANSMISSIONS:

T5

TKO 500/600 FORD

TR3550

TREMEC

SPECS:

CLUTCH: 11"

EMISSION CODE: 5

FLYWHEEL: 157 OR 164 TOOTH

WEIGHT: 36 LB

BELLHOUSING DEPTH: 6.924"

TRANS. BORE DIAMETER: UNIVERSAL 4.85"/4.91"/5.12"

CLUTCH OPERATION: MECHANICAL/PULL CABLE/HYDRAULIC

FEATURES:

HYDRO FORMED CONSTRUCTION

BLOCK PLATE AND GRADE 8 HARDWARE INCLUDED

PIVOT BRACKETS AND BALL INCLUDED

2 RETAINER RINGS PROVIDED FOR INSTALLATION WITH VARIOUS TRANSMISSIONS

S.F.I. 6.1 CERTIFICATION

MADE IN THE USA

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BELLHOUSING HERE.
