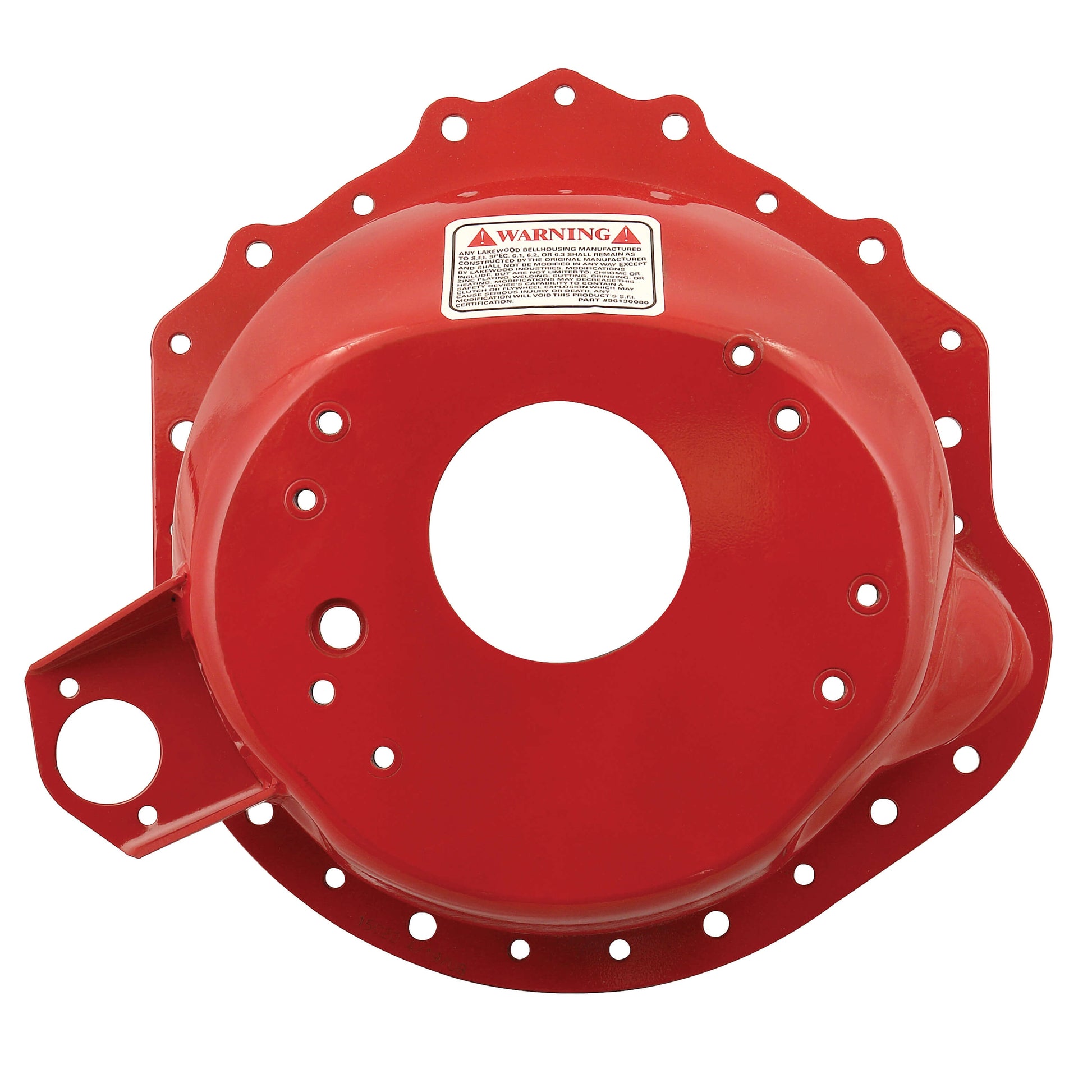

BELLHOUSING,84-92 CAMARO

BRAND NEW LAKEWOOD BELLHOUSING FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #15020).

LAKEWOOD SAFETY BELLHOUSING ARE DESIGNED FOR MAXIMUM PERFORMANCE AND DURABILITY. THEY ARE LASER CUT TO IMPROVE SPEED AND ACCURACY OF MANUFACTURING. THEY ARE ROTO-BRATED AFTER WELDING AND HYDRO-FORMED TO RELIEVE ANY STRESS CREATED DURING MANUFACTURING. THEY ARE S.F.I. 6.1 CERTIFIED. DURABLE POWDER COATED FINISH FOR YEARS OF CORROSION FREE SERVICE. MIG WELDED THREAD INSERTS FOR TRANSMISSION WELDING, PIVOT BALL MOUNTING AND LINKAGE BRACKETS WHERE NEEDED. OTHER APPLICATIONS AVAILABLE.

APPLICATIONS:

CHEVY:

• 1984-1992 CAMARO

PONTIAC:

• 1984-1992 FIREBIRD

*WITH MANUAL TRANSMISSIONS

COMPATIBLE TRANSMISSIONS:

BERT

BORGWARNER

BRINN

BWT5

BWT10

FALCON

JERICO

MUNCIE

RICHMOND

SAGINAW

T10

TKO

TREMEC

SPECS:

CLUTCH: 11"

EMISSION CODE: 5

FLYWHEEL: 153 OR 168 TOOTH

WEIGHT: 36 LB

BELLHOUSING DEPTH: 6.45"

TRANS. BORE DIAMETER: 4.685"

CLUTCH OPERATION: MECHANICAL FORK WITH HYDRAULIC EXTERNAL SLAVE

FEATURES:

HYDRAULIC SLAVE CYLINDER BRACKET

HYDRO FORMED CONSTRUCTION

BLOCK PLATE AND GRADE 8 HARDWARE INCLUDED

S.F.I. 6.1 CERTIFICATION

MADE IN THE USA

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BELLHOUSING HERE.
