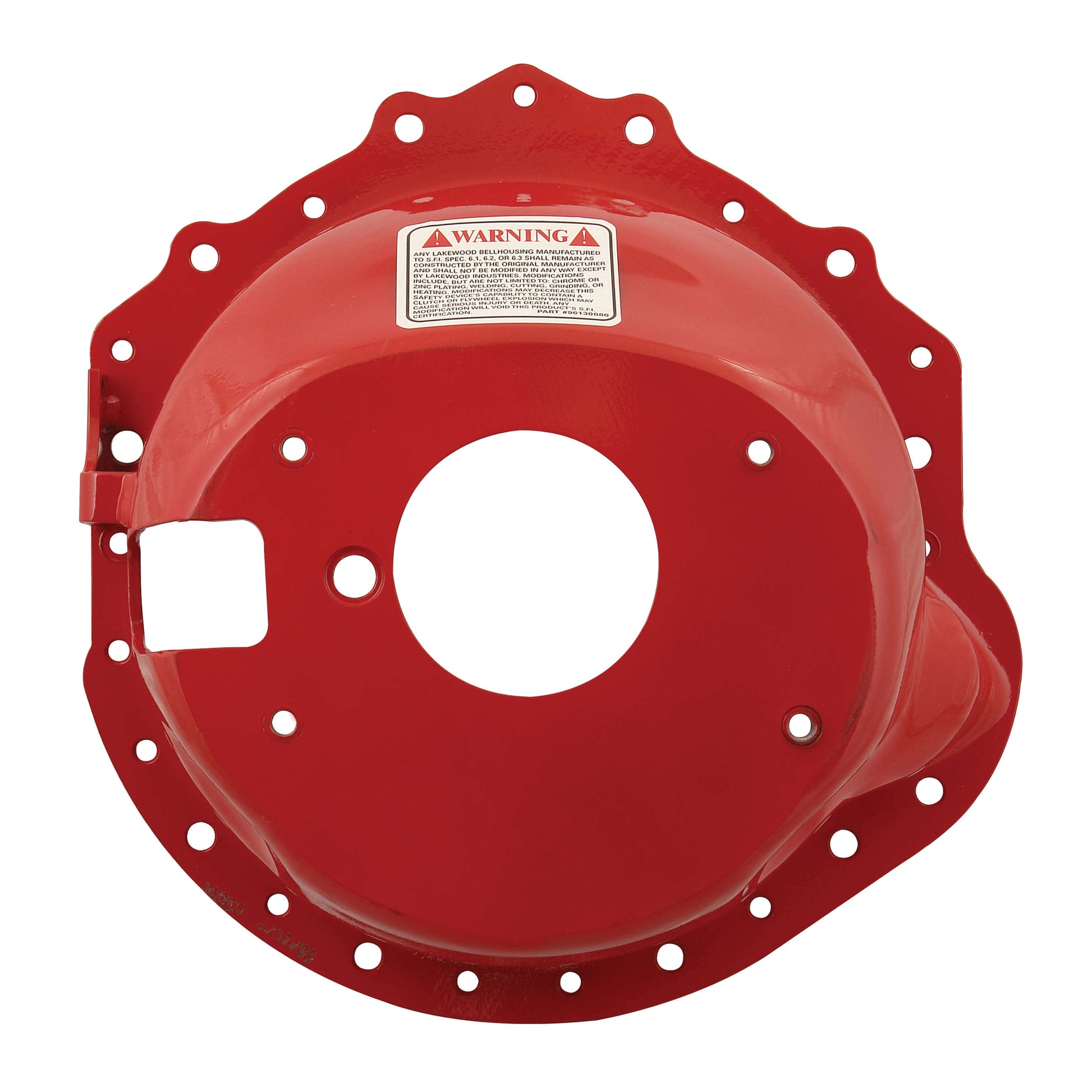

BELLHOUSING,58-UP CHEVY

BRAND NEW LAKEWOOD BELLHOUSING FOR THE VEHICLES LISTED BELOW. PRODUCED BY HOLLEY PERFORMANCE PRODUCTS (PART #15000LKW).

THE LAKEWOOD 15000LKW BELLHOUSING CONNECTS CHEVY SMALL AND BIG BLOCK ENGINES TO TRANSMISSIONS UTILIZING THE STANDARD GM PATTERN SUCH AS THE MUNCIE, SAGINAW, BORG WARNER T10 AND TREMEC TKO TRANSMISSIONS. THIS BELLHOUSING IS HYDRO FORMED TO FIT 59-88 GM FULL AND MIDSIZED CARS, 67-81 F-BODY VEHICLES AND 68-79 NOVAS. THIS BELLHOUSING IS S.F.I. 6.1 CERTIFIED WHICH IS REQUIRED BY MANY SANCTIONING BODIES FOR CARS RUNNING 11.49 OR FASTER IN THE QUARTER MILE. THE LAKEWOOD 15000 COMES COMPLETE WITH ENGINE BLOCK PLATE AND GRADE 8 MOUNTING HARDWARE. NOTE: (TRANSMISSION MOUNTING BOLTS NOT INCLUDED)

APPLICATIONS:

CHEVY:

• 1964-1988 CHEVY CHEVELLE, MALIBU, MONTE CARLO*
• 1959-1987 CHEVY EL CAMINO*
• 1959-1988 CHEVY IMPALA, CAPRICE, BEL AIR, BISCAYNE, BROOKWOOD, KINGSWOOD, NOMAD, SEDAN DELIVERY*
• 1963-1981 CHEVY CORVETTE*
• 1967-1981 CHEVY CAMARO*
• 1968-1979 CHEVY II, NOVA*

*WITH MANUAL TRANSMISSIONS & 153/168 TOOTH FLYWHEEL

COMPATIBLE TRANSMISSIONS:

BERT

BORGWARNER

BRINN

BWT10

BWT5

FALCON

JERICO

JERICO 4 SPEED

JERICO 5 SPEED

MUNCIE

RICHMOND

SAGINAW

T10

TKO 500/600 CHEVY

TREMEC

SPECS:

CLUTCH: 11"

EMISSION CODE: 5

FLYWHEEL: 153 OR 168 TOOTH

BELLHOUSING DEPTH: 6.45"

TRANS. BORE DIAMETER: 4.684"

CLUTCH FORK OPENING: 2.125" X 3.3"

FEATURES:

DESIGNED FOR MECHANICAL FORK LINKAGE

HYDRO FORMED CONSTRUCTION

INCLUDES GRADE 8 HARDWARE

S.F.I. 6.1 CERTIFICATION

MADE IN THE USA

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLET FOR THIS BELLHOUSING HERE.
