SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,1:1,DELCO ALTERNATOR KIT

SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,1:1,DELCO ALTERNATOR KIT

KRC 57793 115

$1,099.99
$1,099.99
View full details
  • THE PERFECT KIT TO EQUIP THE ENTIRE FRONT OF A SMALL BLOCK CHEVY
  • THIS KIT INCLUDES THE POWER STEERING PUMP, THE WATER PUMP, AND A ONE-WIRE DELCO ALTERNATOR. IT MOUNTS THE POWER STEERING PUMP TO THE LEFT SIDE OF THE BLOCK & FEATURES PULLEYS WITH A 1 TO 1 RATIO (OR A 0% REDUCTION)

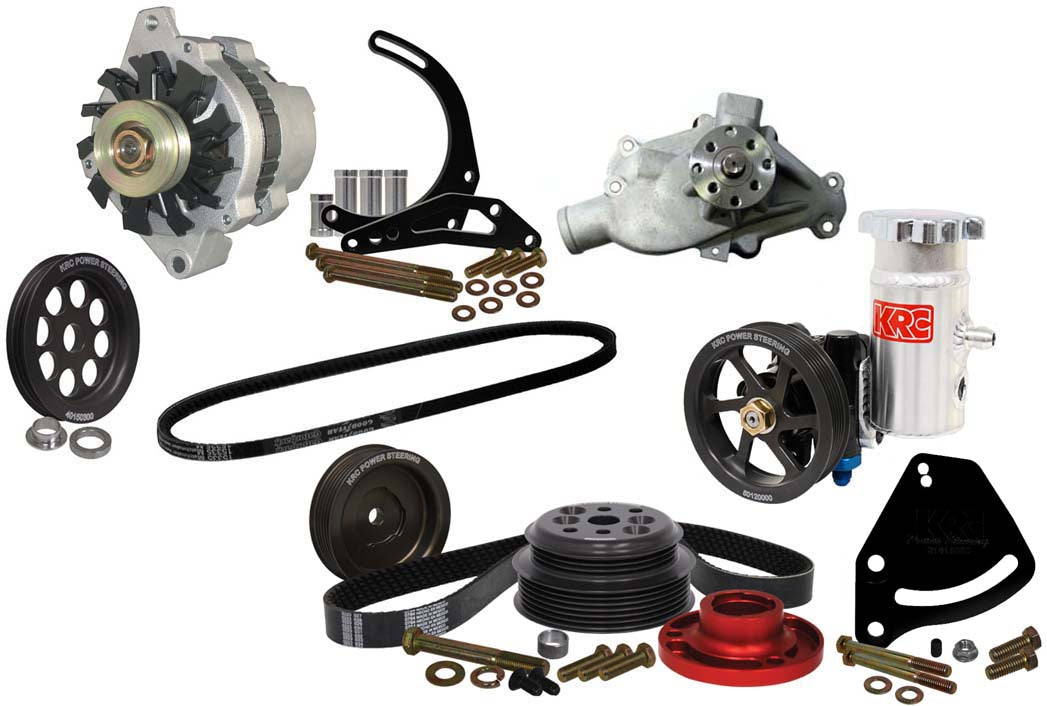

  • THIS KIT INCLUDES:

    *ALUMINUM WATER PUMP:
    -SHORT DESIGN
    -3/4" SHAFT
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -DUAL FAN MOUNTING PATTERN

    *CAST IRON POWER STEERING PUMP WITH SERPENTINE PULLEY & BOLT-ON POWER STEERING RESERVOIR:
    -7.2cc PUMP VOLUME
    --6AN INLET ON THE TANK & -6AN OUTLET ON THE PUMP
    -PUMP FEATURES A FLOW VALVE THAT CAN EASILY BE CHANGED TO ADJUST THE FEEL OF THE STEERING
    -PULLEY IS LIGHTWEIGHT ALUMINUM & MEASURES 4.2" DIAMETER
    -LIGHTWEIGHT ALUMINUM TANK HAS AN 8 OUNCE CAPACITY

    *SBC BLOCK MOUNT POWER STEERING PUMP BRACKET:
    -BOLTS TO THE LEFT SIDE OF THE BLOCK ON A SBC
    -HIGH QUALITY, LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -ALL SURFACES ARE FULLY CNC MACHINED
    -ADJUSTABLE DESIGN
    -CAPTURES NUT MAKES STARTING BOLTS EASIER
    -COMES WITH ALL NECESSARY BOLTS, NUTS, & WASHERS

    *SERPENTINE WATER PUMP PULLEY:
    -DOUBLE GROOVE PULLEY
    -4" DIAMETER REAR GROOVE WITH 6 RIBS
    -3 1/2" DIAMETER FRONT GROOVE WITH 3 RIBS FOR THE ALTERNATOR BELT
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

    *SERPENTINE CRANK PULLEY:
    -SINGLE GROOVE PULLEY WITH 6 RIBS
    -4" DIAMETER
    -SINGLE GROOVE WITH 6 RIBS
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

    *6 RIB SERPENTINE BELT:
    -GOES AROUND POWER STEERING PUMP PULLEY, WATER PUMP PULLEY, & CRANK PULLEY

    *DELCO ALTERNATOR, 70 AMP:
    -TRUE ONE-WIRE HOOKUP ALTERNATOR WITH 14.6 SET VOLTAGE
    -HIGH OUTPUT TO WEIGHT RATIO
    -VOLTAGE: 12 VOLT
    -IDLE: 45 AMP
    -MAX.: 70 AMP
    -WEIGHT: APPROXIMATELY 9.5 LBS.
    -COMES WITH A V-BELT PULLEY THAT YOU WILL REMOVE TO REPLACE WITH THE SERPENTINE PULLEY

    *DELCO ALTERNATOR BRACKET:
    -CNC MACHINED, 6061-T6 ALUMINUM DENSO MID-MOUNT ALTERNATOR BRACKET
    -ANODIZED FINISH
    -INCLUDES ALL APPROPRIATE HARDWARE & SPACERS THAT ARE NECESSARY TO MOUNT THE ALTERNATOR

    *SERPENTINE ALTERNATOR PULLEY:
    -3 1/2" DIAMETER
    -SINGLE GROOVE WITH 3 RIBS
    -CNC MACHINED, 6061-T6 BILLET ALUMINUM CONSTRUCTION

    *3 RIB SERPENTINE ALTERNATOR BELT:
    -GOES AROUND ALTERNATOR PULLEY & FRONT GROOVE ON WATER PUMP PULLEY

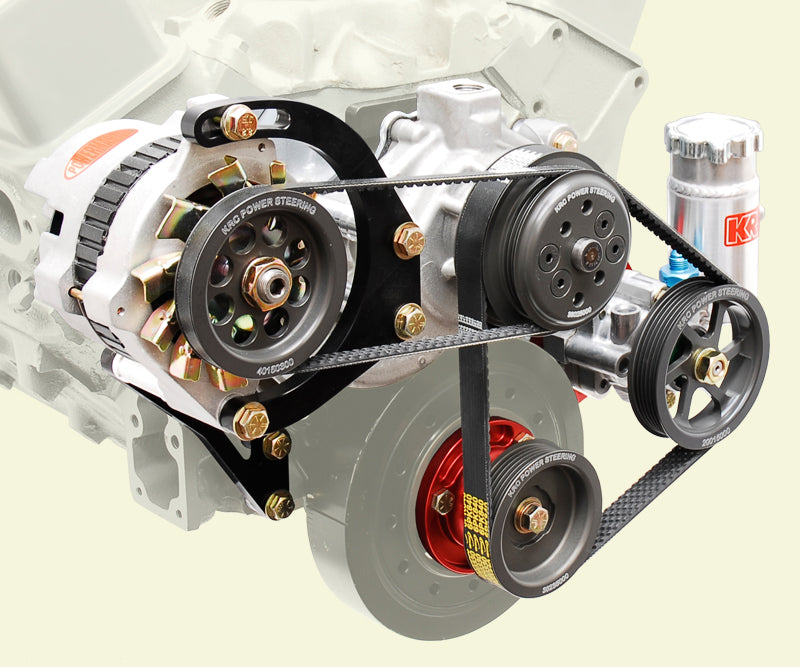

  • ***THE DIAMETERS OF THE WATER PUMP PULLEY (4") AND THE CRANK PULLEY (4") ARE THE SAME (REFERRED TO AS "1 TO 1"), WHICH GIVES A 0% REDUCTION. WE HAVE 30%, 15%, & 0% (1 TO 1) KITS AVAILABLE. WE RECOMMEND THAT YOU STAY CLOSE TO YOUR STOCK REDUCTION, HOWEVER, IN SOME CASES, YOUR SPECIFIC APPLICATION MIGHT CALL FOR YOU TO SPEED UP OR SLOW DOWN THE WATER FLOW TO COOL THE ENGINE BETTER. DIFFERENT SIZE PULLEYS WILL ACCOMPLISH THIS WHEN NECESSARY
