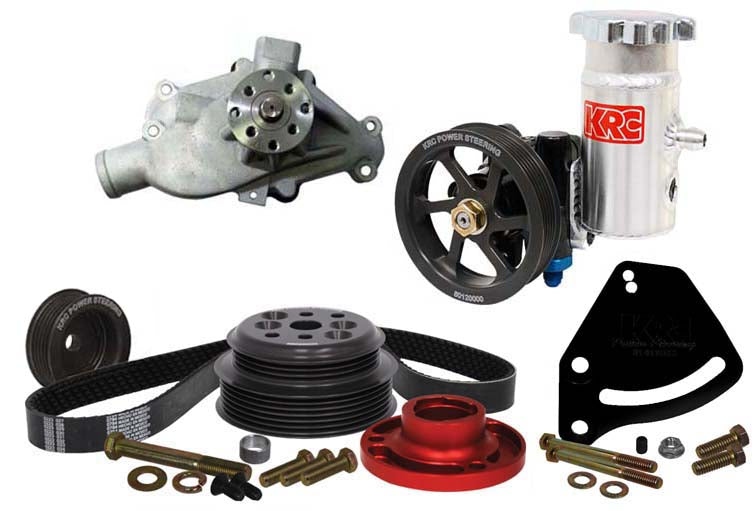

SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,30% RED.

SBC SERPENTINE KIT,BLOCK MOUNT POWER STEERING,30% RED.

KRC 57711 115

$659.99
$659.99
View full details
  • THE PERFECT KIT TO EQUIP THE ENTIRE FRONT OF A SMALL BLOCK CHEVY
  • THIS KIT INCLUDES THE POWER STEERING PUMP AND THE WATER PUMP. IT MOUNTS THE POWER STEERING PUMP TO THE LEFT SIDE OF THE BLOCK & FEATURES PULLEYS WITH A 30% REDUCTION
  • THIS KIT INCLUDES:

    *ALUMINUM WATER PUMP:
    -SHORT DESIGN
    -3/4" SHAFT
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -DUAL FAN MOUNTING PATTERN

    *CAST IRON POWER STEERING PUMP WITH SERPENTINE PULLEY & BOLT-ON POWER STEERING RESERVOIR:
    -7.2cc PUMP VOLUME
    --6AN INLET ON THE TANK & -6AN OUTLET ON THE PUMP
    -PUMP FEATURES A FLOW VALVE THAT CAN EASILY BE CHANGED TO ADJUST THE FEEL OF THE STEERING
    -PULLEY IS LIGHTWEIGHT ALUMINUM & MEASURES 4.2" DIAMETER
    -LIGHTWEIGHT ALUMINUM TANK HAS AN 8 OUNCE CAPACITY

    *SBC BLOCK MOUNT POWER STEERING PUMP BRACKET:
    -BOLTS TO THE LEFT SIDE OF THE BLOCK ON A SBC
    -HIGH QUALITY, LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -ALL SURFACES ARE FULLY CNC MACHINED
    -ADJUSTABLE DESIGN
    -CAPTURES NUT MAKES STARTING BOLTS EASIER
    -COMES WITH ALL NECESSARY BOLTS, NUTS, & WASHERS

    *SERPENTINE WATER PUMP PULLEY:
    -3 1/2" DIAMETER
    -DOUBLE GROOVE WITH 6 RIBS ON BOTH
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

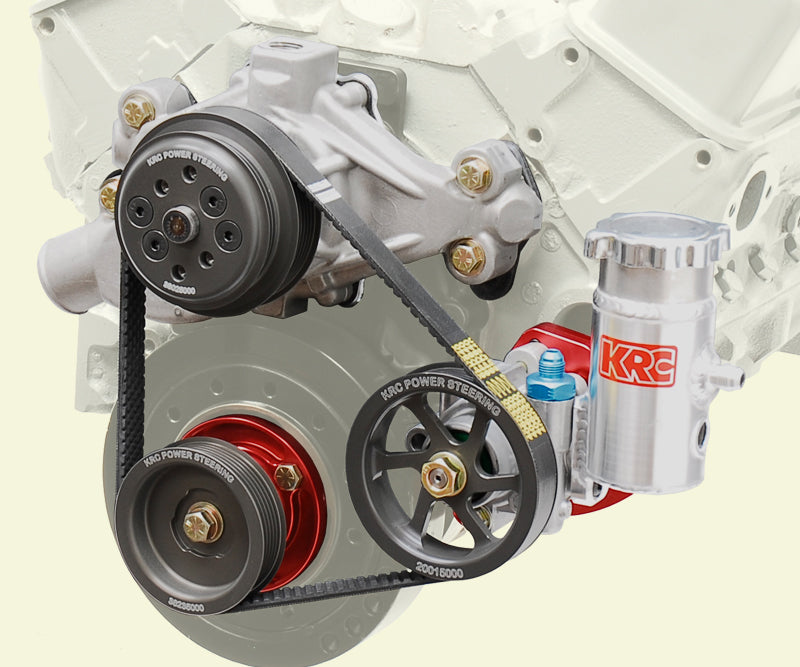

    -THE PICTURE BELOW SHOWS THE WATER PUMP PULLEY WITH A 6 RIB GROOVE ON THE REAR & A 3 RIB GROOVE ON THE FRONT. AS CAN BE SEEN TO THE RIGHT, THIS KIT ACTUALLY COMES WITH A PULLEY WITH 6 RIBS ON BOTH THE FRONT & THE REAR. THEY BOTH FUNCTION THE EXACT SAME, AS THE FRONT GROOVE IS STILL 3 1/2" IN DIAMETER. THE DUAL 6 RIB PULLEY SIMPLY LETS YOU USE EITHER A 3 RIB OR A 6 RIB BELT, WHILE THE 3 RIB WOULD ONLY ALLOW FOR A 3 RIB BELT

    *SERPENTINE CRANK PULLEY:
    -2 1/2" DIAMETER
    -SINGLE GROOVE WITH 6 RIBS
    -LIGHTWEIGHT ALUMINUM CONSTRUCTION
    -HARD ANODIZED FOR DURABILITY

    *SERPENTINE BELT:
    -6 RIB BELT
    -GOES AROUND POWER STEERING PUMP PULLEY, WATER PUMP PULLEY, & CRANK PULLEY

  • ***THE DIFFERENCE IN DIAMETERS OF THE WATER PUMP PULLEY (3.5") AND THE CRANK PULLEY (2.5") GIVES A 30% REDUCTION. WE HAVE 30%, 15%, & 0% (1 TO 1) KITS AVAILABLE. WE RECOMMEND THAT YOU STAY CLOSE TO YOUR STOCK REDUCTION, HOWEVER, IN SOME CASES, YOUR SPECIFIC APPLICATION MIGHT CALL FOR YOU TO SPEED UP OR SLOW DOWN THE WATER FLOW TO COOL THE ENGINE BETTER. DIFFERENT SIZE PULLEYS WILL ACCOMPLISH THIS WHEN NECESSARY



    Click Picture
    For Larger View
