DELCO ALTERNATOR KIT,BRACKET,PULLEY,BELT

DELCO ALTERNATOR KIT,BRACKET,PULLEY,BELT

KRC 41900 000

$184.99
$184.99
View full details
  • KRC DELCO ALTERNATOR MOUNTING KIT

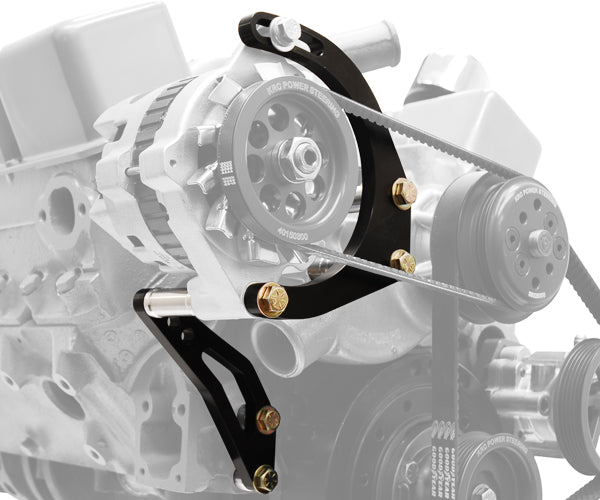

  • THIS KIT IS DESIGNED TO MOUNT A SMALL BLOCK CHEVY (156mm BOLT PATTERN) DELCO ALTERNATOR ON THE PASSENGER SIDE OF THE SBC AND WORK IN CONJUNCTION WITH ANY OF KRC'S SERPENTINE PULLEY KITS TO RUN THE ALTERNATOR OFF THE FRONT OF THE WATER PUMP
  • *THE 28" BELT IS DESIGNED TO WORK WITH THE 3 1/2" DIAMETER SERPENTINE ACCESSORY GROOVE (3 RIB OR 6 RIB) THAT IS ON THE FRONT OF MOST KRC WATER PUMP PULLEYS, WHICH ARE INCLUDED IN THE KITS LISTED HERE. IF THIS KIT IS TO BE RUN OFF OF A DIFFERENT DIAMETER PULLEY, A DIFFERENT LENGTH BELT WILL BE NECESSARY. THE 3 RIB BELT WILL EASILY WORK ON A 6 RIB SERPENTINE GROOVE, AND WOULD ACTUALLY EVEN GIVE SOME FRONT TO BACK TOLERANCE IF THERE ARE ANY SPACING ISSUES

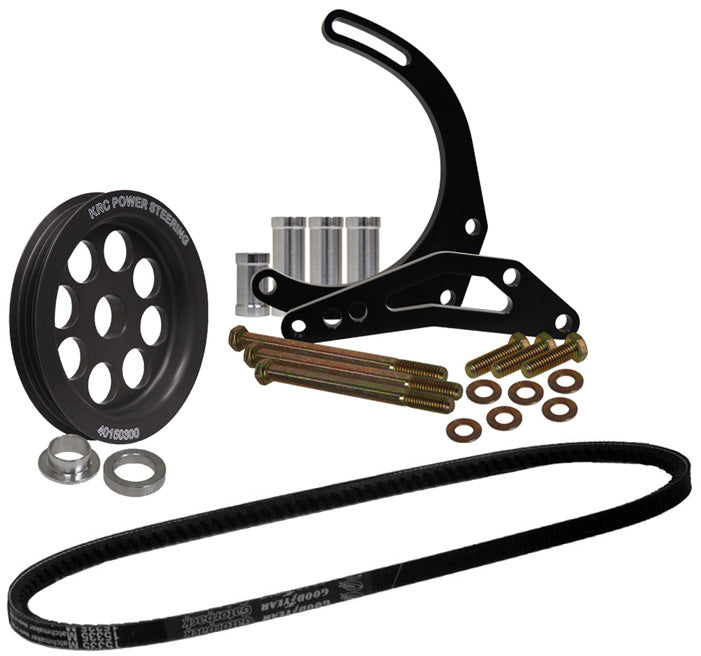

  • THIS KIT INCLUDES:
    *ALTERNATOR BRACKET:
    -CNC MACHINED, 6061-T6 ALUMINUM DELCO MID-MOUNT ALTERNATOR BRACKET
    -ANODIZED FINISH
    -INCLUDES ALL APPROPRIATE HARDWARE & SPACERS THAT ARE NECESSARY TO MOUNT THE HARDWARE
    *ALTERNATOR PULLEY:
    -3 1/2" DIAMETER 3 RIB SERPENTINE PULLEY
    -CNC MACHINED, 6061-T6 BILLET ALUMINUM CONSTRUCTION
    *BELT:
    -28" 3 RIB SERPENTINE BELT TO RUN THE ALTERNATOR OFF THE FRONT OF THE WATER PUMP
  • THESE KITS WILL ALSO WORK GREAT WITH ANY OF KRC'S SBC R-LOK AND SBC PRO SERIES R-LOK KITS



    • Click Picture
    For Larger View

  • 156mm BOLT PATTERN DELCO ALTERNATOR DIAGRAM: (THIS IS INCLUDED TO SHOW THE STYLE OF ALTERNATOR THAT WILL FIT THIS KIT. THIS KIT DOESN'T INCLUDE THE ALTERNATOR ITSELF)



    • Click Picture
    For Larger View
