DENSO ALTERNATOR KIT WITH ALTERNATOR

DENSO ALTERNATOR KIT WITH ALTERNATOR

KRC 41810 200

$419.99
$419.99
View full details

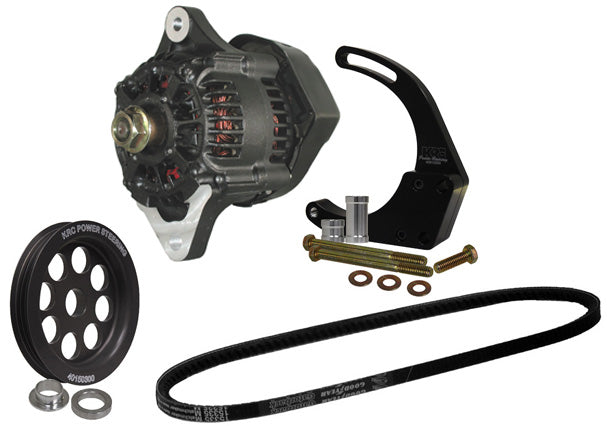

  • DENSO ALTERNATOR & KRC MOUNTING KIT

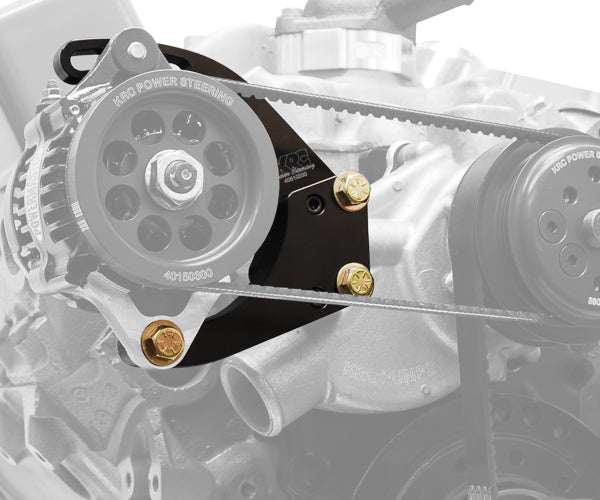

  • THIS KIT IS DESIGNED TO MOUNT A SMALL BLOCK CHEVY 93mm (138mm BOLT PATTERN) DENSO ALTERNATOR ON THE PASSENGER SIDE OF THE SBC AND WORK IN CONJUNCTION WITH ANY OF KRC'S SERPENTINE PULLEY KITS TO RUN THE ALTERNATOR OFF THE FRONT OF THE WATER PUMP
  • *THE 28" BELT IS DESIGNED TO WORK WITH THE 3 1/2" DIAMETER SERPENTINE ACCESSORY GROOVE (3 RIB OR 6 RIB) THAT IS ON THE FRONT OF MOST KRC WATER PUMP PULLEYS, WHICH ARE INCLUDED IN THE KITS LISTED HERE. IF THIS KIT IS TO BE RUN OFF OF A DIFFERENT DIAMETER PULLEY, A DIFFERENT LENGTH BELT WILL BE NECESSARY. THE 3 RIB BELT WILL EASILY WORK ON A 6 RIB SERPENTINE GROOVE, AND WOULD ACTUALLY EVEN GIVE SOME FRONT TO BACK TOLERANCE IF THERE ARE ANY SPACING ISSUES
  • THIS KIT INCLUDES:
    *DENSO ALTERNATOR:
    -TRUE ONE-WIRE HOOKUP ALTERNATOR WITH 14.9 SET VOLTAGE
    -HIGH OUTPUT TO WEIGHT RATIO
    -LOW DRAG, HIGH SPEED BEARING
    -THE 93mm DIAMETER STATOR HOUSING IS A COMPACT ALTERNATOR WITH A 50 AMP OUTPUT THAT IS MORE THAN ENOUGH FOR MOST HIGH PERFORMANCE APPLICATIONS
    -STATOR HOUSING: 93mm
    -VOLTAGE: 12 VOLT
    -IDLE: 30 AMP
    -MAX.: 50 AMP
    -WEIGHT: APPROXIMATELY 5.7 LBS.
    *ALTERNATOR BRACKET:
    -CNC MACHINED, 6061-T6 ALUMINUM DENSO MID-MOUNT ALTERNATOR BRACKET
    -ANODIZED FINISH
    -INCLUDES ALL APPROPRIATE HARDWARE & SPACERS THAT ARE NECESSARY TO MOUNT THE HARDWARE
    *ALTERNATOR PULLEY:
    -3 1/2" DIAMETER 3 RIB SERPENTINE PULLEY
    -CNC MACHINED, 6061-T6 BILLET ALUMINUM CONSTRUCTION
    *BELT:
    -28" 3 RIB SERPENTINE BELT TO RUN THE ALTERNATOR OFF THE FRONT OF THE WATER PUMP
  • THESE KITS WILL ALSO WORK GREAT WITH ANY OF KRC'S SBC R-LOK AND SBC PRO SERIES R-LOK KITS
