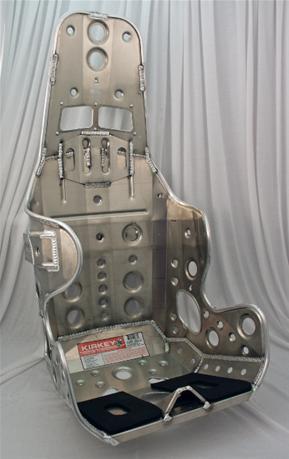

SEAT ONLY,10 DEGREE UPRIGHT,14",LIGHTWEIGHT

SEAT ONLY,10 DEGREE UPRIGHT,14",LIGHTWEIGHT

KIR 56100LW

$419.99
$419.99
This item requires an additional shipping fee of $20.00 over standard shipping.
View full details
  • 14" WIDE, UPRIGHT, LIGHTWEIGHT SEAT WITH DUAL RIB SUPPORTS
  • THESE 56000 SERIES SEATS ARE 10 DEGREE LAYBACK, EVEN THOUGH KIRKEY REFERS TO THEM AS "UPRIGHT"; THE SEATS REFERED TO AS "LAYBACK" ARE 20 DEGREE
  • .081" THICK, 5052 GRADE ALUMINUM CONSTRUCTION, TIG WELDED OUTSIDE & MIG WELDED INSIDE FOR ADDED STRENGTH
  • STRATEGICALLY PLACED FLARED OPENINGS SAVE WEIGHT & ADD STRENGTH
  • CONTOURED SIDES SUPPORT HIPS & THIGHS ALONG COMPLETE SIDE OF SEAT
  • SEAT BOTTOM SHAPED AT REAR TO SUPPORT TAILBONE & LOWER BACK
  • CENTER LEG SUPPORT HOLDS INNER THIGHS UNDER HEAVY CORNERING FORCES
  • ALUMINUM EXTRUSION AROUND PERIMETER OF SEAT ADDS STRENGTH & SAFETY
  • SEAT BACK IS DOUBLE CROSSBROKE FOR ADDED STRENGTH & SAFETY
  • FRONT OF SEAT IS RAISED FOR EXTRA LEG & THIGH SUPPORT
  • DUAL RIB SUPPORTS ARE BOTH REINFORCED WITH WELDED, LIGHTWEIGHT FLARED BAND
  • PRE-CUT SEAT BELT SLOTS
  • DESIGNED FOR CLIP-ON (HOOK-ON) COVERS TO ELIMINATE SNAPS
  • HOW TO MEASURE FOR A SEAT: IN THE SEATED POSITION, USING A STRAIGHT EDGE, MEASURE ACROSS THE HIPS AT THE WIDEST POINT. THIS MEASUREMENT IS THE WIDTH OF SEAT THAT YOU NEED
  • YOU CAN SEE THE INSTALLATION INSTRUCTIONS FOR THIS SEAT BY CLICKING HERE

    • *SEAT COVER SOLD SEPARATELY*



    Click Picture
    For Larger View



    Click Picture
    For Larger View


  • COVER SOLD SEPARATELY
    • Lightweight 10 Degree Layback Kirkey Seats and Covers
