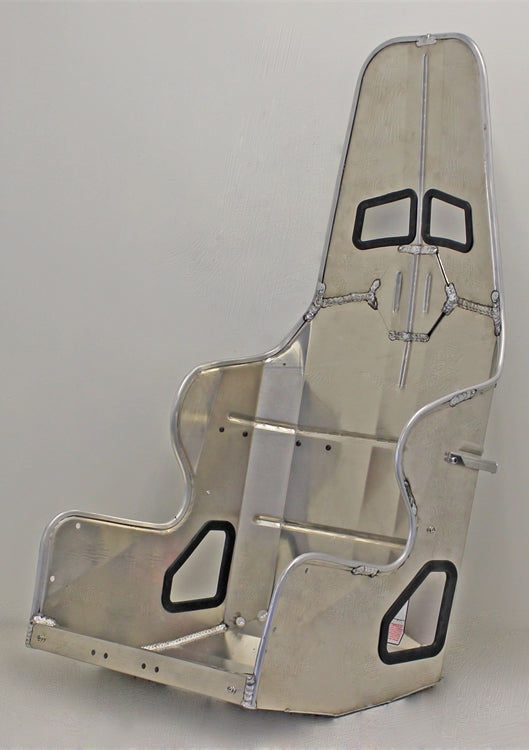

STANDARD SEAT ONLY,10-20 DEGREE,14"

• THESE SEATS ARE BUILT SO THAT THEY CAN BE USED AS EITHER A 10 DEGREE (UPRIGHT) OR 20 DEGREE (LAYBACK). THEY ARE REGULARLY USED IN IMCA MODIFIEDS, STREET STOCKS, GRAND NATIONALS, PURE STOCKS, FACTORY STOCKS, LATE MODELS, LIMITED LATE MODELS, MINI-MODIFIEDS, DWARF CARS, LEGENDS, AND NUMEROUS OTHER OF MOTORSPORTS APPLICATIONS.

FEATURES:

• UNIQUE BOTTOM DESIGN ALLOWS THE SEAT TO BE MOUNTED IN MULTIPLE LAYBACK ANGLES WITHOUT RAISING CENTER OF GRAVITY IN THE RACE CAR
• SEAT COMES WITH BOLT-ON RIB BRACES AND A WELDED INTERIOR HEAD REST PLATE FOR ADDITIONAL STRENGTH
• CONSTRUCTED FROM TIG AND MIG WELDED .100" THICK 5052 GRADE ALUMINUM
• EXTRA MIG WELDING ON THE INSIDE FOR ADDED STRENGTH
• OFFSET ALUMINUM EXTRUSION AROUND PERIMETER OF SEAT FOR ADDED STRENGTH AND SAFETY
• FRONT OF SEAT RAISED FOR LEG AND THIGH SUPPORT
• SEAT COMES STANDARD WITH LAP BELT OPENINGS, DOUBLE SHOULDER BELT OPENINGS AND SUB BELT OPENING TO ACCOMMODATE ALL BELT SYSTEMS
• MOLDED RUBBER INSERTS FOR ALL SEAT BELT OPENINGS


  ***HOW TO MEASURE FOR A SEAT: IN THE SEATED POSITION, USING A STRAIGHT EDGE, MEASURE ACROSS THE HIPS AT THE WIDEST POINT. THIS MEASUREMENT IS THE WIDTH OF SEAT THAT YOU NEED.

  YOU CAN VIEW AND DOWNLOAD THE COMPLETE INSTALLATION INSTRUCTIONS FOR THIS SEAT HERE.
