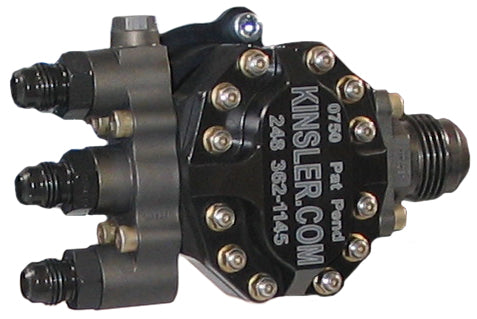

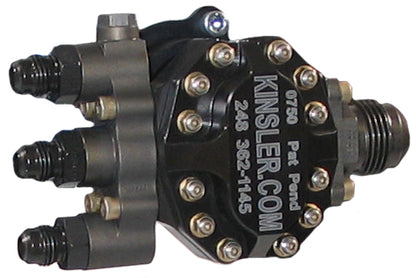

TOUGH PUMP 500,REV-M,INLET & 3 PORT OUT

TOUGH PUMP 500,REV-M,INLET & 3 PORT OUT

SKU:KFI TP050031

Regular price $1,049.99
Regular price Sale price $1,049.99
View full details
BRAND NEW .500" KINSLER TOUGH PUMP WITH 3 PORT MANIFOLD AND ADJUSTABLE FLANGE, REVERSE ROTATION (PART #TP050031).

THE KINSLER TOUGH FUEL PUMP IS ENGINEERED TO WITHSTAND THE PUNISHMENT OF COMPETITIVE SPRINT CAR AND MIDGET RACING. EACH FUEL PUMP IS EQUIPPED WITH AN ADJUSTABLE OR "SWIVEL" FLANGE. AFTER MOUNTING THE FUEL PUMP, THE FLANGE CLAMP BOLT CAN BE LOOSENED TO ALLOW FOR EASY ROTATION AND ALIGNMENT OF YOUR FUEL PUMP. SIMPLY RE-TIGHTEN THE FLANGE CLAMP BOLT ONCE THE FUEL PUMP HAS BEEN PROPERLY POSITIONED.

    FEATURES:

    • .500" GEAR SET

    • 3 PORT MANIFOLD FEATURES THREE -6 AN OUTLETS. THIS MANIFOLD IS DESIGNED TO EASE AND SIMPLIFY PLUMBING

    • -12 AN INLET

    • 3-BOLT ADJUSTABLE MOUNTING FLANGE INCLUDED

    REVERSE ROTATION:

    • DRIVEN OFF THE REAR OF THE CAMSHAFT, OR BELT-DRIVEN

    • LOOKING AT THE OPEN END OF THIS KINSLER PUMP, THE SHAFT ROTATES CLOCKWISE

    • THESE PUMPS ARE TYPICALLY MOUNTED TO A POWER STEERING PUMP, SUCH AS A KSE (SHOWN BELOW), OR MOUNTED DIRECTLY TO THE MOTOR PLATE, BUT THE ADJUSTABLE 3 BOLT FLANGE ALLOWS THEM TO BE USED IN SEVERAL OTHER SITUATIONS

    • STANDARD ONE-PIECE HEX SHAFT; WE DO HAVE THESE PUMPS WITH KINSLERS NEW 2 PIECE "FEMALE" HEX SHAFT, WHICH ALLOWS FOR A SMALL AMOUNT OF MISALIGNMENT

    • FLOW TESTED AND READY TO RACE

    ONE-PIECE GEAR SHAFT:

    • HIGH ALLOY STEEL, CASE HARDENED, PRECISION GROUND, THEN PROPRIETARY COATED. DOES NOT ALLOW ANY RADIAL MOVEMENT OF THE GEAR ON THE SHAFT, THUS MAINTAINING CORRECT CLEARANCE BETWEEN THE GEAR TEETH TIPS AND THE HOUSING. A TWO-PIECE GEAR AND SHAFT INTRODUCES MORE TOLERANCE, WHICH CAN ALLOW THE TIPS TO SCRAPE THE GEAR CAVITY WALLS.

    • THIS PUMP CAN INGEST AND SPIT OUT DIRT THAT WOULD FAIL OTHER PUMPS.

    ROCK SOLID HOUSING:

    • EVOLVED THROUGH HOUSING DEFLECTION VS. PRESSURE TESTS. THIS FINAL DESIGN IS THE STRONGEST IN THE INDUSTRY, COMBINED WITH TWELVE 10-32 STUDS TO SUPER SECURE THE EXTRA RIGID COVER.

    STEADY FLOW AT EXTREME RPM:

    • THE INLET PORT COMES STRAIGHT INTO THE GEARS RATHER THAN MAKING A 90 DEGREE TURN, LIKE MOST PUMPS. THIS COMBINED WITH SPECIAL INTERNAL DESIGN FEATURES TO FEED THE FUEL TO THE GEARS GIVES EXCELLENT TOP END PERFORMANCE....UP TO 7,000 PUMP RPM (14,000 ENGINE RPM) WITHOUT CAVITATION. THE LARGER BEARINGS ARE RATED AT 2,000 MORE PUMP RPM THAN THOSE OF OTHER PUMPS.

    PRESSURE BALANCE PLATE SYSTEM:

    • KINSLERS GEAR SIDE PLATES ARE HIGH ALLOY STEEL, HEAT TREATED VERY HARD, GROUND TO A 6 MICRO-INCH FINISH, WITH END-TO-END FLATNESS OF 0.0001". THESE ARE COATED WITH A HARDER-THAN-CARBIDE COMPOSITE, THEN LAPPED TO A 2 MICRO-INCH MIRROR FINISH. THIS COATING IS SO SMOOTH THAT THE TORQUE REQUIRED TO DRIVE THIS PUMP IS SIGNIFICANTLY REDUCED. ONE PLATE IS MOVABLE. IT HAS PUMP OUTLET PRESSURE FED UNDER IT TO KEEP IT IN CONSTANT CONTACT WITH THE GEAR FACES, WHICH GIVES MINIMUM PUMP OUTPUT FLOW DROP VS. PRESSURE, AND COMPENSATES FOR HOUSING EXPANSION DUE TO TEMPERATURE AND WEAR. FOR EXCELLENT PRIMING DURING ENGINE CRANKING, TWO COIL SPRINGS KEEP THE PLATE IN CONTACT WITH THE GEAR FACES.

    • INLET AND OUTLET BOLT-ON-FITTINGS ALLOW A LARGER DIAMETER INLET PORT FOR BETTER FLOW AND KEEP THE HOUSING STRONG BECAUSE IT IS NOT TAPPED FOR A LARGE FITTED THREAD. PUMP LENGTH AND DIAMETER, MOUNTING NOSE DIAMETER AND PUMP MOUNTING BRACKET ARE INDUSTRY STANDARD. WILL BOLT ON WHERE ANY HILBORN, WATERMAN, DSR OR ENDERLE PUMP DOESTO PREVENT PRESSURE FROM REACHING THE SHAFT SEAL, A STATIC BRASS SLEEVE AROUND THE DRIVE SHAFT IS SEALED TO THE HOUSING AND TO THE MOVEABLE PLATE BY O-RINGS. THIS REDUCES THE POSSIBILITY OF A SEAL LEAK AND REDUCES FRICTION ON THE DRIVE SHAFT, BECAUSE PRESSURE IS NOT FORCING THE SEAL LIP TO GRIP DOWN ONTO THE SHAFT... GIVES LONGER SEAL LIFE AND LESS DRIVE TORQUE. THE SEAL CAVITY IS VENTED BACK INTO THE INLET SIDE OF THE PUMP TO FURTHER INSURE THAT THERE IS NO PRESSURE ON THE SEAL. A SNAP RING POSITIVELY LOCATES THE SEAL.

    • EACH PUMP IS FLOW TESTED, RUN IN FOR TWO-HOURS, THEN RE-FLOW TESTED BEFORE SHIPPING.

    WE ALSO HAVE THIS PUMP AVAILABLE:

    • BARE WITH NO FITTINGS, WITH A SINGLE OUTLET FITTING, AND HERE WITH A 4 PORT OUTLET MANIFOLD

    • KINSLERS 2 PIECE FEMALE HEX SHAFT THAT ALLOWS FOR MISALIGNMENT HERE WITH THE KSE POWER STEERING PUMP, AS SHOWN BELOW.

    • IN ADDITION, WE HAVE THESE PUMPS WITH .450" GEAR SETS

    • COMMONLY USED FOR SPRINT CARS AND MIDGETS, INCLUDING MAXIM, J&J, EAGLE, TRIPLE X, JEI, SCHNEE, SHAW, BEAST, STEALTH, SPIKE, BULLET, TWISTER, AND ALMOST ALL OTHER SPRINT CAR AND MIDGET CHASSIS, IN ALL SERIES INCLUDING WORLD OF OUTLAWS, ASCS, ALL-STAR, OCRS, USAC, POWRI, EXT.

    KINSLER TOUGH PUMP VIDEO:

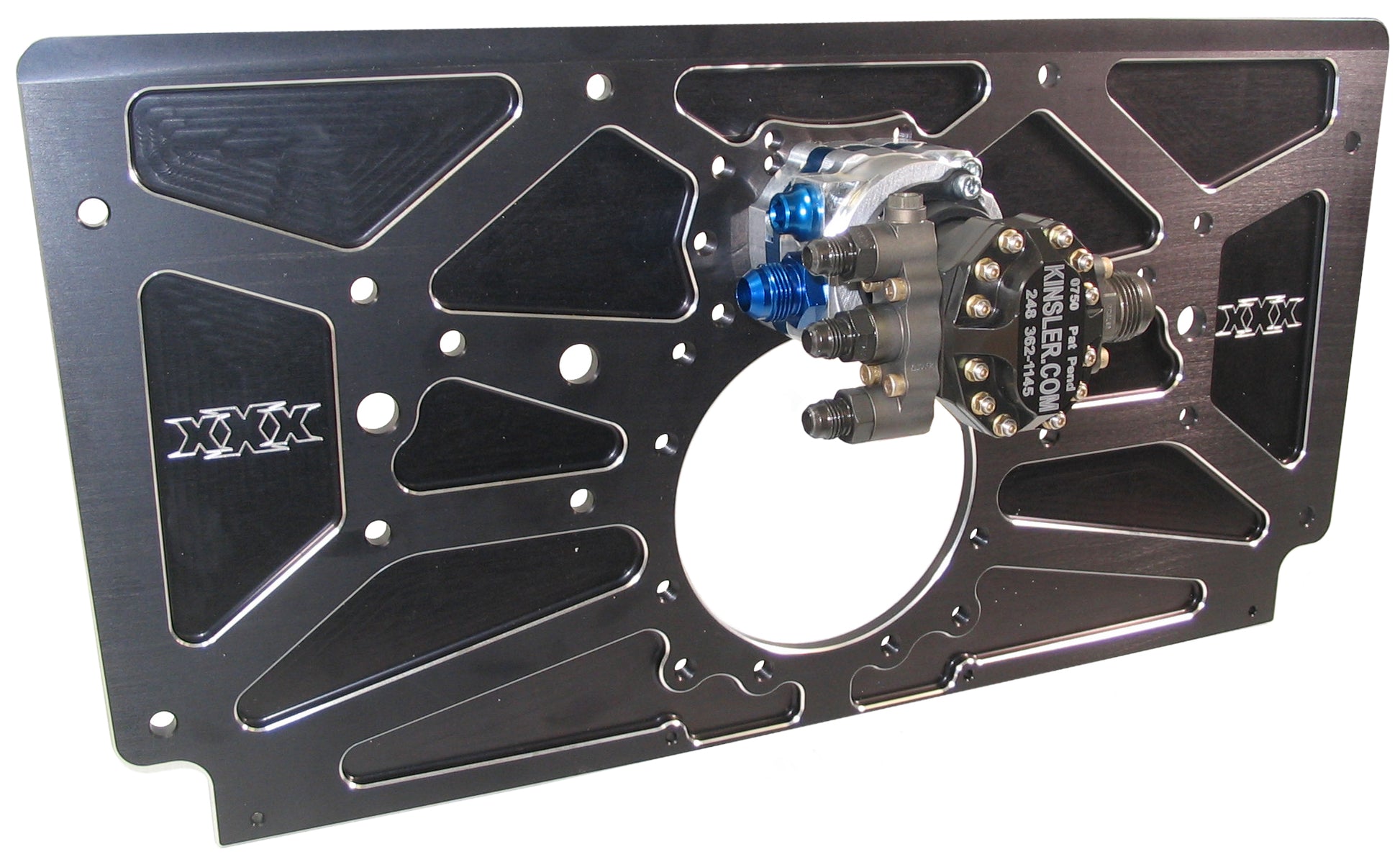

    SHOWN BELOW MOUNTED TO A SPRINT CAR MOTOR PLATE WITH A KSE POWER STEERING PUMP:

    2 PIECE FEMALE HEX SHAFT ALLOWS FOR A SMALL AMOUNT OF MISALIGNMENT:
