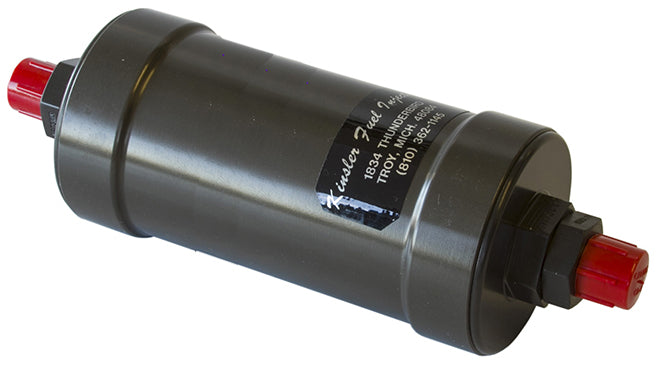

MEGA MONSTER MESH FILTER,-12AN,45 MICRON

BRAND NEW KINSLER HARD-ANODIZED MEGA MONSTER MESH FUEL FILTER ASSEMBLY WITH 45 MICRON STAINLESS STEEL ELEMENT AND -12 END CAPS (PART #8456-045).

KINSLER MONSTER MESH FUEL FILTERS ARE FOR HIGH PRESSURE APPLICATIONS. THEY ARE RATED TO 300 PSI OPERATING PRESSURE. THEY ARE USED FOR INJECTED OR CARBURETED FUEL SYSTEMS, TRANSMISSION, REAR END, AND ENGINE OIL. THEY ARE USED IN SPRINT CARS, MIDGETS, INDY CARS, DRAG RACING, STREET/STRIP, OFF-ROAD, ROAD RACE, MONSTER TRUCK, PULL TRUCKS, AND ALMOST ANY HIGH PERFORMANCE APPLICATION THAT REQUIRES A HIGH-END, HIGH-PRESSURE FUEL FILTER.

FEATURES:

• HOUSING DIAMETER: 2.46

• LENGTH WITH END CAPS: 8.46"

• STAINLESS STEEL ELEMENT:
  • 45 MICRON

  • 162" SQUARE MEDIA INCHES OF COVERAGE

• COMPATIBLE WITH GAS, METHANOL, AND NITROMETHANE

• END CAPS: -12 AN

• THE ELEMENT IS O-RING SEALED TO THE END CAP

• WE ALSO HAVE THESE FILTERS WITH A 25 MICRON ELEMENT, WITH -10AN ENDS AND A 25 MICRON ELEMENT, AND WITH

• -10AN ENDS AND A 45 MICRON ELEMENT

• IN ADDITION, WE HAVE A QUICK RELEASE T-BOLT TYPE STAINLESS STEEL MOUNTING BRACKET AVAILABLE

KINSLER MONSTER MESH FUEL FILTERS:

• WHY DO YOU NEED ONE? AN INJECTION SYSTEM THAT HAS BEEN PROPERLY CLEANED, FLOW TESTED, AND CALIBRATED, SHOULD BE GOOD FOR SEVERAL YEARS OF TROUBLE FREE SERVICE. THERE IS ONE GREMLIN THAT CAN CUT THIS TO ONE DAY, EVEN ONE MINUTE, PERHAPS EVEN A FEW SECONDS....DIRT. DIRT IS THE BIGGEST PROBLEM WITH ANY TYPE OF FUEL INJECTION SYSTEM.

• IN YEARS PAST, MANY OF THE RACERS RAN WITHOUT ANY FILTER, BECAUSE THE ONES ON THE MARKET WERE OF SUCH POOR DESIGN THAT THEY CAUSED MORE PROBLEMS THAN THEY SOLVED. THE SAME RACERS EXPERIENCED MANY PLUGGED NOZZLES, RUINED OR DAMAGED ENGINES, AND MANY FAILED TO FINISH A RACE. SINCE KINSLERS INTRODUCTION OF PROPERLY DESIGNED HIGH CAPACITY FILTERS, IT IS NOT WORTH THE RISK TO RUN WITHOUT ON. THE PROPER FILTER IS THE BEST INSURANCE AGAINST DIRT RELATED PROBLEMS IN YOUR FUEL INJECTION SYSTEM!

DESIGN:

• AN ELEMENT WITH PLEATS ALLOWS A VERY LARGE AMOUNT OF SURFACE AREA TO FIT INTO A COMPACT HOUSING, ALLOWING THE ASSEMBLY TO HAVE A VERY LOW PRESSURE DROP FOR TOP SYSTEM PERFORMANCE. DO NOT USE STONE-TYPE ELEMENTS; TYPICALLY THEY ARE TOO RESTRICTIVE AND CLOG UP VERY EASILY.

INSTALLATION:

• FUEL PUMP INLET: PUMPS ARE VERY SENSITIVE TO DISTURBANCE IN THE INLET HOSE. IT IS A MUST TO HAVE THE CORRECT FILTER OR IT WILL DAMAGE THE PUMP AND/OR CAUSE PROBLEMS. NEVER HAVE RETURN FUEL GOING BACK INTO THE PUMPS INLET HOSE. AS FUEL LEAVES THE PRESSURIZED SIDE OF THE FUEL SYSTEM AND ENTERS A NON-PRESSURE AREA, THE FUEL CAN FLASH VAPORIZE, CAUSING DAMAGE TO THE PUMP AND ERRATIC RUNNING CONDITIONS. FOR CONSTANT FLOW SYSTEM:

• WE RECOMMEND FILTERING ALL THE FUEL COMING OUT OF THE PUMP SO THAT ALL THE BYPASS VALVES AND THE BARREL VALVE RECEIVE FILTERED FUEL. DO NOT USE PAPER ELEMENT FILTERS ON THIS TYPE OF SYSTEM; BITS OF THE PAPER ELEMENT FROM THE "CLEAN" SIDE OF THE FILTER WILL CLOG THE NOZZLES AND/OR GLUE ON THE ELEMENT MAY DISSOLVE IN METHANOL CAUSING THE ELEMENT TO SEPARATE. DO NOT USE PAINT STRAINERS OR OTHER CLOTH FILTERS TO FILL THE TANK, AS LINT FROM THEM MAY PLUG THE NOZZLES.

FOR EFI SYSTEMS:

• THE ELECTRIC FUEL PUMPS USED ON EFI SYSTEMS ARE SUSCEPTIBLE TO DIRT. CAREFULLY READ ALL INFORMATION ON FUEL FILTERS FOR PUMP INLETS. PRESSURE RELIEF VALVES ARE ALSO SUSCEPTIBLE TO SMALL DIRT PARTICLES. USING THE PROPER FILTER AND KEEPING IT CLEAN IS VERY IMPORTANT. EFI INJECTORS HAVE INLET FILTERS WITH VERY LITTLE SURFACE AREA, WHICH MEANS THEY CAN NOT HANDLE LARGE AMOUNTS OF DIRT/DEBRIS. PROPER FUEL FILTRATION SHOULD BEGIN AT THE FUEL TANK TO PROTECT THE PUMP AND THE FUEL SYSTEM COMPONENTS. WE RECOMMEND, WHENEVER POSSIBLE, TO FILTER THE FUEL BEFORE IT ENTERS THE TANK. ROAD VEHICLES WITH ELECTRIC FUEL PUMPS SHOULD HAVE A FILTER TO PROTECT THE FUEL PUMP.

FOR LUCAS MECHANICAL SYSTEM:

• DUE TO THE EXTREMELY TIGHT TOLERANCE IN THE LUCAS EQUIPMENT, THERE ARE SEVERAL FILTERS THROUGHOUT THE SYSTEM. MECHANICAL PUMP INLET, MAIN HOSE FROM THE PUMP TO METERING UNIT, METERING UNIT INLET FITTING, AND ON EACH INJECTOR. A LUCAS SYSTEM MUST BE KEPT 100% CLEAN. THE SMALLEST DIRT PARTICLE CAN MEAN DISASTER.
