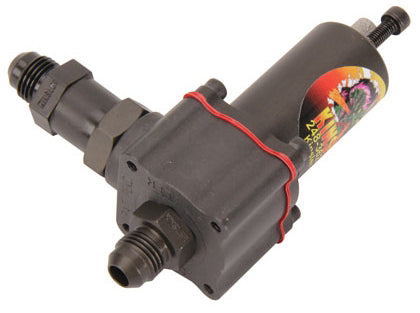

HI SPEED BYPASS VALVE,K-140,-6 AN,57-123

BRAND NEW KINSLER K140 ADJUSTABLE HIGH SPEED BYPASS VALVE (OR FUEL CHECK VALVE), 57-123 PSI (PART #3971).

FEATURES:

• THIS VALVE HAS THE HIGHEST FLOW CAPACITY WITH THE LOWEST PRESSURE RISE OF ANY VALVE ON THE MARKET.




• FOR MOST APPLICATIONS, THE RISE IS UNDER 1 PSI, SINCE THE TOTAL BYPASS FLOW FOR MOST SYSTEMS IS 600 LBS/HOUR OR LESS




• EXTREMELY SMOOTH OPERATION




• THE CLOSING FLOW CURVE IS WITHIN 0.3 (3/10) PSI AT ANY FLOW POINT ON THE OPENING CURVE.




• THIS IS ACHIEVED BY HARD-COATING, THEN MICRO-LAPPING ALL OF THE MOVING PARTS.




• THIS MEANS THE PRESSURE IN THE FUEL SYSTEM WILL STAY CLOSE TO THE SET POINT ON BOTH RISING AND FALLING ENGINE RPM.




• MANY VALVES CAN GO INTO A "BUZZ" (HYDRAULIC VIBRATION). THIS VALVE IS MORE STABLE, AS IT IS THE ONLY VALVE ON THE MARKET WITH A UNIQUE SPRING ARRANGEMENT DESIGNED TO CONTROL BUZZ




• THE DIAPHRAGM HAS A SWIVELING "LIVE" CENTER PINTLE (SHOWN BELOW) THAT CLOSES DOWN ON THE SEAT FOR VERY SMOOTH OPERATION. BOTH THE PINTLE AND THE SEAT ARE LAPPED FOR BUBBLE TIGHT CLOSE-OFF




• HARD ANODIZED ALUMINUM HOUSING COMPONENTS AND A VERY COMPACT DESIGN MAKES THE PIECE LIGHTER AND EASIER TO INSTALL IN THE VEHICLE




• COMPONENTS ARE COMPATIBLE WITH GASOLINE AND METHANOL




• ACCEPTS KINSLER AND HILBORN JETS; HAS JET SEALING O-RING FOR RESTRICTOR JET




• WEIGHS ONLY APPROXIMATELY 0.45 LBS




• -6 AN PORTS




• 57 PSI TO 123 PSI




• ALSO KNOWN AS A JET CAN




WE HAVE MANY KINSLER PARTS AVAILABLE FOR THIS VALVE

INCLUDING:

• MOUNTING BRACKET




• DIAPHRAGM AND PINTLE




• REPLACEMENT VENT BREATHER, SPRINGS, AND JET HOLDER




• AS WELL AS OTHER KINSLER BYPASS VALVES

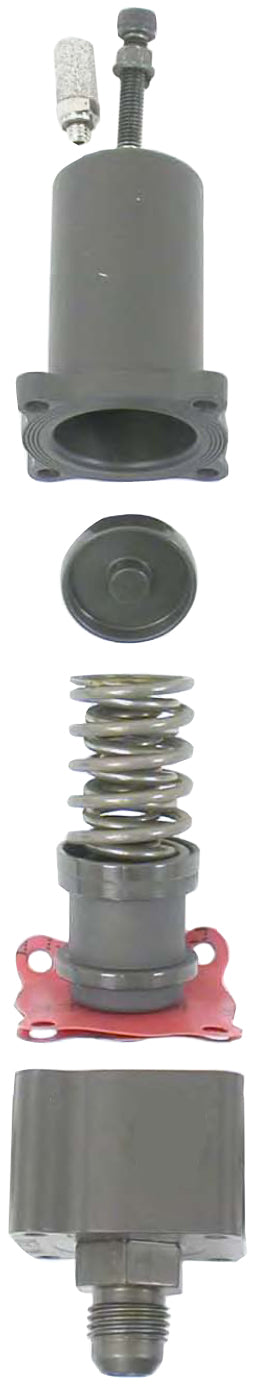

EXPLODED VIEW OF THE KINSLER K-140 VALVE:

CLOSE-UP OF LIVE-ACTION PINTLE:
