ROLL CONTROL KIT,79-86 MUSTANG,W/O ABS

BRAND NEW HURST ROLL/CONTROL, LINE/LOC KIT, COMPATIBLE WITH 1979-1983 5.0L & 1979-1986 FОRD МUSTANG 2.3L WITHOUT ABS

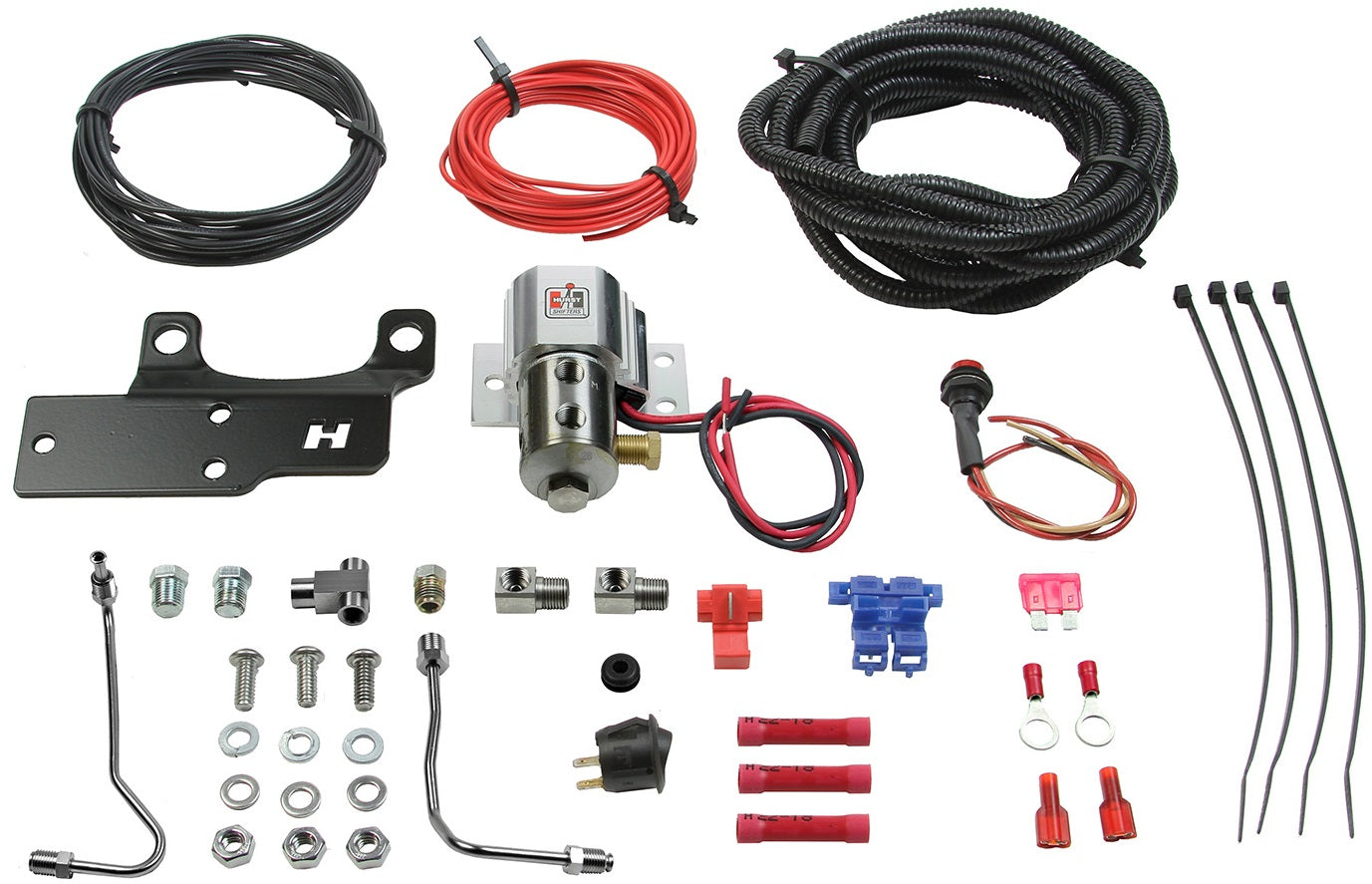

THE HURST ROLL/CONTROL, LINE/LOC KIT FOR YOUR 1979-1983 FОRD МUSTANG 5.0L AND 1979-1986 FОRD МUSTANG 2.3L COMES WITH ALL THE NECESSARY PARTS NEEDED TO EASILY INSTALL A HURST LINE/LOC SYSTEM ON YOUR VEHICLE. INCLUDES A STAINLESS STEEL ROLL/CONTROL VALVE, BRAKE LINE, FITTINGS, LIGHTED MOMENTARY SWITCH, BRACKET, WIRING, AND MUCH MORE. RIGOROUS TESTING HAS PROVED A 1/100,000 OF A SECOND RELEASE TIME AND VIBRATION TESTS HAVE SEEN UP TO 30 GS APPLIED WITHOUT MECHANICAL FAILURE.

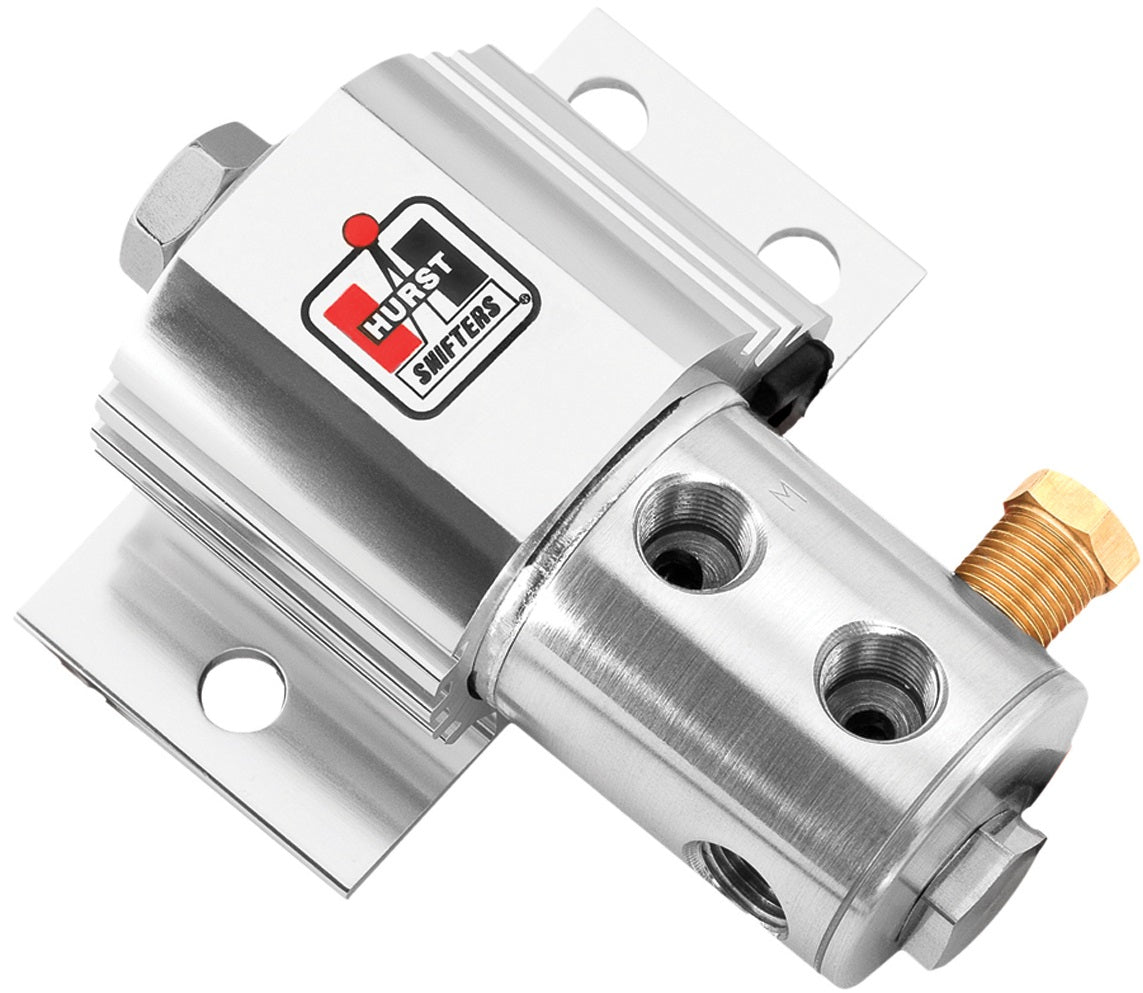

UTILIZES A STAINLESS STEEL VALVE ASSEMBLY. OTHER FEATURES INCLUDE A FULLY ENCLOSED EPОXY-MOLDED ELECTRICAL COIL FOR RELIABILITY, AN ATTRACTIVE FINNED ALUMINUM HOUSING THAT HELPS DISSIPATE HEAT, AND A WIDER LIGHTWEIGHT BASE THAT PROVIDES BETTER MOUNTING STABILITY & 150-MІCRON SCREEN-FІLTERED PORTS. THE ROLL/CONTROL KIT IS FIELD SERVICEABLE FOR CLEANING OR REBUILDING AND COMES WITH AN EXTRA THREADED PORT FOR A SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE. ALSO INCLUDES A SNAP-ACTION SWITCH, INDICATOR LIGHT, 4-AMP FUSE, MOUNTING SCREWS & INSTALL INSTRUCTIONS.

NOTE: NOT RECOMMENDED FOR USE AS A PARKING BRAKE, OR FOR LONGER THAN 60 SECONDS MAXIMUM AT ANY ONE TIME.

NOTE: DESIGNED PRIMARILY FOR HIGH-PERFORMANCE RACE CARS TO MOMENTARILY ENGAGE FRONT BRAKES (MAX 60 SECONDS) WHILE STAGING FOR A DRAG RACE. IT WILL NOT SAFELY FUNCTION AS A LONG-TERM BRAKE HOLDING DEVICE. IT SHOULD BE USED ONLY ON SPECIFIED APPLICATIONS WITH A STANDARD HYDRAULIC BRAKING SYSTEM.

NOTE: IT SHOULD NEVER BE USED AS A TEMPORARY BRAKE-HOLDING DEVICE IN PLACE OF A PARKING BRAKE OR A DRIVER DEPRESSING THE BRAKE PEDAL. WE DO NOT RECOMMEND INSTALLING THE SYSTEM ON VEHICLES EQUIPPED WITH ANTI-LOCK OR SPLIT DIAGONAL BRAKE SYSTEMS.

COMPATIBLE WITH:

• FORD:
• 1978-1986 МUSTANG

FEATURES:

• EXTRA THREADED PORT FOR SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE
• STAINLESS STEEL VALVE ASSEMBLY
• 150 MІCRON SCREEN FІLTERED PORTS
• CAN BE USED TO HOLD BRAKES FOR UP TO 60 SECONDS MAXIMUM
• ATTRACTIVE FINNED ALUMINUM HOUSING HELPS DISSIPATE HEAT
• FIELD SERVICEABLE FOR CLEANING OR REBUILDING
• FULLY ENCLOSED, EPОXY-MОLDED COIL

SPECS:

• AMP RATING: 4
• APPLICATION: 1979-1986 FОRD МUSTANG (84-86 2.3L ONLY)
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE
• BRAND: HURST
• INLET PORT: FEMALE
• INLET PORTS: 1
• INLET THREAD SIZE: 1/8"
• INSTALLATION HARDWARE INCLUDED: YES
• LIGHTED SWITCH: YES
• MATERIAL: STAINLESS STEEL
• MOUNTING METHOD: UNIVERSAL SCREW ON BRACKET
• OUTLET PORT: FEMALE
• OUTLET PORTS: 3
• OUTLET THREAD SIZE: 1/8"
• PRODUCT TYPE: BRAKE LINE LOCK KIT
• SWITCH ACTUATION TYPE: PUSH BUTTON
