ROLL CONTROL KIT,87-93 MUSTANG,W/O ABS

ROLL CONTROL KIT,87-93 MUSTANG,W/O ABS

SKU:HUR 5671522

Regular price $289.95
Regular price Sale price $289.95
View full details

BRAND NEW HURST ROLL/CONTROL, LINE/LOC KIT, COMPATIBLE WITH 1987-1993 FORD MUSTANG 2.3L WITHOUT ABS

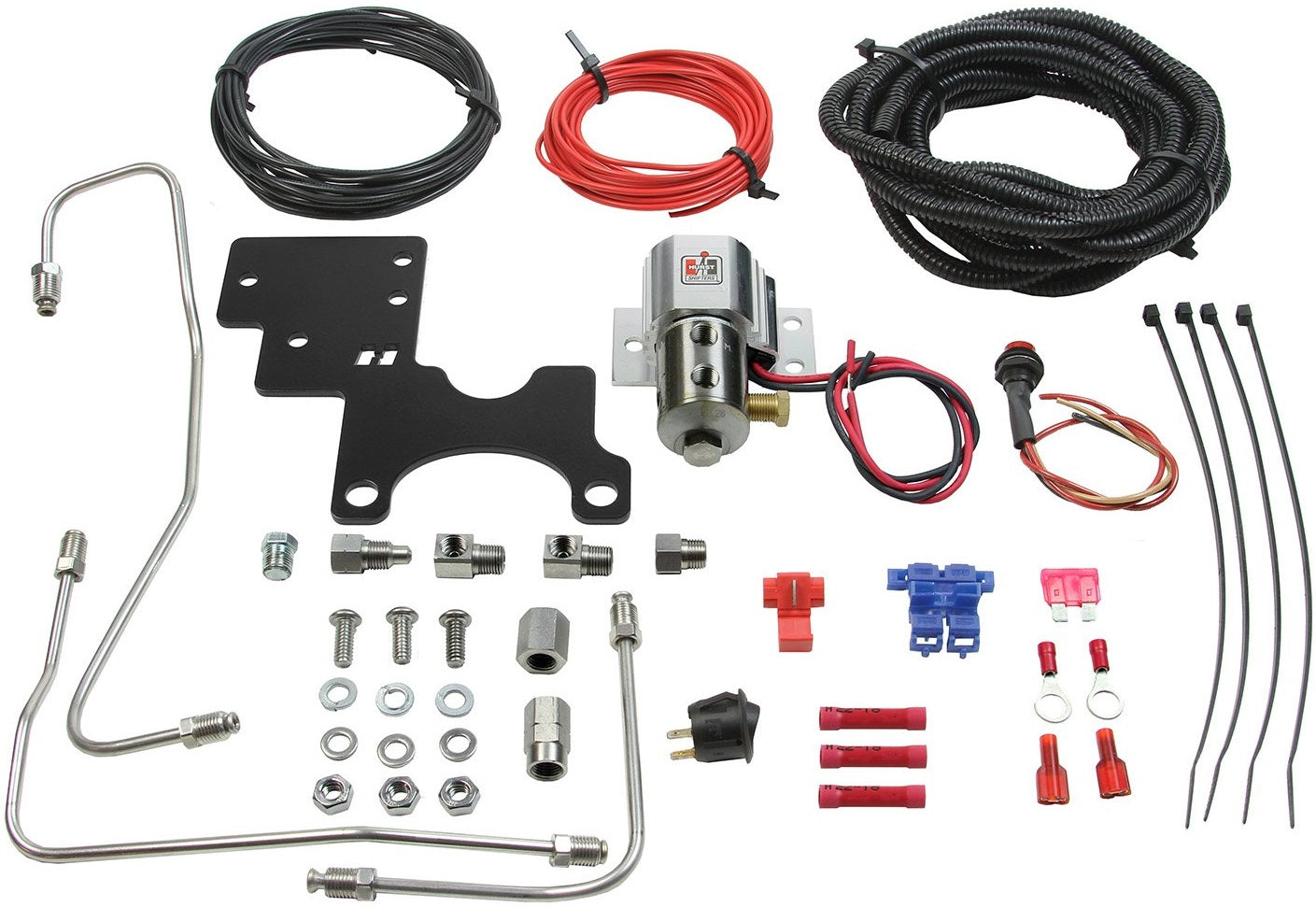

THIS KIT COMES WITH ALL THE NECESSARY PARTS NEEDED TO EASILY INSTALL A HURST LINE/LOC SYSTEM ON YOUR VEHICLE. INCLUDES A STAINLESS STEEL ROLL/CONTROL VALVE, BRAKE LINE, FITTINGS, LIGHTED MOMENTARY SWITCH, BRACKET, WIRING, AND MUCH MORE. RIGOROUS TESTING HAS PROVED A 1/100,000 OF A SECOND RELEASE TIME AND VIBRATION TESTS HAVE SEEN UP TO 30 GS APPLIED WITHOUT MECHANICAL FAILURE.

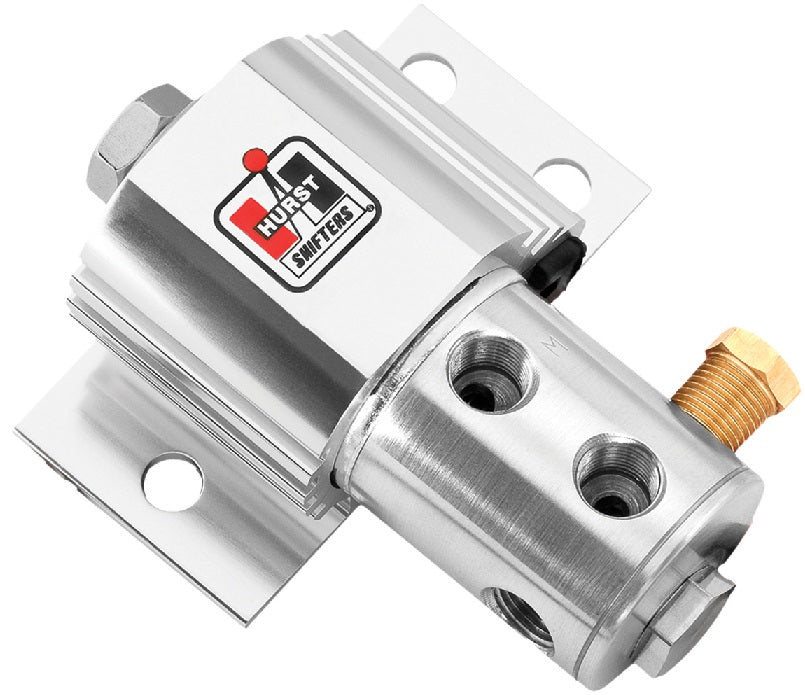

UTILIZES A STAINLESS STEEL VALVE ASSEMBLY. OTHER FEATURES INCLUDE A FULLY ENCLOSED EPOXY-MOLDED ELECTRICAL COIL FOR RELIABILITY, AN ATTRACTIVE FINNED ALUMINUM HOUSING THAT HELPS DISSIPATE HEAT, AND A WIDER LIGHTWEIGHT BASE THAT PROVIDES BETTER MOUNTING STABILITY & 150-MICRON SCREEN-FILTERED PORTS. THE ROLL/CONTROL KIT IS FIELD SERVICEABLE FOR CLEANING OR REBUILDING AND COMES WITH AN EXTRA THREADED PORT FOR A SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE. ALSO INCLUDES A SNAP-ACTION SWITCH, INDICATOR LIGHT, 4-AMP FUSE, MOUNTING SCREWS & INSTALL INSTRUCTIONS.

NOTE: NOT RECOMMENDED FOR USE AS A PARKING BRAKE, OR FOR LONGER THAN 60 SECONDS MAXIMUM AT ANY ONE TIME.

NOTE: DESIGNED PRIMARILY FOR HIGH-PERFORMANCE RACE CARS TO MOMENTARILY ENGAGE FRONT BRAKES (MAX 60 SECONDS) WHILE STAGING FOR A DRAG RACE. IT WILL NOT SAFELY FUNCTION AS A LONG-TERM BRAKE HOLDING DEVICE. IT SHOULD BE USED ONLY ON SPECIFIED APPLICATIONS WITH A STANDARD HYDRAULIC BRAKING SYSTEM.

NOTE: IT SHOULD NEVER BE USED AS A TEMPORARY BRAKE-HOLDING DEVICE IN PLACE OF A PARKING BRAKE OR A DRIVER DEPRESSING THE BRAKE PEDAL. WE DO NOT RECOMMEND INSTALLING THE SYSTEM ON VEHICLES EQUIPPED WITH ANTI-LOCK OR SPLIT DIAGONAL BRAKE SYSTEMS.

COMPATIBLE WITH:

  • FORD:
    • 1987-1993 MUSTANG

FEATURES:

  • EXTRA THREADED PORT FOR SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE
  • STAINLESS STEEL VALVE ASSEMBLY
  • 150 MICRON SCREEN FILTERED PORTS
  • CAN BE USED TO HOLD BRAKES FOR UP TO 60 SECONDS MAXIMUM
  • ATTRACTIVE FINNED ALUMINUM HOUSING HELPS DISSIPATE HEAT
  • FIELD SERVICEABLE FOR CLEANING OR REBUILDING
  • FULLY ENCLOSED, EPOXY-MOLDED COIL

SPECS:

  • AMP RATING: 4
  • AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE
  • BRAND: HURST
  • INLET PORT: FEMALE
  • INLET PORTS: 1
  • INLET THREAD SIZE: 1/8"
  • INSTALLATION HARDWARE INCLUDED: YES
  • LIGHTED SWITCH: YES
  • MATERIAL: STAINLESS STEEL
  • MOUNTING METHOD: UNIVERSAL SCREW ON BRACKET
  • OUTLET PORT: FEMALE
  • OUTLET PORTS: 3
  • OUTLET THREAD SIZE: 1/8"
  • PRODUCT TYPE: BRAKE LINE LOCK KIT
  • SWITCH ACTUATION TYPE: PUSH BUTTON
