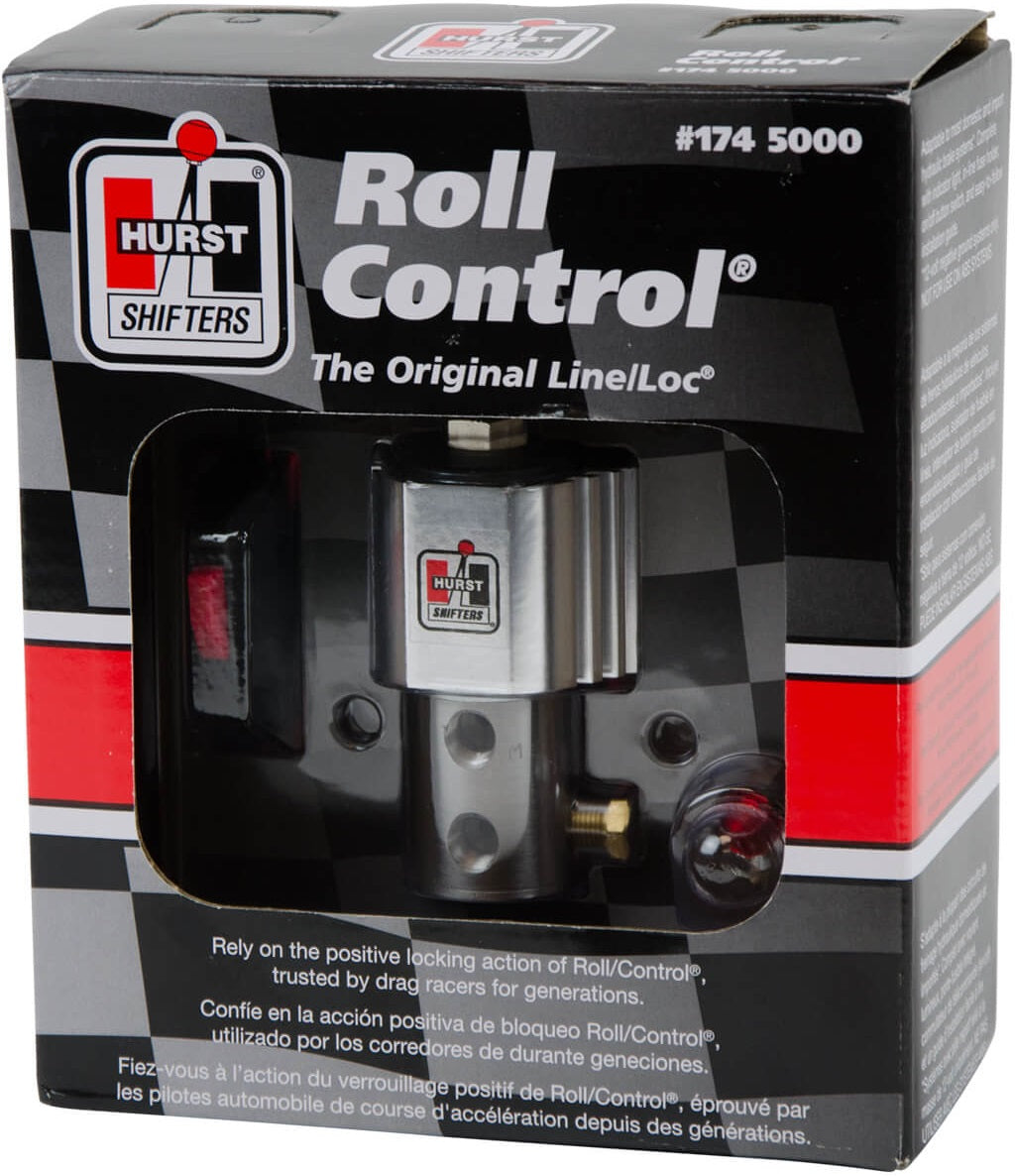

ROLL CONTROL,LINE-LOC

BRAND NEW HURST UNIVERSAL LAUNCH CONTROL UNIVERSAL KIT WITH STAINLESS STEEL VALVE, 1/8" INLET & OUTLET SIZE, 3 OUTLET PORTS

HURST ROLL/CONTROL IS USED PRIMARILY IN DRAG RACING TO PROVIDE POSITIVE LOCKING ACTION TO THE FRONT WHEELS OF RACE CARS, REDUCING THE CHANCE OF "ROLLING THE LIGHTS" AND PRODUCING MORE EFFECTIVE "BURN OUTS" FOR HEATING UP THE TIRES. RIGOROUS TESTING HAS PROVED A 1/100,000 OF A SECOND RELEASE TIME AND VIBRATION TESTS HAVE SEEN UP TO 30 GS APPLIED WITHOUT MECHANICAL FAILURE.

ADAPTABLE TO MOST DOMESTIC & IMPORT HYDRAULIC BRAKE SYSTEMS. ADVANCED QUALITY DESIGN STAINLESS STEEL VALVE ASSEMBLY FOR ULTIMATE CORROSION RESISTANCE. FULLY ENCLOSED EPOXY MOLDED ELECTRICAL COIL FOR RELIABILITY. ATTRACTIVE FINNED ALUMINUM HOUSING HELPS DISSIPATE HEAT. WIDER LIGHTWEIGHT BASE PROVIDES BETTER MOUNTING STABILITY 150 MICRON SCREEN FILTERED PORTS TO PREVENT CONTAMINATION.

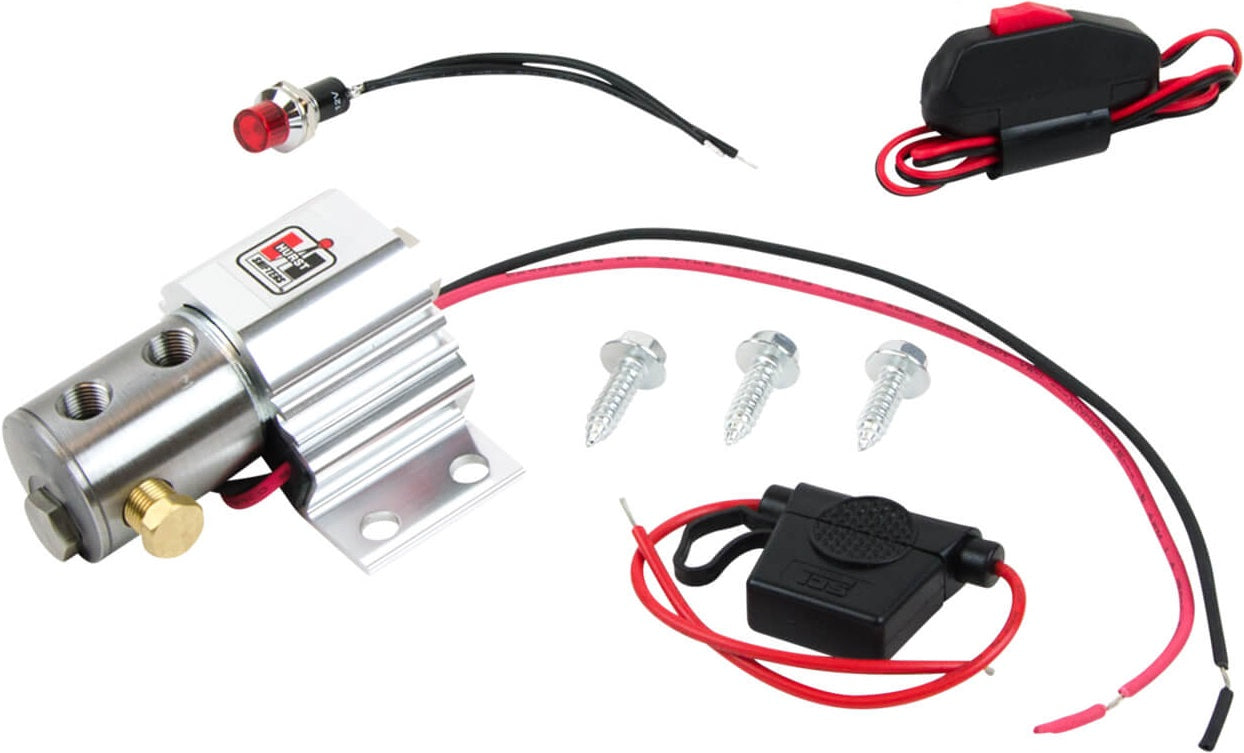

FIELD SERVICEABLE FOR CLEANING OR REBUILDING. EXTRA THREADED PORT FOR SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE KIT INCLUDES SOLENOID VALVE, SNAP-ACTION SWITCH, INDICATOR LIGHT, 4-AMP FUSE, MOUNTING SCREWS AND INSTALLATION INSTRUCTIONS.

NOTE: NOT RECOMMENDED FOR USE AS A PARKING BRAKE, OR FOR LONGER THEN 60 SECONDS MAXIMUM AT ANY ONE TIME.

FEATURES:

• EXTRA THREADED PORT FOR SEPARATE BLEEDER OR BRAKE LINE PRESSURE GAUGE
• STAINLESS STEEL VALVE ASSEMBLY FOR ULTIMATE CORROSION RESISTANCE
• 150 MICRON SCREEN FILTERED PORTS HELP PREVENT CONTAMINATION
• CAN BE USED TO HOLD BRAKES FOR UP TO 60 SECONDS MAXIMUM
• ATTRACTIVE FINNED ALUMINUM HOUSING HELPS DISSIPATE HEAT
• FIELD SERVICABLE FOR CLEANING OR REBUILDING
• FULLY ENCLOSED, EPOXY-MOLDED COIL

SPECS:

• ADDITIONAL CONTENTS: SOLENOID VALVE, SNAP ACTION SWITCH, INDICATOR LIGHT, 4 AMP FUSE & MOUNTING SCREWS
• AMP RATING: 4
• AUTOMOTIVE ITEM GRADE: HIGH PERFORMANCE
• INLET PORT GENDER: FEMALE
• INLET PORTS: 1
• INLET THREAD SIZE: 1/8"
• INSTALLATION HARDWARE INCLUDED: YES
• LIGHTED SWITCH: YES
• MATERIAL: STAINLESS STEEL
• MOUNTING METHOD: BOLT ON, BRACKET INCLUDED
• OUTLET PORT GENDER: FEMALE
• OUTLET PORTS: 3
• OUTLET THREAD SIZE: 1/8"
• PRODUCT TYPE: BRAKE LINE LOCK KIT
• SWITCH ACTUATION TYPE: 3.5
• TERMINAL TYPE: RAW WIRE
• CALIFORNIA PROPOSITION 65 CHEMICAL NAME: CHROMIUM (HEXAVALENT COMPOUNDS) LEAD
• CALIFORNIA PROPOSITION 65 REQUIRED: YES

YOU CAN VIEW AND DOWNLOAD THE COMPLETE ASSEMBLY INSTRUCTION BOOKLETS FOR THIS BRAKE LINE KIT HERE.
